Ravak Umyvadlo Classic 600, 700, 800 L, R Installation Guide

UMYVADLO CLASSIC 600
700
800 L, R
INSTALLATION INSTRUCTIONS

UMYVADLO Classic 600, 700, 800 L, R

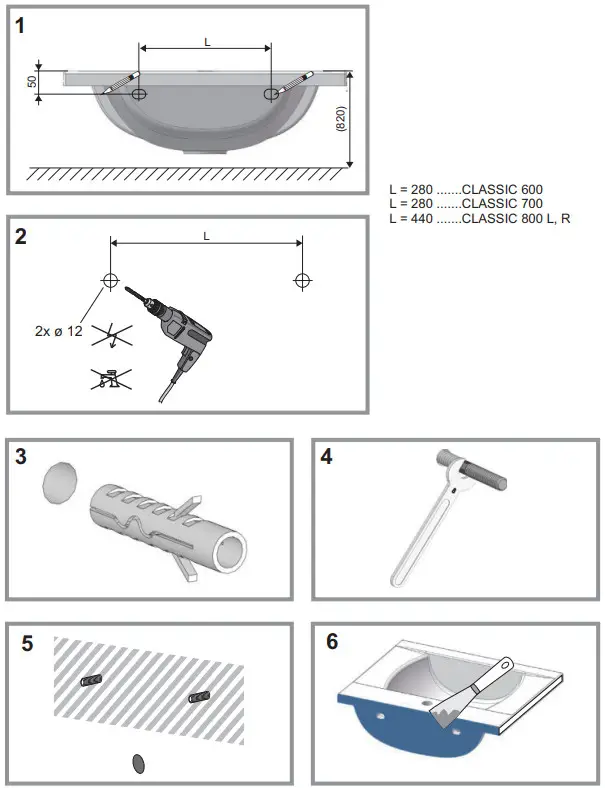

In order to secure the correct functioning, the product may be fitted only to solid walls of bathrooms made of full bricks or concrete for which the enclosed wall plugs with screws are designed. When installing on the specific materials of the walls (porous concrete, hollow bricks, or plasterboard) it is necessary to reinforce the place where the washbowl is positioned, by the structure with sufficient load-carrying capacity and use the corresponding wall plugs and screws.

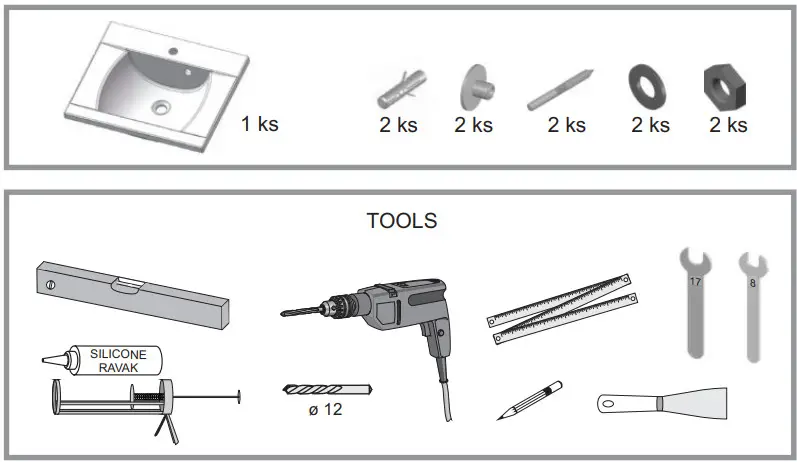

Separator, e. g. liquid soap
White cement

MAINTENANCE

Clean the plastic parts with a cloth and mild detergent. Never use any abrasive pastes, dissolvents, acetone, or detergents and disinfectant, that contain chlorine. The manufacturer accepts no liability for any type of use or care other than those contained in these instructions. The manufacturer reserves the right to introduce technical changes without notice. For further information about assembly, use, and care contact your local dealer.
The manufacturer recommends: RAVAK CLEANER – works to remove old and dried-on debris from glass surfaces, shower frames, enamel and acrylic bathtubs, washbasins, and water taps; RAVAK DISINFECTANT – is a special preparation with considerable antibacterial and anti-fungal effects.

For further information, contact your local Ravak dealer.
The manufacturer reserves the right to amend or improve on existing designs or features.
Please help preserve the environment by observing local country guidelines or laws regarding recycling. Materials that are not suitable for recycling must be disposed of at an official and suitable waste control center.

RAVAK a.s., Obecnická 285, 261 01 Pøíbram I, ÈR
tel.: +420 318 427 111, fax: +420 318 427 278.
e-mail: [email protected],
web: www.ravak.cz
OOO RAVAK ru, ul.
Staropetrovskiy pr. 7A , Moskva 125 130,
tel./fax: 007 495 710 82 23, 007 495 450 12 77
e-mail: [email protected],
web: www.ravak.com

RAVAK a.s., Obecnická 285, 261 01 Pøíbram I
tel.: +420 318 427 200, 318 427 111 fax: +420 318 427 269
e-mail: [email protected], www.ravak.com
01082019
