SRV2-S, ASRV3, APSS Shower Enclosure
Installation Guide

SRV2-S – 75, 80, 90, 100
ASRV3 – 75, 80, 90,
+ APSS, PSS – 75, 80, 90

Contents hide

1 SRV2-S, ASRV3, APSS Shower Enclosure

2 For further information, contact your local Ravak dealer.

3 Maintenance

4 Documents / Resources

4.1 References

5 Related Posts

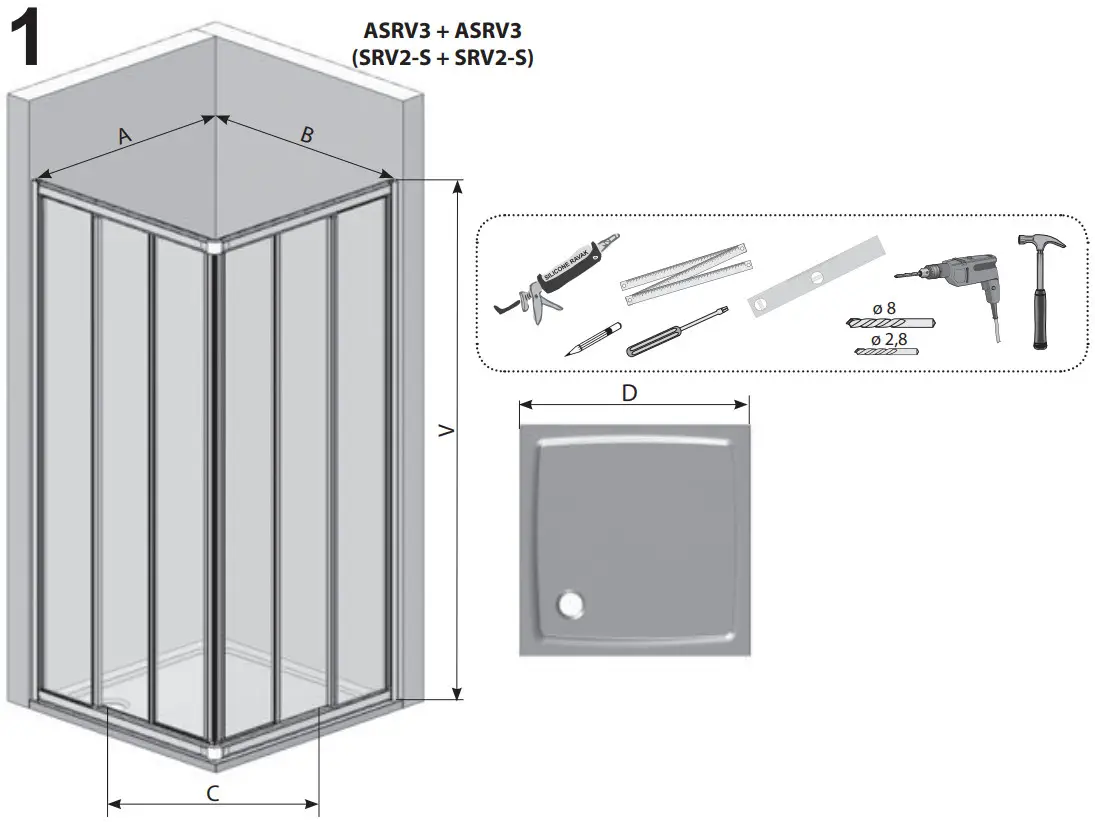

SRV2-S, ASRV3, APSS Shower Enclosure

TYP	A	B	C	D	V
ASRV3 75 + ASRV3 75	720 – 740	720 – 740	495		1880
ASRV3 80 + ASRV3 80	770 – 790	770 – 790	543	800	1880
ASRV3 90 + ASRV3 90	870 – 890	870 – 890	635	900	1880
ASRV3 100 + ASRV3 100	970 – 990	970 – 990	670	1000	1880
ASRV3 75 + ASRV3 90	720 – 740	870 – 890	570		1880
SRV2-S 75 + SRV2-S 75	720 – 740	720 – 740	396		1850
SRV2-S 80 + SRV2-S 80	770 – 790	770 – 790	431	800	1850
SRV2-S 90 + SRV2-S 90	870 – 890	870 – 890	504	900	1850
SRV2-S 100 + SRV2-S 100	970 – 990	970 – 990	530	1000	1850
SRV2-S 75 + SRV2-S 90	720 – 740	870 – 890	454		1850

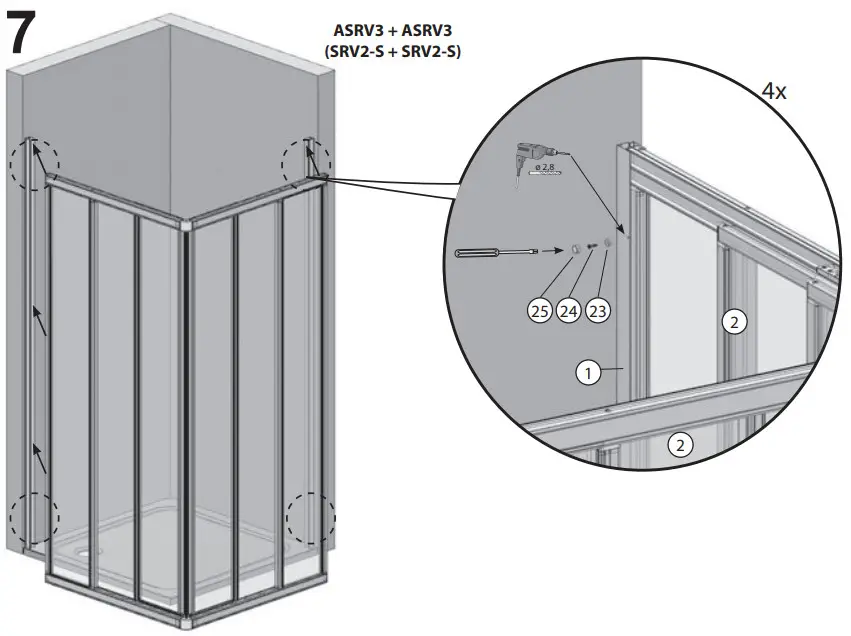

SRV2-S + SRV2-S / ASRV3 + ASRV3 + PSS/APSS -75, 80, 90

For further information, contact your local Ravak dealer.

The manufacturer reserves the right to amend or improve on existing designs or features. Please help preserve the environment by observing local country guidelines or laws regarding recycling. Materials which are not suitable for re-cycling must be disposed of at an official and suitable waste control centre.

Maintenance

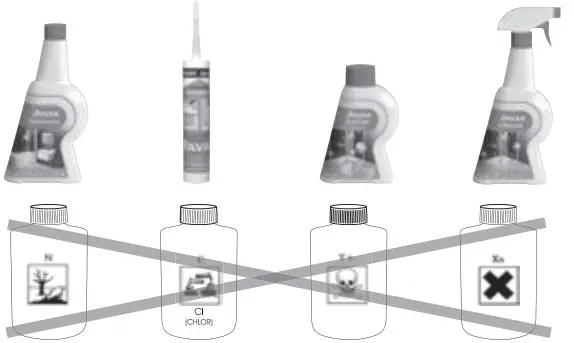

Clean the plastic parts with a cloth and mild detergent. never use any abrasive pastes, dissolvents, acetone or detergents and disinfectants, that contain chlorine. the manufacturer accepts no liability for any type of use or care other than those contained in these instructions. The manufacturer reserves the right to introduce technical changes without notice. For further information about assembly, use, and care contact your local dealer.
The manufacturer recommends: RAVAK AntiCalc Conditioner a preparation which perfectly renews and maintains all the qualities of the RAVAK AntiCalc coating; RAVAK CLEANER – works to remove old and dried-on debris from glass surfaces, shower frames, enamel and acrylic bathtubs, washbasins and water taps; RAVAK DISINFECTANT – is a special preparation with considerable anti-bacterial and anti-fungal effects.

RAVAK a.s.,
Representative Office in Ukraine,
21 Dniprovska Naberezhna str.,
2nd floor, 02081, Kyiv, Ukraine
tel.: 00380 44 2203232, 00380 44 3605200,
fax: 00380 44 2204343,
e-mail: [email protected]
web: www.ravak.ua

RAVAK a.s.,
Obecnická 285, 261 01 Příbram I
tel.: +420 318 427 200, 318 427 111
fax: +420 318 427 269
e-mail: [email protected]
www.ravak.com
Version: 21052020
