Ravak Pivot Pskk3 Shower Enclosure Installation Guide (+ PDF)

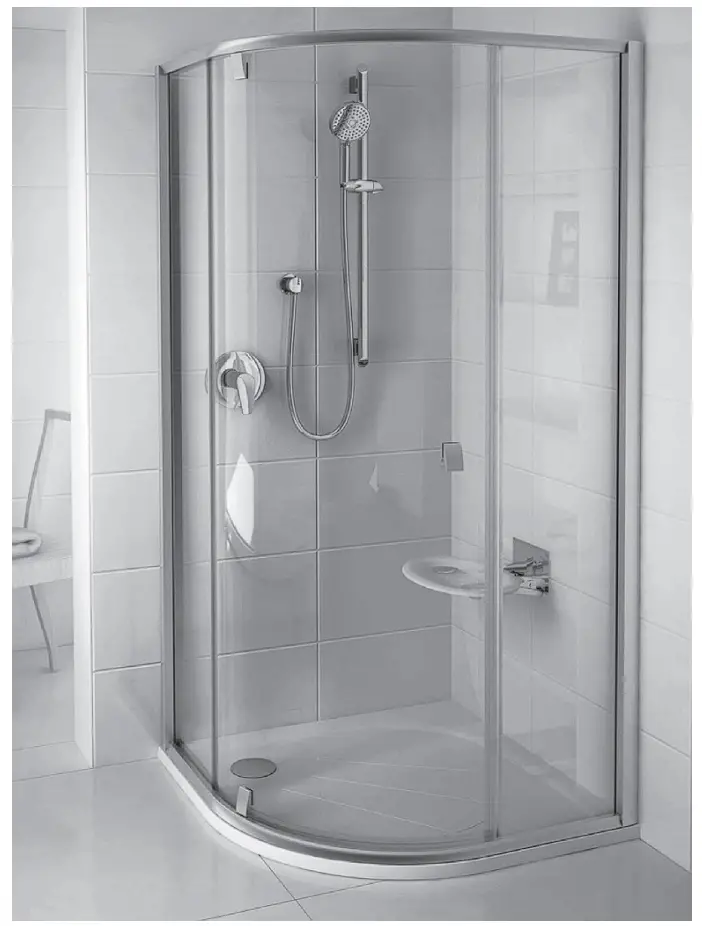

RAVAK Pivot PSKK3 shower enclosure

Contents hide

5 CLEANING AND MAINTENANCE

6 Documents / Resources

6.1 References

7 Related Posts

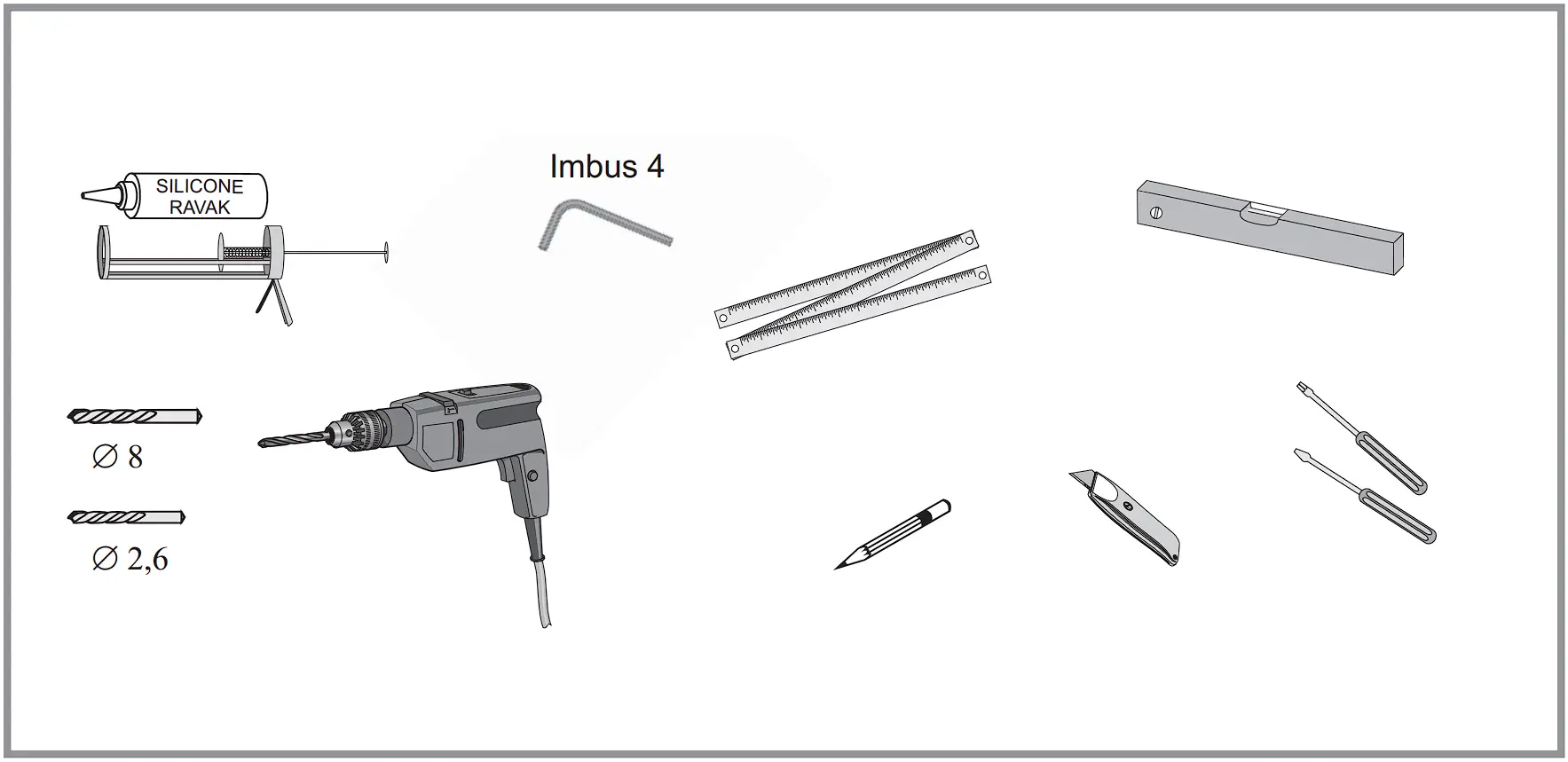

TOOLS

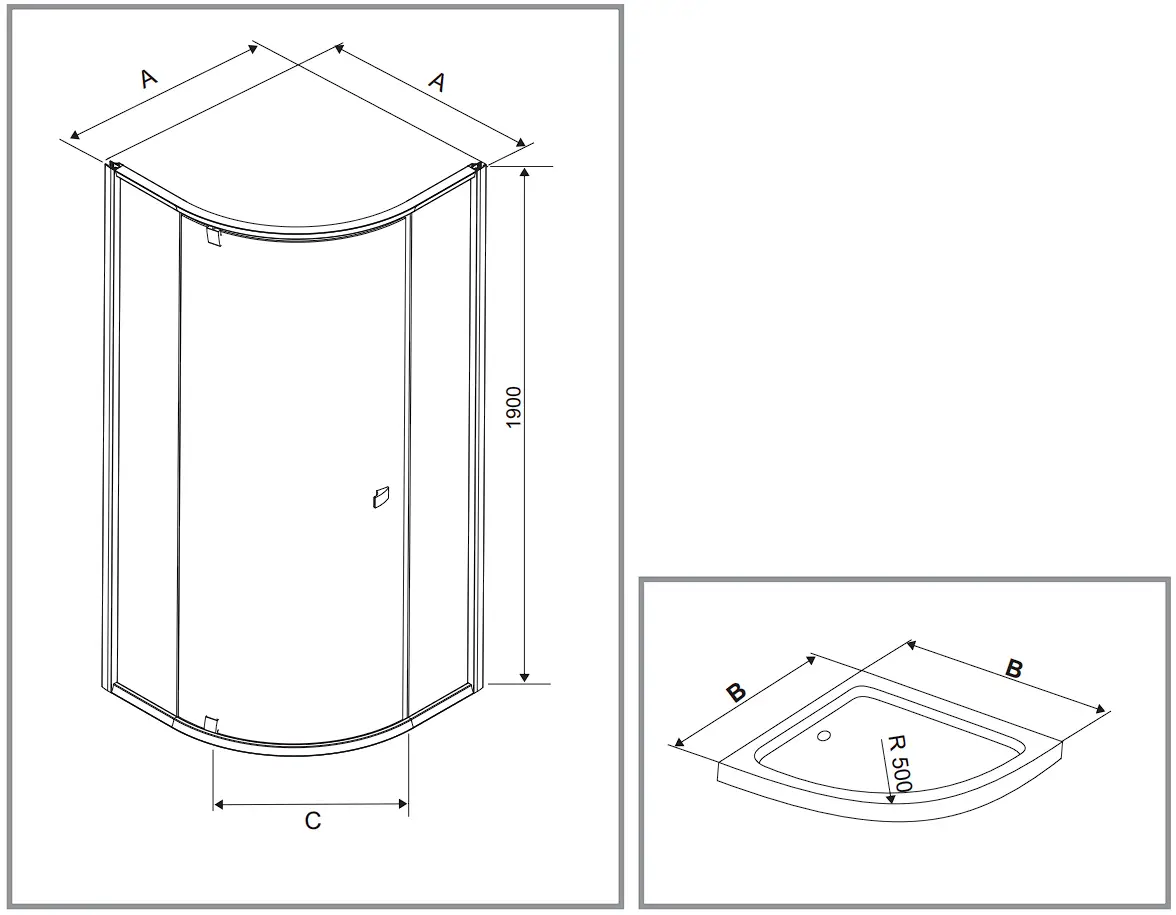

TYP	A	B	C	min D max
PSKK3-80	780 – 795	800×800	470	765 – 780
PSKK3-90	880 – 895	900×900	470	865 – 880
PSKK3-100	980 – 995	1000×1000	470	965 – 980

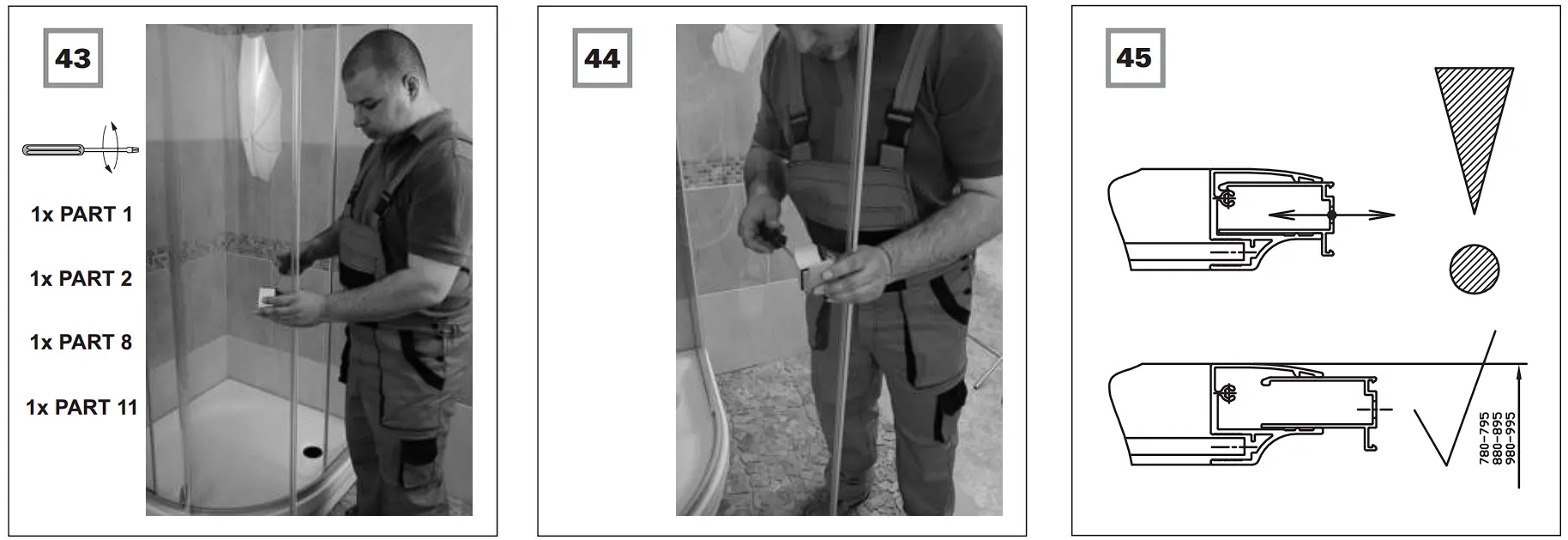

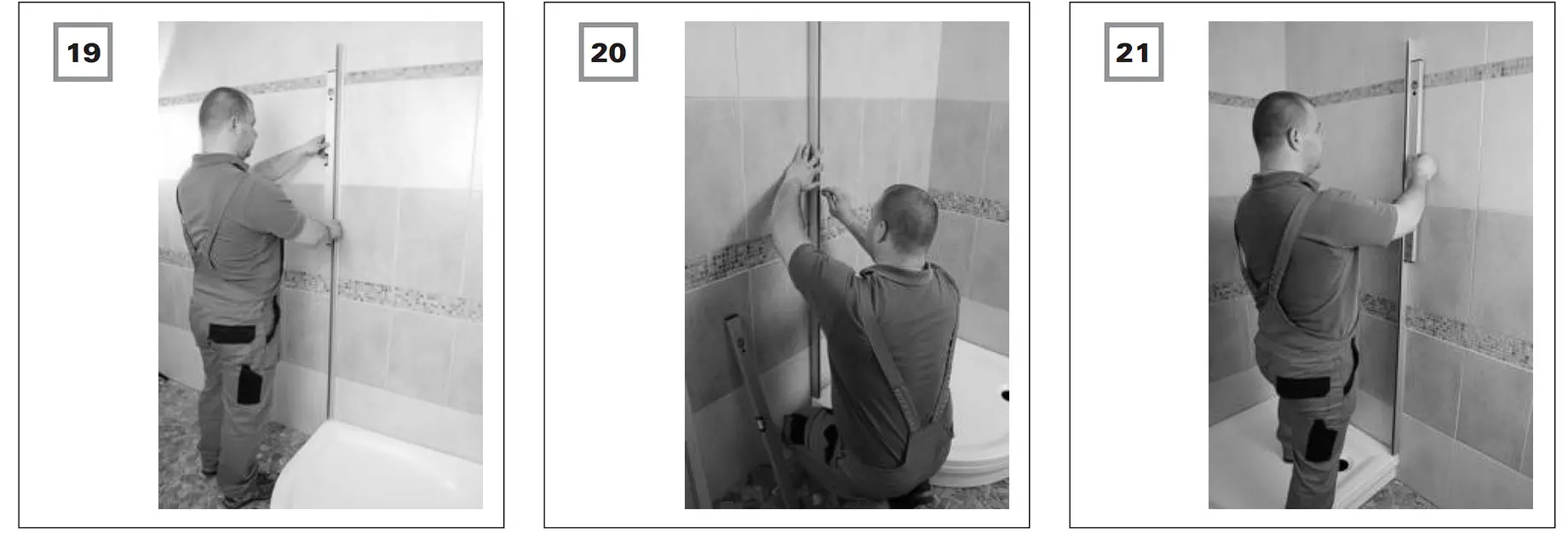

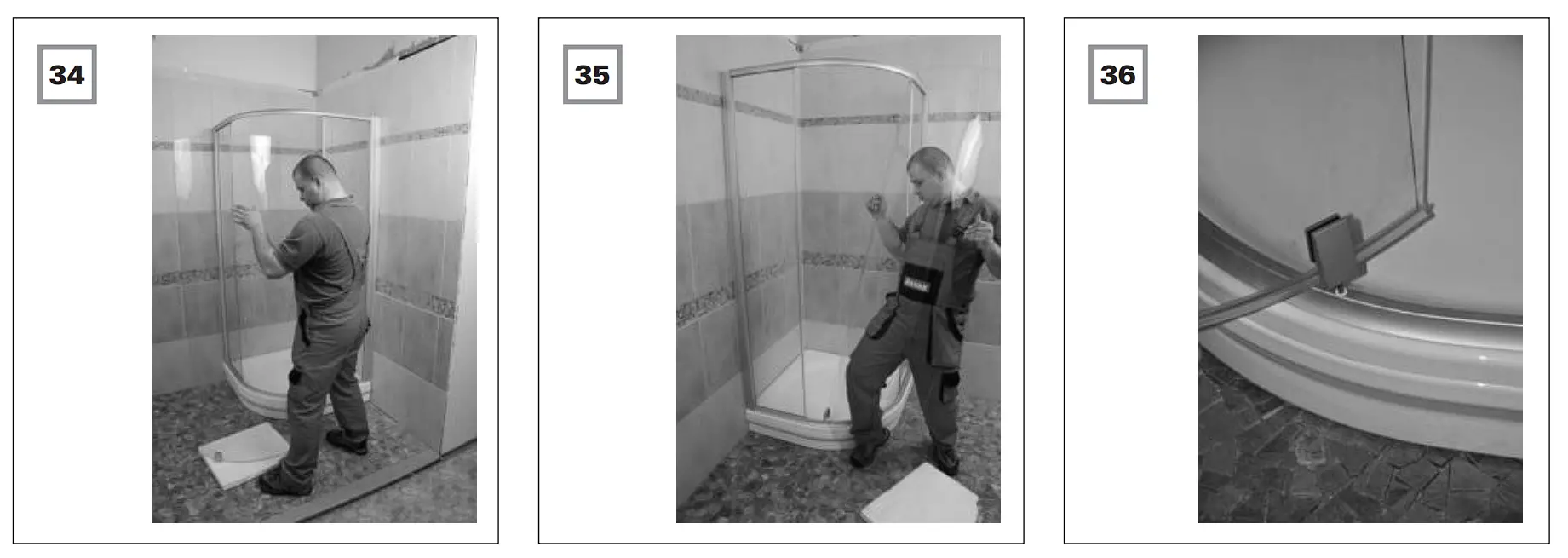

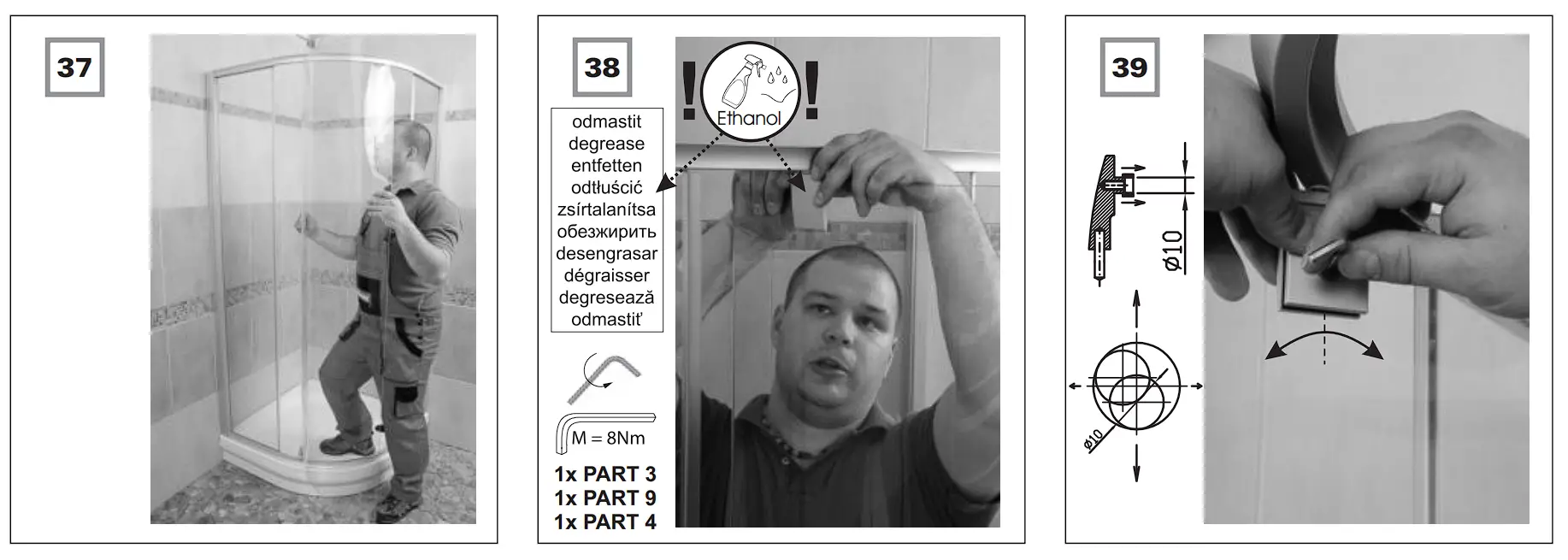

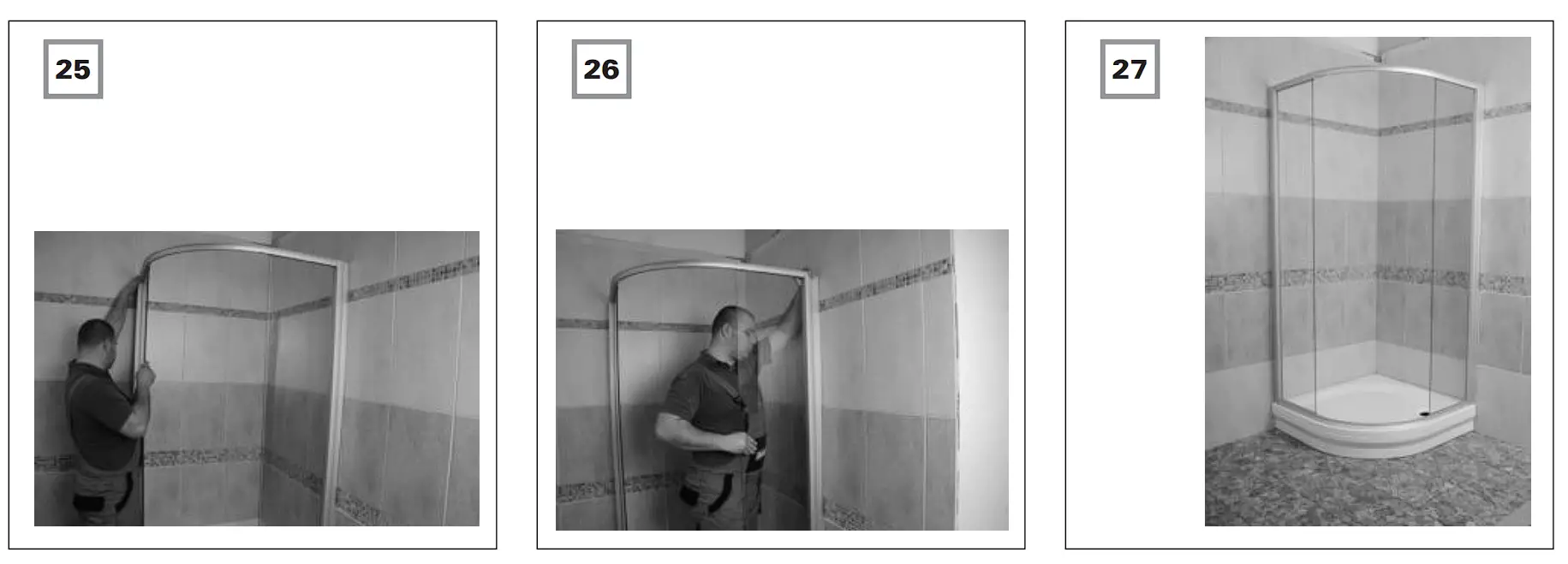

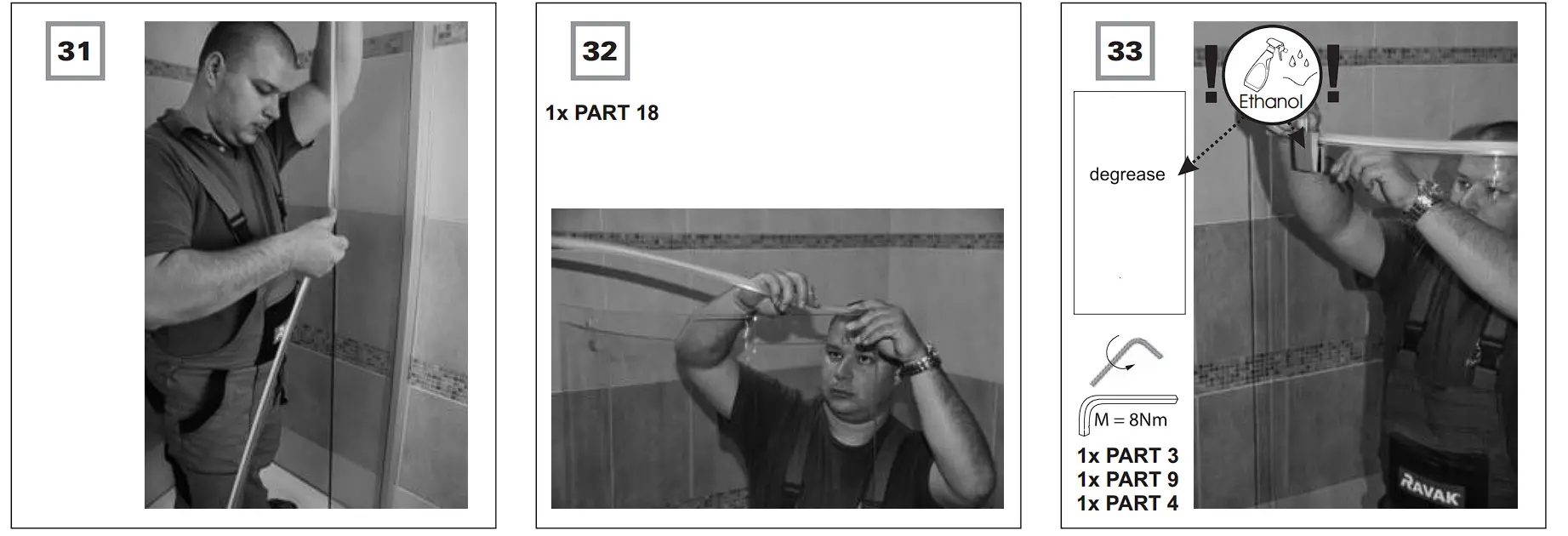

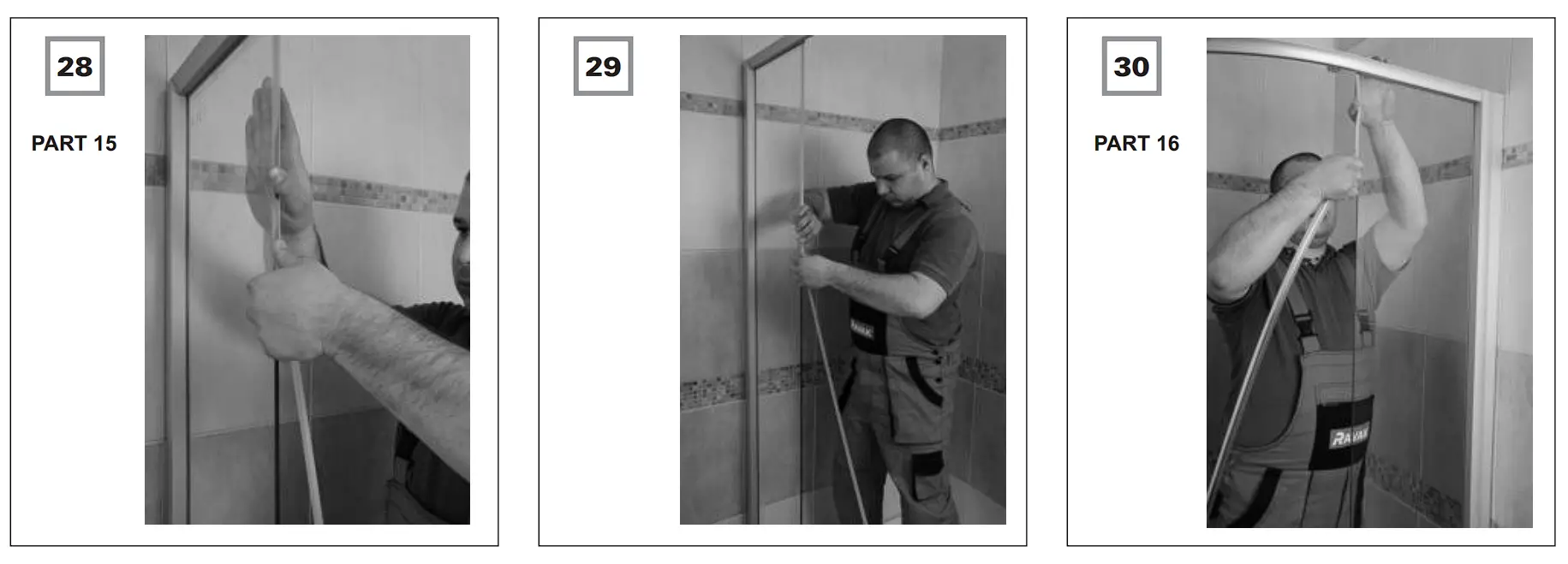

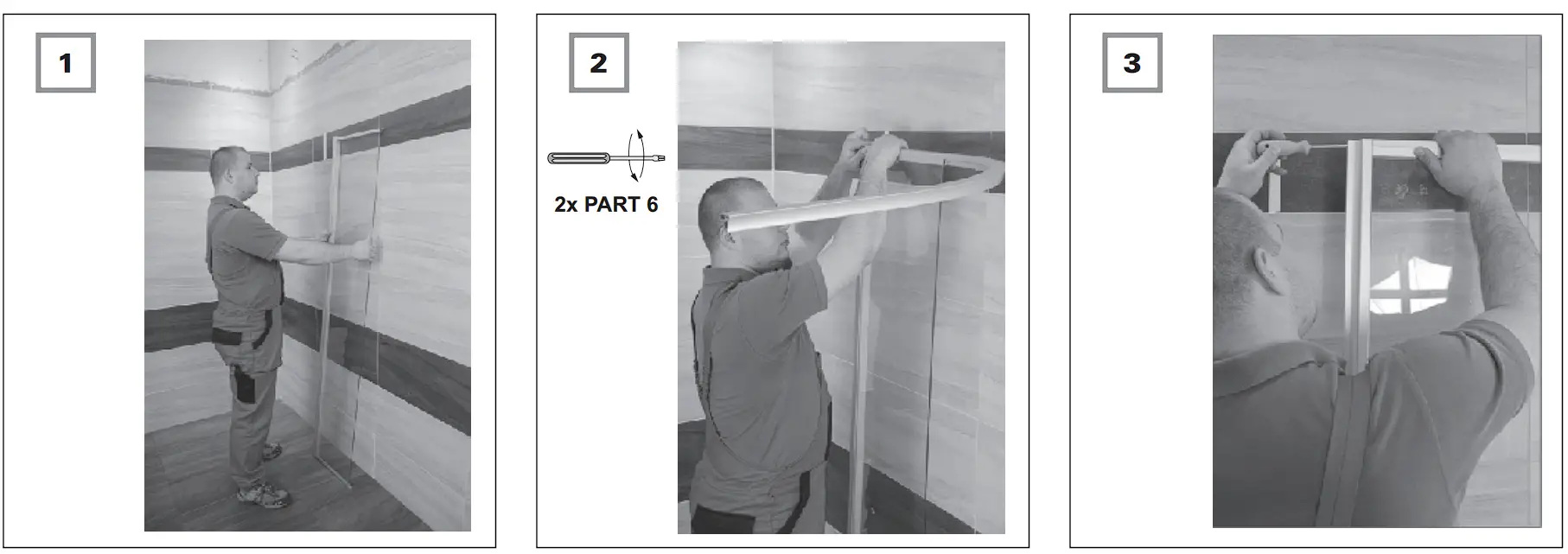

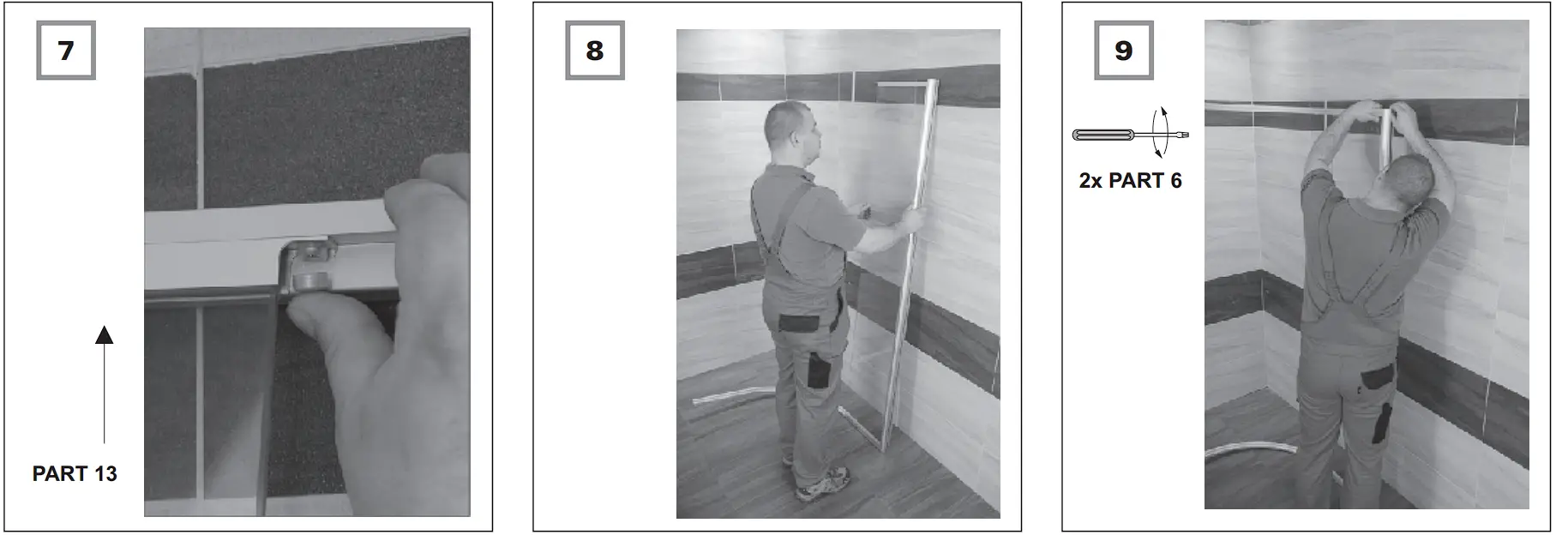

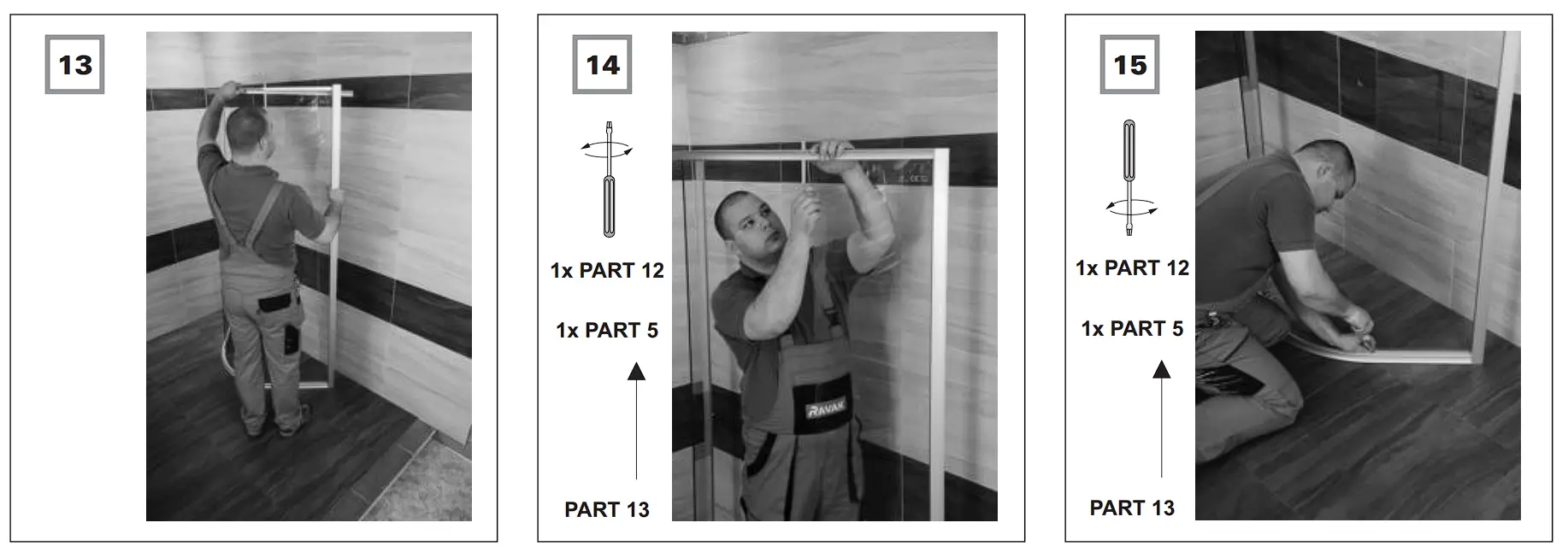

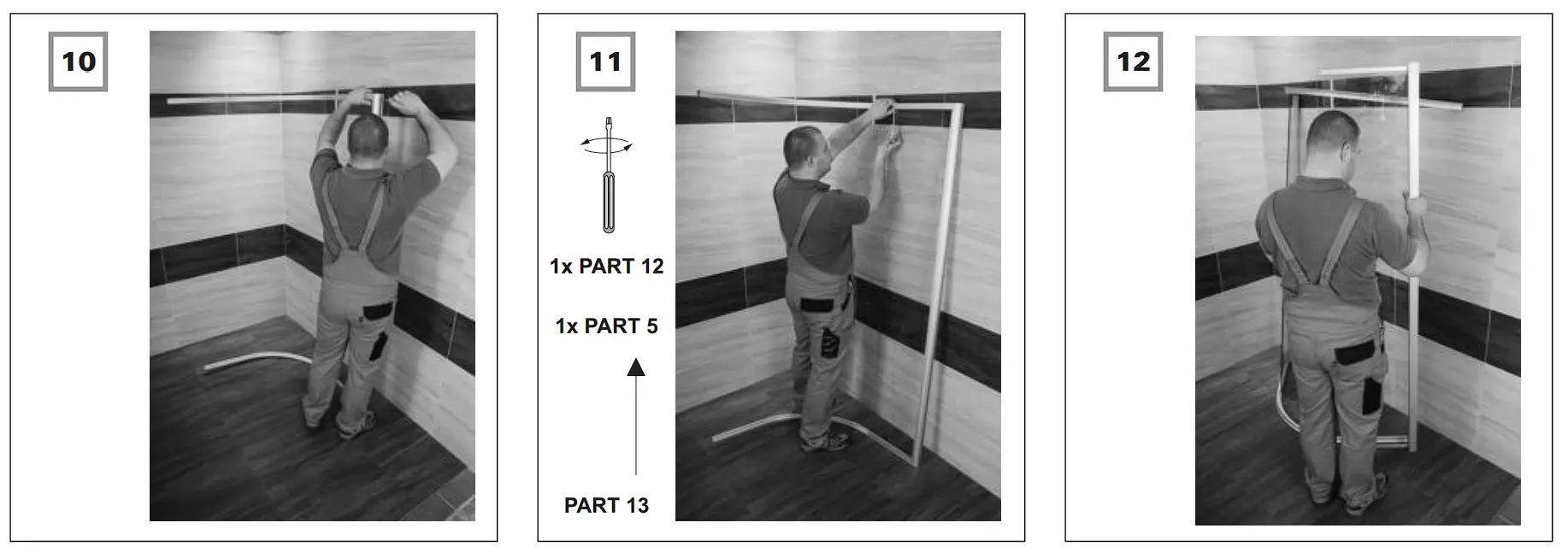

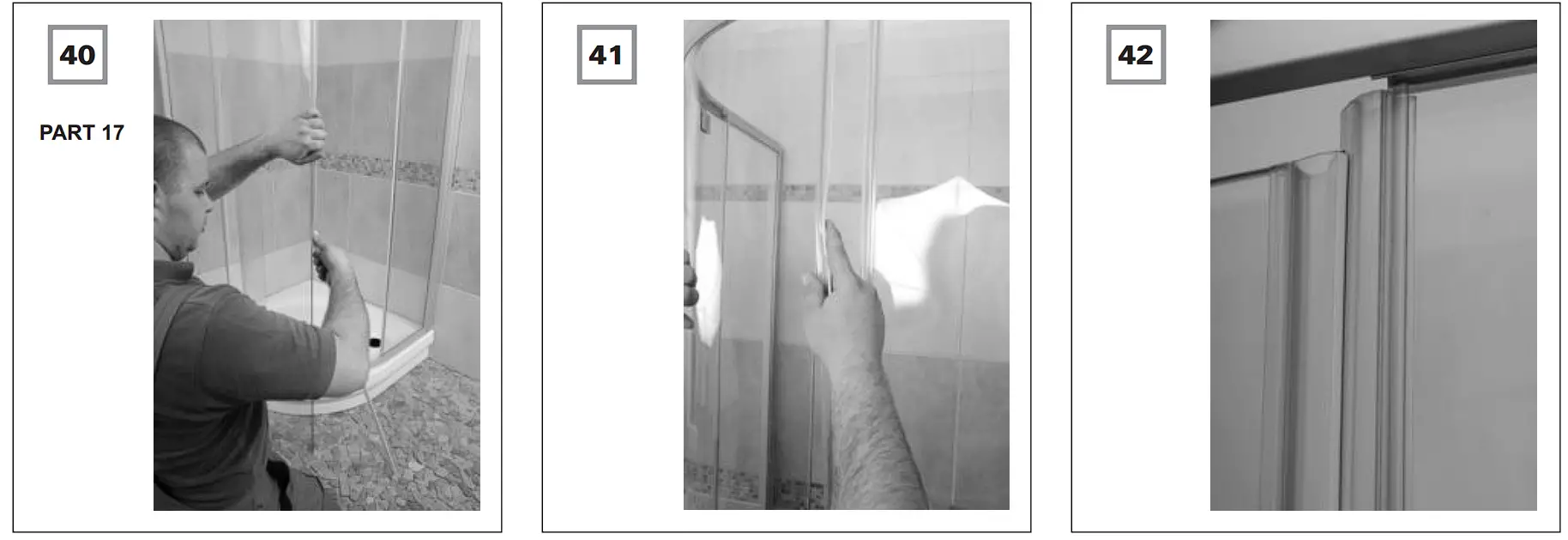

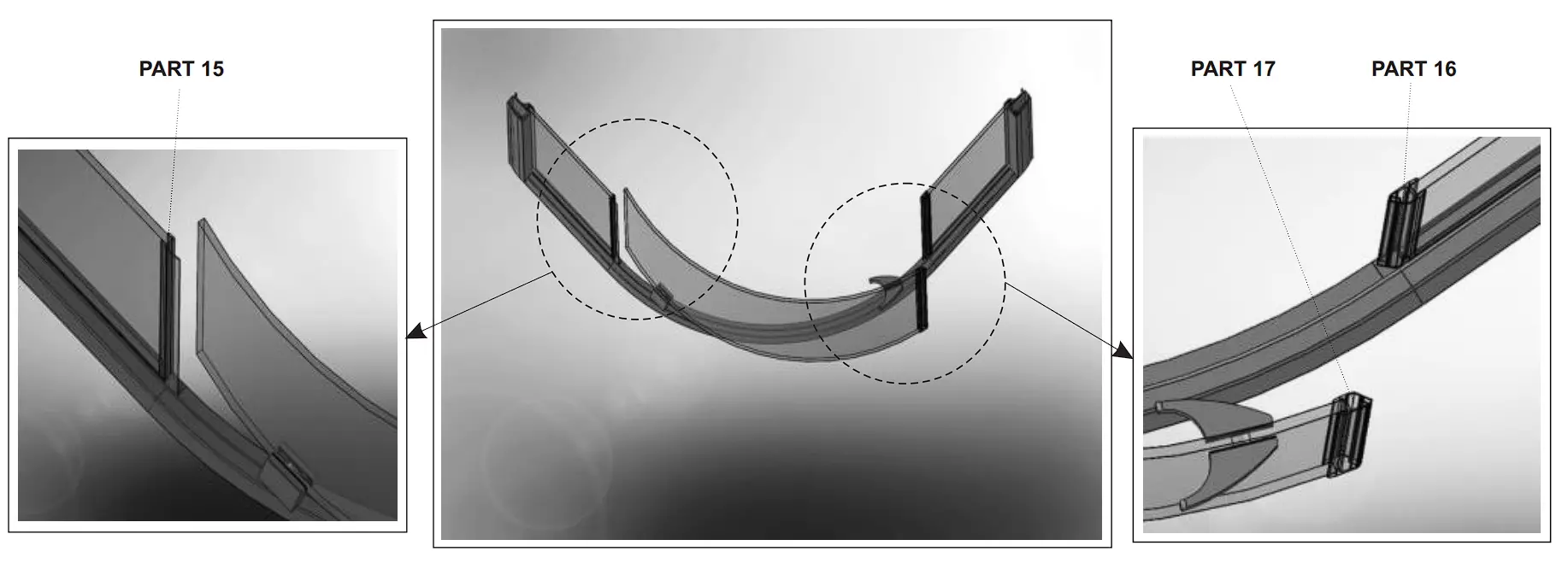

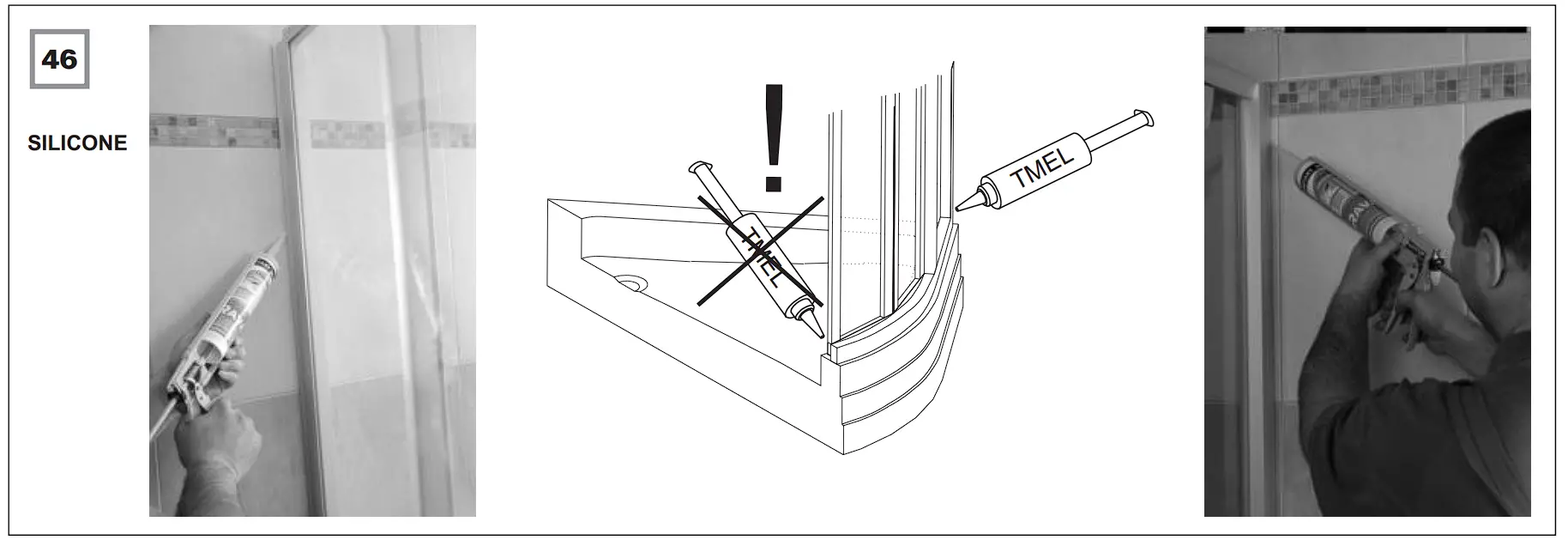

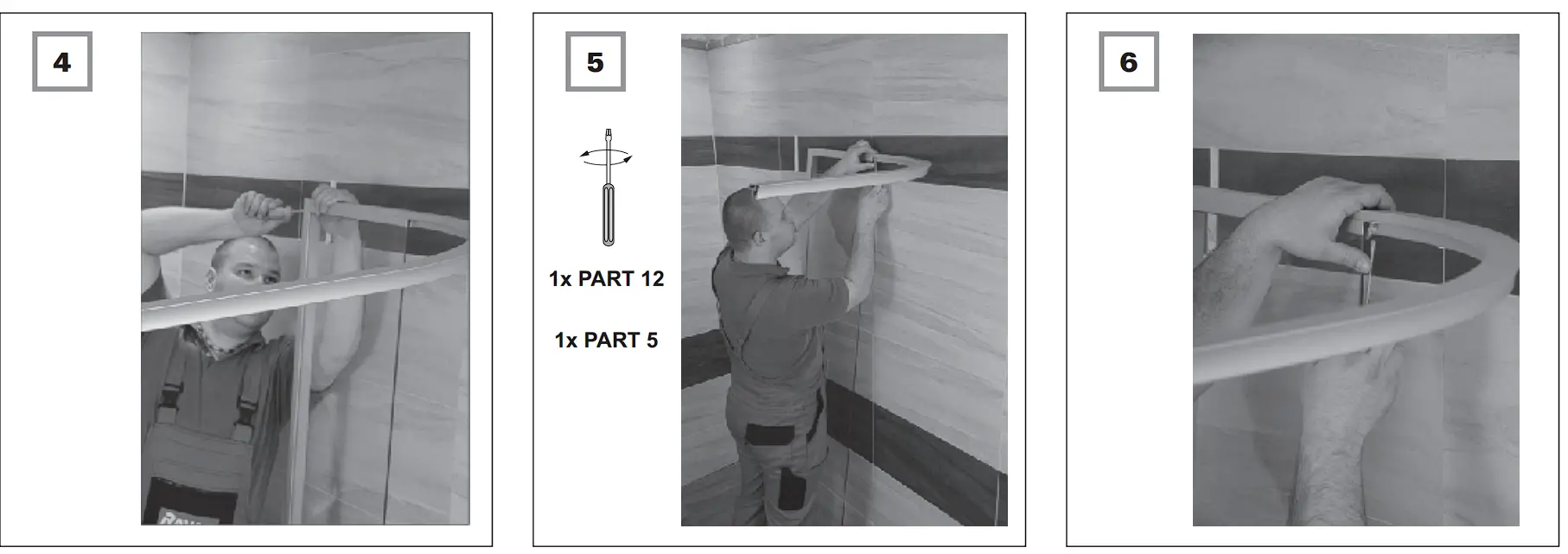

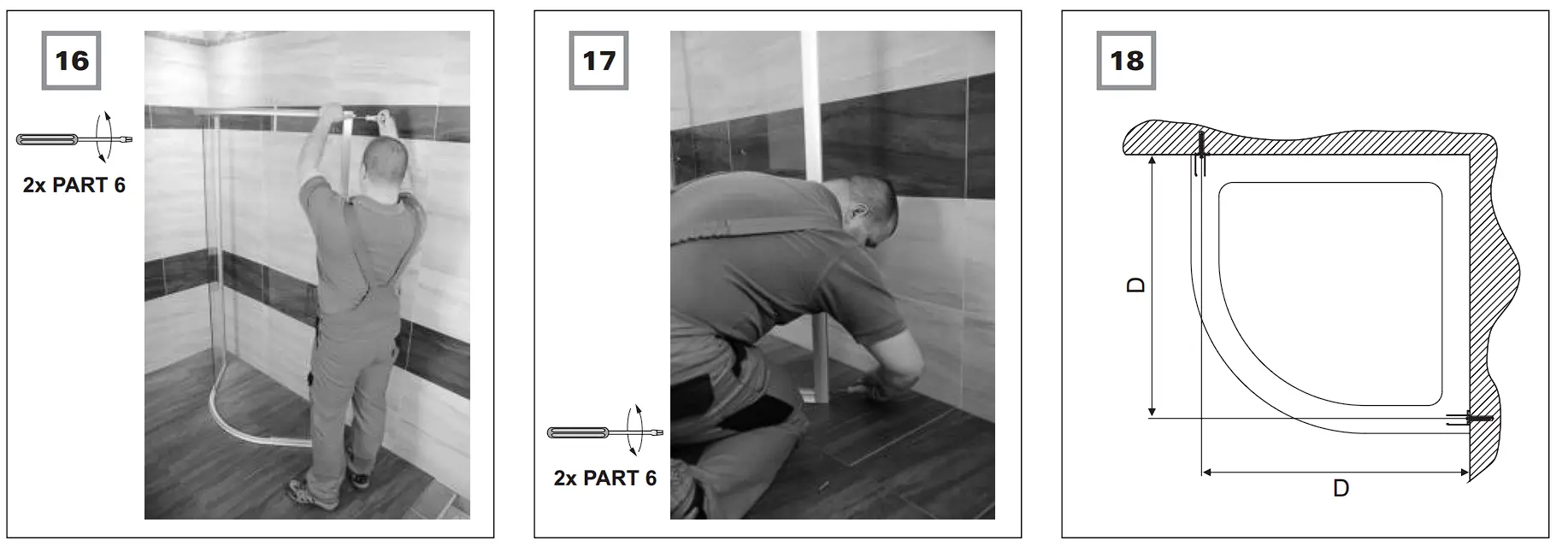

ASSEMBLY PROCEDURE

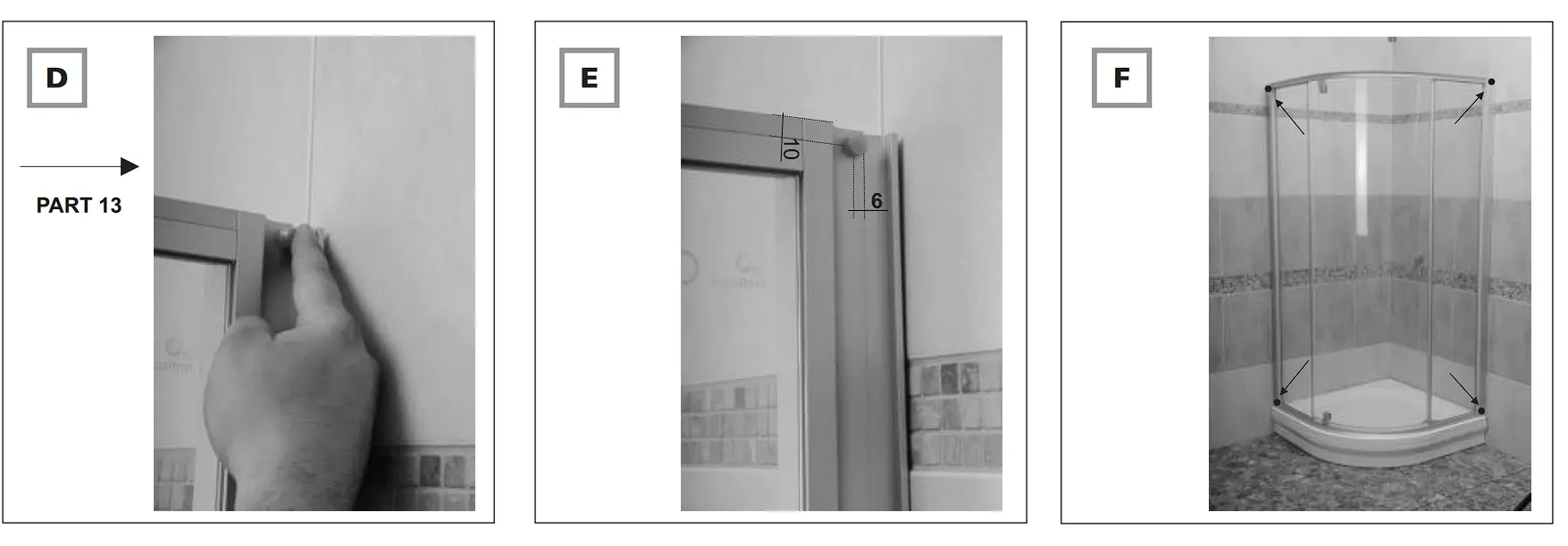

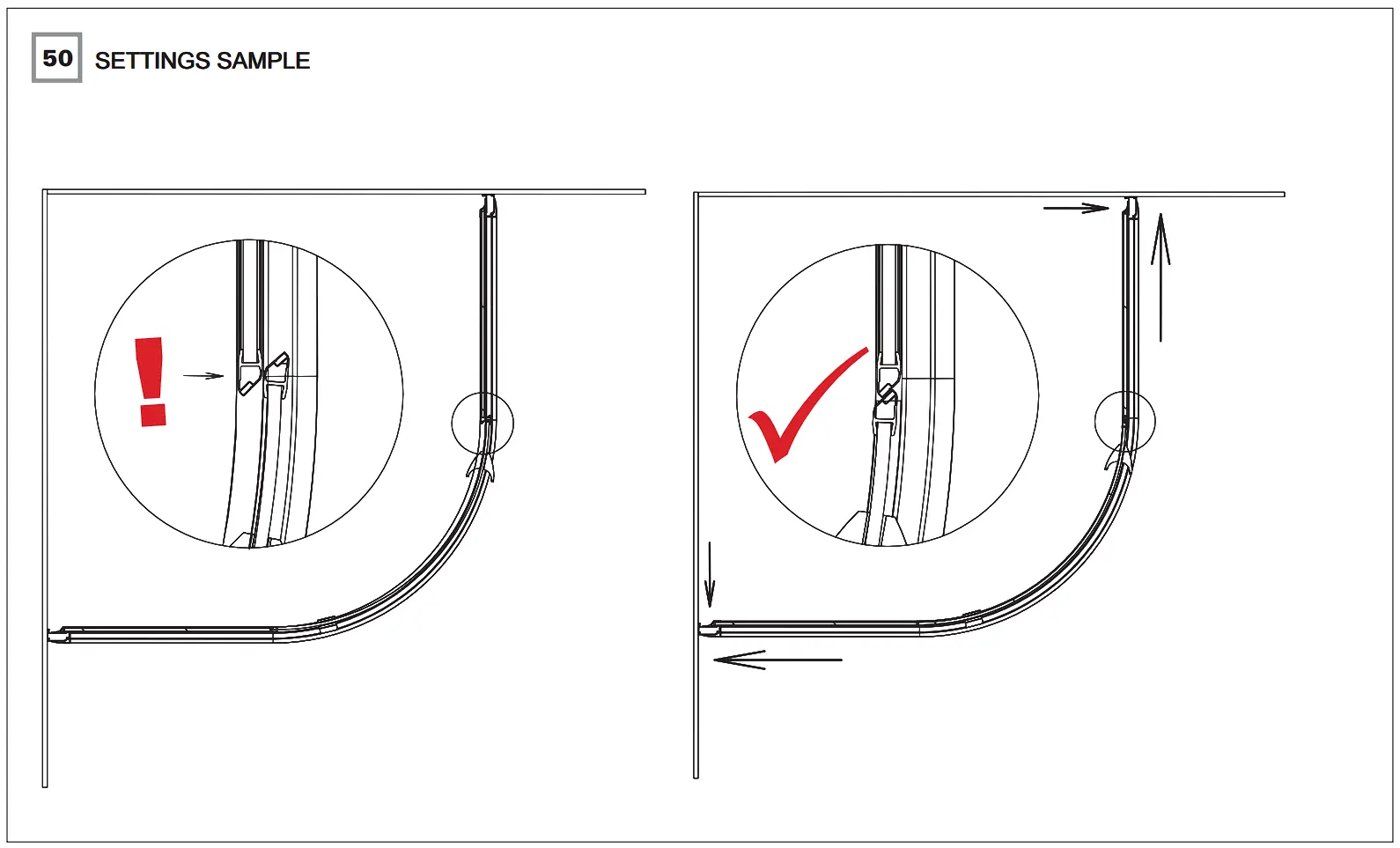

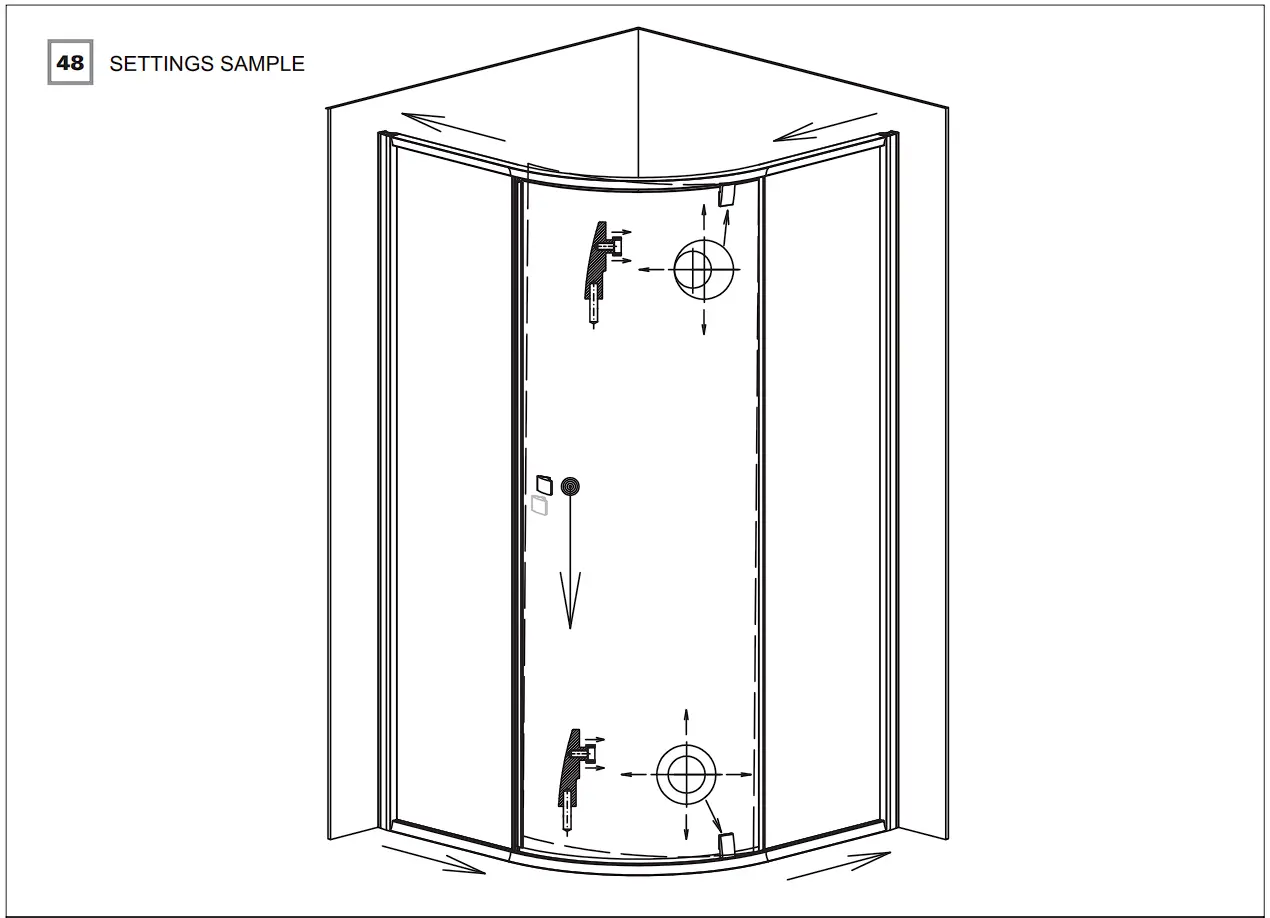

SETTINGS SAMPLE

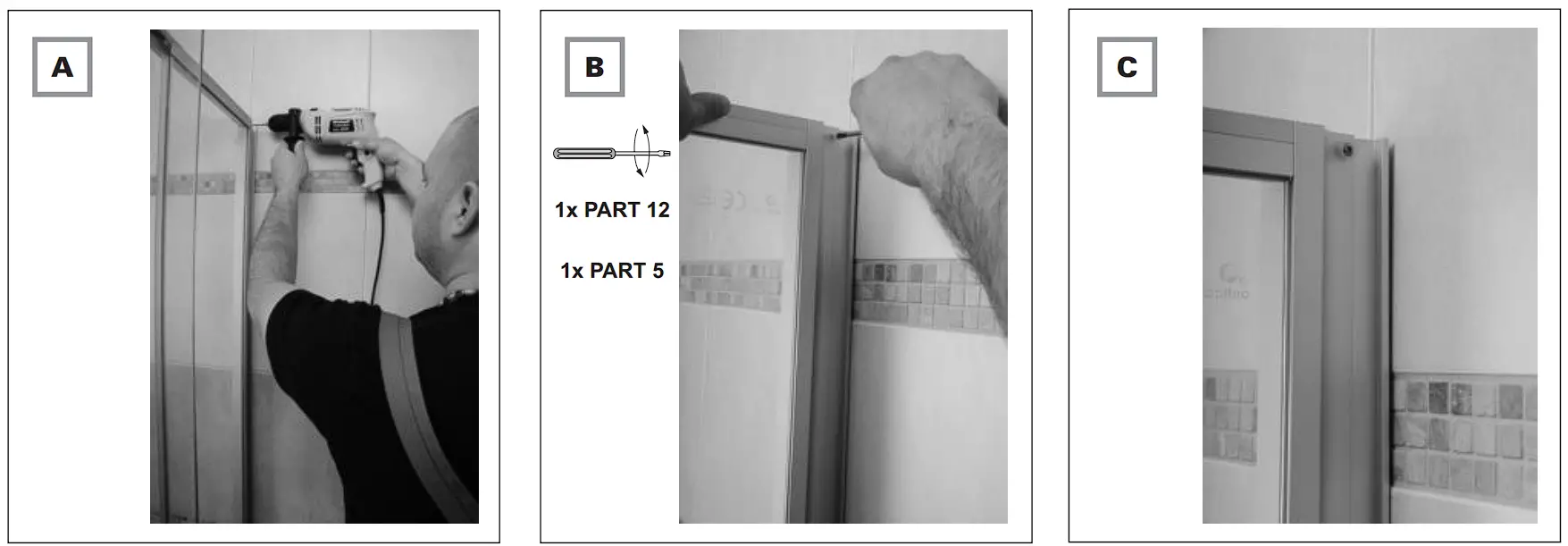

IS POSSIBLE TO FIX

CLEANING AND MAINTENANCE

Attention!
Maintain the product only by wiping its painted, glass or plastic pieces with a soft cloth. Use the detergents recommended by the manufacturer. Never use any abrasive pastes, dissolvents, acetone or detergents and desinfectants, that contain chlorine
We reco mmend the products: RAVAK AntiCalc Conditioner a preparation which perfectly renews and maintains all the qualities of the RAVAK AntiCalc coating; RAVAK Cleaner worpcs to remove old and driedon debris from glass surfaces, shower frames, enamel and acrylic bathtubs, washbasins and water taps; RAVAK Desinfectant is a special preparation with notable anti-bacterial and anti-fungal effects. The manufacturer is not responsible for damage caused by misuse, improper installation and repair of the product. The manufacturer has the right to constant innovation and changes of the product.
For further information concerning assembly, installation, and use and maintenance, please contact your local dealer.

For further information, contact your local Ravak dealer.
The manufacturer reserves the right to amend or improve on existing designs or features.
Please help preserve the environment by observing local country guidelines or laws regarding re-cycling. Materials which are not suitable for re-cycling must be disposed of at an official and suitable waste control centre.
