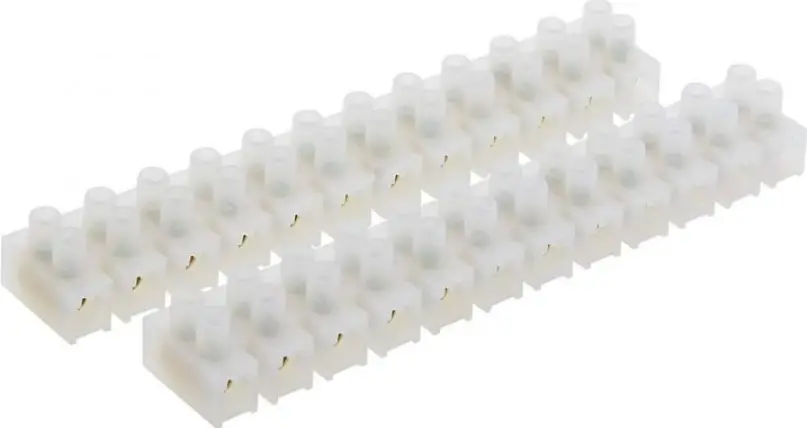

MATELEC AUSTRALIA STRIP CONNECTORS Pin Terminals
FEATURES & BENEFITS
- 12 pole / 2 way
- Flexible and pliable material
- Flat head screws.
SPECIFICATIONS
Material:
- Connector – Solid brass Temp. rating:
- Up to 90°C
Voltage:
- 380V

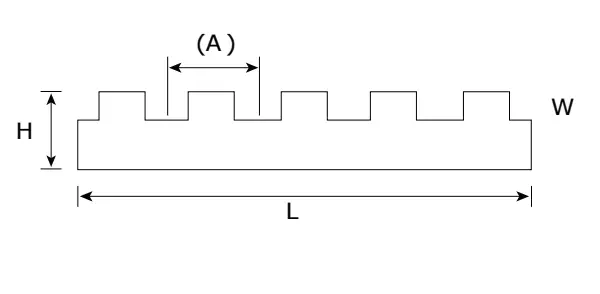

DIMENSIONS
| (mm) | (mm) | (mm) | (mm) Spacing (A) | ||
| STC-M4/3A | 93 | 13.5 | 17 | 3.0 8 |
| STC-M6/5A | 113 | 13 | 16 | 3.5 | 9.5 |
| STC-M10/10A | 129 | 16 | 21 | 3.8 | 11.5 |
| STC-M12/15A | 138 | 17 | 22.5 | 4.2 | 11.5 |
| STC-M14/20A | 140 | 17.5 | 22 | 4.7 | 12.0 |
| STC-M16/30A | 166 | 18.5 | 25.5 | 5.5 | 14.5 |
| STC-M25/60A | 185 | 26 | 30 | 6.4 | 16.1 |
STRIP CONNECTORS RANGE
| Code | Description | Amp Rating | Packing | MOQ | Ctn |
| STC-M4/3A | 4mm² – Natural | 3 Amp | 10 | 10 | 1000 |
| STC-M6/5A | 6mm² – Natural | 5 Amp | 10 | 10 | 800 |
| STC-M10/10A | 10mm² – Natural | 10 Amp | 10 | 10 | 400 |
| STC-M12/15A | 12mm² – Natural | 15 Amp | 8 | 8 | 480 |
| STC-M14/20A | 14mm² – Natural | 20 Amp | 10 | 10 | 400 |
| STC-M16/30A | 16mm² – Natural | 30 Amp | 6 | 6 | 360 |
| STC-M25/60A | 25mm² – Natural | 60 Amp | 10 | 10 | 200 |
Specifications are subject to change without notice | Images are a guide only and may differ from actual product
