eezo CT22 Wi-Fi Full Color Bullet Camera User Guide
Package Content
- Camera ×1
- Positioning Map ×1
- Power Adapter ×1
- Screw Package ×1
- QSG ×1
- Waterproof Connector ×1

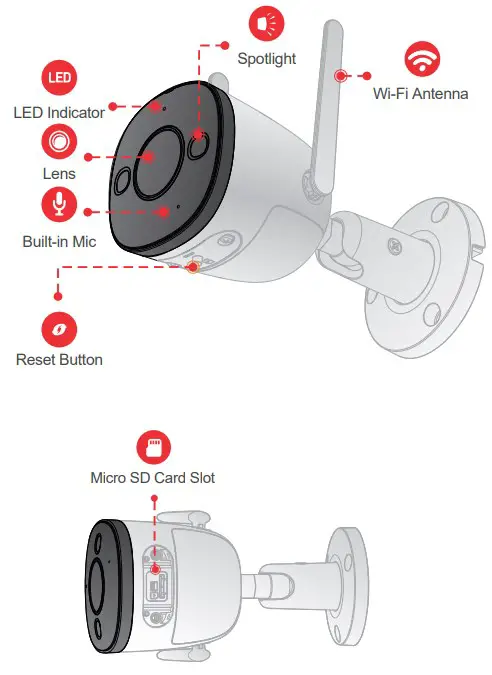

Camera Introduction
The pattern of the LED indicator is included in the following table
| LED Status | Device Status |
| |
| Red light on |
|
| Green light flashing |
|
| Green light on |
|
| Red light flashing |
|
| Green and red light flashing alternately | Network connection failed |
Voice control works with Alexa or Google Assistant
- You can control your camera using just your voice with Alexa or Google Assistant-enabled devices.
Google, Google Play and Google Home are trademarks of Google LLC.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates
About the Guide
- This manual is for reference only. The operation of the actual product shall prevail if there is any inconsistency.
- All the designs and software are subject to change without prior written notice.
- All trademarks and registered trademarks mentioned are the properties of their respective owners.
- Please visit our website or contact customer service if there is any problem when using the device.
- If there is any uncertainty or controversy, we reserve the right of final explanation.
Operating with eezo APP
Step 1
Scan the following QR code or search “eezo” in Google Play or App Store to download and install the app.
Note: If you have installed the app, update it to the latest version.
Step 2
Run eezo App, and then register an account for the first use.
Step 3
Connect the camera to power source with the power adapter
Step 4
Wait for booting to be finished, and then the camera indicator flashes with green light
Step 5

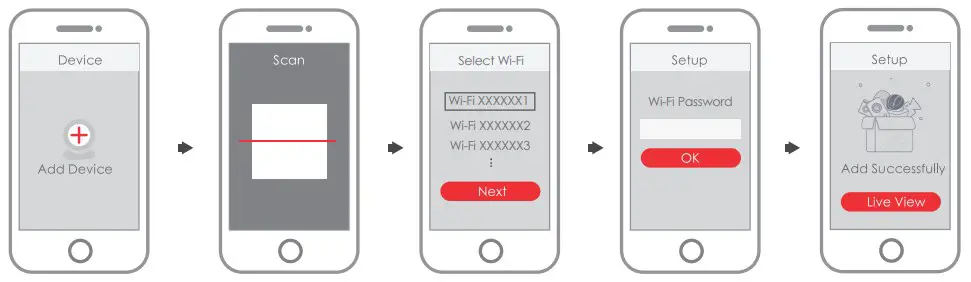

Do the following operations to finish adding camera
Note:
- If you have more than one camera, do step 5 to add them one by one.
- If the Wi-Fi network has changed or the indicator status goes wrong, reset the camera, and then do step 5 to add it again.

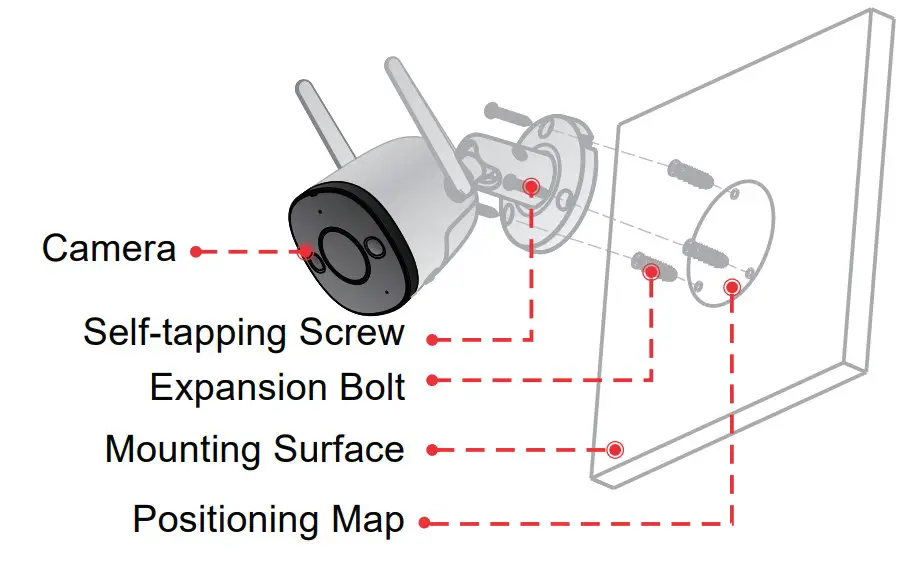

Installing Camera
Note: Make sure that the mounting surface is strong enough to hold at least three times of the device weight.
Step1
Drill screw holes on the mounting surface as the positioning map shows, and then put in the expansion bolts.
Step2
Attach the pedestal to the mounting surface with the self-tapping screws.
Step3
Power up the camera, and then adjust the lens to the ideal angle.
FAQ
Check the LED indicator status. if the light is not in green. press and hold the reset button for 10 s to reset the camera
- If the camera is online, select camera> sethngs>Device Setting> WIAN>Network COM% to change the WI-Ei connection on the app.
- if the camera is offline, reset the camera, and then configure the camera again.
- Check if the distance between the camera and the router, and that between the camera and the smart phone is both within S m (16.4 ft) during the connection.
- Check the Wi-Fi configuration of the router: Select the channel to auto, and the mode to 11bgn mixed.
When the micro SD card is full, the system will overwrite the previous recorded videos. Save the important information in time.
Troubleshooting
| Problem | Solution |
| Cannot configure the camera |
|
| How to find the cameraWi-Fi password | It is the safety code on the device label. |
| No picture or device is offline |
|
| Picture is not clear |
|
| No audio |
|
| Human detection does not work | Make sure that you have enabled Human Detection in the Device Settings interface of eezo App. |
| Camera stuck downwards | Check Privacy Mode setting on eezo App. |
| Fail to scan QR code |
|
