Bega 66519 Wall Luminaire Instruction Manual

Application

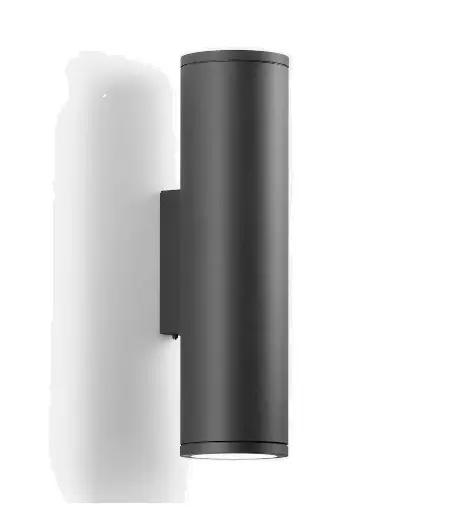

Wall luminaire with two-sided light output. For illumination and design tasks in architecture.
The light directed downwards is intended to illuminate the wall and the horizontal surface in front of it.
The light directed upwards is intended to illuminate the wall and ceiling surfaces.

Luminaire made of aluminium alloy, aluminium and stainless steel BEGA Unidure^® coating technology Clear safety glass
Silicone gasket

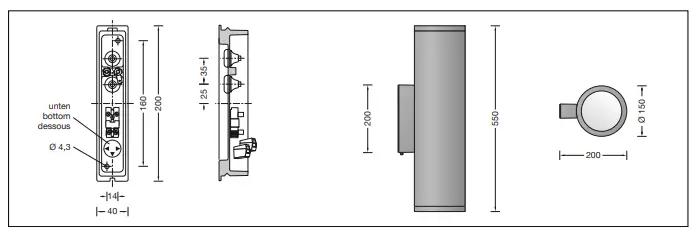

Reflector made of pure anodised aluminium Mounting plate with 2 fixing
holes ø 4.3 mm · 160 x 14 mm spacing
2 cable entries for through-wiring of mains supply cable ø 7-10.5 mm, max. 5 G 1.5@ Connecting terminal 2.5@ with plug connection
Earth conductor connection BEGA Ultimate Driver^®
LED power supply unit 220-240 V x 0/50-60 Hz DC 176-264 V
DALI-controllable
Basic insulation is provided between the mains and control cables
BEGA Thermal Control^®
Temporary thermal regulation to protect temperature-sensitive components without switching off the luminaire
Safety class I Protection class IP 65
Dust-tight and protection against water jets Impact strength IK10
Protection against mechanical impacts < 20 joule
r – Safety mark c – Conformity mark Weight: 5.2 kg
This product contains light sources of energy efficiency classes D

The installation and operation of this luminaire are subject to national safety regulations.

Installation and commissioning may only be

carried out by a qualified electrician.

The manufacturer accepts no liability for damage caused by improper use or installation.

If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.

Overvoltage protection

The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.

To achieve an additional protection against

e. g. transients, etc. we recommend separate overvoltage protection components.

You can find them on our website at

www.bega.com.

Lamp

Module connected wattage                            24.6 W
Luminaire connected wattage                       26.6 W
Rated temperature                                          t_a = 25 °C
Ambient temperature                                      t_amax = 50 °C 66 519 K3
Module designation                                        2x LED-0724/830
Colour temperature                                        3000 K
Colour rendering index                                 CRI > 80
Module luminous flux                                    3830 lm
Luminaire luminous flux                             2446 lm Luminaire luminous efficiency            92 lm / W 66 519 K4
Module designation                                       2x LED-0724/840
Colour temperature                                      4000 K
Colour rendering index                                 CRI > 80
Module luminous flux                                   3930 lmLuminaire luminous flux                         2523 lm Luminaire luminous efficiency         94,8 lm / W

Lighting technology

Half beam angle 17°

Installation

The luminaire must only be operated with the complete protective cover.

LED are high-quality electronic components! Please avoid touching the light output opening of the LED directly during installation or relamping.

Clean luminaire regularly with solvent-free cleansers from dirt and deposits.
Do not use high pressure cleaners.

Do not remove the desiccant bag from the luminaire housing.
It is needed to remove residual moisture.

The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
The module can be replaced by qualified
persons using standard tools.
Disconnect the system and open the luminaire. Please follow the installation instructions for the LED module.
Inspect and, if necessary, replace the luminaire gaskets.
Defective glass must be replaced. Close the luminaire.

Spare glass                                                   14 000 212
LED power supply unit                              DEV-0270/700
LED module 3000 K                                 LED-0724/830
LED module 4000 K                                 LED-0724/840
Reflector                                                     76 001 134
Gasket glass                                                83 000 563
Gasket wall box                                          83 001 081
Sealing ring                                                 83 001 757
