Antari F-6 Fazer Stage Fog Machine User Manual

Antari F-6 Fazer Stage Fog Machine

Product Information

The F-6 Fazer Stage Fog Machine is a professional-grade fog machine designed for use in stage performances and events. It is equipped with advanced features to create a dense and long-lasting fog effect, enhancing the visual impact of your performance.

Key Features:

• Produces a dense and long-lasting fog effect
• Safe and reliable operation
• Designed for indoor use
• Requires proper grounding and correct voltage connection
• Fluid tank capacity: [insert capacity]
• Compatible with Antari fog fluid

Package Contents:

• F-6 Fazer Stage Fog Machine
• User Manual
• Power cord
• [Any additional accessories]

Product Usage Instructions

Installation:

1. Read the entire user manual before operating the machine.
2. Ensure the machine is placed on a flat, level, and well-ventilated surface.
3. Connect the machine to a properly grounded, protected circuit using the provided power cord.
4. Make sure the power outlet is not damaged or loose before plugging in the power cord.
5. [If applicable] Fill the fluid tank with Antari fog fluid of the recommended type and capacity.

Operation:

1. Ensure the machine is connected to the correct rated voltage to avoid electrical shock or burn.
2. Turn on the power switch and wait for the machine to warm up.
3. Once warmed up, use the control panel or remote control (if provided) to activate the fog output.
4. Direct the fog output away from people, animals, and fire.
5. Monitor the fog fluid level and refill as necessary during operation.

Safety Precautions:

• Operate the machine on a flat, level, and well-ventilated surface with at least 50cm of space around it.
• Avoid operating the machine in areas with flammable gas or materials nearby.
• Do not disassemble, repair, or modify the machine. Contact an authorized Antari dealer for assistance.
• Supervise children to prevent them from playing with the machine.
• Store the fog fluid in a well-ventilated area, away from direct sunlight and out of reach of children.
• In case of eye contact or accidental ingestion of the fluid, seek immediate medical attention.

Maintenance and Storage:

• Keep the machine dry at all times and avoid exposing it to water, rain, or moisture.
• Before transporting the machine, ensure the fluid tank is drained and empty (use the original packaging if available).
• Only use accessories recommended or sold by Antari.
• Turn off the power and unplug the power cord if you experience strange sounds or malfunctions. Contact your local Antari dealer for assistance.
• Do not touch any moving parts of the machine.
• When not using the machine, make sure the power is off and unplug the power cord.

For any further questions or assistance, please refer to the user manual or contact your local Antari dealer.

Introduction

Please read all the user manual before operating the machine, and place the manual where the user can refer to it at all time. The manual includes how to install and operate the machine under safe condition and explain all the labels printed on the machine. If you encounter any problem, contact your local Antari dealer for assistant immediately.

Safety Information

• DANGER
  If the danger is not avoided, it will cause death or serious injury
• WARNING
  If the warning is not heeded, it can cause death or serious injury.
• CAUTION
  If the precaution is not taken, it may cause minor or moderate injury.

DANGER

• Must connect the machine to the correct rated voltage or it might lead to an electrical shock or a burn and may cause serious consequences.
• Must connect the machine to a protected circuit and ensure it is properly grounded to avoid the risk of electrocution. For grounding instruction, please refer to Appendix I on page 21.
• Do not operate the machine with a bundled power cord, it could lead to a fire hazard.
• When operating the machine, do not point at people, animals, or fire.

WARNING

• Please operate the machine on a flat, level hard and well-ventilated surface area, reserve at least 50cm space around the machine and make sure there is no flammable gas or material nearby.
• Do not disassemble, repair or modify the machine, it may cause damages, malfunction, risk of electrical shock or result in fire.
• The machine can only be operated by adults or professionals, is not intended for use by persons with reduced physical sensory, mental capabilities, or lack of experience and knowledge including children.
• Do not leave the machine running unattended, make sure all powers are off when leaving.
• Children should be supervised to ensure that they do not play with the machine.
• Do not use the machine upside down or tilt it, it might cause damage or malfunction.
• Please store the fluid inside in a well-ventilated area without direct sunlight and keep out of reach of children. In case of eye contact or accidentally swallow the fluid, please seek medical attention immediately

CAUTION

• Keep the machine dry at all time. The machine is not waterproof, do not expose the machine to water, rain, or moisture environment.
• Please make sure the power outlet is not damaged or loose before plug in the power cord.
• If the power cord is damaged, it must be replaced by Antari or its local dealers, otherwise the warranty will be void.
• Before operating the machine, please make sure the fluid is filled in the fluid tank to avoid the pump in idling state which could lead to overeat or malfunction.
• Before transporting the machine, please make sure the fluid is drained and tank is empty. (Recommend using original package)
• The machine is for indoor use only.
• Do not operate the machine in any area with unstable voltage.
• If you experience strange sound or malfunction, turn off the power and unplug the power cord immediately and contact your local Antari dealer for assistant.
• Do not contact any moving part.
• Only use accessories recommended or sold by Antari.
• Please make sure the power is off when not using the machine and unplug the power cord if not intend to use for a long period of time.
• To disconnect, turn all controls to the off position, then remove plug from outlet.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Unplug from outlet before servicing or cleaning.
• Do not operate the machine with a damaged cord or plug, or after the machine malfunctions or is dropped or damaged in any manner. Return machine to the nearest authorized service facility for examination, repair, or electrical or mechanical adjustment.
• To ensure the lifespan of the machine, please only use the fluid manufactured by Antari, do not use other fluid or additive, otherwise it may clog the heater and cause malfunction.

Before operating the machine, please read all warning labels on the machine, description as below;

CAUTION!
NEVER ADD FLAMMABLE SUBSTANCES.

WARNING!

• DISCONNECT POWER BEFORE CHANGING FUSE.
• USE ONLY WITH ADULT SUPERVISION.
• DO NOT OPERATE WITHOUT LIQUID.
• FOR INDOOR USE ONLY. KEEP DRY.
• NO USER SERVICEABLE PARTS INSIDE.

Package Contents & Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure it is the correct model and all parts are included. If any part appears to be damaged or missing during transportation, please contact your local dealer and return in original package for inspection.

Package Contents

• 1 x F-6 Fazer Fog Machine
• 1 x Neutrik powerCon Cable Connector
• 1 x User Manual or Scan QR Code on the Machine

Optional Accessories

Machine Details

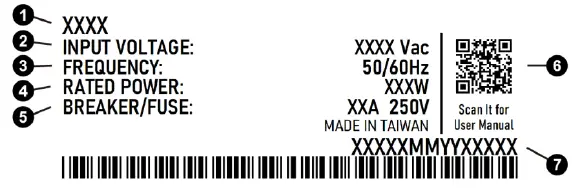

Technical Label Information

Please read the technical label information on the back of the machine before operating it.

Fog Liquid

CAUTION!
Always turn off the power before filling the fluid tank. Do not add flammable liquid to the fluid tank. If fluid gets inside the machine, please contact your local Antari dealer for assistant.

• Only the fog liquid manufactured by Antari can be used, do not mix or dilute the fog liquid. Due to improper storage or using other fluid might clog the heater and cause malfunction.
• The machine is tested and calibrated with the specific fog liquid to get the best performance.
• Please empty the fluid in the tank before switching to another fluid to avoid mixing.
• Only the essence manufactured by Antari can be used, and add according to the ratio recommended by Antari (Recommended ratio is 1:1000), if using other essence or different ratio might clog the heater and cause malfunction.
• The warranty on your fog machine will be void if you use fog liquid other than that recommended by the Antari of your fog machine.

Setting and Manual Operation

WARNING
Machine falling off might cause serious injury, please make sure it is secure and firm on the overhead.

• Step 1. Place the machine on a flat, level hard and well ventilated surface area and reserve at least 50cm open space around the machine, and make sure there is no flammable gas or material nearby;
• Step 2. Fill the fluid tank with Antari approved fog liquid, and make sure the tube is not twisted;
• Step 3. Connect the machine to the power outlet. Please read the technical label on the back of the machine and make sure the power outlet is the correspond to the rated voltage for the machine;
• Step 4. Turn on the machine, heating process takes approximately 1 minutes. Once the machine has reached operating temperature “100%” (Top Left Hand Corner), the machine is ready for operation;
• Step 5. To activate fogging in manual mode, please press “Manual” and adjust output and fan speed according to your need then press start and press again to stop fogging;
• Step 6. Or to activate fogging in Timer mode, please press “Timer” and adjust “Interval”; “Duration”; “Output” and “Fan Speed” according to your need, then press start and press again to stop fogging;
• Step 7. Press “DMX” and adjust according to your need;
• Step 8. Press “MENU” and adjust according to your need;
• Step 9. To turn off the machine, please make sure the machine is not operating then turn of the power. If you will not use the machine a long period of time, please remove the power cord.

Control Settings

F-6 Fazer Fog Machine can be operated in the following modes. The machine can only accept 1 type of signal at a time. When using different control modes at the same time, the machine will work according to built-in control priority:

• Manual
• Timer
• DMX512
• W-DMX
• Wireless

Control Panel Description

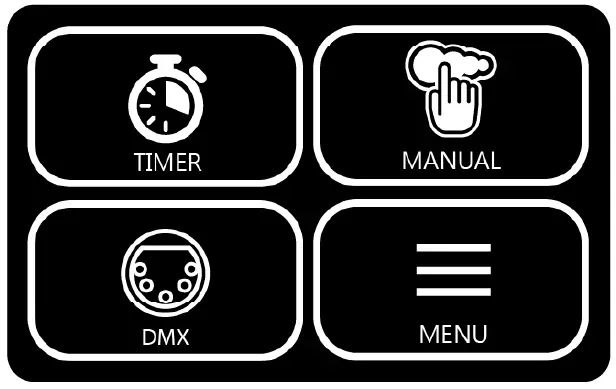

F-6 Fazer Fog Machine can be operated with the onboard TFT-LCD Touch Screen.

Control Menu

Machine Status Description

Machine Status with TFT-LCD Touch Screen Display

If LCD control panel display “Warning”, please stop operating and turn off the machine immediately. Please contact your local Antari dealer for assistance.

DMX Connection

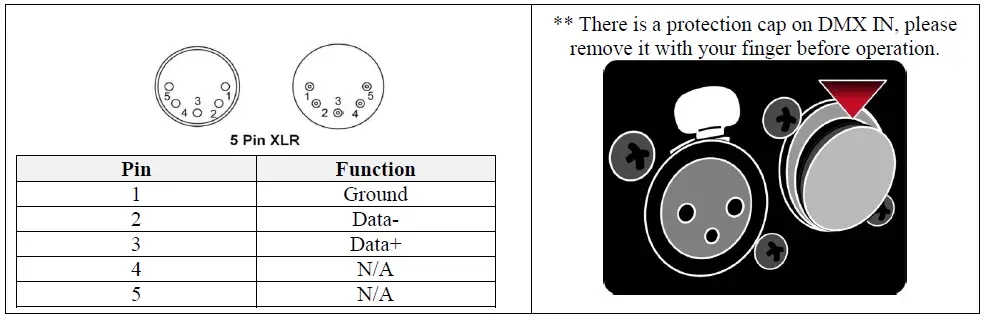

DMX Connector Pin Assignment
The machine provides a XLR 5-Pin connector for DMX connection. The diagram below indicates pin assignment information;

Functions

DMX Channel Function

RDM Function
The F-6 Fazer Fog Machine is RDM enabled, allowing control system to configure, monitor and manage. See below table for supported RDM parameters.

W-DMX (Optional)
W-DMX Remote is an optional accessory for F-6 Fazer Fog Machines. If you already purchased the W-DMX model, it’s ready to use. If you purchase it afterward, please follow the instruction below. If you encounter any problems, please contact your local Antari dealer for assistance. The Wireless DMX Control supports both CRMX and W-DMX protocols

W-DMX Receiver
It includes a Wireless DMX Receiver.

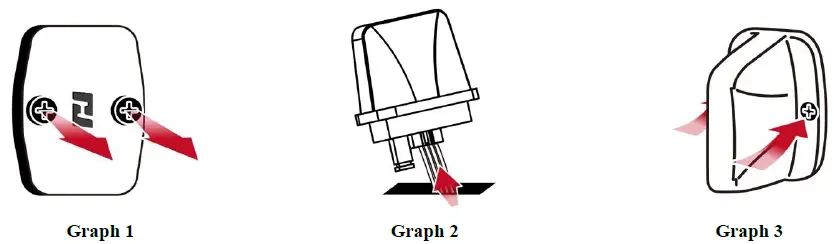

W-DMX Receiver Installation Steps
If you purchased the Wireless DMX Receiver afterward, please follow the instruction below to install the receiver. If you encounter any problem, please contact your local Antari dealer for assistant.

1. Please see Graph 1, remove the cover from the pointed place;
2. You will see a white cable like Graph 2, pull it out and connect to the receiver;
3. Screw it back to the machine like Graph 3, then it’s ready to use.

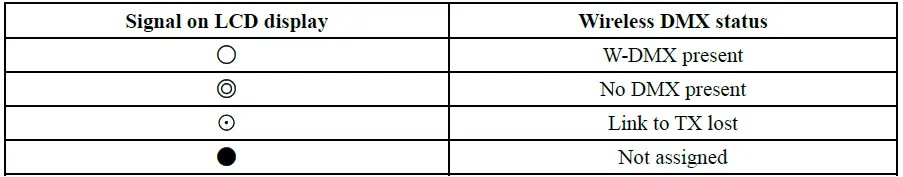

Status of Wireless DMX

WTR-110 Wireless Remote (Optional)
WTR-110 Wireless Remote is an optional accessory for F-6 Fazer Fog Machines, it included a W-2 wireless transmitter and a wireless receiver. If you already purchased the wireless model, it’s ready to use. If you purchase the module afterward, please follow the instruction below. If you encounter any problems, please contact your local Antari dealer for assistance.

Wireless Transmitter & Receiver

• Battery 27A 12V
• Effective Range The effective range is approximately 50 meters, depending on actual conditions, it may vary.
• W-2 wireless transmitter has 4 buttons, each function as follow:

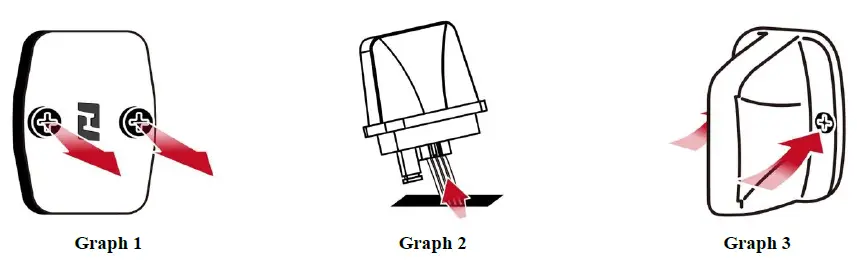

WTR-110 Receiver Installation
If you purchased the WTR-110 Wireless Remote afterward, please follow the instructions below to install the receiver. If you encounter any problem, please contact your local Antari dealer for assistant.

1. Please see graph 1, remove the cover from the pointed place;
2. You will see a white cable like graph 2, pull it out and connect to the W-2 receiver;
3. Screw it back to the machine like graph 3 and follow the instruction on 13.3 for pairing.

Pair & Unpair
Each wireless receiver can pair up to 5 transmitters, please follow the steps below to pair or unpair the module;

• Step 1. Press [MENU] to enter options;
• Step 2. Press arrow and find [WRC Pairing];
• Step 3. Press the [Pair] to pair or press [Unpair] to unpair.

Service and Maintenance

DANGER!
Disconnect the power cord before starting the maintenance operation!

• Always keep the machine clean.
• Can use air compressor, vacuum or a soft brush to remove the dust on the machine.
• Can use a slightly damp cloth to clean the casing.
• Before store the machine, please make sure the machine is completely cool down to avoid moisture inside causing malfunction.
• It is recommended to run the machine at least once a month in order to maintain the machine’s best performance and output condition.
• Excessive dust and build up liquid residue will reduce the performance and cause overheat.

Breaker Reset (2 in 1 Power Switch)
The 2 in 1 power switch combines power and breaker function. Please follow below steps to reset the breaker;

• Step 1: Please switch to the OFF position;
• Step 2: Wait 60 seconds;
• Step 3: Flip switch to ON position.

If the breaker (switch) still jumps off after reset, please contact your local Antari dealer for assistance.

Breaker Specification

• 100-120V = 15A 250V
• 220-240V = 9A 250V

Technical Specifications

Warranty Disclaimer

We guarantee the merchandise manufactured by us to be free from defect in material and workmanship for a period of one year. Our obligation and liability under this warranty shall be restricted to repair or replacement at our factory or local authorized dealer. We assume no liability of the products that are improperly used or used for any purpose other than that for which they are specially designed. This warranty shall not apply to any merchandise which has been repaired, altered or assembled outside our factory in any way so as in our judgment to affect its performance, nor which has been subjected to misuse, negligence, or accident nor to any merchandise operated contrary to our printed instructions. We will not allow or be liable of any loss or any damages of any kind in connection with the use, sale, or repair of any merchandise purchased from us.

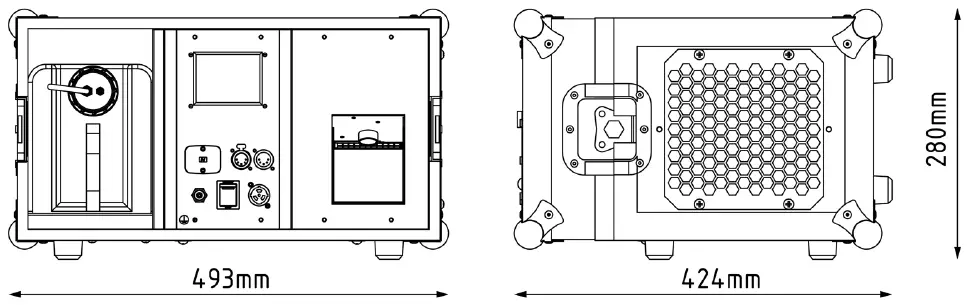

Machine Dimension

Appendix I Grounding Instruction

This appliance must be grounded. In the event of malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If repair or replacement of the cord or plug is necessary, do not connect the equipment-grounding conductor to a live terminal. Check with a qualified electrician or serviceman if the grounding instructions are not completely understood, or if in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

This appliance is for use on a nominal 120 V circuit and has a grounding plug that looks like the plug illustrated in sketch A in Figure. A temporary adaptor, which looks like the adaptor illustrated in sketches B and C, may be used to connect this plug to a 2-pole receptacle as shown in sketch B if a properly grounded outlet is not available. The temporary adaptor should be used only until a properly grounded outlet can be installed by a qualified electrician. The green-colored rigid ear, lug, and the like, extending from the adaptor must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adaptor is used, it must be held in place by the metal screw.

© 2023 Antari Lighting and Effects Ltd.
