WINNERCOM SX2 NFC Touch Door Handle
Introduction
- Door handle Module (DHS)
- NFC & Capacitive Touch
- Pocket Light LED
- Hi-Speed CAN

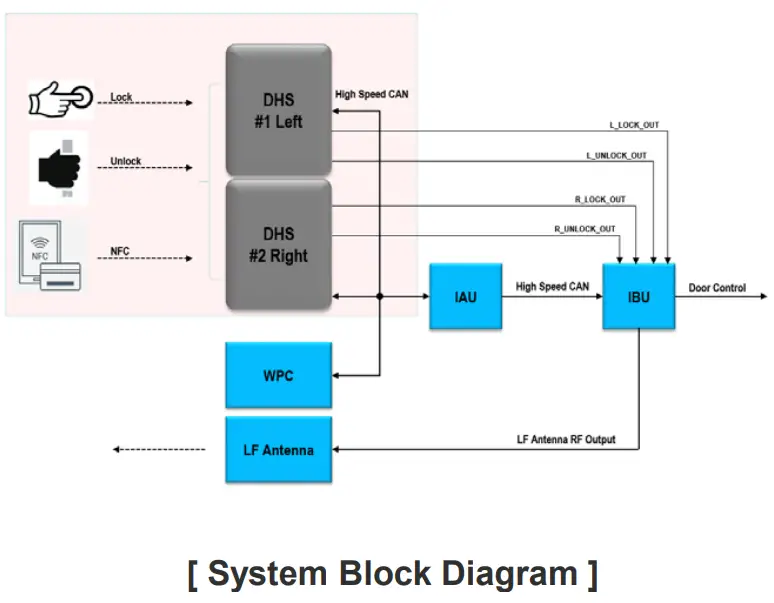

The door handle module for Automotive has a NFC Reader and lock/Unlock 2Channel Capacitive touch Sensor function. This module is installed inside of the door handle covers and will be attached to the outside door panel. This module is communicated with CAN network which enables to connect to the car network to send the signal of lock and unlock of door and Pocket light LED On/Off control. It receives DC power from car battery at all time.

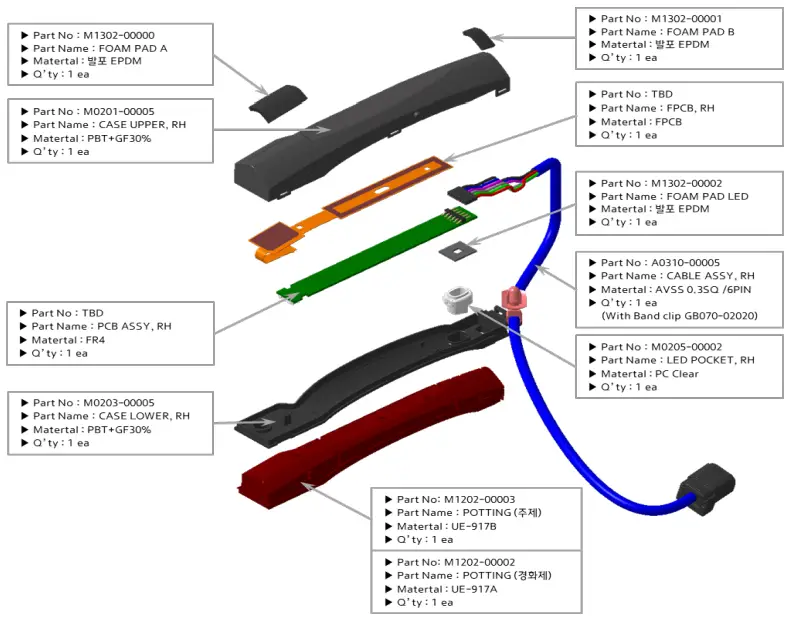

NFC DHS Design(BOM) & Application
CE -NFC Touch Door Handle
| ITEMS | SPECIFICATION |

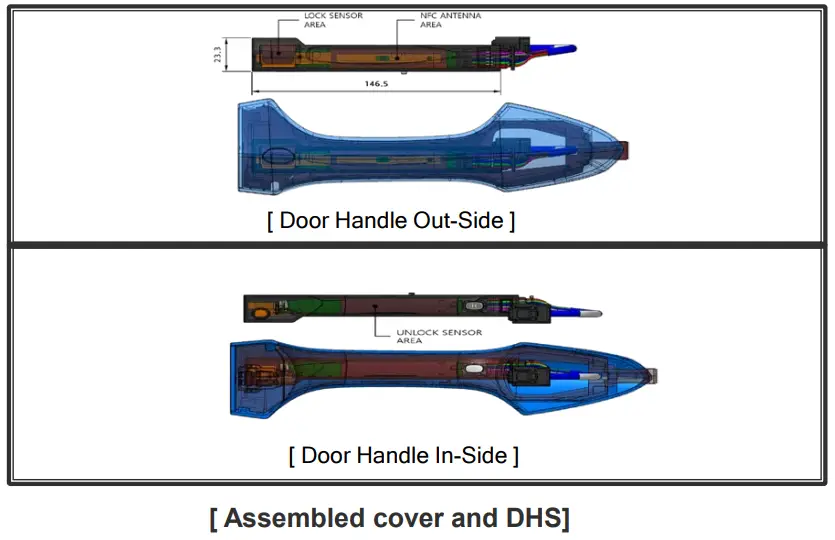

| Size | 146.5 x 23.3 x 19.5(h) [mm] (Length x Width x Height) |
| Color | Black |
| Weight | 76g |
| Waterproof | Polyurethane full potting inside of module. Protective of humidity ,vibration, waterproof. |
| Material | Case : PA6+GF15% , ABS / PRESS : SPTE(Tin-Plating) / PCB : FR-4, 4Layer / Foam Tape : EPDM/ FPCB : Polyimide film |
Attentions
- Please always mount the Door handle Module before power on the device to avoid circuit damage
- Before power on the Module, check the power supply(Fig. 1)
- Module Input Power connect to the connector(Fig. 1)
Type : 6pin Connector Sealed –
Maker & Part No : 7c,l~, HKC0G-1 2721 6P Femalei
|
Pin#. |
Name | Description | In/Out. | Wire Color | 1/0 Level |
| 1 | V Bat(+ Vee) | Power Supply- | Power., | RED , |
Battery + ., |
|
2 |
L_CAN (L) , | CAN Low Signal, | 1/0, | GREEN , | 2.S±TBD V, |
| 3 | TOUCH_1 •• | LOCK , | o ., |
GRAY, |
. |
|
4 |
TOUCH_2, | UNLOCK ., | o . | PINK , |
. |
|
5 |
L_CAN(H). | CAN High Signal ,, | 1/0, | BLUE, |
2.S±TBD V, |
|
6 |
GND, | Electric Ground, | Power, | BLACK, |
Gnd, |
Specifications
| NFC Touch Data | |
| Frequency Range | 13.56MHz for NFC |
| Operating Voltage | 9.0 ~ 16.0 [Vdc], Typical 12.0 [Vdc] |
| Current | Max 400mA @ Operation Mode |
| Operating Temp. | -30℃ ~ 75℃ |
| Storage Temp. | -40℃ ~ 85℃ |
| Symbol | DC, IEC 60417-5031 (2002-10) |
| NFC maximum output power | |
User Information and Instructions
FCC Part 15 Compliance information.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :
- This device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada Statement
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must acceptany interference, including interference that may cause undesired operation of the device
This product is compliant with the essential requirements and other relevant provisions of the Directive 2014/53/EU.
– This product can be used in which EU members, in accordance with ArticleS10(10).
– This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
Manufacturer information
| Manufacturer name | WINNERCOM Co., Ltd. |
| Address, City: | 158-7, Golden root-ro, Juchon-myeon, Gimhae-si, Gyeongsangnam-do, KOREA |
| Product name (type) : | Touch door |
