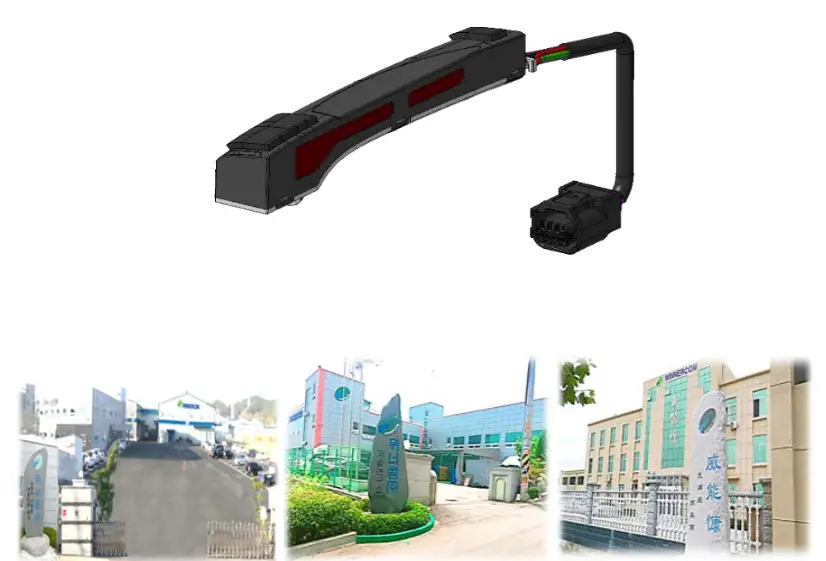

SP2 PE NFC Touch Door Handle
User Manual
Introduction
- Door handle Module (DHS
- NFC & Capacitive Touch
- Pocket Light LED
- Hi-Speed CAN

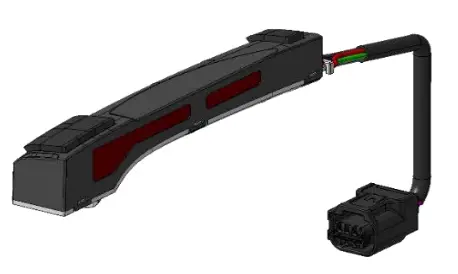

The door handle module for Automotive has an NFC Reader and lock/Unlock 2Channel Capacitive touch Sensor function. This module is installed inside of the door handle overs and will be attached to the outside door panel.
This module is communicated with the CAN network which enables to connect to the car network to send the signal of lock and unlock of door and Pocket light LED On/Off control. It receives DC power from the car battery at all times.
NFC DHS Design(BOM) & Application
CE – NFC Touch Door Handle
| Category | Feature | |
| System | Micom | ATSAMC21E18A-MZT Cortex M0 @48MHz RAM 32kB, ROM 256kB |
| NFC Processor | 3A LOGICS, TNR100 | |
| CAN Transceiver | NXP, TJA1044GTK/3, High-Speed CAN 500kbps | |

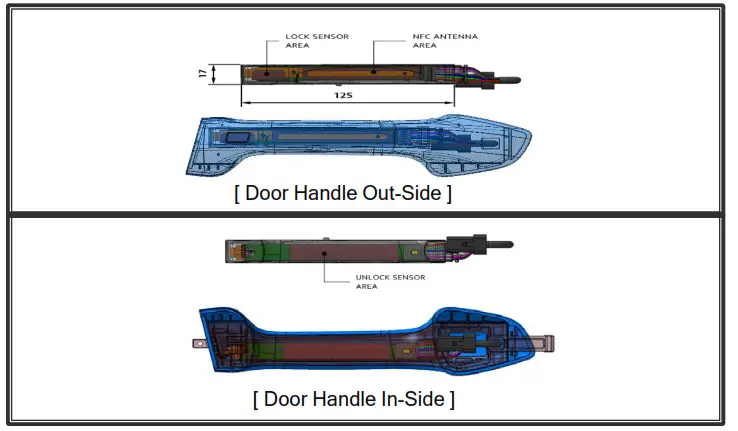

| Mechanical Size | 125 x 17 x 15.5(h) [mm] (Length x Width x Height) | |
| Weight | TBD(g) | |
| System Interface | NFC 13.56MHz NFC-A Type 4, Digital key 2.0 | |
| CAN Ver. 2.0 High Speed | ||
| Lock: direct cantact Unlock: Handle Grip contact | ||
| Diagnostics | Battery Voltage: Under Voltage & Over Voltage | |
| Internal Temperature: Over Heating | ||
| Pocket Lighting | N/A | |

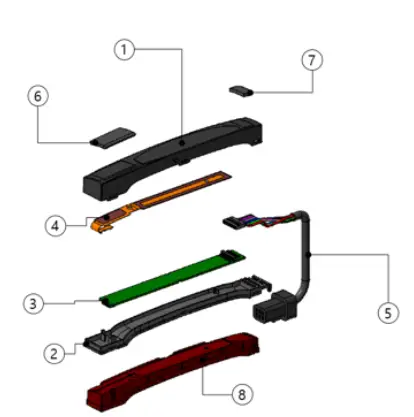

| NO | LEV | SUB | ||
| 1 | 1 | CASE UPPER | PBT+GF3096 | |
| 2 | 1 | CASE LOWER+) | PBT+GF30%43 | |
| 3 | 1 | PCB ASSY | TBD | FR-443 |
| 4 | 1 | FPCB. | TBD43 | |
| 5 | 2 | CABLE ASSY | AVSS 0350 | |
| 6 | 1 | FOAM PAD A | EPDM43 | |
| 7 | 1 | FOAM PAD | EPDM | |
| 8 | 1 | ANT POTTING | ESP 1101243 | UE-917 A,B |
Attention
- Please always mount the Door handle Module before powering on the device to avoid circuit damage
- Before powering on the Module, check the power supply(Fig. 1)

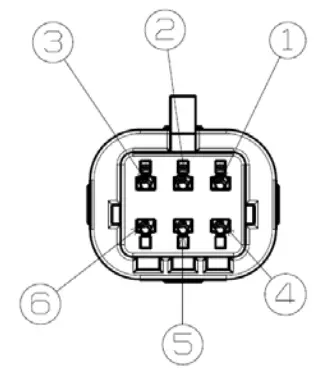

- Module Input Power connects to the connector(Fig. 1)
| Pin #. | Name | Description | In/Out | Wire Color | I/O Level |
| 1 | V Bat(+Vcc) | Power Supply | Power | RED | Battery + |
| 2 | L_CAN(L) | CAN Low Signal | I/O | GREEN | 2.5±TBD V |
| 3 | TOUCH_1 | LOCK | O | GRAY | |
| 4 | TOUCH_2 | UNLOCK | O | PINK | |
| 5 | L_CAN(H) | CAN High Signal | I/O | BLUE | 2.5±TBD V |
| 6 | GND | Electric Ground | Power | BLACK | And |
Specifications
NFC Touch Data:
| Frequency Range | 13.56MHz for NFC |
| Operating Voltage | 9.0 ~ 16.0 [Vdc], Typical 12.0 [Vdc] |
| Current | Max 400mA @ Operation Mode |
| Operating Temp. | -30℃ ~ 75℃ |
| Storage Temp. | -40℃ ~ 85℃ |

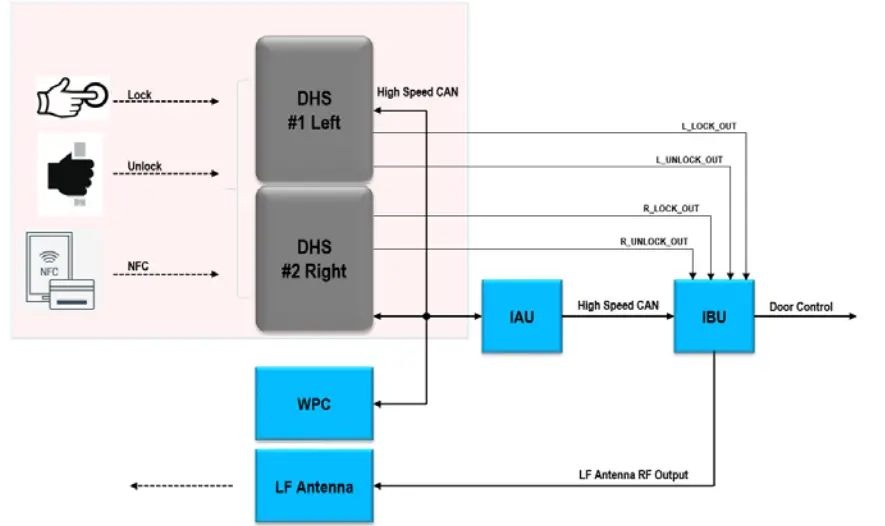

[ System Block Diagram ]
user Information and Instructions
FCC Part 15 Compliance information:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Manufacturer information
| Manufacturer name | WINNERCOM Co., Ltd. |
| Address, City: | HUMAX Village, 216, Hwangsaeul-ro, Bundang-Gu, Seongnam-si, Gyeonggi-do, South KOREA 13595 |
| Product name (type) : | Vehicle active antenna & Touch door |
