Winnercom LX2PE NFC Touch Door User Manual
Introduction
- Door handle Module (DHS)
- NFC & Capacitive Touch
- Pocket Light LED
- Hi-Speed CAN
The door handle module for Automotive has a NFC Reader and lock/Unlock 2Channel Capacitive touch Sensor function.

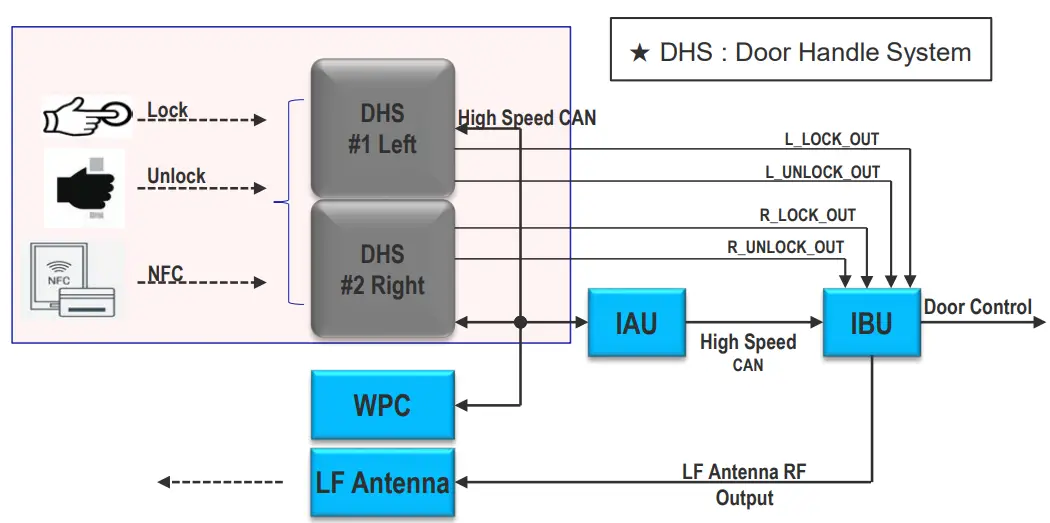

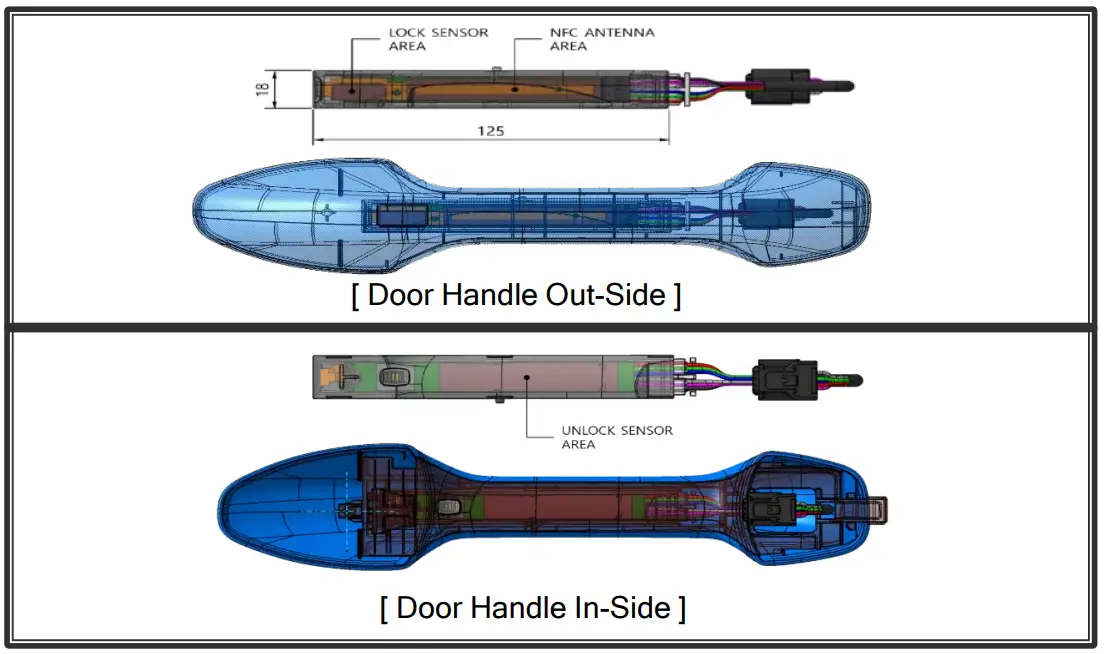

This module is installed inside of the door handle covers and will be attached to the outside door panel.
This module is communicated with CAN network which enables to connect to the car network to send the signal of lock and unlock of door and Pocket light LED On/Off control.
It receives DC power from car battery at all time.

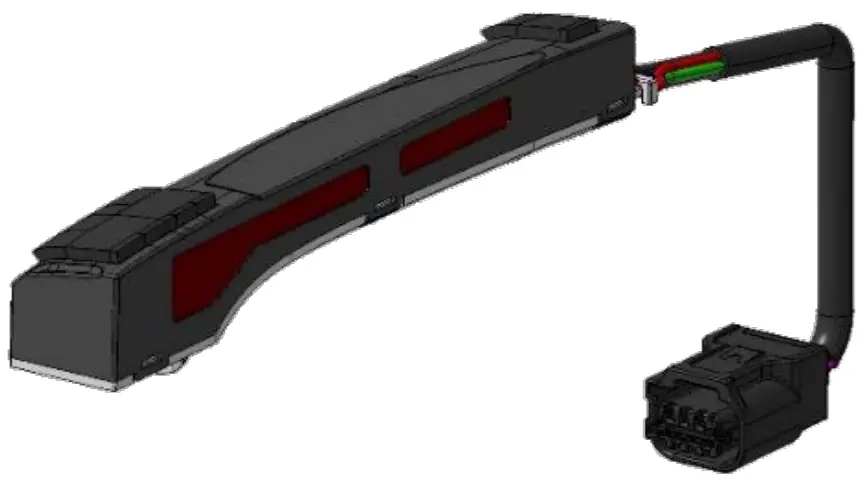

[ Assembled cover and DHS]
NFC DHS Design(BOM) & Application
ITEMS | SPECIFICATION |
| Size | 125 x 18 x 20 mm (Length x Width x Height) |
| Color | Black |
| Weight | 53g +/- 2.2% |
| Waterproof | Polyurethane full potting inside of module. Protective of humidity ,vibration, waterproof |
| Material | Case : PA6+GF15% , ABS / PRESS : SPTE(Tin-Plating) / PCB : FR-4, 4Layer / Foam Tape : EPDM/ FPCB : Polyimide film |

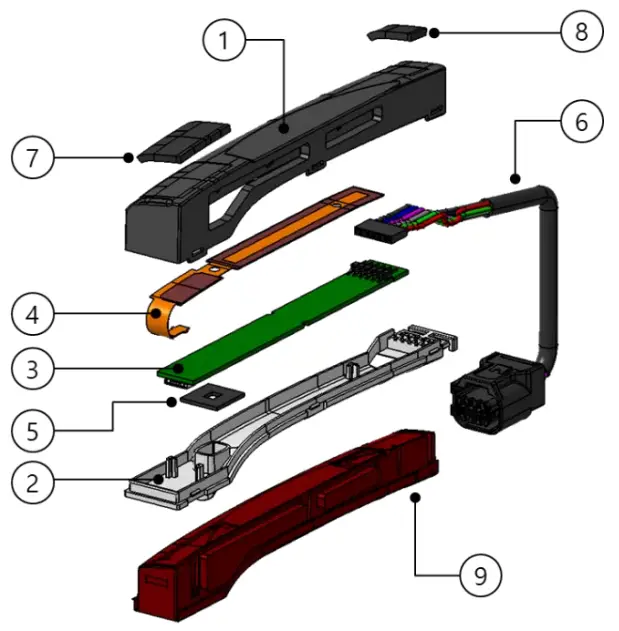

NO | Lev | SUB |
1 | 1 | CASE UPPER |
| 2 | 1 | CASE LOWER |
3 | 1 | PCB ASSY |
| 4 | 1 | FPCB. |
5 | 2 | FOAM PAD LED |
| 6 | 2 | CABLE ASSY |
7 | 1 | FOAM PAD A |
| 8 | 1 | FOAM PAD B |
9 | 1 | ANT POTTING |
Attentions
- Please always mount the Door handle Module before power on the device to avoid circuit damage
- Before power on the Module, check the power supply (Fig. 1)
- Module Input Power connect to the connector (Fig. 1)
DC 12V Input for operate Door Handle Module (#1 & 6)
Fig. 1 Connector

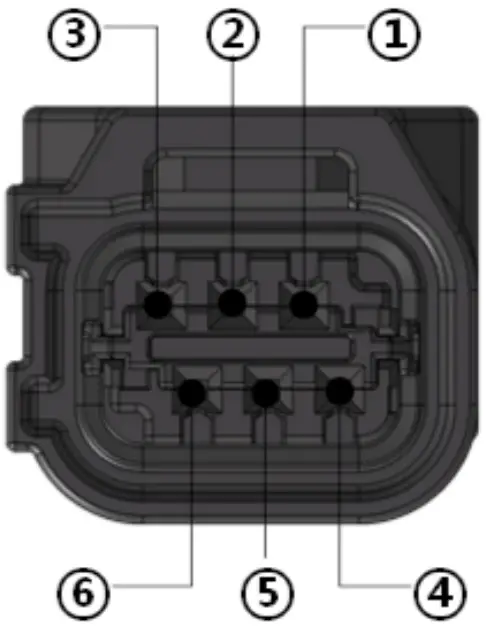

CONNECTOR INFORMATION
- O/S HDL CONNECTOR
- Female Connector : HKCO6 .272
Touch+NFC (CAN + Logic Signal) | |||
Pin | Pin Name | Wire Color | Signal Description |
1 | V Bat(+Vcc) | Red | Power Supply |
| 2 | L_CAN(L) | Green | CAN Low Signal |
3 | Touchl | Gray | Lock |
| 4 | Touch2 | Pink | Unlock |
5 | L_CAN(H) | Blue | Blue CAN High Signal |
| 6 | GND | Black | Electrical Ground |
- CONNECTOR
- Male Connector : HKCO6-12711
Specifications
NFC Touch Data | |
| Frequency Range | 13.56MHz for NFC |
| Operating Voltage | 9.0 ~ 16.0 [Vdc], Typical 12.0 [Vdc] |
| Current | Max 0.50mA @ Sleep Mode, Max 100mA @ Operation Mode |
| Operating Temp | -35℃ ~ 75℃ |
| Storage Temp. | 40℃ ~ 85℃ |
★ DHS : Door Handle System
User Information and Instructions
FCC Part 15 Compliance information.
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Caution
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Industry Canada Statement
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
- this device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of the device.
Manufacturer information
| Manufacturer name | WINNERCOM Co., Ltd. |
| Address, City: | HUMAX Village, 216, Hwangsaeul-ro, Bundang-Gu, Seongnam-si, Gyeonggi-do, South KOREA 13595 |
| Product name (type) : | Vehicle active antenna & Touch door |
