TASK Lighting TR Series Angle Power Strip
Angle Power Strip TR Series

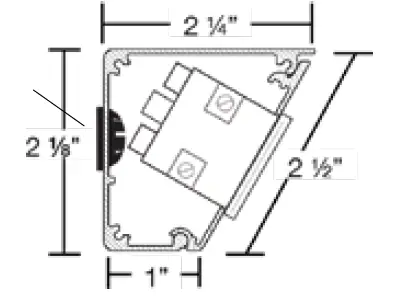

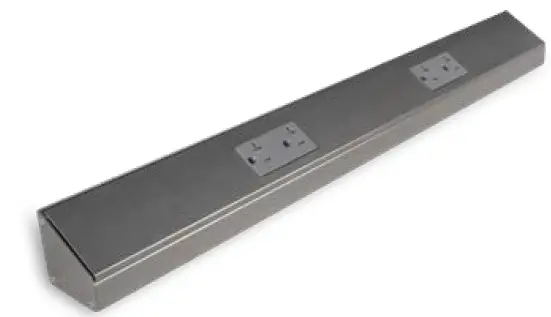

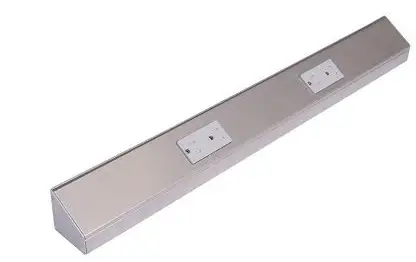

The Angle Power Strip TR Series is a power strip with tamper-resistant receptacles that eliminates the need for cutouts for receptacles and switches in your backsplash. The construction materials are powder-coated aluminum, and the input voltage is 120V. The power strip is designed for dry environments only and comes in finishes such as white (WT), black (BK), satin nickel (SN), and bronze (BZ).
Specifications
- Construction Materials: Powder Coated Aluminum
- Input Voltage: 120V
- Mounting: Wood Screws & Mollies
- Wiring: 12g Romex
- Environment: Dry Only
Features
- Tamper-resistant receptacles
- Powder-coated finish in white (WT), black (BK), satin nickel (SN), and bronze (BZ)
- Eliminates cutouts for receptacles and switches in your backsplash
Applications
The power strip comes with receptacles in black (B), grey (G), and white (W) colors. It is available in various lengths and receptacle configurations. The following are the configurations available:

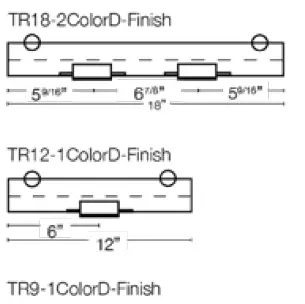

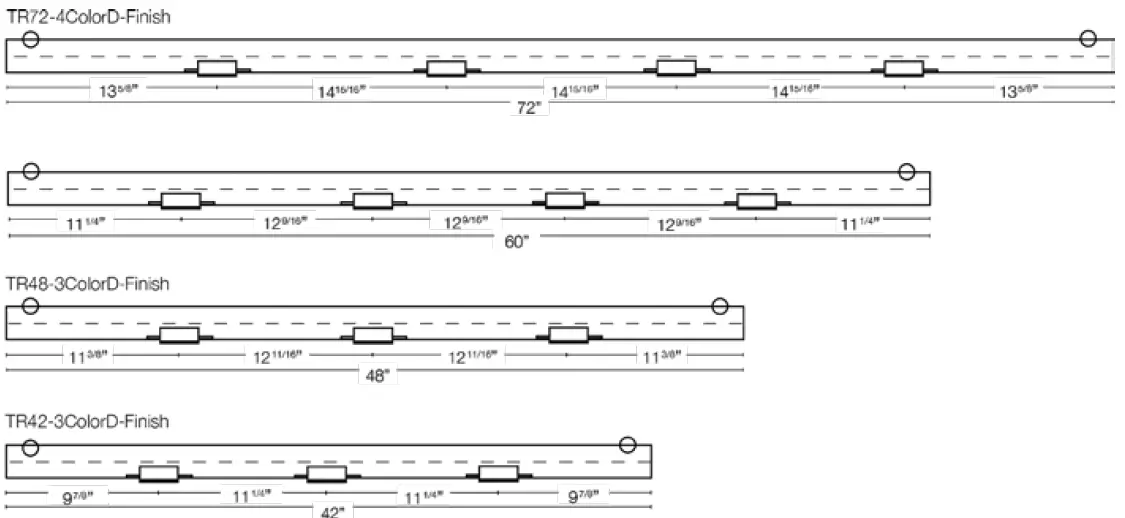

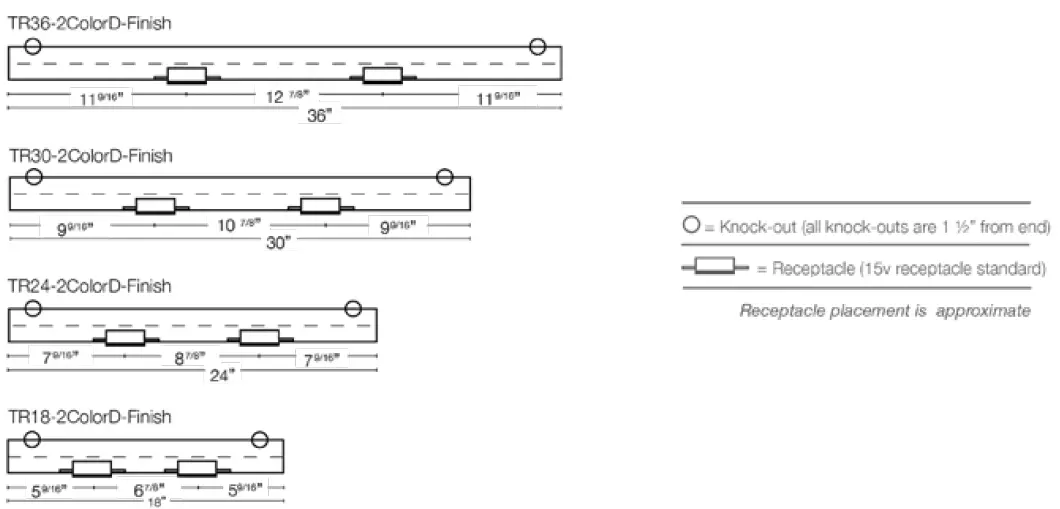

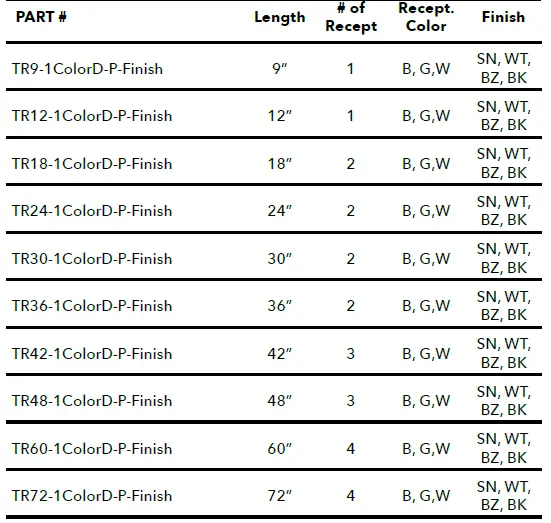

| Part # | Length | # of Receipt. | Receipt. Color | Finish |
|---|---|---|---|---|
| TR9-1ColorD-P-Finish | 9 | 1 | B, G, W | SN, WT, BZ, BK |
| TR12-1ColorD-P-Finish | 12 | 1 | B, G, W | SN, WT, BZ, BK |
| TR18-1ColorD-P-Finish | 18 | 2 | B, G, W | SN, WT, BZ, BK |
| TR24-1ColorD-P-Finish | 24 | 2 | B, G, W | SN, WT, BZ, BK |
| TR30-1ColorD-P-Finish | 30 | 2 | B, G, W | SN, WT, BZ, BK |
| TR36-1ColorD-P-Finish | 36 | 2 | B, G, W | SN, WT, BZ, BK |
| TR42-1ColorD-P-Finish | 42 | 3 | B, G, W | SN, WT, BZ, BK |
| TR48-1ColorD-P-Finish | 48 | 3 | B, G, W | SN, WT, BZ, BK |
| TR60-1ColorD-P-Finish | 60 | 4 | B, G, W | SN, WT, BZ, BK |
| TR72-1ColorD-P-Finish | 72 | 4 | B, G, W | SN, WT, BZ, BK |
An example part number is TR9-1BD-P-SN, which means a 9 Strip with (1) Black Duplex Receptacle and a Powder Coated Satin Nickel Finish.
Installation Components
- TR-SQ-JB-P-Finish: 3 x 3 x 2-1/8 Square Junction Box
- TRC9-1SPS-Color-P-Finish: 9 TR Series APS with single pole switch offset to the right
- TRC9-4PORT-Color-P-Finish: 9 TR Series APS with 4-port data insert
- TRC9-BLANK-Color-P-Finish: 9 TR Series APS blank junction box
- TR-SPEC0513: Outwater Industries, Inc. assumes no liability for improper installation.
TR Series Custom Options
The TR series offers custom lengths to the 1/4 between 9 and 144, priced to the next larger size. It also offers various switches, receptacles, connectors, port frames, snap-in connectors, and power supply options.
Switches
| PART # | Description | Color |
|---|---|---|

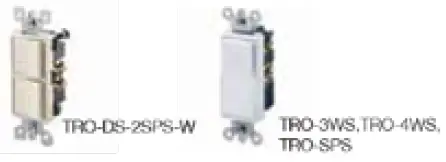

| TRO-SPS-Color | Decora single-pole rocker switch | |
| TRO-SPS-20A-Color | Decora 20 amp single-pole rocker switch | |
| TRO-3WS-Color | Decora 3-way rocker switch | |
| TRO-3WS-20A-Color | Decora 20 amp 3-way rocker switch | |
| TRO-4WS-Color | Decora 4-way rocker switch | |
| TRO-DS-2SPS-Color | Decora double switch | |
| TRO-DS-(2)3WS-Color | Double switch with (2) 3 way | |
| TRO-DS-1P/3P-Color | Double switch with single pole & 3 way | |
| TRO-TS-3SPS-Color | Decora triple switch |
Receptacles
| PART # | Description |
|---|---|

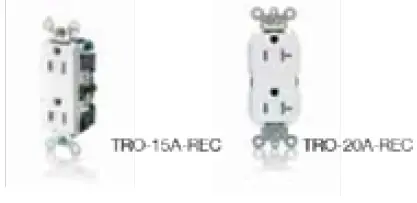

| TRO-15A-REC | 15amp tamper-resistant receptacle |
| TRO-20A-REC | 20amp tamper-resistant receptacle |
Receptacles/Switch Combo
| PART # | Description | Color |
|---|---|---|

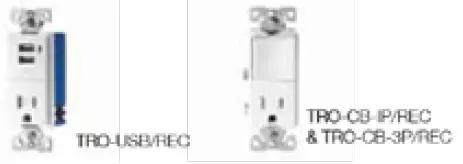

| TRO-USB/REC | Combination (2) USB ports and receptacle | |
| TRO-CB-1P/REC-Color | Combination single pole switch and receptacle | |
| TRO-CB-3P/REC-Color | Combination 3-way switch & receptacle |
Connectors
| PART # | Description |
|---|---|

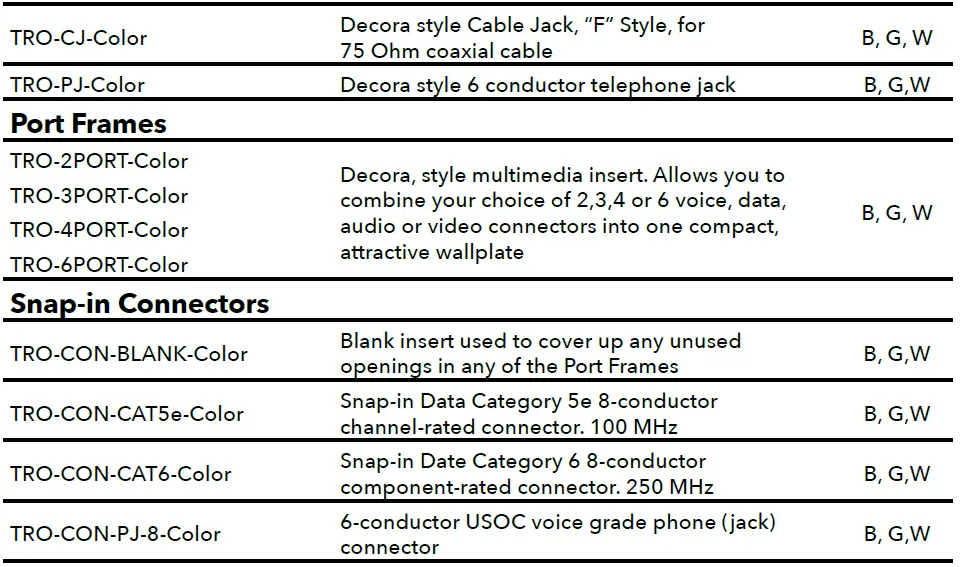

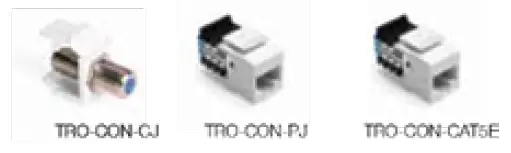

| TRO-CJ-Color | Decora style Cable Jack, F |
Angle Power Strip TR Series
Tamper Resistant Receptacles – Eliminate cutouts for receptacles and switches in your backsplash
FEATURES
- Easy Installation
- Designer finishes to blend with any decor
- Meets 2008 NEC® Code
- Custom options include phone jacks, cable jacks, data ports and more
- 3-Year Limited Warranty

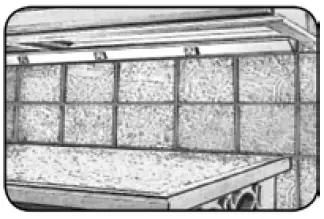

APPLICATIONS
- Kitchens
- Baths
- Offices & Computer Labs
- Islands
- Shops & Garages
SPECIFICATIONS
- Construction Materials: Powder Coated Aluminum
- Input Voltage: 120V
- Mounting Wood Screws & Mollies
- Wiring: 12g Romex
- Environment: Dry Only
- Finishes
- White (WT)
- Black (BK)
- Satin Nickel (SN)
- Bronze (BZ)

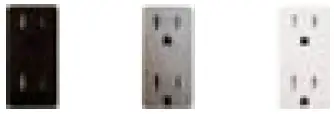

- Receptacle Colors
- Black (B)
- Grey (G)
- White(W)
Example Part Number: TR9-1BD-P-SN = 9” Strip, (1) Black Duplex Receptacle, Powder Coated Satin Nickel Finish
INSTALLATION COMPONENTS
Standard Sizes & Configurations
Combination Devices
Switches
Receptacles
Connectors
Port Frames
Snap-in Connectors

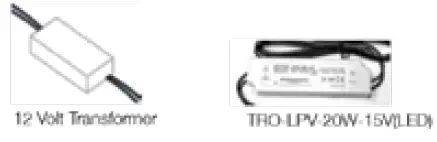

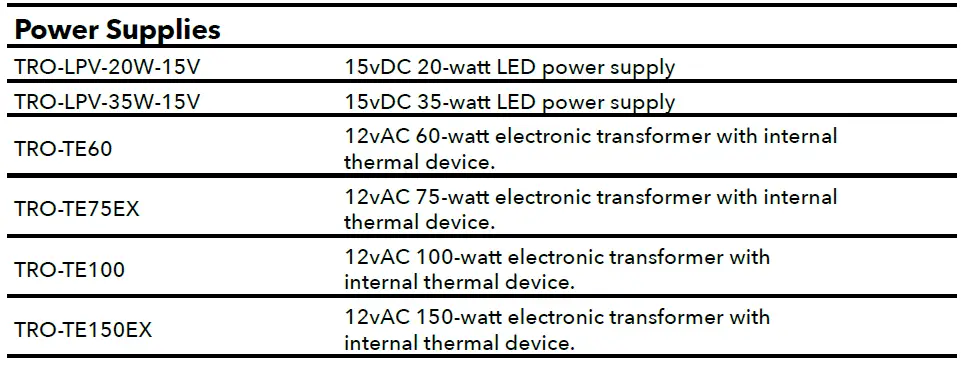

Power Supply
TR SERIES CUSTOM OPTIONS
Custom Lengths
Custom lengths to the 1/4” between 9” and 144”, priced to the next larger size
| Switches | ||
| PART # | Description | Color |
| TRO-SPS-Color | Decora single-pole rocker switch | B, G,W |
| TRO-SPS-20A-Color | Decora 20 amp single-pole rocker switch | B, G,W |
| TRO-3WS-Color | Decora 3-way rocker switch | B, G,W |
| TRO-3WS-20A-Color | Decora 20 amp 3-way rocker switch | B, G,W |
| TRO-4WS-Color | Decora 4-way rocker switch | B, G,W |
| TRO-DS-2SPS-Color | Decora double switch | B, G,W |
| TRO-DS-(2)3WS-Color | Double switch with (2) 3 way | B, W |
| TRO-DS-1P/3P-Color | Double switch with single pole & 3 way | B, G,W |
| TRO-TS-3SPS-Color | Decora triple switch | W |
| Receptacles | ||
| TRO-15A-REC | 15amp tamper-resistant receptacle | B, G, W |
| TRO-20A-REC | 20amp tamper-resistant receptacle | B, G, W |
| Receptacles/Switch Combo | ||
| TRO-USB/REC | Combination (2) USB ports and receptacle | |
| TRO-CB-1P/REC-Color | Combination single pole switch and receptacle | B, G, W |
| TRO-CB-3P/REC-Color | Combination 3-way switch & receptacle | B, G, W |
| Connectors | ||
Installation Instructions
GENERAL GUIDELINES
- Power source MUST be a 20 amp branch circuit protected by a GFCI at the panel or GFCI prior to the connection a APS -TR SERIES
- All wiring must meet NEC and local codes. The Angle Power Strip – Tamper Resistant (APS-TR Series)) must be installed by a licensed electrician.
- Use knockout holes for 120V wire entrance. Use listed Romex connectors provided for 120V electrical connections.
- Use tool provided to pry open for wiring. (Using other devices may damage the aluminum cover.)
- Field cutting voids warranty.

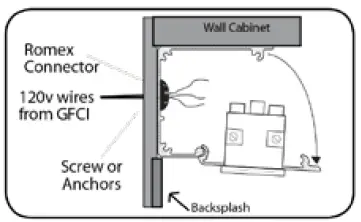

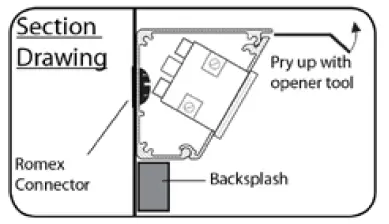

- Turn power off at panel. Pry open each piece with tool (provided). Insert Romex connector into hole. Pull wires into APSTR Series.
- Secure APS-TR Series to wall with screws into each stud or use anchors provided. Strip wires and connect black to black, white to white. Ground all green wires to grounding stud on inside back of frame. When connecting two APS-TR Series, run Romex from piece A to piece B. Ground each section to the next.
- To terminate last APS-TR Series, use wire nuts on ends of wires. Snap cover in place and turn power on.
TR-SPEC&INSTALL -0810
Outwater Industries, Inc. assumes no liability for improper installation.
