anslut 006538 Power Strip
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).
SAFETY INSTRUCTIONS
- Do not connect power strips to each other.
- Do not cover the power strip.
SYMBOLS
- CE: Approved as per applicable
- Recycle discarded product as electrical waste.
TECHNICAL DATA
- Rated voltage
230 V ~ 50 Hz - Rated current
16 A - Power
Max3680W - Max load
3500W - Average active efficiency
79,19% - Efficiency at low power (10%)
73,76% - No-load power consumption
0,08W - USB
5.0 V DC/ 2.4 A 12.0 Win total
For USB charger:
- Input
230 V ~ 50 Hz, 0,3 A - Output 1
5 V DC/ 2,1 A/ 10,5 W - Output 2
5 V DC/ 2,1 A/ 10,5 W - Output, total
5 V DC/ 2,1 A/ 10,5 W - Size
8x8x8cm - Cord length
1.4 m - Protection rating
IP20
DESCRIPTION

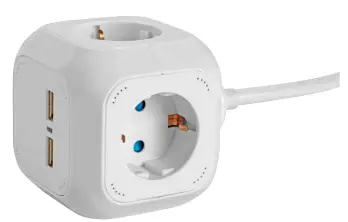

Square four-way socket with two USB ports for charging mobile devices. All sockets are earthed and childproof. Universal bracket for mounting on wall, table or worktop included.
INSTALLATION
- Mount the bracket with the supplied screws or double-sided tape.

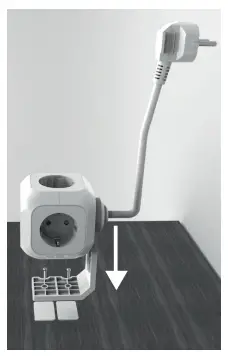

- Put the power strip in the holder. (To separate the power strip cube from the bracket, carefully open the tabs.)
- Plug the plug into a power point. FIG. 1
