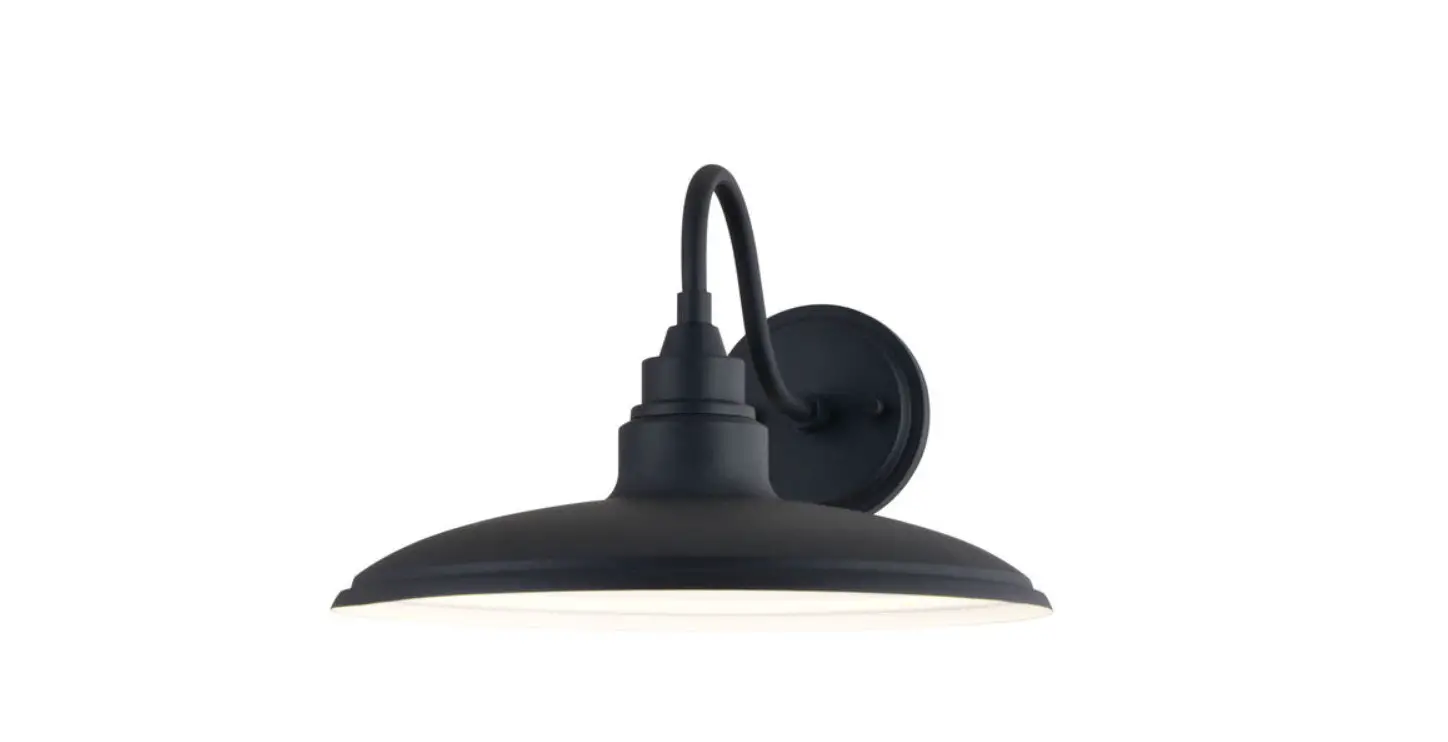

Cascadia T0685 Winfield 1 Light Dusk to Dawn Matte Black Outdoor Wall Lantern
Product Information
The T0685 is a light fixture that has a photocell function to
enable the light to turn on at dusk and off at dawn automatically.
It requires a maximum of 60W Type ST Bulb (not included) and is
compatible with a dimmer switch when the photocell is disconnected.
The fixture comes with a hardware package that includes a mounting
plate unit, mounting screw, wire connector, bolt nut, rubber pad,
glass shade, and fixture wire backplate.
Product Usage Instructions
- Before installing the T0685 light fixture, turn off the main
power at the circuit breaker. - Consult local electrical codes for wiring and grounding
requirements before installing. - Read and save the assembly and installation instructions for
future reference. - Attach the mounting plate unit (A) to the outlet box by using
two mounting screws (B). Adjust the length of the preinstalled
fixture mounting screws if necessary. Ensure that two fixture
mounting screws are lined up horizontally to make the fixture
level. - Install the bulb (not included). See relamping label at socket
area or packaging for maximum wattage allowed. - Attach the backplate of the fixture to the mounting plate unit
(A) by aligning and inserting the two fixture mounting screws into
set holes on backplate, then secure it with two rubber pads (E) and
two bolt nuts (D). Use silicone caulk compound to caulk completely
around where the backplate meets with the wall surface to prevent
water from seeping into the outlet box. - To disconnect Dusk-to-Dawn Photocell, turn off the power at the
fuse or circuit box before starting installation. - Loosen the wire connector connected with the wires from
photocell. Do not remove the photocell to prevent water from
seeping into the outlet box. - Take a white pigtail and black pigtail and make wire
connections using wire connector (C): a. The black wire from the
fixture to one end of the black pigtail. b. The white wire from the
fixture to one end of the white pigtail. c. The other end of the
black pigtail to the black wire from the power source. d. The other
end of the white pigtail to the white wire from the power source.
Put all wires back into the backplate of the fixture. - Turn on the power at fuse or circuit box.
Spare Parts List:
The following parts are available for re-order if damaged or
missing:
- Mounting Plate Unit (A)
- Mounting Screw (B)
- Wire Connector (C)
- Bolt Nut (D)
- Rubber Pad (E)
- Glass Shade
- Fixture Wire Backplate
ASSEMBLY AND INSTALLATION INSTRUCTIONS
T0685
WWARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
Mounting Plate Unit (A)
Mounting Screw (B)
Wire Connector (C)
Bolt Nut (D)
Rubber Pad (E)
Outlet Box House Ground Wire Fixture Mounting Screw Green Ground Screw Mounting Plate Unit (A) Mounting Screw (B) Fixture Ground Wire Wire Connector (C)
Fixture Wire Backplate
IMPORTANT: The sensor has an excellent photocell function to enable the light to turn on at dusk and off at dawn automatically.
Photocell
Fixture Bolt Nut (D) Rubber Pad (E)
Glass Shade
Max.60W Type ST Bulb (not included)
Page 1 / 3
221017
T
Installation Steps
Turn off the power at fuse or circuit box.
1. Unscrew the two bolt nuts (D)
remove the two rubber pads (E) and the mounting plate unit (A) from the backplate.
2. Attach the mounting plate unit (A) to the outlet box by using two mounting screws (B). Adjust the length of the preinstalled fixture mounting screws if necessary. Note: Make sure that two fixture mounting screws are lined up horizontally to make the fixture level.
3. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows: · Connect the hot wire (black insulation) from the fixture to the black wire from the power source. · Connect the neutral wire (white insulation) from the fixture to the white wire from the power source. · Attach the fixture ground wire (bare wire) to the mounting plate unit (A) with green ground screw, then depending on local code, connect it to the house ground wire with the wire connector (C). Carefully put all of the wires back into the outlet box.
4. Install the bulb (not included). See relamping label at socket area or packaging for maximum wattage allowed.
5. Attach the backplate of the fixture to the mounting plate unit (A) by aligning and inserting the two fixture mounting screws into set holes on backplate, then secure it with two rubber pads (E) and two bolt nuts (D). Note: With silicone caulk compound, caulk completely around where the backplate meets with the wall surface to prevent water from seeping into the outlet box.
Turn on the power at fuse or circuit box.
Optional Installation: Disconnect Dusk-to-Dawn Photocell
IMPORTANT: Compatible with dimmer when photocell is disconnected. * Requires dimmable bulb and compatible dimmer switch.
Photocell Black Wires From Photocell White Wires From Photocell Red Wires From Photocell
Wire Connector
Wires From Fixture
Wires From Main Power
Pigtail
Wires From Fixture
White Pigtail
Fig.1
Wire Connector (C)
Fig.2
1. Turn off the power at the fuse or circuit box before starting installation.
2. Loosen the wire connector connected with the wires from photocell. (See Fig.1) Note: Do not remove the photocell to prevent water from seeping into the outlet box.
3. Take a white pigtail and black pigtail and make wire connections using wire connector (C): (See Fig.2) a. The black wire from the fixture to one end of the black pigtail. b. The white wire from the fixture to one end of the white pigtail. c. The other end of the black pigtail to the black wire from the power source. d. The other end of the white pigtail to the white wire from the power source. Put all wires back into the backplate of the fixture.
Turn on the power at fuse or circuit box.
Page 2 / 3
221017
The following parts are available for re-order if damaged or missing.
Spare Parts List:
Assembly Kit 6591MM
Mounting Plate Unit (A) Mounting Screw (B) Wire Connector (C) Bolt Nut (D) Rubber Pad (E)
Glass Shade 10334CG
A B
A: 14-1/4″ B: 7″ C: 6-1/2″
C
Page 3 / 3
