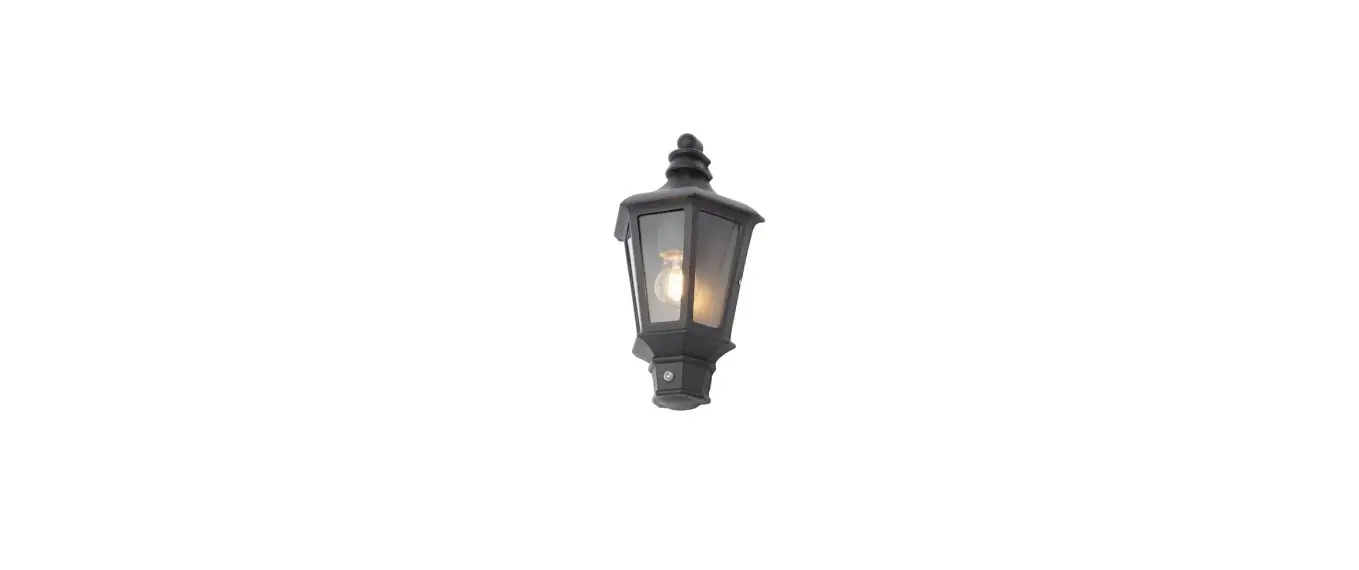

T0650 One Light Outdoor Wall Lantern
Product Information
The product is a light fixture with a photocell function that
automatically turns the light on at dusk and off at dawn. The
package includes a crossbar unit, mounting screws, wire connector,
bolt nut, rubber pad, and backplate. The fixture is compatible with
a maximum 60W Type A bulb, which is not included in the package.
The product can be installed with or without the photocell function
and is compatible with a dimmer switch when the photocell is
disconnected. The user manual includes a spare parts list for
re-ordering damaged or missing parts.
Product Usage Instructions
- Before installing the fixture, turn off the main power at the
circuit breaker or fuse box. - Attach the crossbar unit (A) to the outlet box using two
mounting screws (B). - Connect the wires from the fixture to the wires from the outlet
box using a wire connector (C) and secure the backplate of the
fixture to the crossbar unit (A) using rubber pads (E) and bolt
nuts (D). Use silicone caulking compound to seal around the
backplate to prevent water from seeping into the outlet box. - Attach the shade to the socket and secure it with the socket
ring. - Install a bulb (not included) by checking the relamping label
for the maximum wattage allowed. - Turn on the power at the circuit breaker or fuse box.
- If desired, disconnect the photocell function for compatibility
with a dimmer switch by following these steps:- Turn off the power at the circuit breaker or fuse box.
- Loosen the wire connectors connected with the wires from the
photocell. Do not remove the photocell to prevent water from
seeping into the outlet box. - Take a white pigtail and black pigtail and make wire
connections using wire connectors (C). Connect the black wire from
the fixture to one end of the black pigtail and the white wire from
the fixture to one end of the white pigtail. Connect the other end
of the black pigtail to the black wire from the power source and
the other end of the white pigtail to the white wire from the power
source. Put all wires back into the backplate of the fixture. - Turn on the power at the circuit breaker or fuse box.
- If any parts are damaged or missing, refer to the spare parts
list in the user manual for re-ordering.
ASSEMBLY AND INSTALLATION INSTRUCTIONS
T0650
WWARNING: Turn off the main power at circuit breaker before installing fixture.
AVERTISSEMENT: Coupez la source d’alimentation principale au panneau central de disjoncteurs avant d’installer le luminaire.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS.
Hardware Package (included):
Cross Bar Unit (A)
Mounting Screw (B)
Wire Connector (C)
Bolt Nut (D)
Photocell
Bolt Nut (D) Rubber Pad (E)
Rubber Pad (E)
Outlet Box House Ground Wire Wire Connector (C)
Cross Bar Unit (A) Fixture Mounting Screw
Green Ground Screw Mounting Screw (B) Fixture Ground Wire Fixture Wire Backplate
IMPORTANT: The sensor has an excellent photocell function to enable the light to turn on at dusk and off at dawn automatically.
Socket
Shade Socket Ring
Max.60W Type A Bulb (not included)
Page 1 / 3
220523
Installation Steps
Turn off the power at fuse or circuit box.
1. Attach the cross bar unit (A) to the outlet box by using two mounting screws (B).
2. Pull out the source wires from the outlet box. Make wire connections using wire connectors (C) as follows: · Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source. · Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source. · Attach the fixture ground wire (usually green with the insulation or bare wire) to the cross bar unit (A) with the green ground screw. Then, depending on local code, connect it to the house ground wire with the wire connector (C). Carefully put all of the wires back into the outlet box.
3. Attach the backplate of the fixture to the cross bar unit (A) by inserting fixture mounting screws into set holes on the backplate, then secure it with two rubber pads (E) and two bolt nuts (D). Note: With silicone caulking compound, caulk completely around where the backplate meets with the wall surface to prevent water from seeping into the outlet box.
4. Attach the shade to the socket, then secure it with the socket ring.
5. Install a bulb (not included). Check relamping label at socket area or packaging for maximum wattage allowed.
Turn on the power at fuse or circuit box.
Optional Installation: Disconnect Dusk-to-Dawn Photocell
IMPORTANT: Compatible with dimmer when photocell is disconnected. * Requires dimmable bulb and compatible dimmer switch.
Photocell Black Wires From Photocell White Wires From Photocell Red Wires From Photocell
Wire Connector
Wires From Fixture
Wires From Main Power
Pigtail
Wires From Fixture
White Pigtail
Fig.1
Wire Connector (F)
Fig.2
1. Turn off the power at the fuse or circuit box before starting installation.
2. Loosen the wire connectors connected with the wires from photocell. (See Fig.1) Note: Do not remove the photocell to prevent water from seeping into the outlet box.
Page 2 / 3
220523
3. Take a white pigtail and black pigtail and make wire connections using wire connectors (C): (See Fig.2) a. The black wire from the fixture to one end of the black pigtail. b. The white wire from the fixture to one end of the white pigtail. c. The other end of the black pigtail to the black wire from the power source. d. The other end of the white pigtail to the white wire from the power source. Put all wires back into the back plate of the fixture.
Turn on the power at fuse or circuit box.
The following parts are available for re-order if damaged or missing.
Spare Parts List:
Cross Bar Unit (A) Mounting Screw (B)
Wire Connector (C)
Bolt Nut (D)
Assembly Kit 6529MM (1 SET)
Rubber Pad (E)
A B
A: 10″ B: 9″ C: 11-1/4″
C
Page 3 / 3
