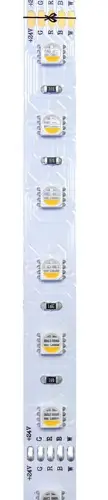

luminii LLX18WET-T-RGB-XX LineLED RGB and RGBW Series Wet Tube
Installation Instructions
Please read complete instruction prior to installation and keep for future reference!
- Product should be installed by a qualified electrician.
- Prior to installation ensure power is off at fuse box to prevent electrical shock.
- Use only with Class 2 power unit.
- Suitable for Wet Locations. Convient Aux Emplacements Mouilles.
- For under-cabinet or shelf mount.
- Avoid exposure to direct sunlight.
- Not suitable for applications where LEDs can become submerged.
- Attention: Always test LineLED strip before installing.
Connect LineLED to power supply to ensure it is working properly and no damage has occured during shipping.

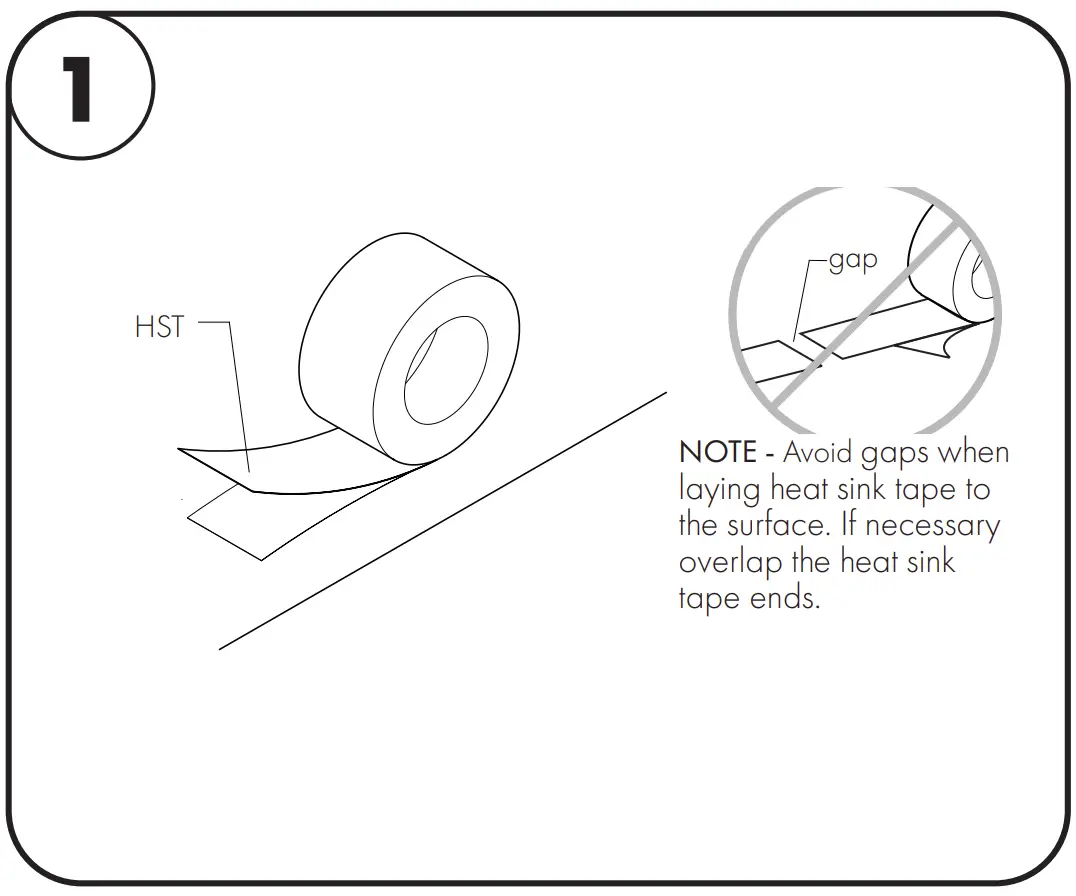

Clean the area thoroughly where the LineLED will be installed. Use the included Heat Sink Tape for all installation of LineLED unless its on a Luminii profile or non-painted aluminum to ensure proper heat dissipation.
LineLED may not reach it’s rated average life when installed otherwise.

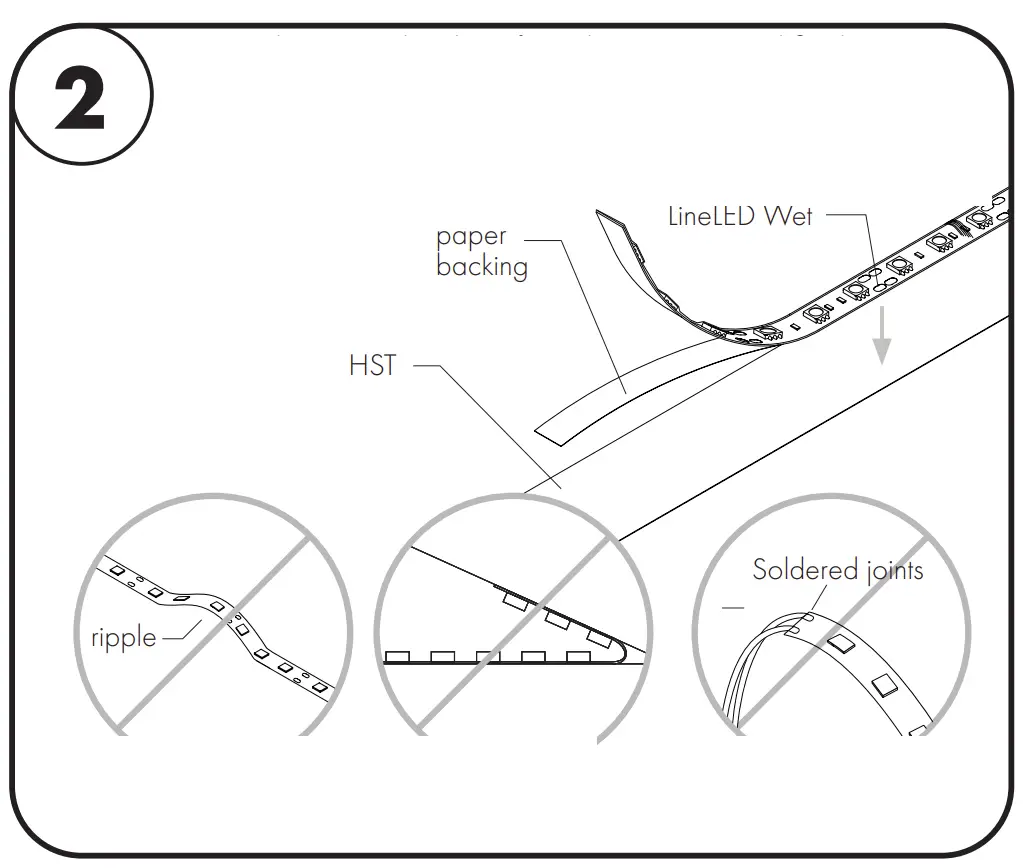

- Remove the paper backing from the LineLED and firmly press down making sure there are no air bubbles that can cause surface irregularities to the LineLED. Do not remove the adhesive, removing the adhesive may cause arcing of the Line LED tape.
NOTE – When removing backing & laying LineLED to surface avoid installing with ripples & bending over 90°.

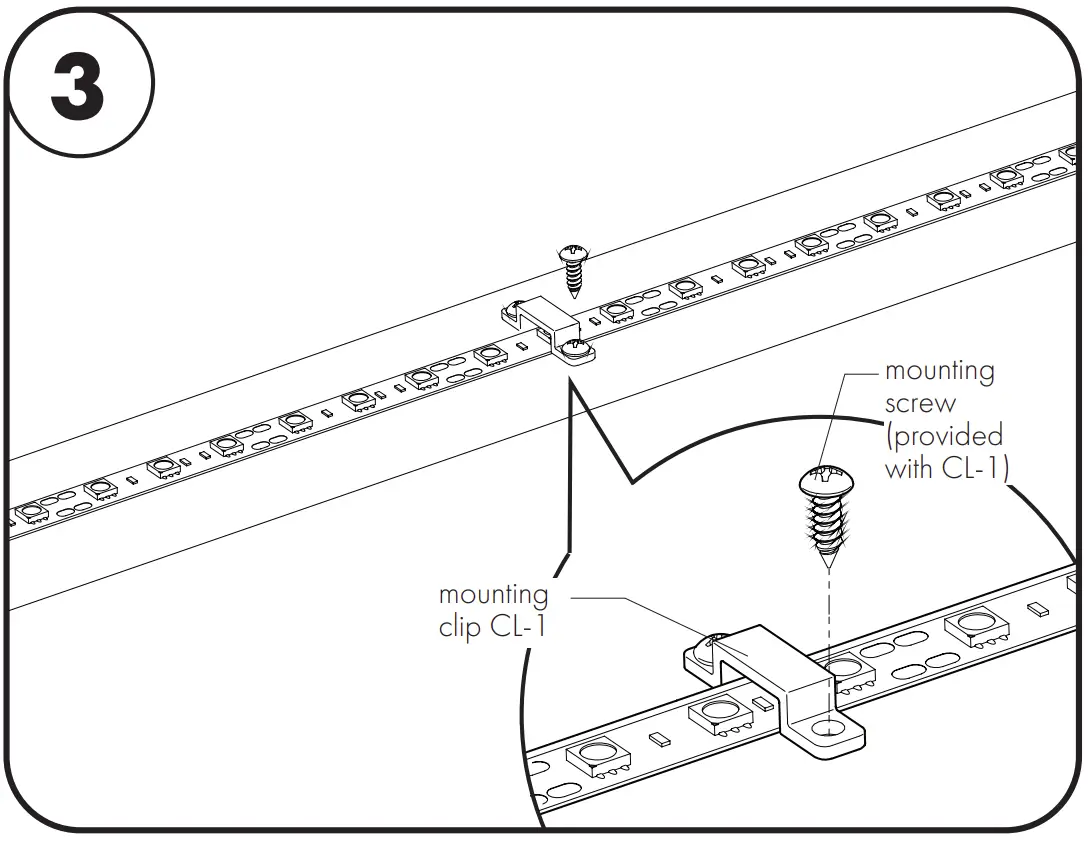

NOTE – Avoid sharp bends or bending on the solder joints near 1” on wire lead. - Install clip, part number CL-1, every 6.00” to secure LineLED Wet to mounting surface.

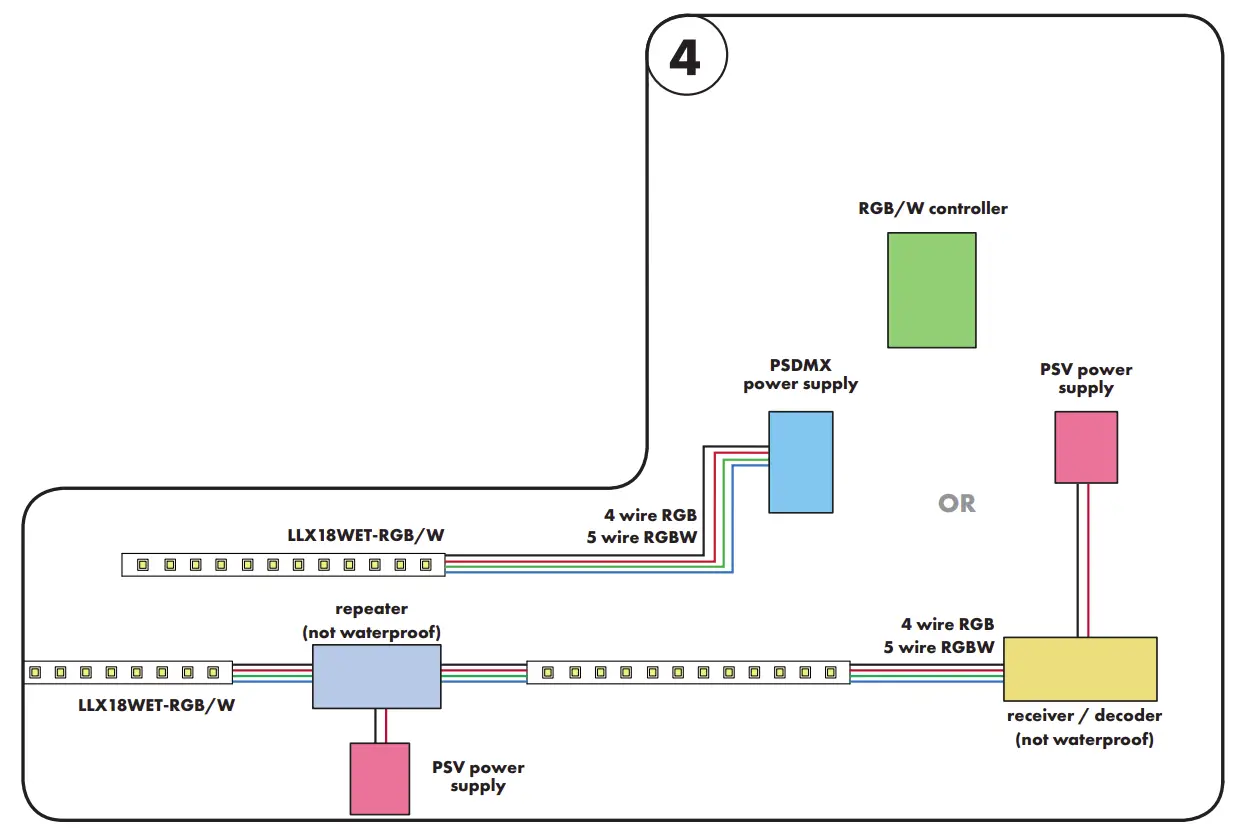

- Reference illustration below for general information, use actual component instruction for additional wiring details. RGB/W
*LUMINII RESERVES THE RIGHTS TO CHANGE SPECIFICATIONS WITHOUT NOTICE
|  |
