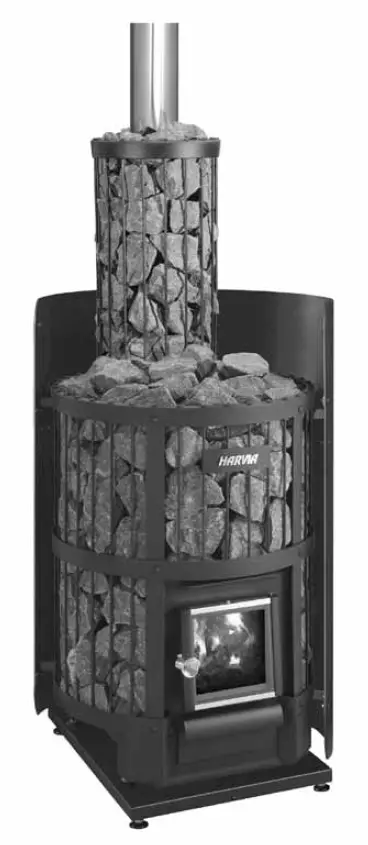

HARVIA WL200 Protective Sheath

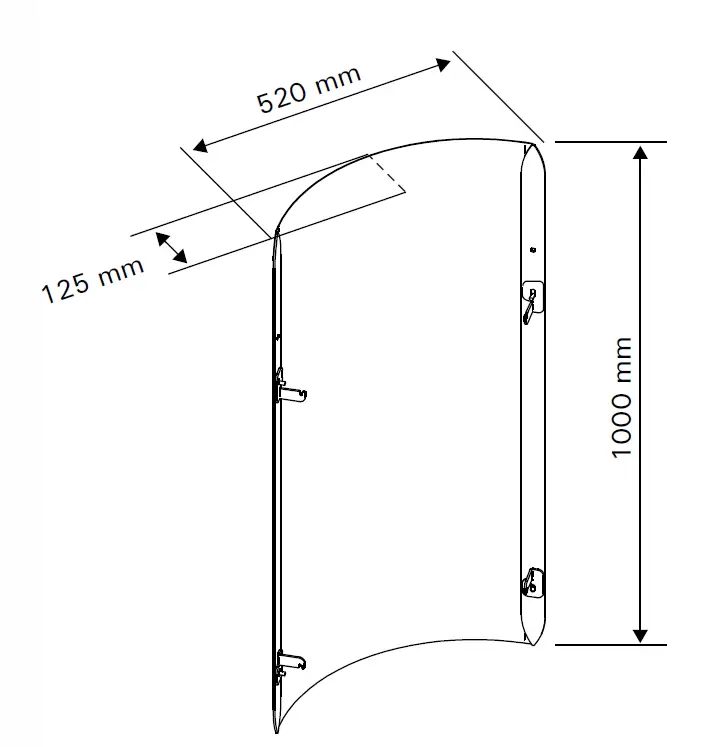

DIMENSION
instructions for Installation

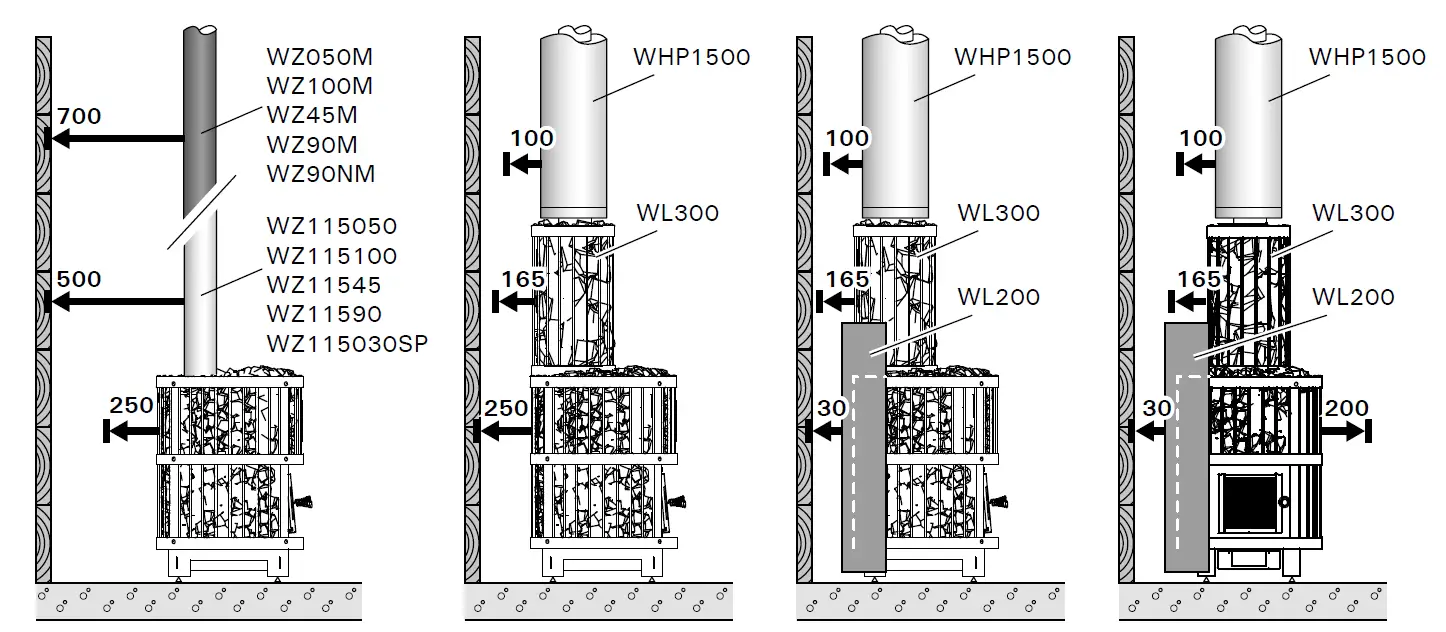

The specified safety distances from combustible materials can be halved with the WL200 protective sheath. Protective sheaths can be used separately or combined together (max. 3 sheaths). Note! You need only one skirting board for the connection – see step 1.
Before installation
- Make sure that the minimum safety distance requirements for the stove and chimney are fulfilled

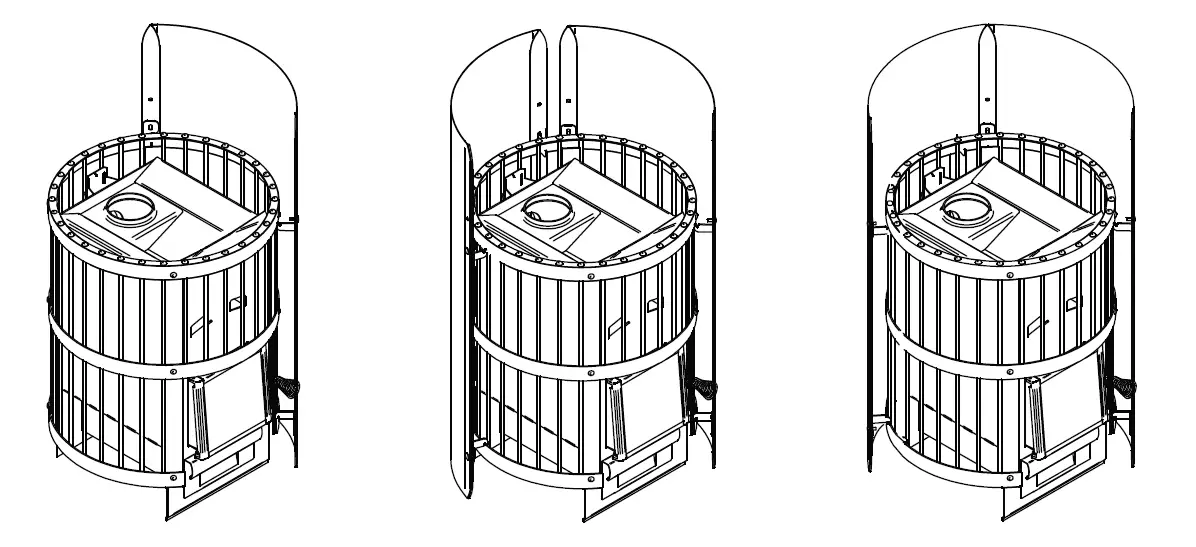

Installation options

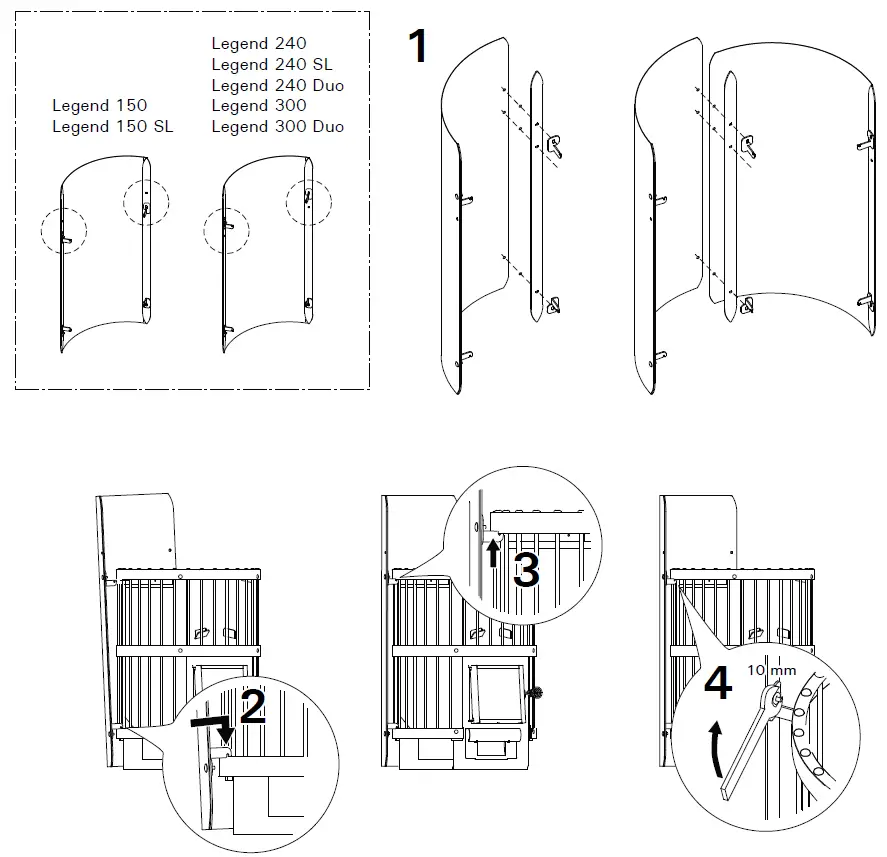

Steps

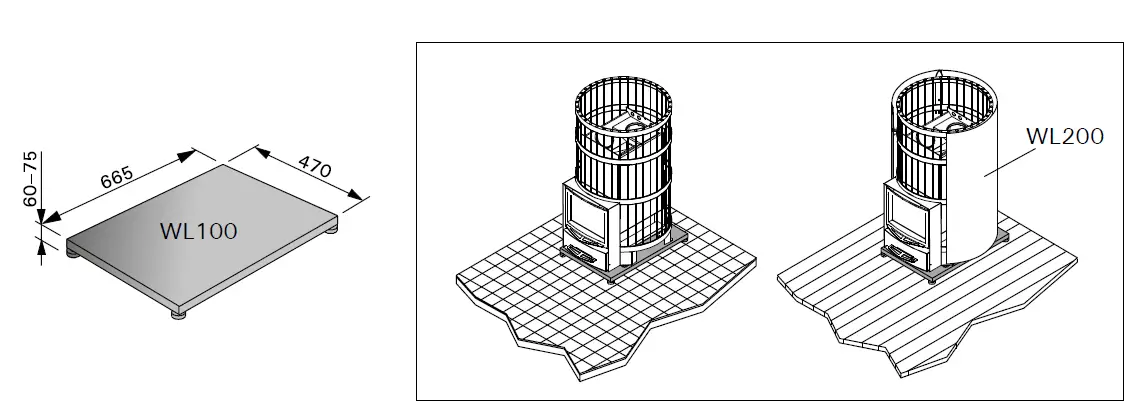

Legend protective bedding WL100
Protective bedding WL100 is made of aluminium-zinc-coated steel sheet and painted in black. The protective bedding must be used when the stove is installed on e.g. tile floor with a water barrier treatment.
