Installationsanleitung

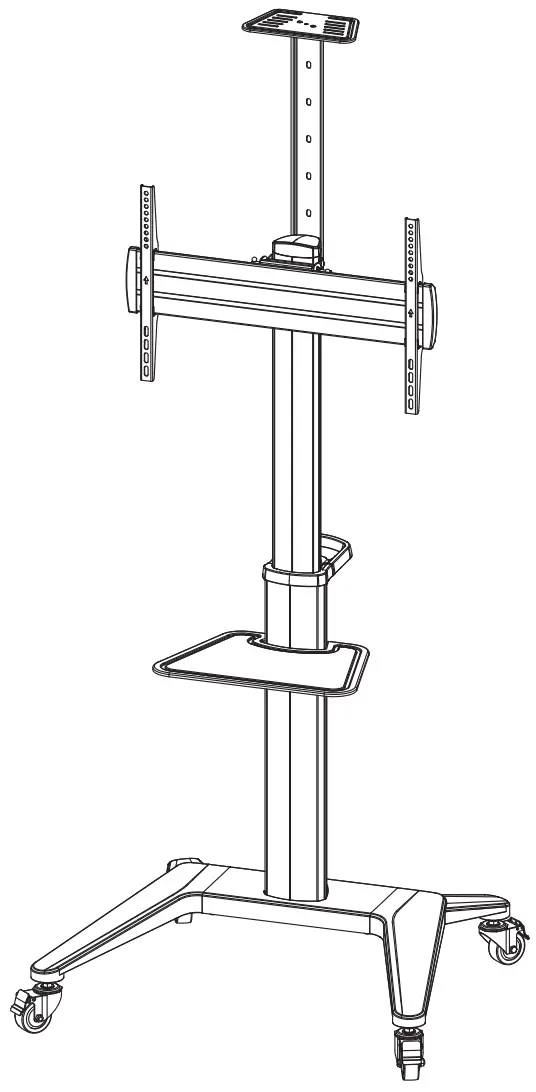

BrackIT® Stand Single
Art.-Nr.: 8207
8207 BrackIT Stand Single
Caution!
Technical devices are of considerable value. You should therefore handle the components carefully during installation and protect them if necessary.
If necessary, the installation area should also be secured. Falling parts can cause injuries and material damage.
The materials included in the scope of delivery may not be suitable for the special conditions at the installation site. Please check this in advance and replace it with suitable materials if necessary.
If you are unsure about the installation of the product or have any questions, please contact us or other trained specialists.
Required for installation

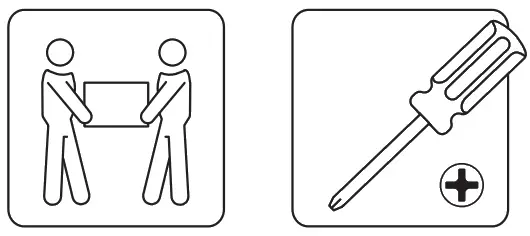

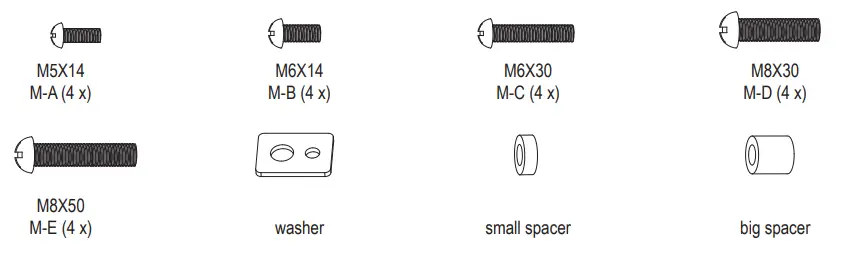

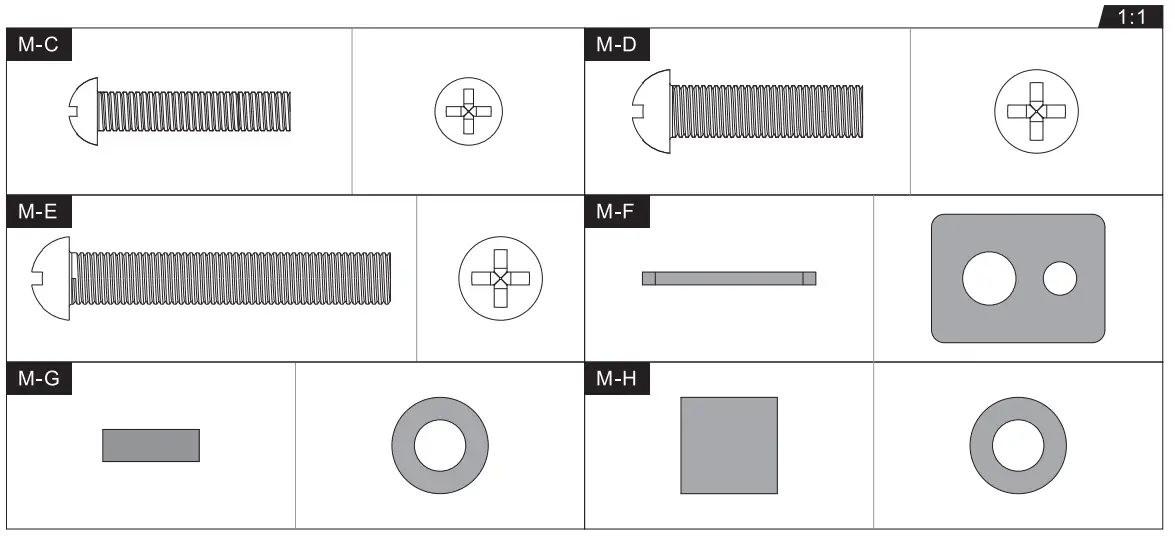

Component checklist

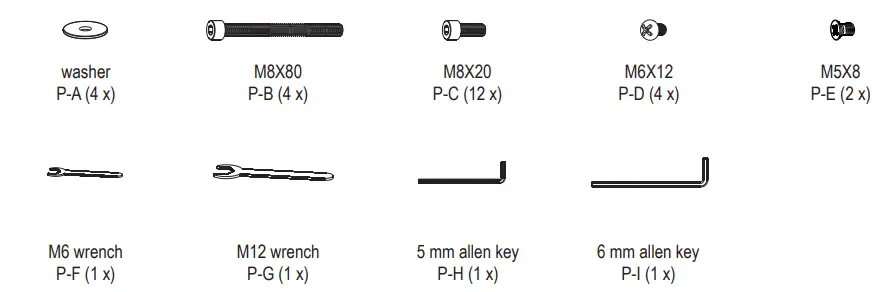

Package P
Package M

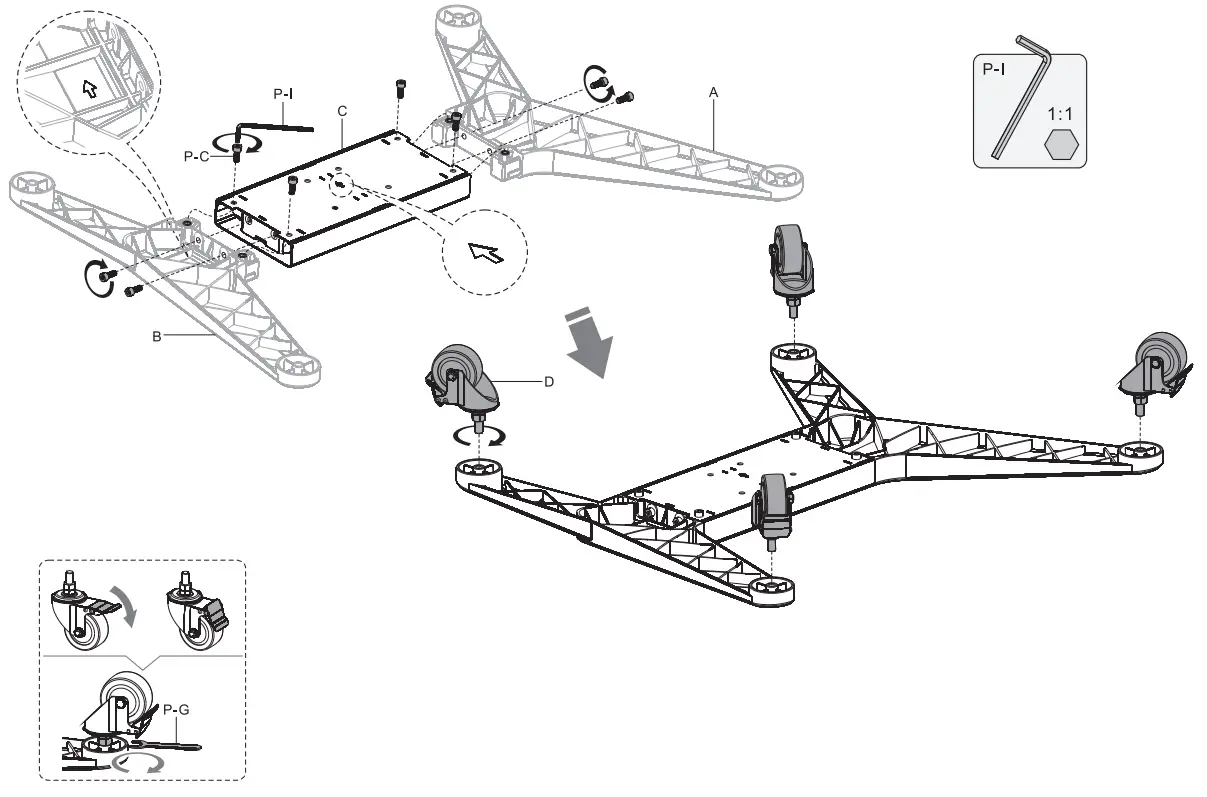

Assemble the base
Lock the brakes on the casters to avoid any sudden movements during installation.

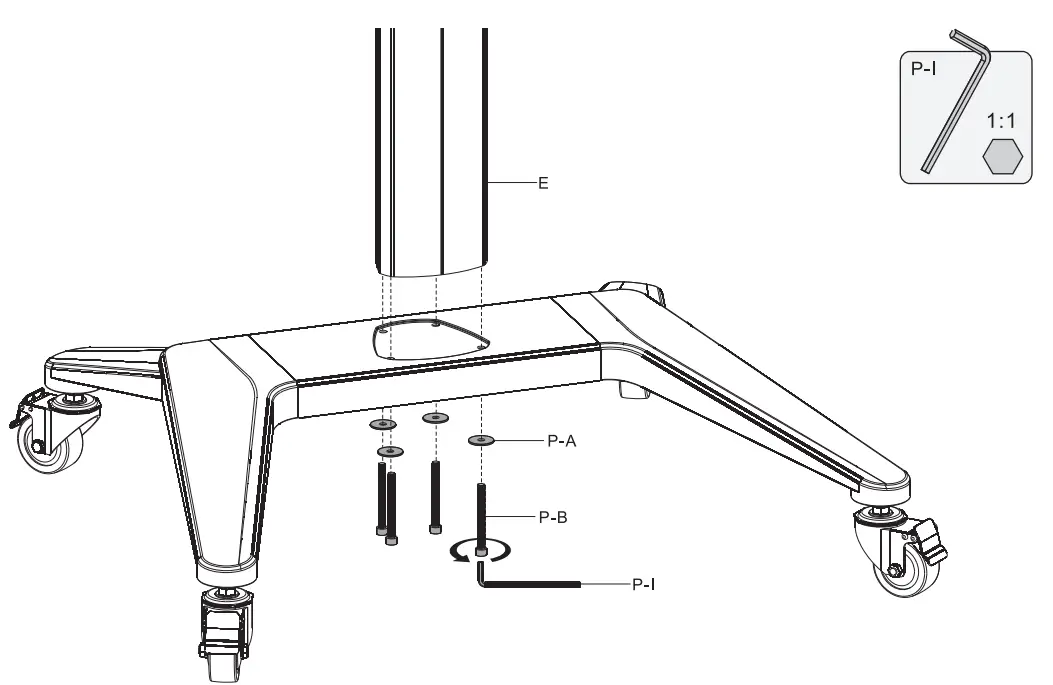

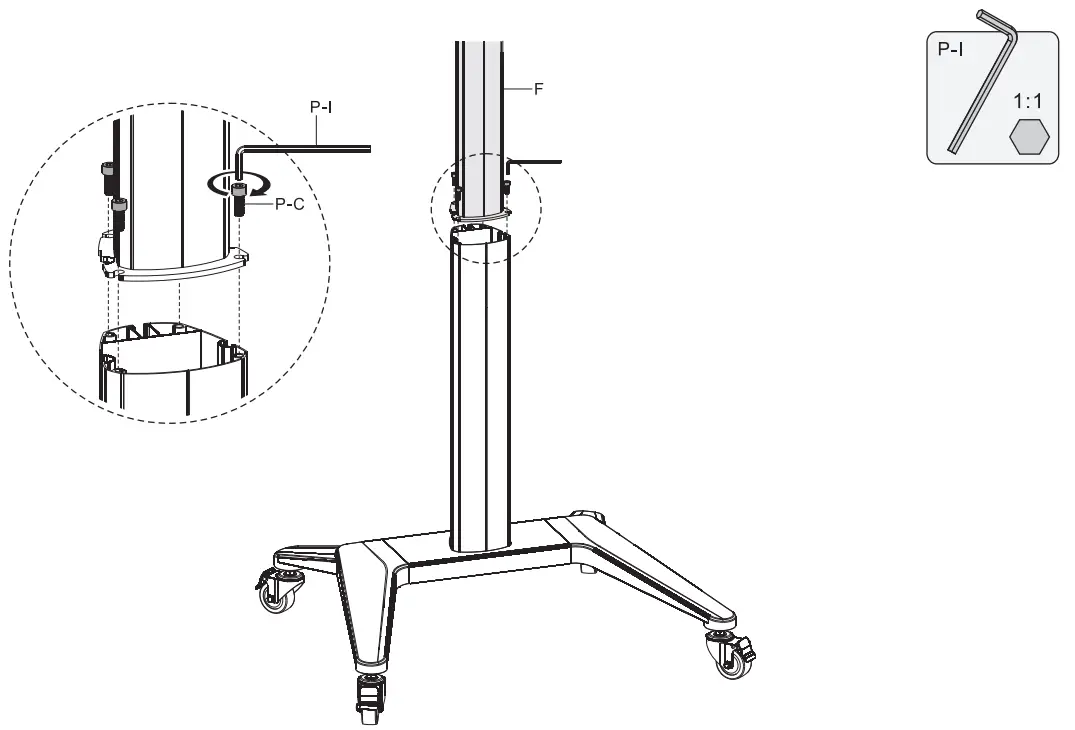

Assemble of the columns

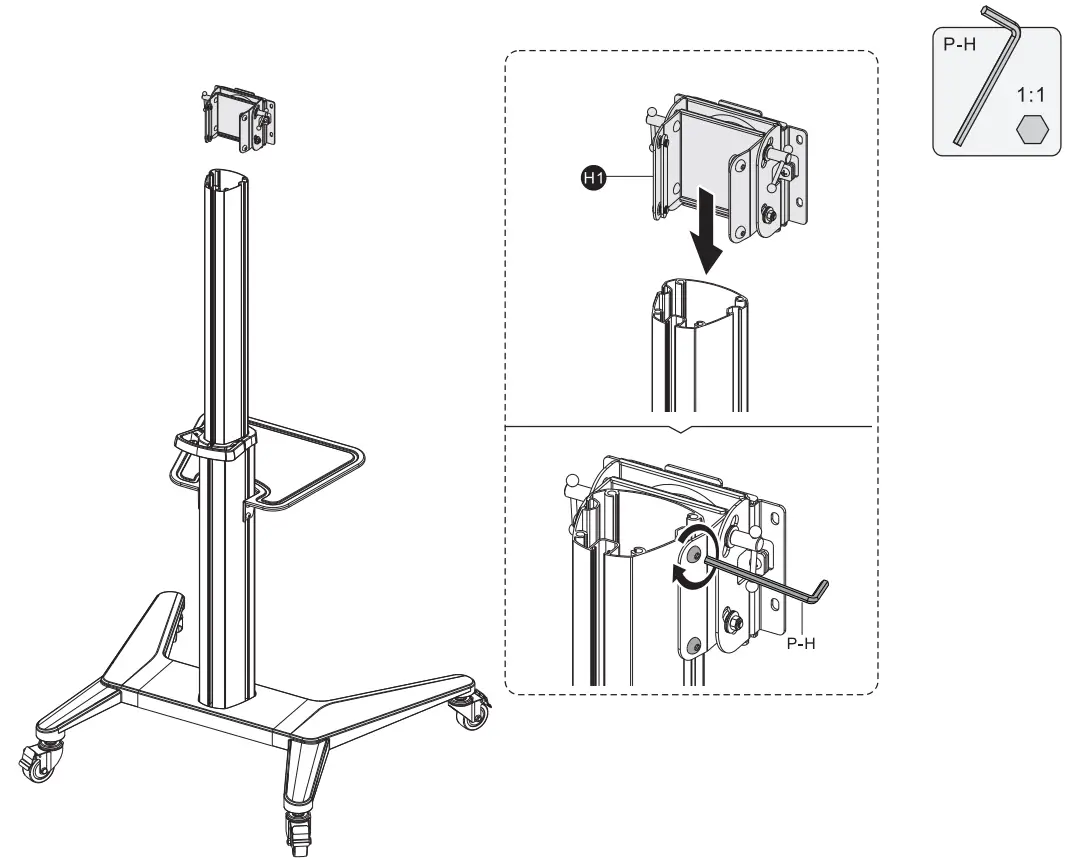

Attach the connector to the column

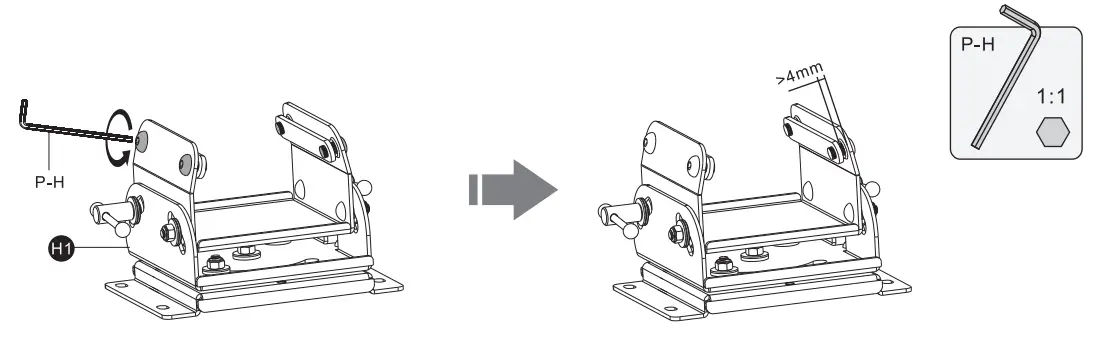

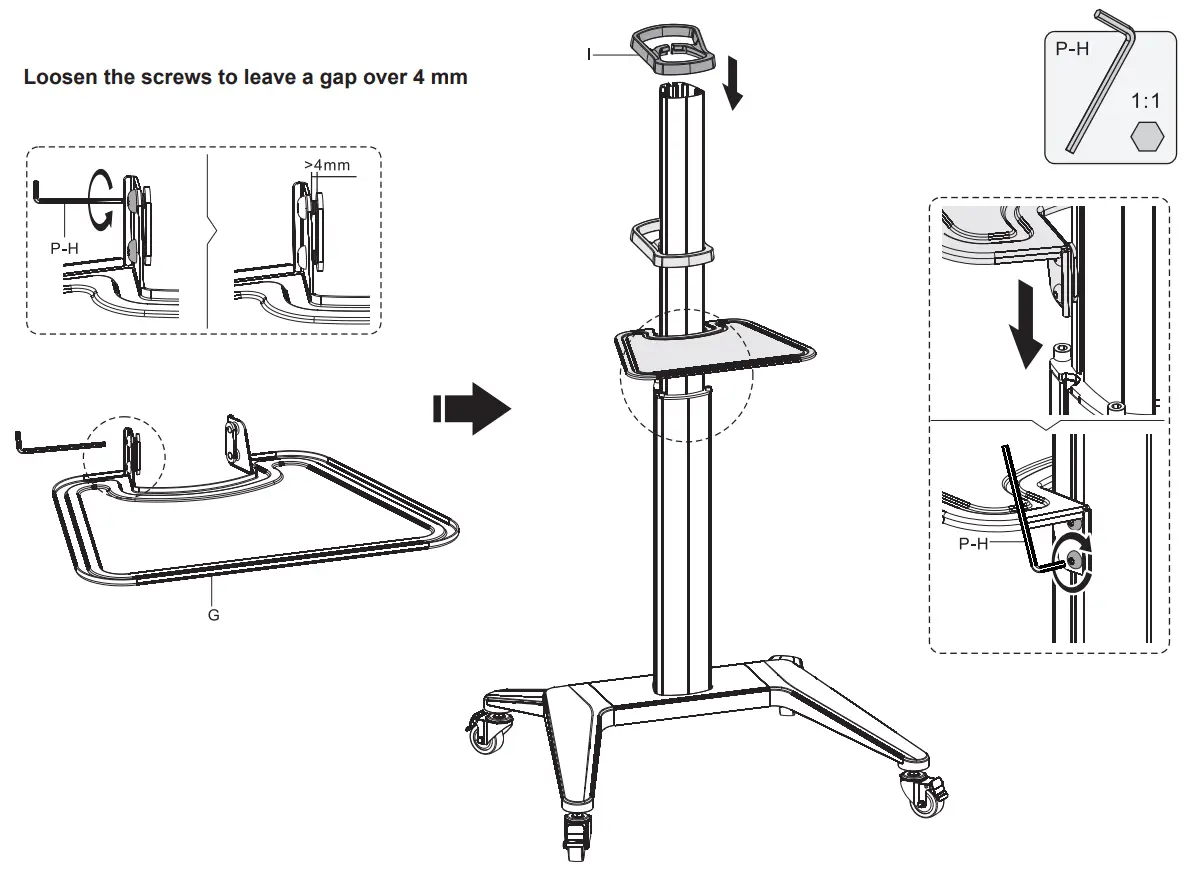

Loosen the screws to leave a gap over 4 mm

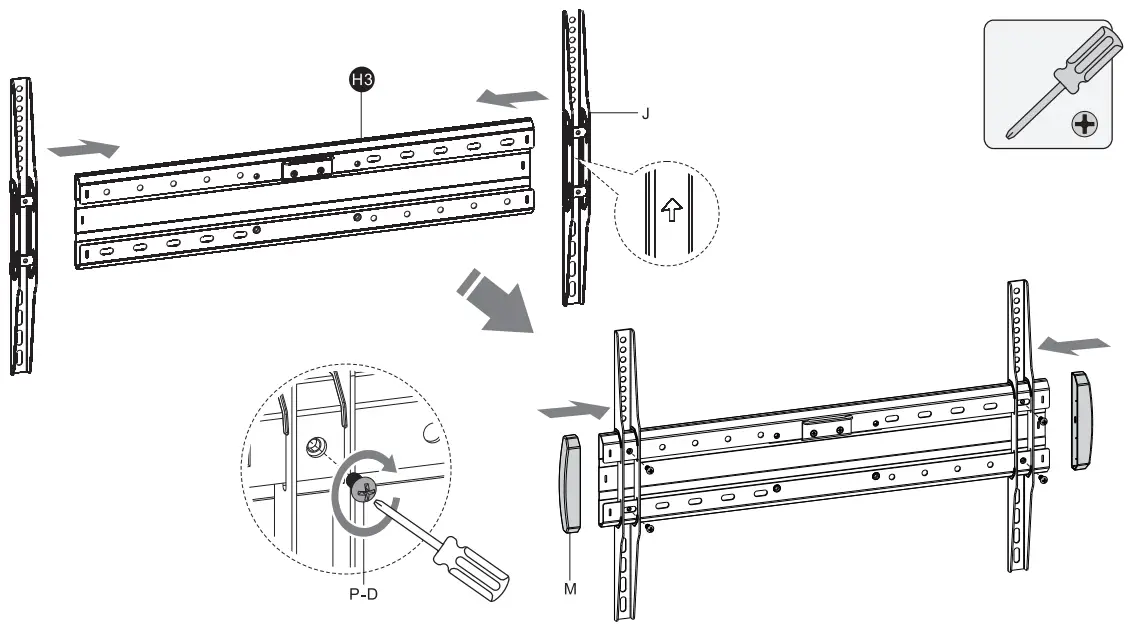

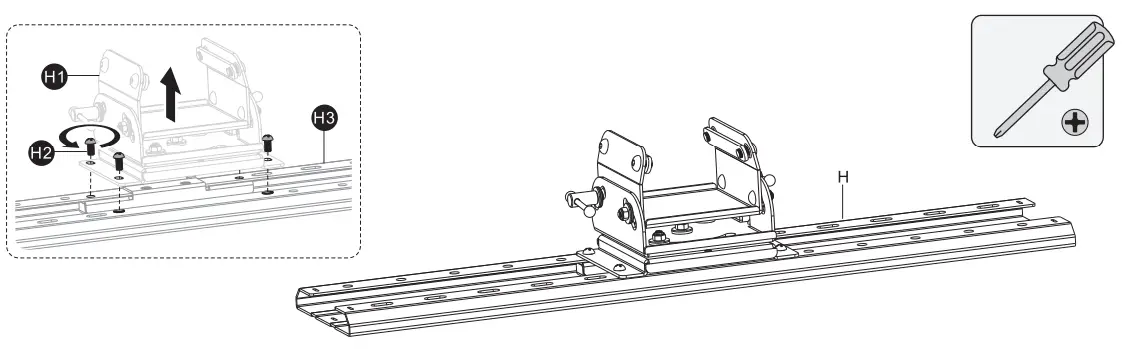

Attach VESA bracket to the mounting plate
Attach TV bracket to flat back screen

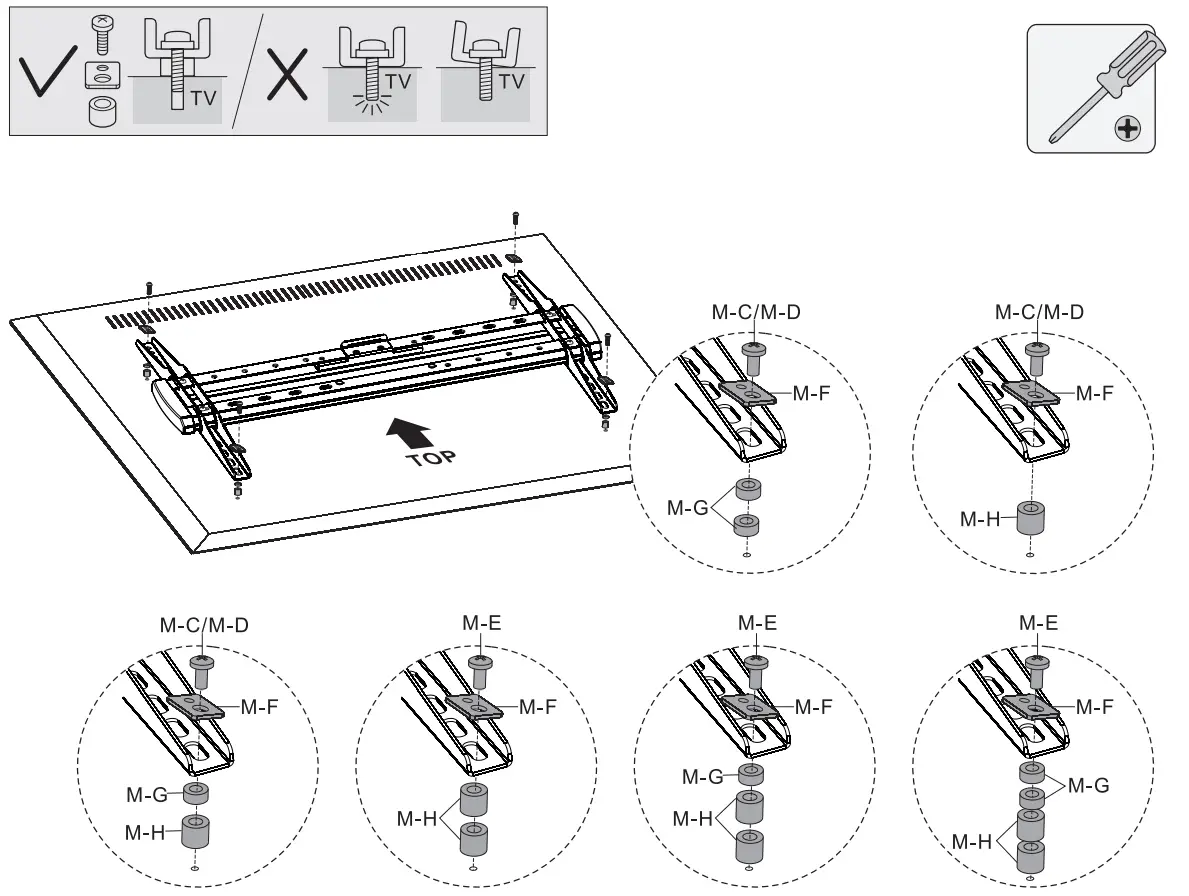

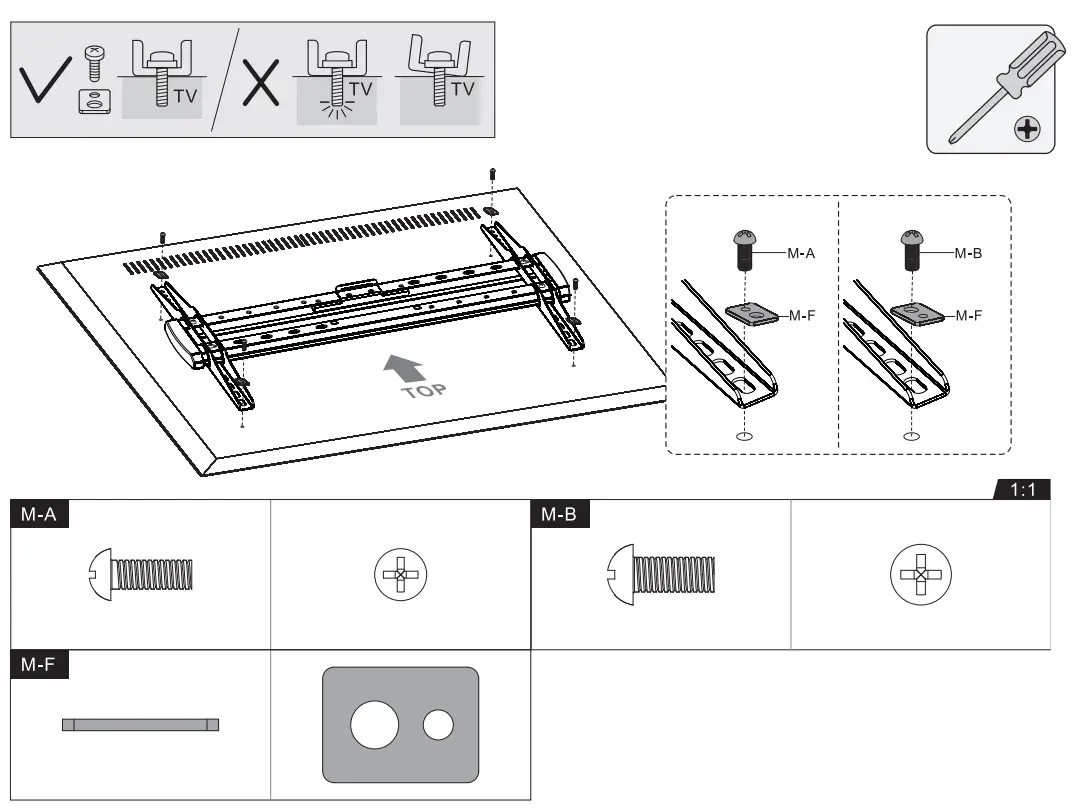

Attach TV bracket to irregular back screen

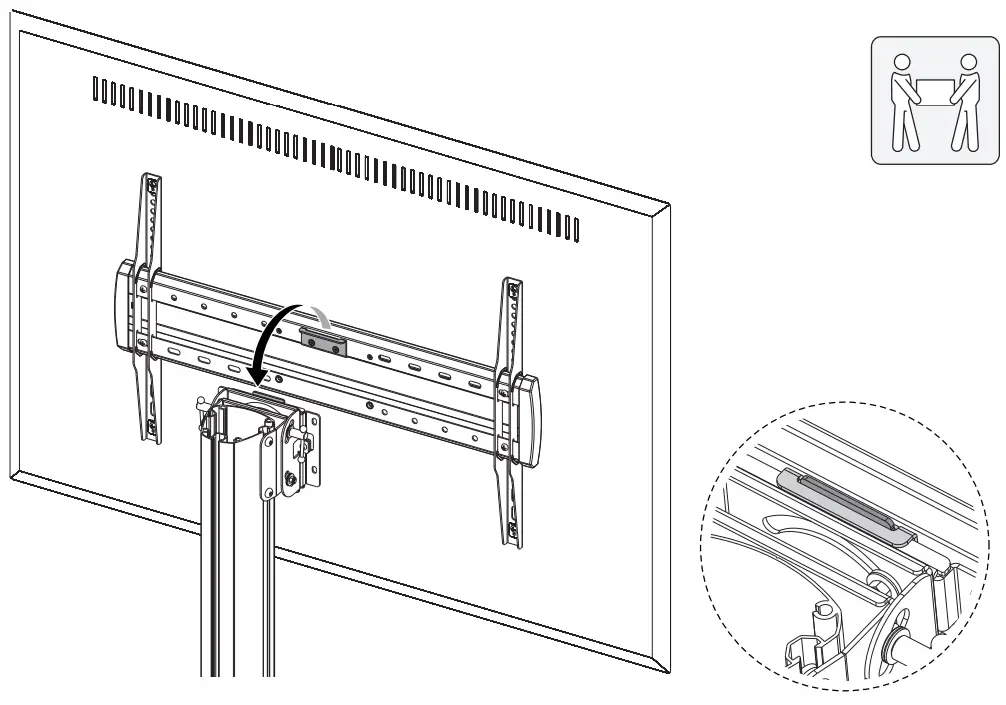

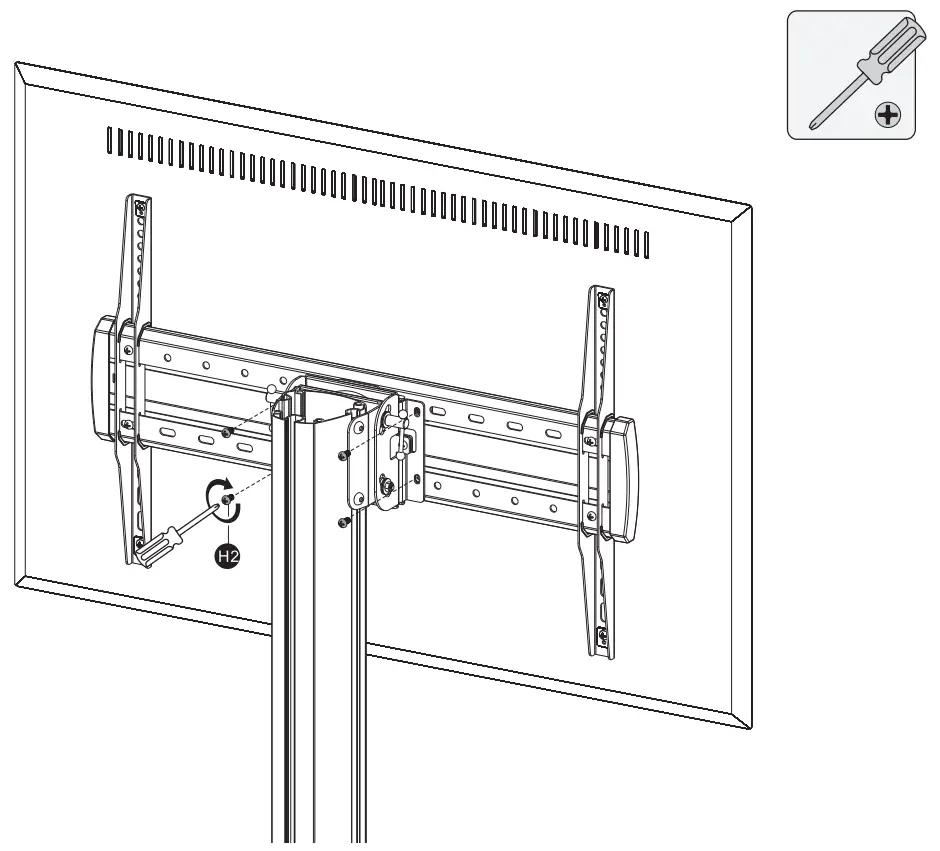

Hang and secure the screen

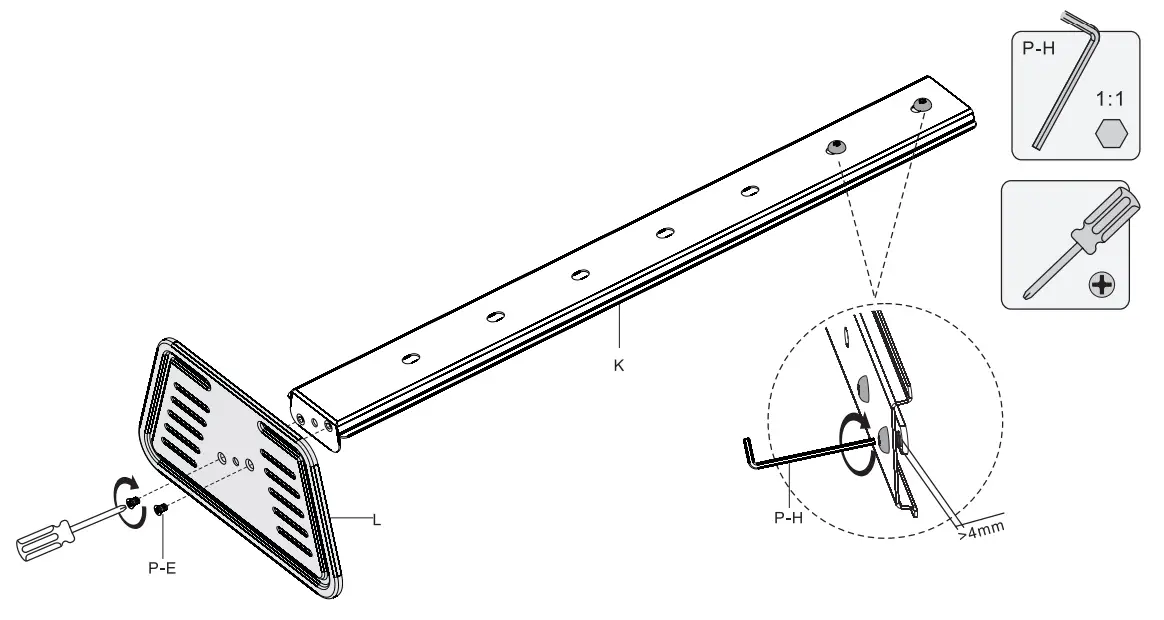

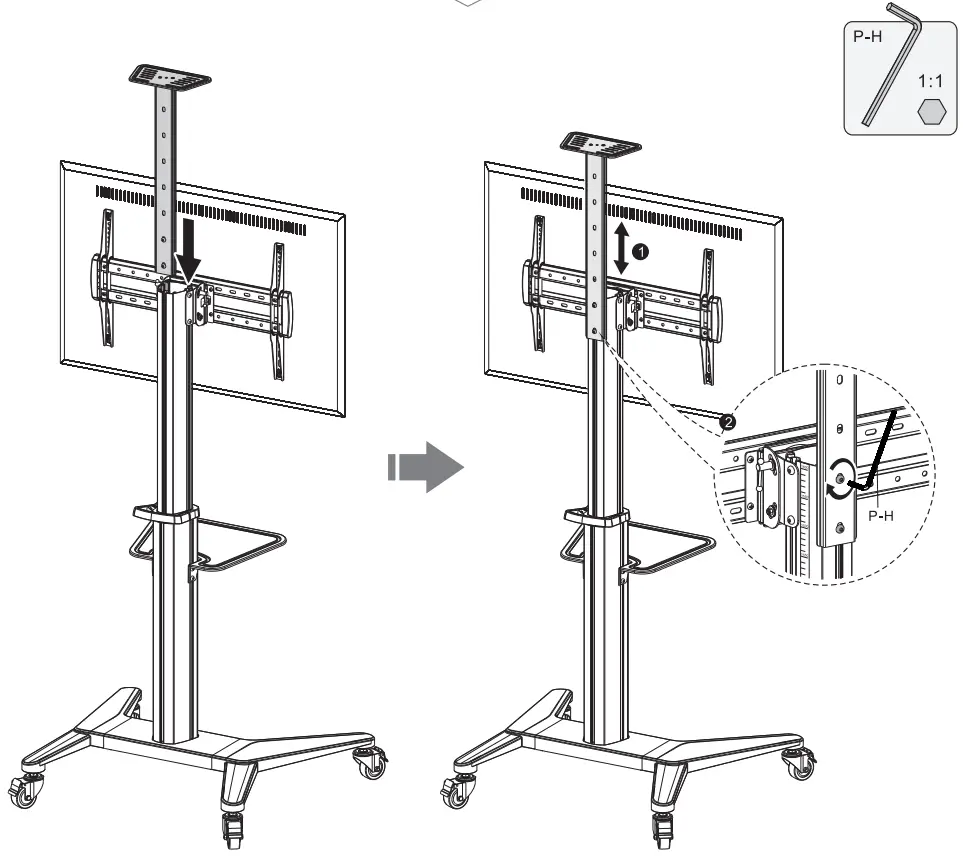

Assemble the camera shelf

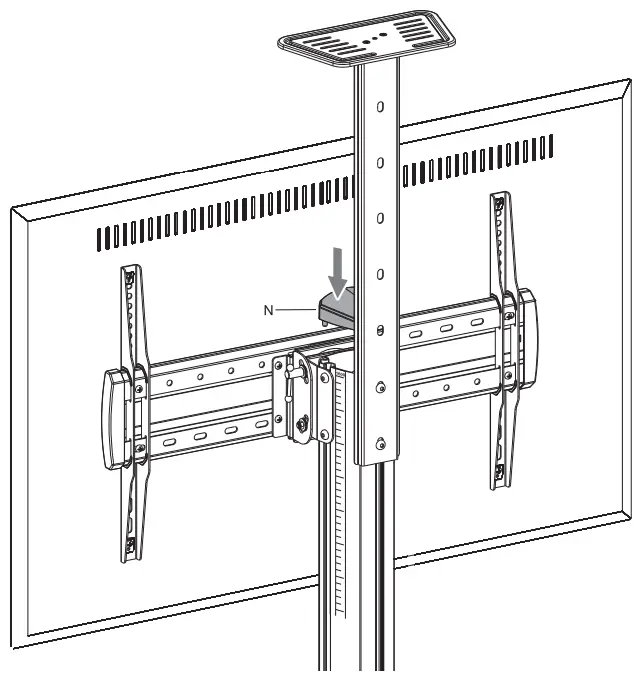

Assemble the top cover

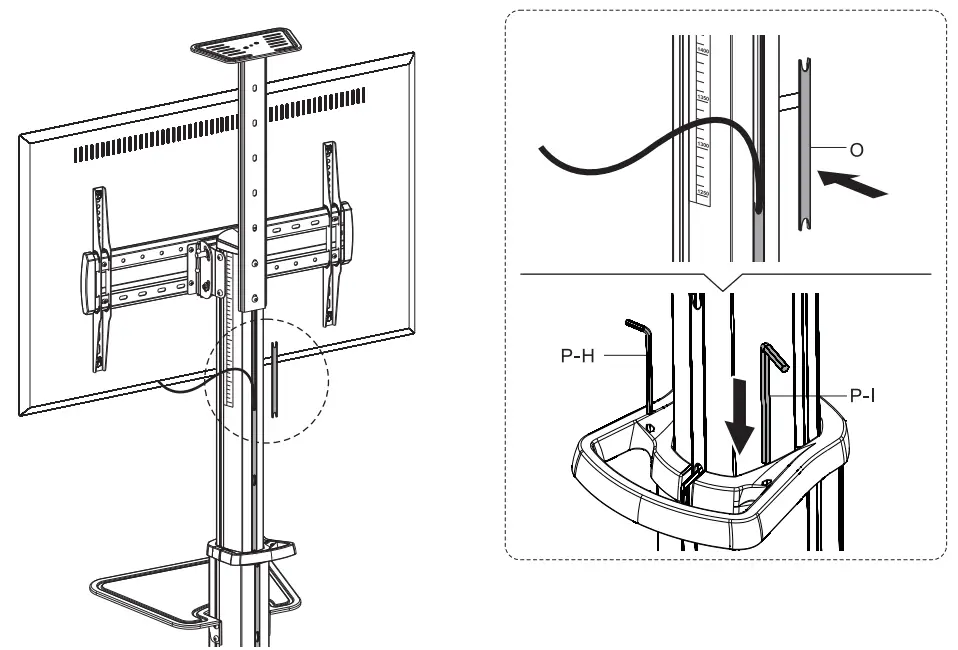

Cable management
TV orientation

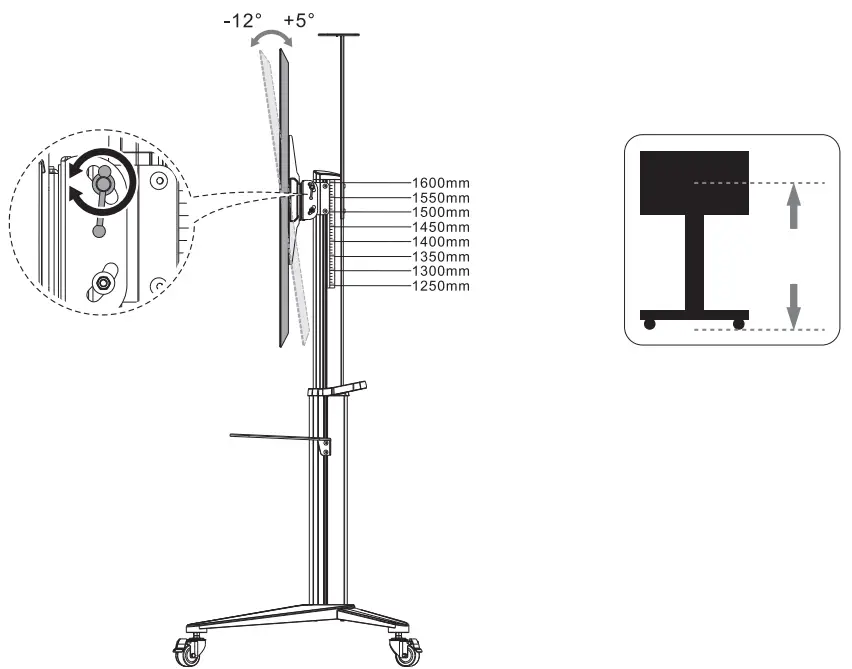

Adjustment
Height markings represent the distance from the floor to the center of the screen.

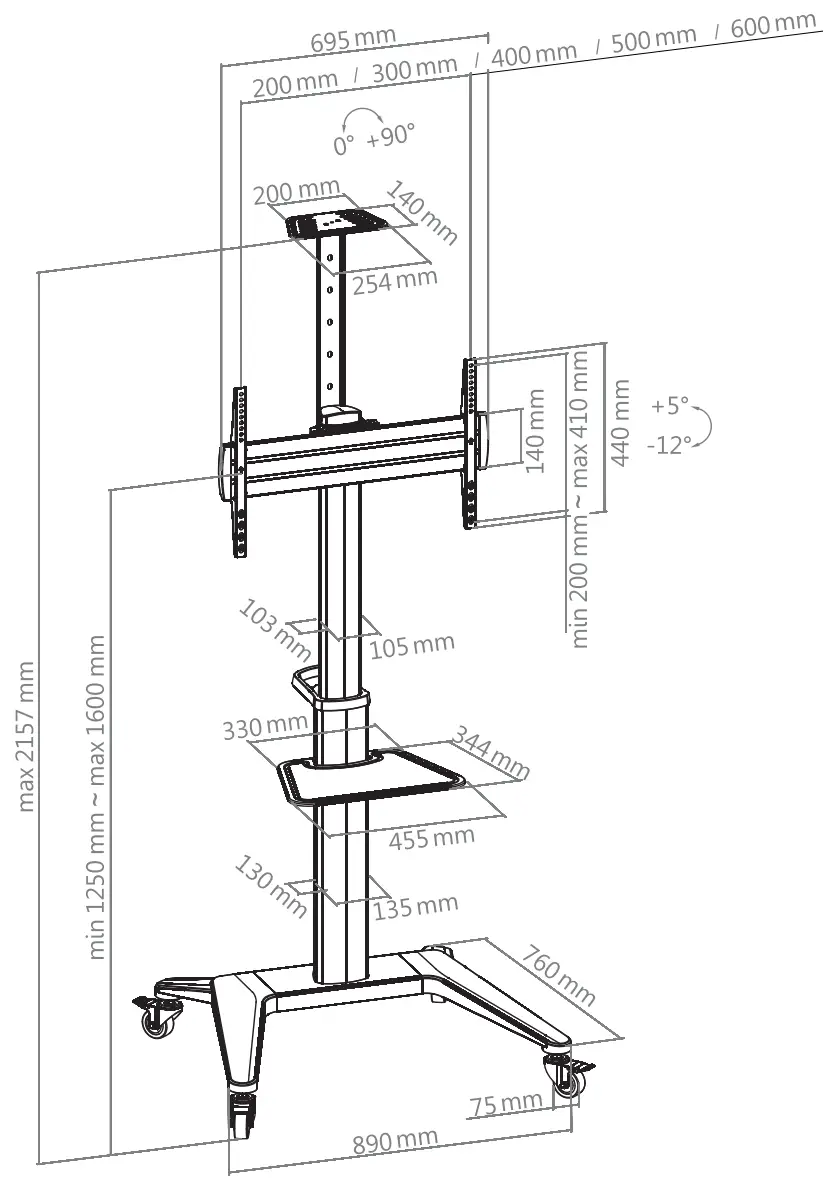

Dimensions
