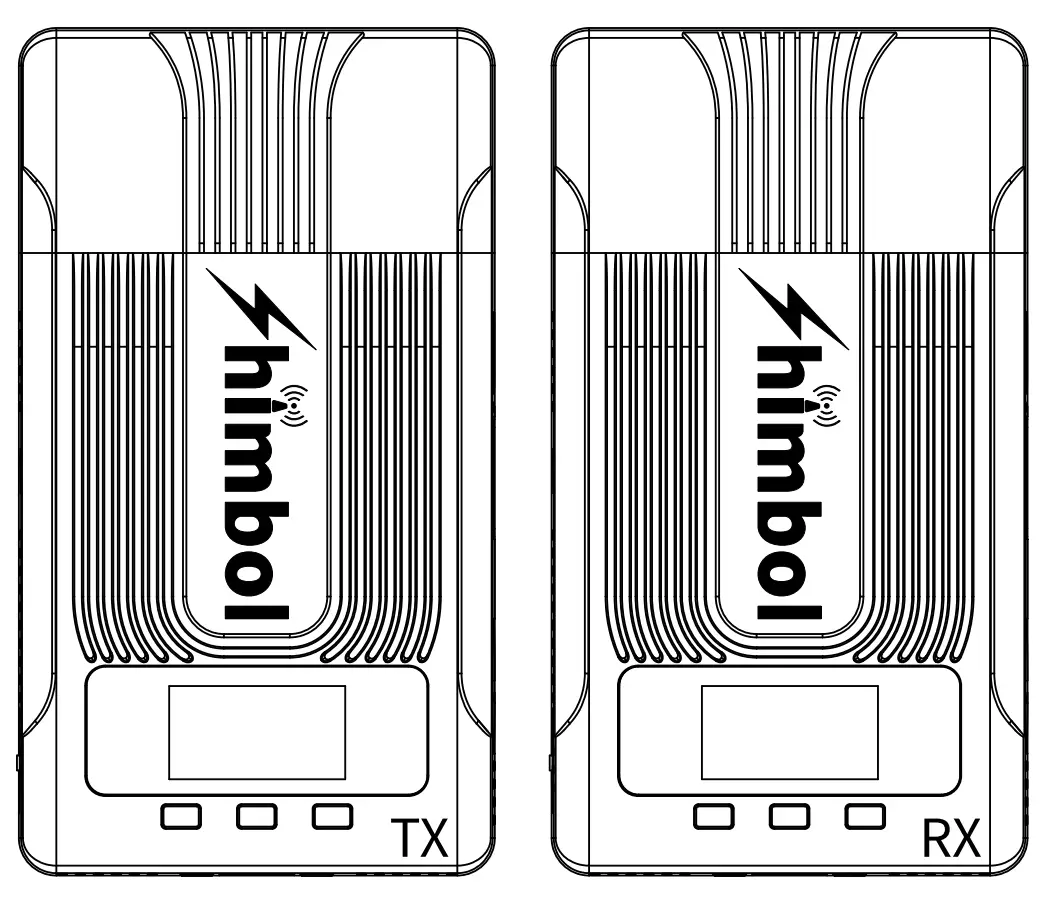

himbol ZO600S ZOlink Series Wireless Video Transmission System

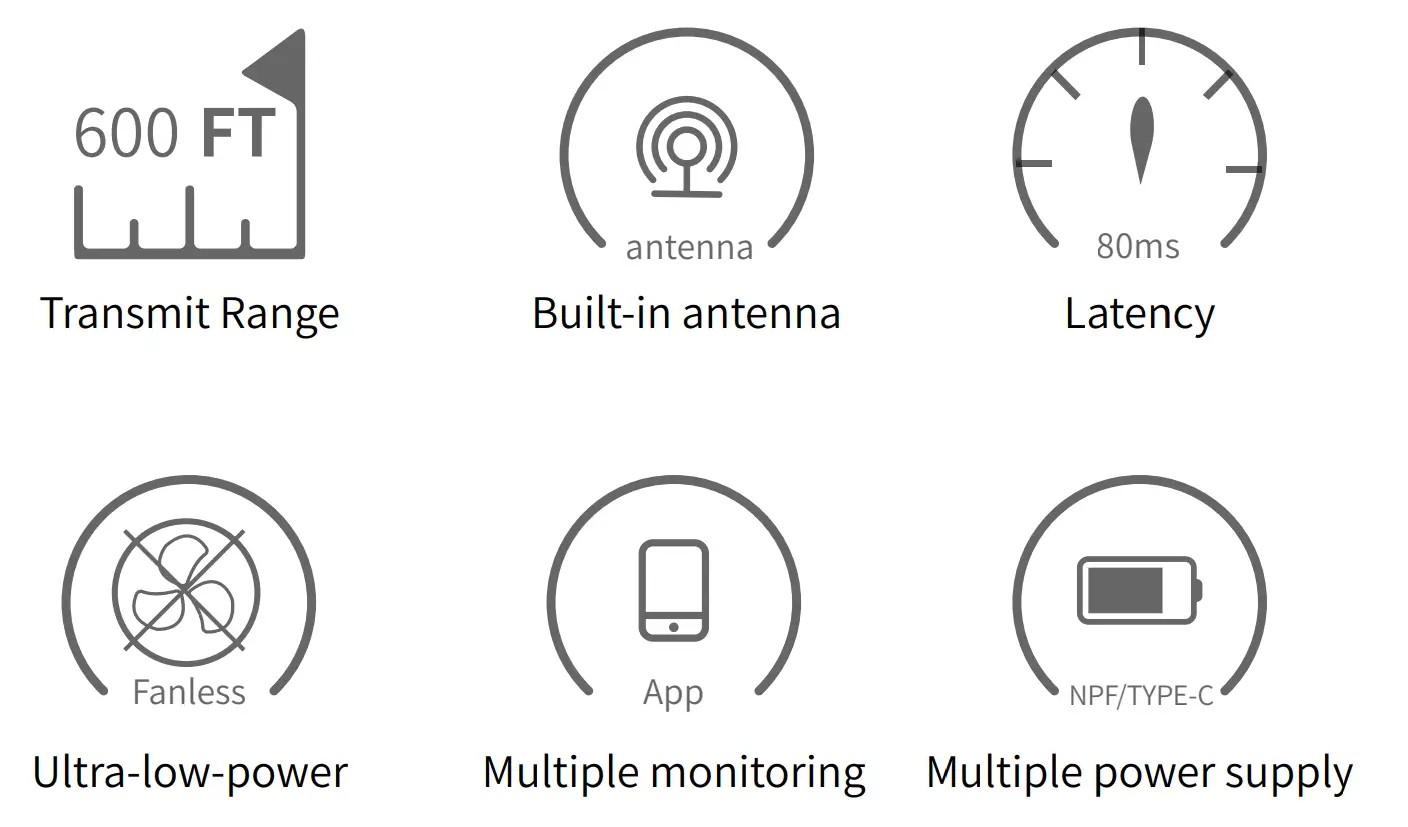

Features
Packing list
- Transmitter*1
- Receiver*1
- User Manual*1
- Type-c power cable*1

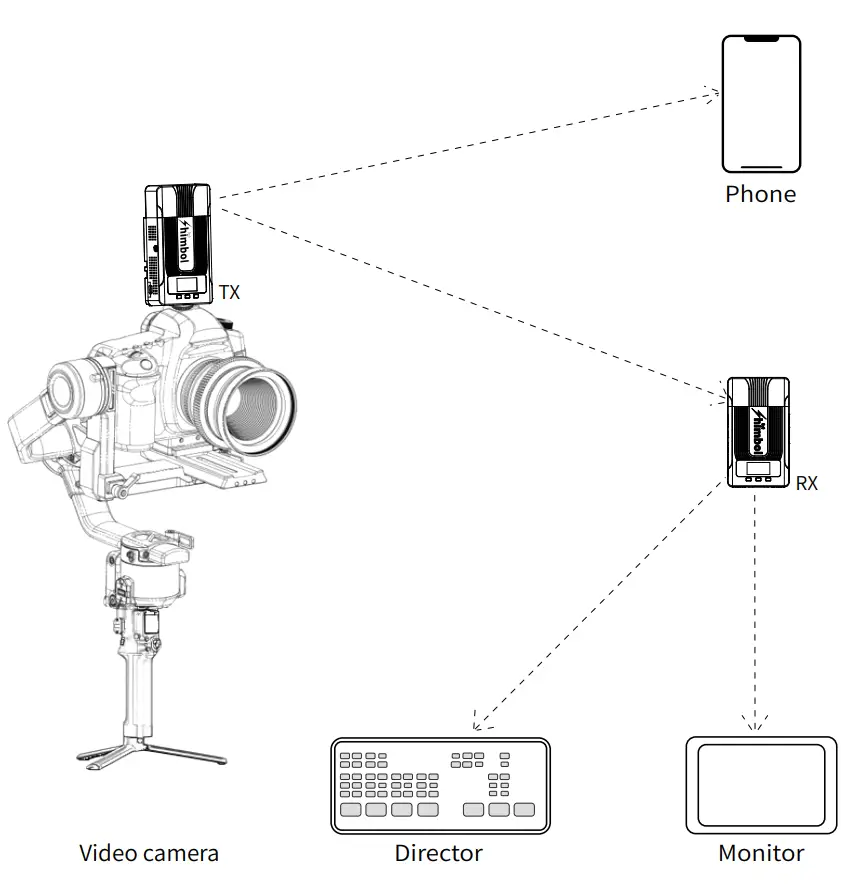

How to use

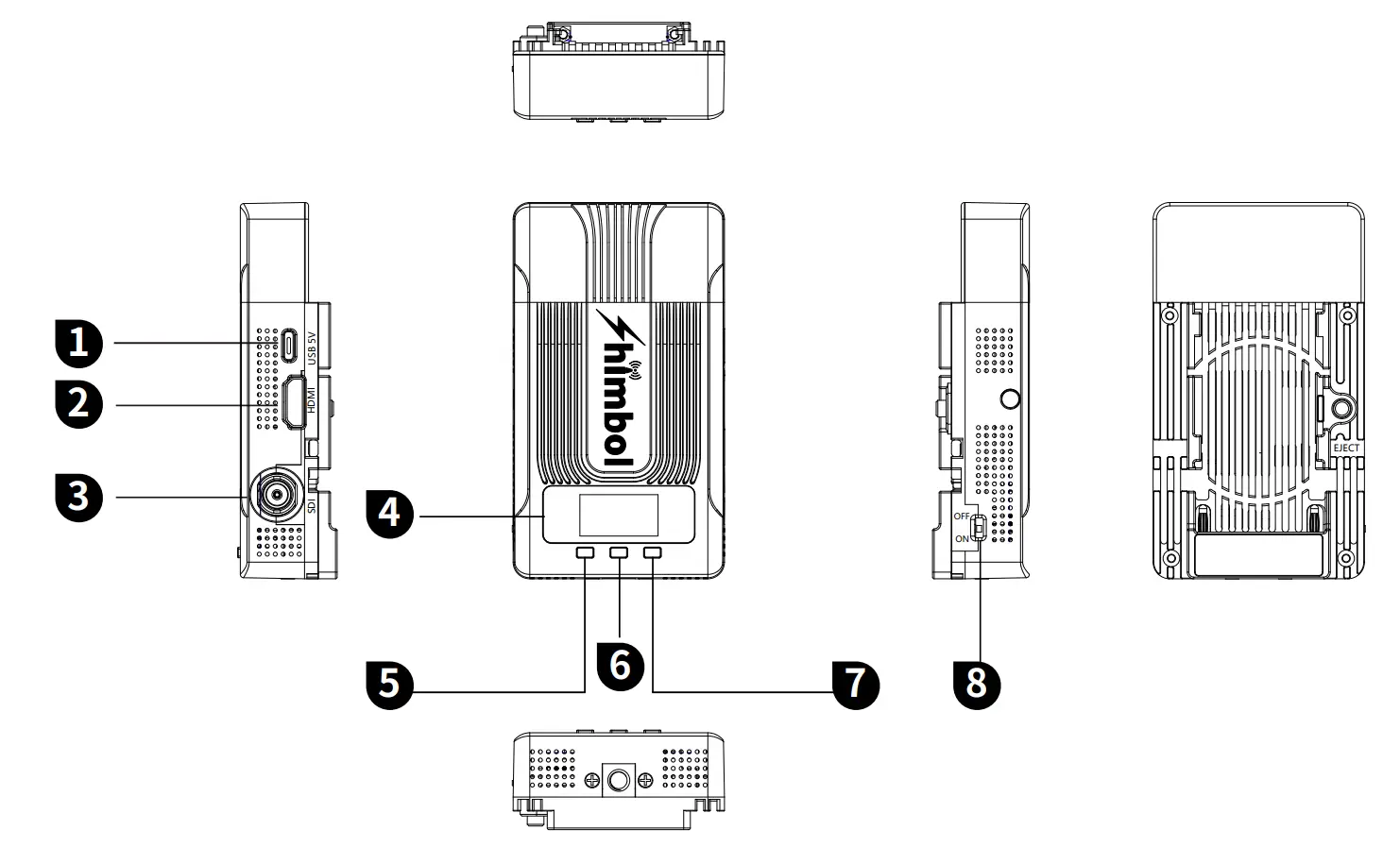

Product Description
- USB-C Port
- SDI Input( TX)/ Output(RX)
- HDMI Input( TX)/ Output(RX)
- OLED Display screen
- Direction button
- Direction button
- Menu button
- Power switch
A Long press 5 Key for 3 seconds to enter the upgrade menu.B Long press 6 Key for 3 seconds to enter into System Settings menu.C Connecting to TX Device – Long press 7 Key for 3 seconds to show a connection QR code. Open mobile App to scan the Connection QR code.
Technical Parameters
05/Techn Interface | Transmitter | Receiver | |||
| HDMI Input/SDI Input | HDMI Output/SDI Output | ||||
Powered By Puomwer | 5V DC/NP-F Battery | 5V DC/NP-F Battery | |||
| ption | <5W | <3W | |||
HDMI Input | 1702800PI@50/60Hz |1080P@24/25/30/50/60Hz | / | |||
HDMI Output | / | 1702800PI@50/60Hz | |||
SDI Input | 10801P08702I@0P5@0//5509/.692045H//62z09H.9z7/30 @5203/.5998.9244//60Hz 1080P SF23.98/24/25/29.97/30Hz | ||||
SDI Output | 1702800PI@50/60Hz 1080P@24/25/30/50/60Hz | ||||
| Weight | 160g | 160g | |||
Size | 113*63.5*20.5mm | 113*63.5*20.5mm | |||
| Trfarenqsmueisnsciyon band | 5GHz | 5GHz | |||
Transmitssion power | 21dBmMAX | / | |||
| Transmission delay | 80ms,Noisy RF environment 120ms typical | ||||
Receiving sensitivity | / | -80dBm | |||
Download “shimbol” APP on Apple App Store.
W52 Band :5GHz product for indoor use only
