CineEye II Pro
User Manual

Product Features

High-reliability dual-band (2.4G and 5G) transmission
Transmission range of up to 2000 feet
Very low latency (<0.06 seconds)
HDMI in and HDMI loop out
High-quality audio transmission
Supports transmission to up to 4 receivers
Camera Control supported
Professional monitoring App for iOS and Android
1.3 inch OLED display
DC and battery power supply supported
Firmware upgradable

In the Box

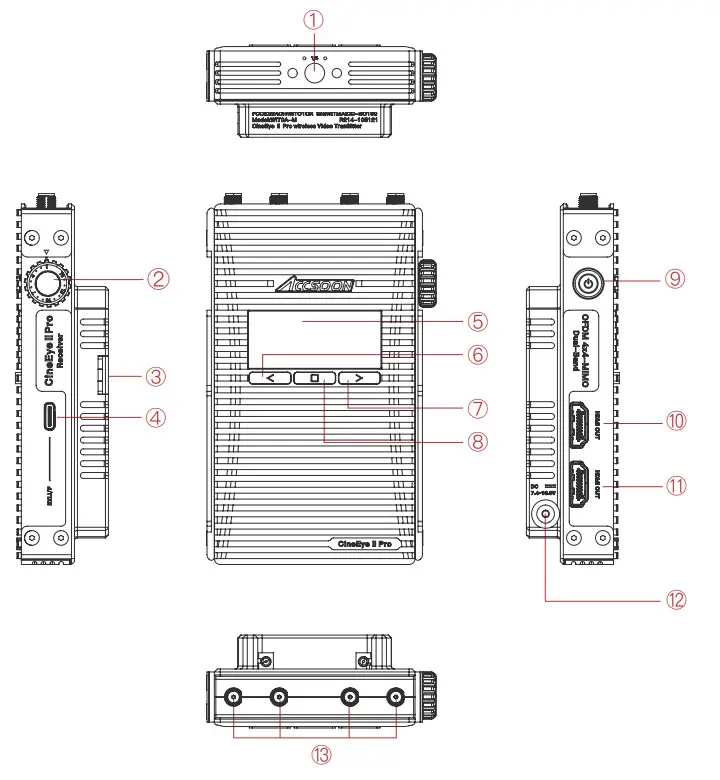

Transmitter

Receiver

Typical Application

Diagram 1

Diagram 2

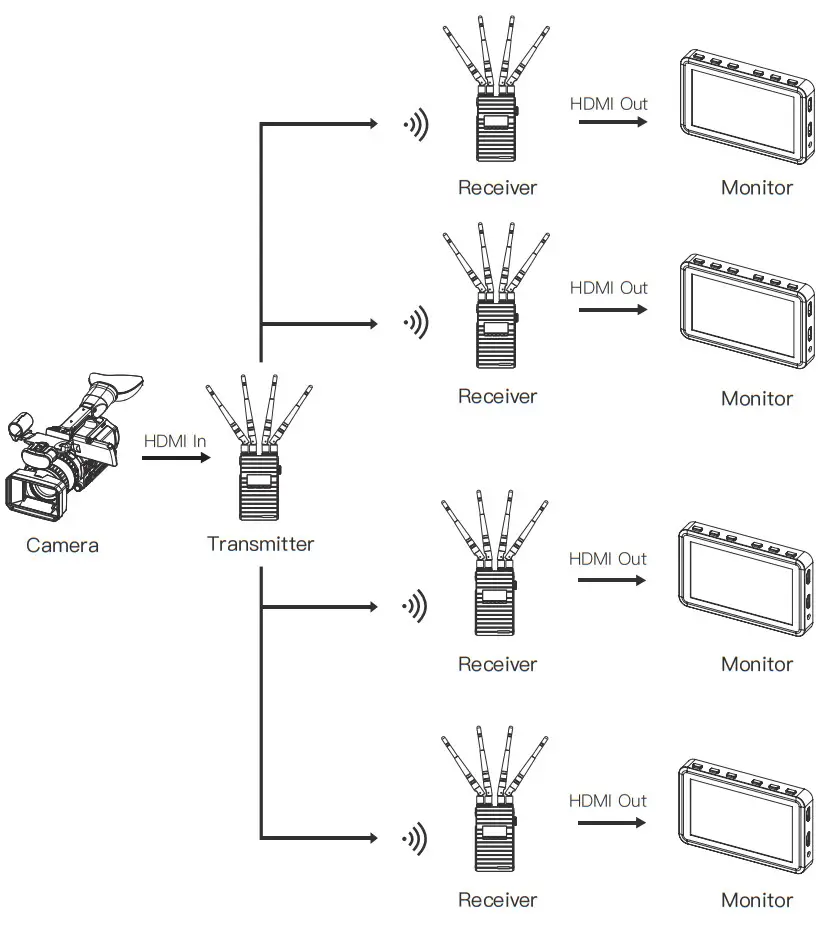

Diagram 3

Operation Instructions

Install Instructions

1. Install the antennas as demonstrated.
2. Use the hot/cold shoe mount adapter to install the CineEye 2 Pro onto the camera or camera cage.
3. Use an NP-F970/F750/F550 battery or DC source to power the CineEye 2 Pro.
4. Connect camera output via HDMI to transmitter HDMI input port.
5. Connect the receiver to the monitor (monitor not included in this product).

Turn On/Off

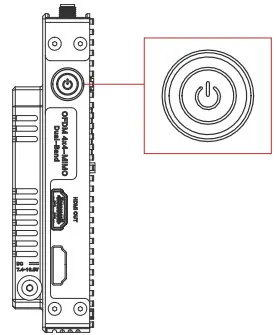

A: Turn on – Hold the power button for 1 second
B: Turn off – Hold the power button for 3 seconds

Group Settings

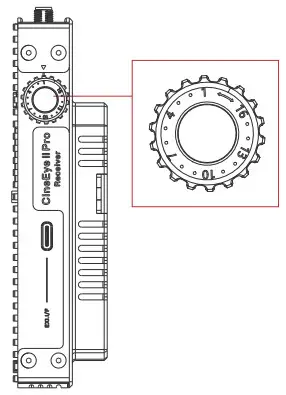

1. CineEye 2 Pro uses a group knob to pair the transmitter and receiver, both the transmitter and the receiver have a group knob on the side. The transmitter and receiver will pair automatically if their group knobs are in the same position (group number is the same), otherwise, they will not pair and cannot communicate.
2. If users want to connect more than one receiver to the same transmitter, set all of the receiver’s group numbers to the same as the transmitter. Up to four receivers can be paired to the same transmitter.
3. If multiple CineEye 2 Pro units are being used in the same area, each transmitter and receiver pairings need to have a different group number.
   Note: If the group setting has changed, please bring the transmitter and receiver in close range, or the pairing may fail. If the group setting has changed after power on, the change will take effect after reboot.

OLED Display

① Input video info
② Input audio info
③ Current group setting
④ Battery level/DC input
⑤ Connection status
⑥ Current 5G WiFi channel

Connection Status:
Transmitter: The connection status indicates how many devices are connected, if no devices are connected the unit will display “0”.
Receiver: The connection status will display “1” if the receiver is connected to a transmitter, or will display “0”.

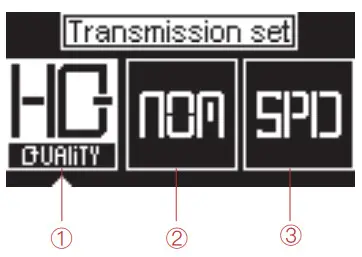

Data Rate Setting

① High-Quality Mode
② Normal Mode (Default setting)
③ Speed Mode

Setting steps:
Click the “Menu” button to enter “Data Rate Setting”->choosing a data rate mode->click “Menu” button to take effect.

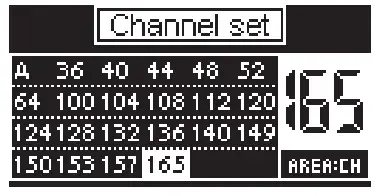

Channel Setting

1. Only the transmitter has the “Channel Setting” menu.
2. The default setting is “Auto” which means the transmitter will select a channel with the least interference automatically after power on.
3. If users want to select a channel manually, please follow the below steps: Click “Menu” button to enter the “Channel Setting” menu->choosing a channel->click “Menu” button to confirm-> Choosing “Yes” ->Click the “Menu” button to reboot the transmitter and the setting will take effect.

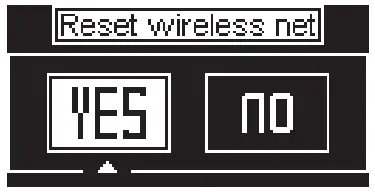

Network Reset

Only the transmitter has the “Network Reset” menu. Users can reset the WiFi SSID and password to factory settings by the “Network Reset” menu.

Setting steps:
Click the “Menu” button to enter the “Network Reset” menu->choosing “Yes”->click the “Menu” button to confirm->Choosing “Yes” ->Click “Menu” button to reboot, the SSID and password of the 5G WiFi will be reset to factory settings.

App Monitoring

1. App download
   Please download the App (Accsoon Go) from the Google Play or iOS App Store.http://qr12.cn/Bfp6Qh
2. Connect the App to the CineEye 2 Pro transmitter
   Launch the “Accsoon Go” app and then select “CineEye 2 Pro”, open the WLAN (Wireless/WiFi) settings page of the mobile devices, then choose the CineEye 2 Pro WiFi and connect to it.  The name of the CineEye 2 Pro WiFi is “CineEye2Pro_XXXX” and the default password is “12345678”.

3. Monitoring

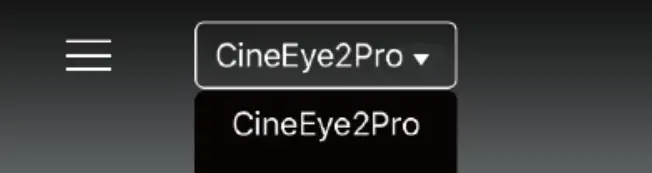

   Return to Accsoon Go and ensure CineEye 2 Pro is selected, click “Monitor” to enter the monitoring page and you will be able to monitor the live feed of the camera.
   Note: CineEye 2 Pro has two WiFi signals, one is 2.4G and another is 5G, the 2.4G WiFi name is “CineEye2-Pro-GroupX”, please don’t connect to this WiFi.

Firmware Update

1. Firmware download
   Make sure your mobile phone has internet access, then launch “Accsoon Go” and select “CineEye 2 Pro”, Click “Firmware Update”, then the App will check if there is an update. Click the “Download” button to download the firmware if there is an update available.
2. Update
   After the firmware is downloaded, connect the CineEye 2 Pro receiver to the transmitter and then connect the mobile devices to the transmitter. Go back to the App and click “Next” to update.
   1. The battery level of the CineEye 2 Pro should be above 50% before updating.
   2. Don’t turn off the CineEye 2 Pro before the updates are complete.

Specification

Warranty

Warranty Period

1. If there is a quality problem that occurs within 15 days after receiving the product, we will provide complimentary maintenance or replacement.
2. The warranty period for transmitter and receiver units is one year. Within the warranty period, if under the usage of instruction manual for any product problem Accsoon will offer repair service for free.
3. The accessories and cables warranty period is 3 months.

Warranty Exclusions

1. Unauthorized maintenance, misuse, impact damage, liquid infiltration, or modification.
2. Incorrect use of the product or altering the label and warranty sticker.
3. The warranty period has been exceeded.
4. Damage due to fire, flood, lightning, etc.

Warranty Process

Customers shall contact the local dealer to solve their problem. If there is no local dealer available, please contact Accsoon directly via email ([email protected]) or our website (www.accsoon.com). You will get detailed information, and Accsoon reserves the right to review the damaged products.

Q&A

Receiver cannot connect to the transmitter

1. Please make sure the transmitter and receiver have the same group setting.
2. Please check that all antennas are tightened well.

No video displayed

1. Please ensure the HDMI cable is plugged into the “HDMI In” port of the transmitter
2. Please check if the output format of the camera is compatible with the CineEye 2 Pro input formats and check if the camera has video output enabled via the HDMI port.

Video is choppy

1. Please check if the antennas are tight.
2. Please make sure there is no cable around the antenna
3. Please switch to another channel manually.

Mobile devices can’t see the CineEye 2 Pro WiFi

1. Please check if your mobile devices support 5G WiFi.

Mobile devices can’t connect to CineEye 2 Pro

1. CineEye 2 Pro has two WiFi networks available, one is 2.4G and another is 5G, the 2.4G WiFi name is “CineEye2-Pro-GroupX”, please don’t connect to this WiFi.

Contact Us

Certificate of Quality
This product is confirmed to meet quality standards and permitted for sale after strict inspection.

QC Inspector:

For more details about the product please visit www.accsoon.com
This document is subject to change without notice.
Accession is a trademark of Accsoon Technology Co., Ltd.
Copyright 2020 Accsoon. All rights reserved
