ACCSOON CineEye II Wireless Video
Transmitter User Manual

Product Features

• 5GHz WiFi transmission
• Transmission range of up to 500ft
• Very low latency ( <0.06 seconds)
• HDMI in and HDMI loop out
• High quality audio transmission
• Supports transmission to up to 4 receivers
• Camera Control supported
• Professional monitoring App for iOS and Android
• 1.3 inch OLEO display
• DC and battery power supply supported
• Firmware upgradable

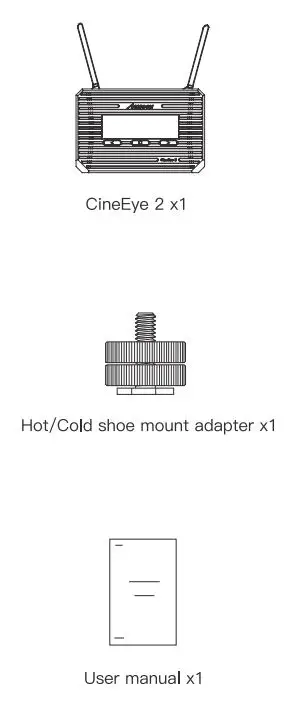

In the Box

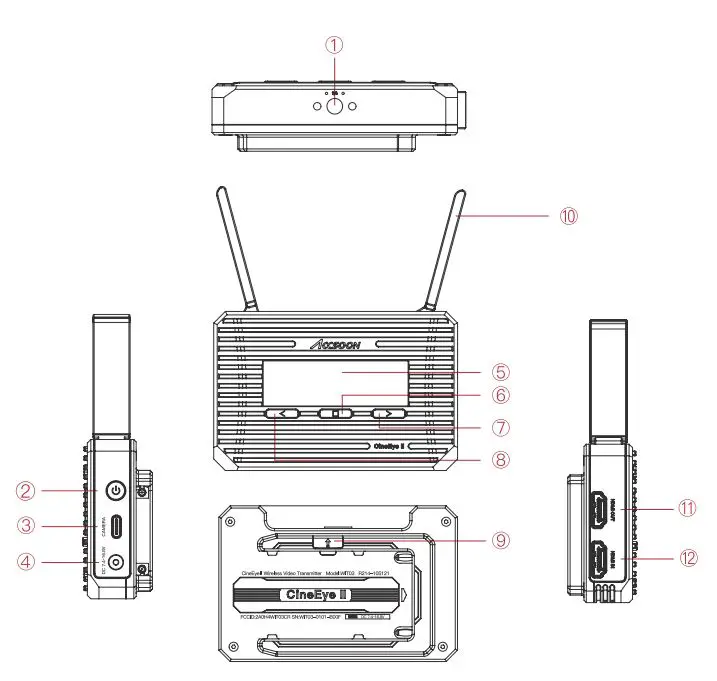

CineEye 2 Diagram

1. 1/4 Screw
2. Power Button
3. Camera Control Interface
4. DC Port
5. 1.3 Inch OLED
6. Menu/OK Key
7. Right Key
8. Left Key
9. Battery Lock
10. Antenna
11. HDMI Loop Out
12. HDMI In

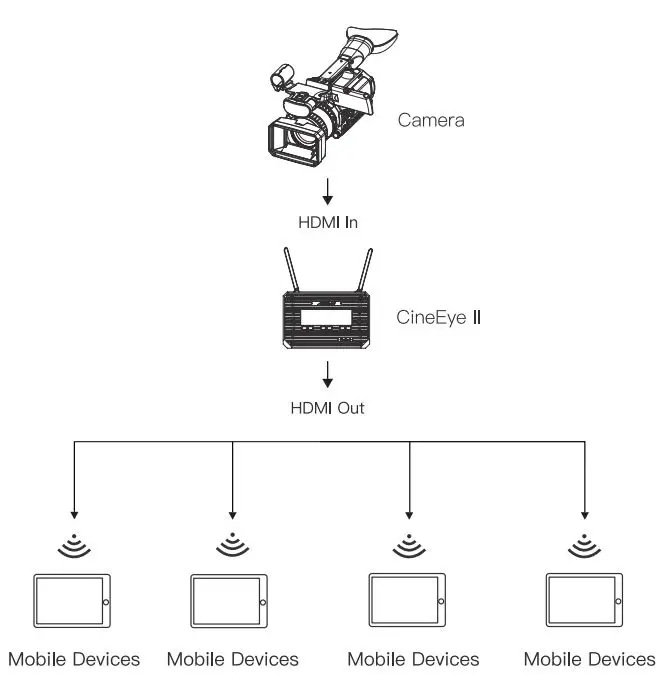

Typical Application

Operating Instructions

(1) Install Instructions

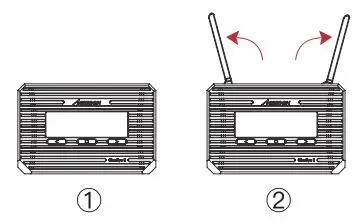

1. Unfold the antennas as demonstrated.
2. Use the hot/cold shoe mount adapter to install the CineEye 2 onto the camera or camera cage.
3. Use a NP-F970/F750/F550 battery or DC source to power the CineEye 2.
4. Connect camera output via HDMI to CineEye 2 HDMI input port.

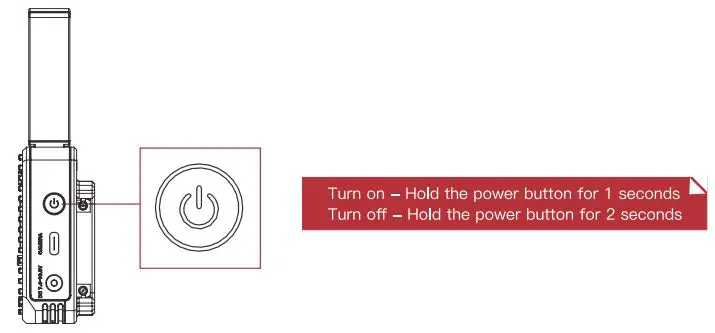

(2) Turn On/Off

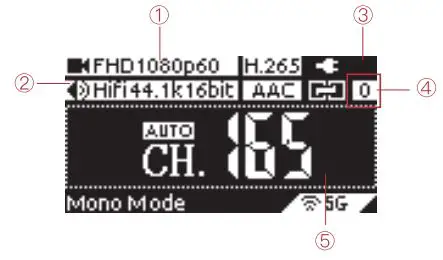

(3) OLED Display

1. Input video info
2. Input audio info
3. Battery level/DC input
4. Connection status
5. Current 5G WiFi channel

Connection Status:

The connection status indicates how many devices are connected, if no devices are connected the unit will display “O”.

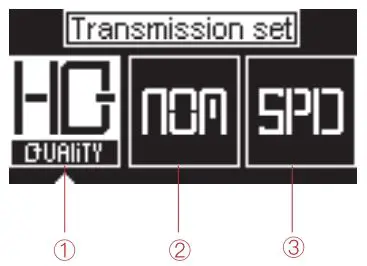

(4) Date Rate Setting

1. High Quality Mode
2. Normal Mode (Default setting)
3. Speed Mode

Setting steps:

Click the “Menu” button to enter “Data Rate Setting” ->choosing a data rate mode-> click “Menu” button to take effect.

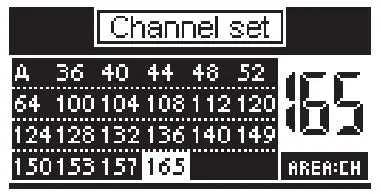

(5) Channel Setting

1. The default setting is “Auto” which means the transmitter will select a channel with the least interference automatically after power on.



2. lf users want to select a channel manually, please follow below steps: Click “Menu” button to enter “Channel Setting” menu->choosing a channel->click “Menu” button to confirm->Choosing “Yes” ->Click “Menu” button to reboot the transmitter and the setting will take effect.

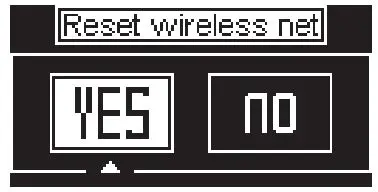

(6) Network Reset

1. Users can reset the WiFi SSID and password to factory settings by “Network Reset” menu.

Operation steps:
Click “Menu” button to enter “Network Reset” menu->choosing “Yes” ->click “Menu” button to confirm->Choosing “Yes” ->Click “Menu” button to reboot, the SSID and password of the 5G WiFi will be reset to factory settings.

(7) App Monitoring

1. App download Please download the App (Accsoon Go) from the Google Play or iOS App Store.

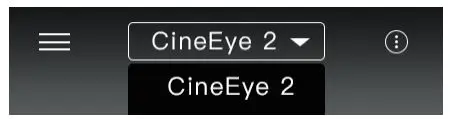

2. Connect the App to the CineEye 2 Launch the “Accsoon Go” app and then select “CineEye 2”, open the WLAN (Warless/WiFi)settings page of the mobile devices, then choose the CineEye 2 WiFi and connect to it. The name of the CineEye 2 WiFi is “CineEye2_XXXX” and the default password is “12345678”.

3. Monitoring
   Return to the Accsoon Go and ensure CineEye 2 is selected, click “Monitor” to enter the monitoring page and you will be able to monitor the live feed of the camera.

(8) Firmware Update

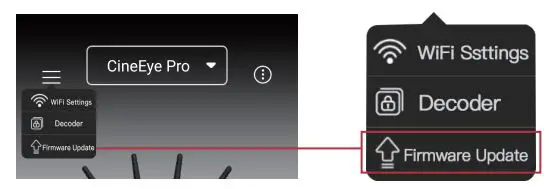

1. Make sure your mobile phone has internet access, then launch “Accsoon Go” and select “CineEye 2”, Click “Firmware Update”, then the App will automatically check if there is an update. The app will download the latest firmware automatically if there is an update available.



2. Update: After the firmware is downloaded, connect mobile devices to the CineEye 2. Go back to the App and click the “Firmware Update” to update.

• The battery level of the CineEye 2 should be above 50% before updating
• Don’t turn off the CineEye 2 before the updates are complete

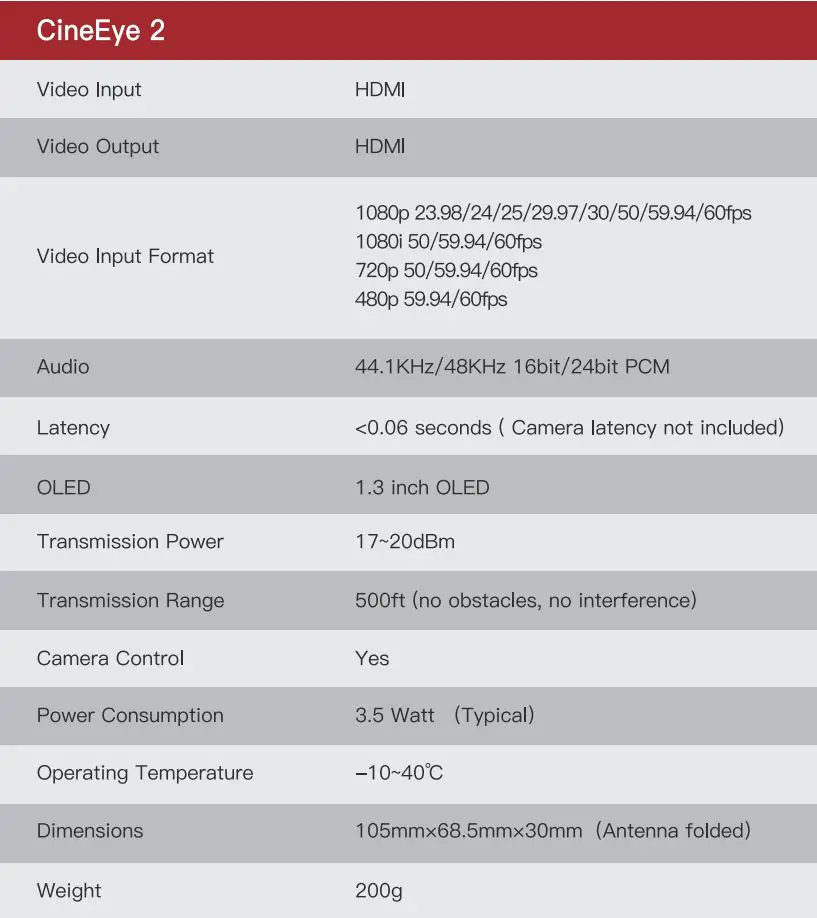

Specification

Warranty

(1) Warranty Period

1. If there is any quality problem that occurs within 15 days after receiving the product, we will provide complimentary maintenance or replacement.
2. The warranty period for transmitter and receiver units is one year. Within the warranty period, if under the usage of instruction manual for any product problem Accsoon will offer repair service for free.
3. The accessories and cables warranty period is 3 months.

(2) Warranty Exclusions

1. Unauthorized maintenance, misuse, impact damage, liquid infiltration, or modification.
2. incorrect use of the product or altering the label and warranty sticker.
3. The warranty period has been exceeded.
4. Damage due to fire, flood disaster, lighting, etc.

(3) Warranty Process

1. Customer shall contact the local dealer to solve their problem. If there is no local dealer available, please contact Accsoon directly via email ([email protected])or our website (www.accsoon.com). Accsoon reserves the right to review the damaged products.

Q&A

(1) No Video Displayed

1. Please ensure the HDMI cable is plugged into the “HDMI In” port of the CineEye 2.
2. Please check if the output format of the camera is compatible with the CineEye 2 input formats and check if the camera has video output enabled via the HDMI port.

(2) Video is choppy

1. Please make sure the antennas have unfolded.
2. Please make sure there is no cable around the antenna.
3. Please switch to another channel manually.

(3) Mobile devices can’t see the CineEye 2 WiFi

1. Please check if your mobile devices support 5G WiFi.
