Krux Krx0041 Atax Rgb Keyboard Instruction Manual

ATAX RGB

KEY FUNCTION:

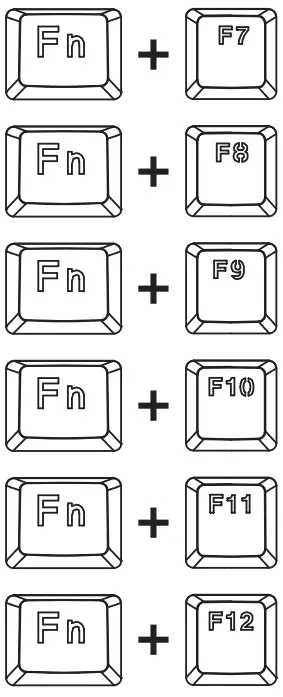

	MUSIC
	VOLUME +
	VOLUME –
	WYCISZ
	STOP
	PREVIOUS TRACK

	PLAY / PAUSE
	NEXT TRACK
	EMAIL
	HOME PAGE

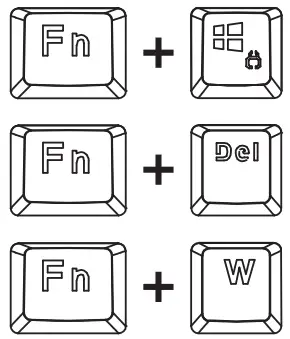

	LOCK WINDOWS KEY (GAMING MODE)
	CALCULATOR

	LOCK WINDOWS KEY
	RESTORE TO FACTORY SETTINGS [PRESS FOR 5 SECONDS)
	SWITCH FUNCTIONS BETWEEN WASD AND ARROWS

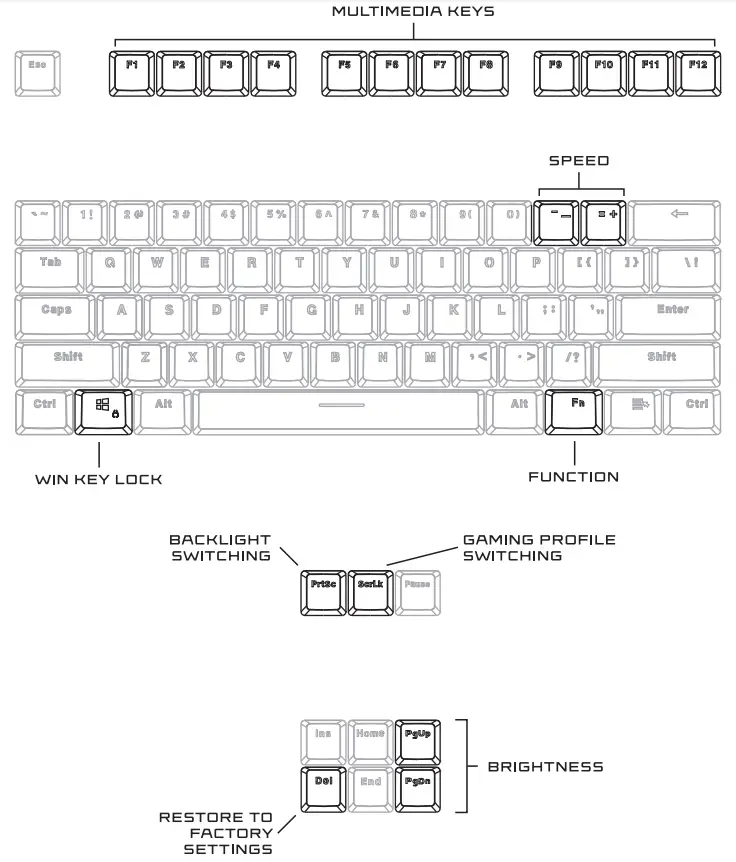

BACKLIGHT SET:

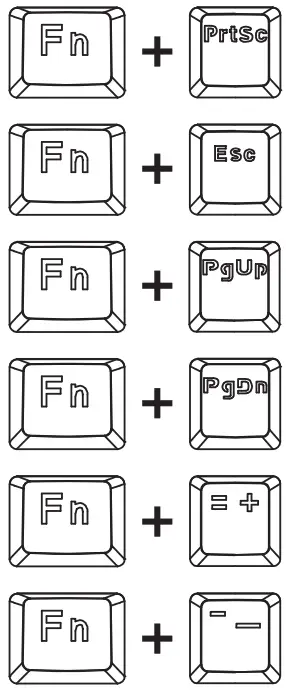

	BACKLIGHT SWITCHING
	TURN THE BACKLIGHT ON/OFF
	BACKLIGHT LUMINANCE BRIGHTNESS +
	BACKLIGHT LUMINANCE BRIGHTNESS –
	BACKLIGHT SPEED +
	BACKLIGHT SPEED –

CUSTOM BACKLIGHT SETTINGS:

SWITCHING BETWEEN 6&6 LIGHTING MODES FOR DIFFERENT GAMES. THE FIRST 3 ARE LOCKED AND THE NEXT 3 ARE FREELY EDITABLE BY THE USER.

SPECIFIC SETTING METHOD:

1. Press FN¢Scrlk repeatedly while in static backlight mode until you switch to editing mode.
2. Press FN+PAUSE [LEDs will start blinking indicating that the edit mode is on].
3. Click the selected buttons to turn on/ off their backlight.
4. Click FN+PAUSE to save the settings.

MACROS EDIT:

There are 5 combinations of buttons for saving macros:
FN+Y / FN+U / FN+4I / FN+O / FN+¢P.

SPECIFIC SETTING METHOD:

1. Click FN+iINSERT.
2. Click the combination under which you want to save the macro (FN+Y / FN+U / FN+! / FN+0 / FN+P).
3. Click the key combination you want to record.
4. Click FN+INSERT to save the macro,

KRUX ATAX RGB Keyboard
2-year manufacturer warranty Use and warranty limitations
– The product should be used according to its intended purpose. Incorrect use can damage the product and endanger the life of the user;
– Excessive humidity, dust, and other contaminations can result in product damage that is not covered by the warranty;
– The warranty does not cover mechanical damage to the product;
– Avoid exposure to rapid changes in ambient temperature. Should they occur, wait approx. 30 minutes before using the product until the temperature is leveled;
– You can find the Warranty Terms and Conditions in “Support” at https://Krux.tech/

ENTITY RESPONSIBLE / PODMIOT ODPOWIEDZIALNY:
COOLING.PL ZOZIECH SPJ.
UL. SOKOLOWSKA e+
05-806 SOKOtLOW, POLAND
TEL. +48 22 29e 0130
Boo: o000e00eS
MADE IN CHINA
