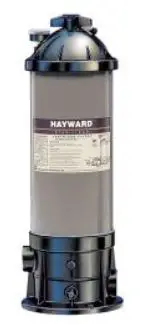

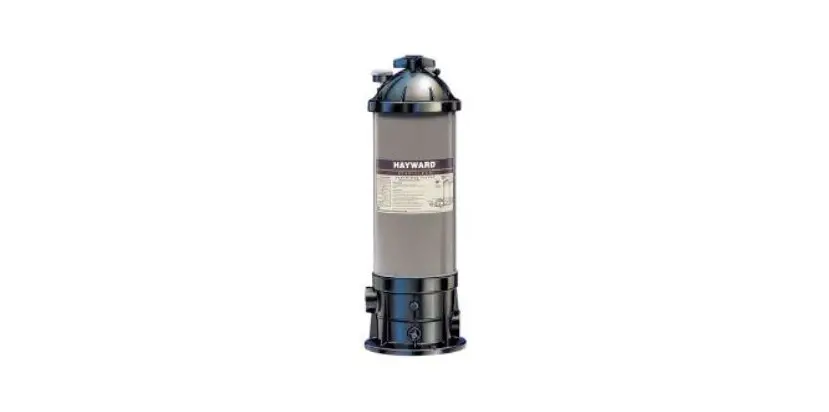

HAYWARD CX250G StarClear Cartridge Filter Series Replacement Parts

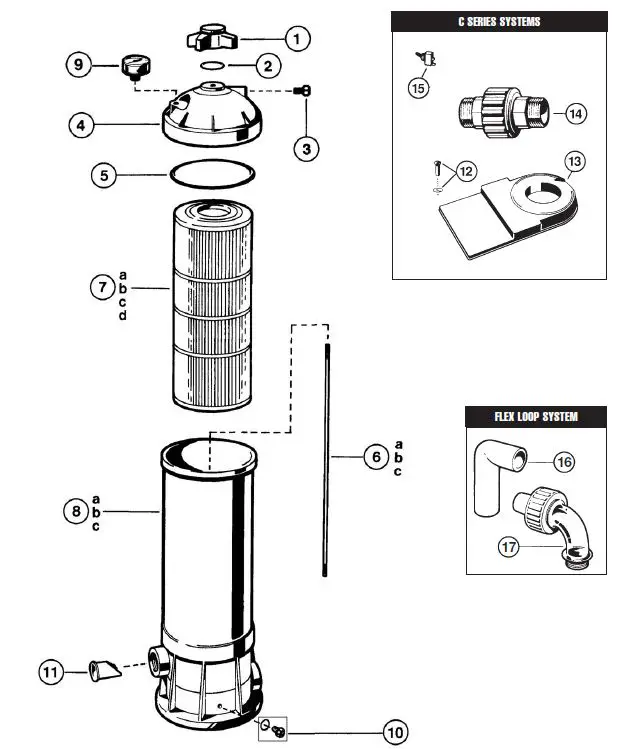

Parts Diagram
Parts Listing
| Ref. No. | Part No. | Description | Ctn. Qty. |
| 1 | CX250G | Locking Knob | 10 |
| 2 | CX250Z7 | O-Ring | 20 |
| 3 | ECX1322A | Directional Vent Valve with O-Ring | 20 |
| 4 | CX250C | Filter Head (Dome) with Air Relief Valve | 4 |
| 5 | CX250F | Filter Head Gasket | 50 |
| 6a | CX250Z2S | Tie Rod (C250), 18 9⁄32″ | 1 |
| 6b | CX500Z2S | Tie Rod (C500), 28 3⁄32″ | 1 |
| 6c | CX750Z2S | Tie Rod (C750, C100), 38 1⁄16″ | 1 |
| 7a | CX250RE | Cartridge Element (C250) | 1 |
| 7b | CX500RE | Cartridge Element (C500) | 1 |
| 7c | CX750RE | Cartridge Element (C750) | 1 |
| 7d | CX1000RE | Cartridge Element (C100) | 1 |
| 8a | CX250AA1 | Filter Body with Tie Rod Assembly (C250) | 1 |
| 8b | CX500AA1 | Filter Body with Tie Rod Assembly (C500) | 1 |
| 8c | CX750AA1 | Filter Body with Tie Rod Assembly (C750, C100) | 1 |
| 9 | ECX27091 | Pressure Gauge, Back Mount | 25 |
| 10 | CX250Z14A | Drain Plug Kit | 50 |
| 11 | ECX4077B1 | Check Valve (optional) | 20 |
| C Series Systems | |||
| — | SPX1250WA | 6 ft. Cord Set – No. 14/3 AWG | 10 |
| — | ECX1248 | Cord Strain Relief | 1 |
| 12 | ECX1108A | Pump Mounting Screw with Washer | 10 |
| 13 | EC1161PAK | Platform Base with Screws – Low Profile | 2 |
| 14 | SP1480BLK | 1 1⁄2″ Male Union | 50 |
| 15 | ECX1325 | Switch Assembly | 10 |
| Modular Flex Loop Systems | |||
| 16 | ECX1326A | Flex Loop Elbow | 20 |
| 17 | SPX14853 | Sweep Elbow Union Assembly | 20 |
