Champion 100519 625ow Open Frame Inverter User Guide

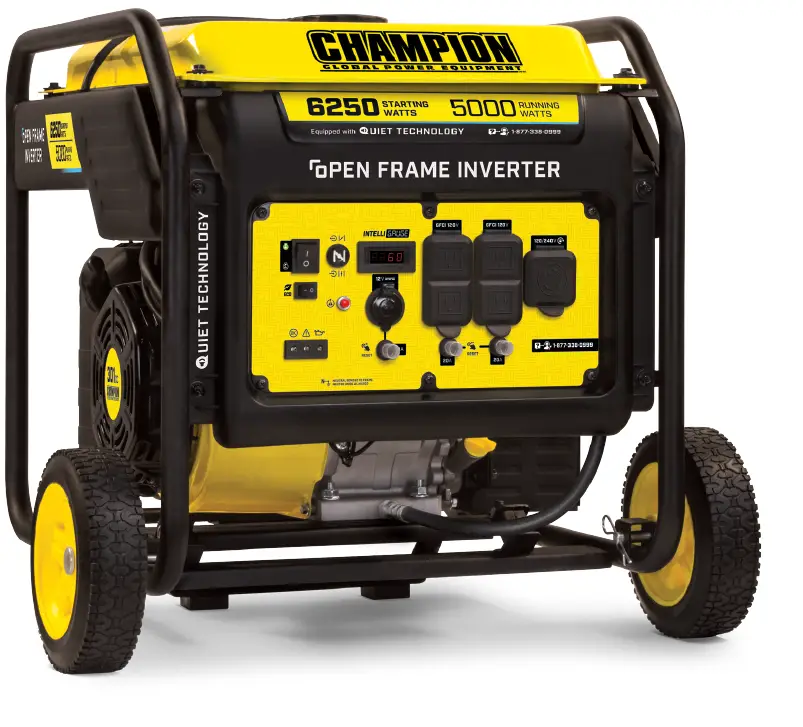

CHAMPION 100519 625OW Open Frame Inverter

Set Up

1. Open shipping carton. Assembly > Unboxing

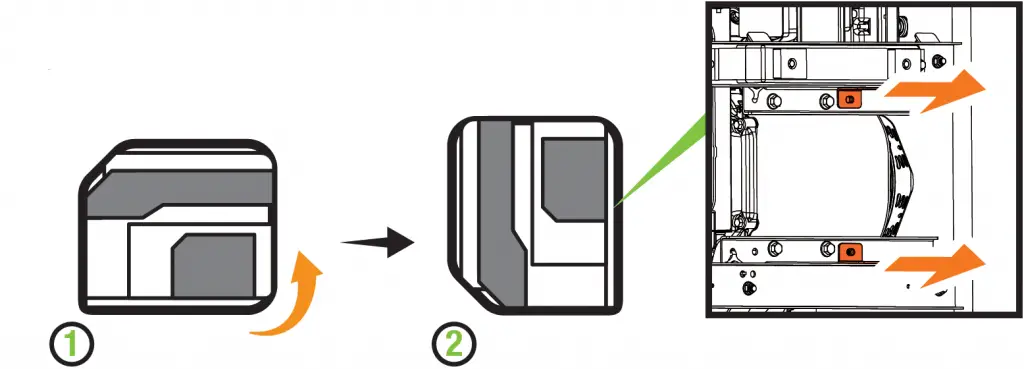

2. Remove brackets. Assembly > Remove Shipping Support Brackets

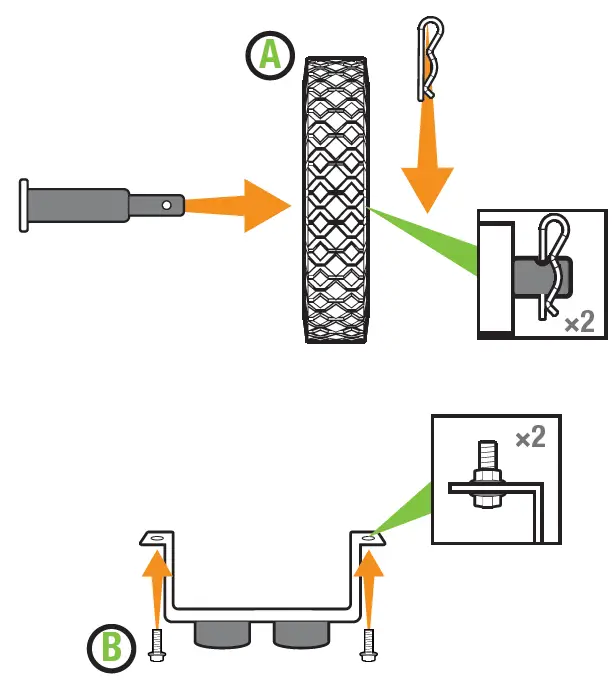

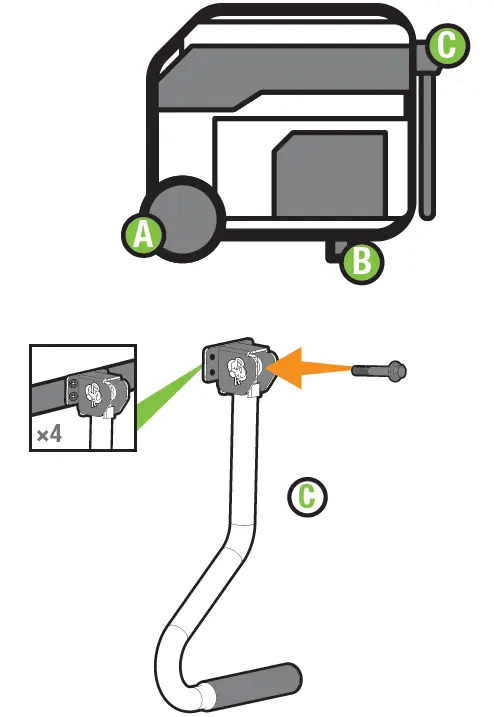

3. Attach wheel kit. Assembly > Install Wheel Kit

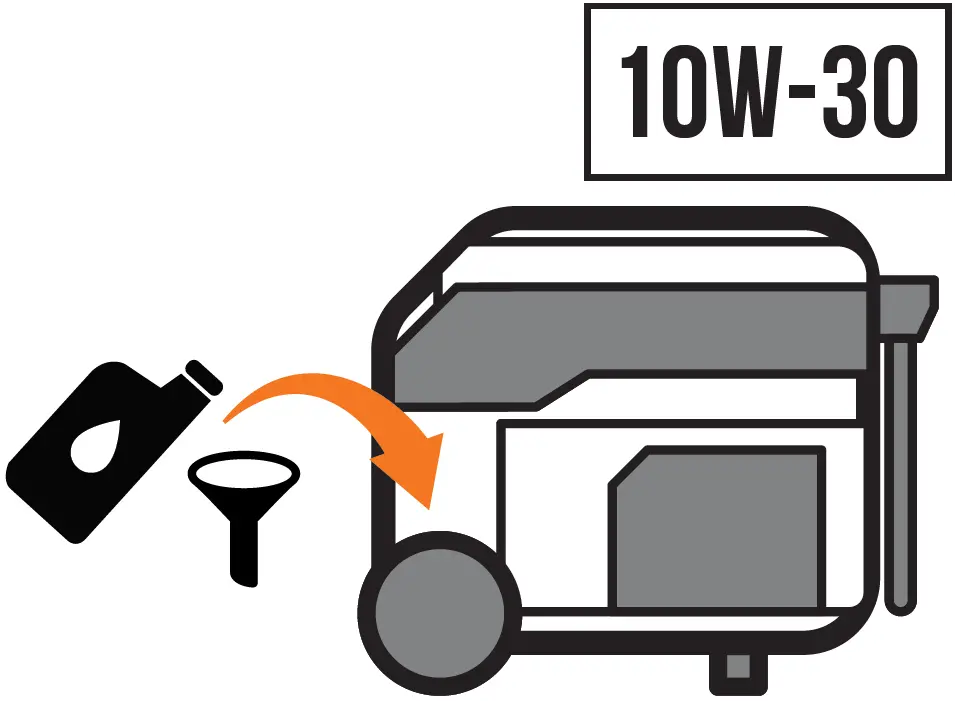

4. Add oil. Assembly > Add Engine Oil
   Recommended: 10W-30, up to 37.2 fl. oz. (1.2 qt.). DO NOT overfill.

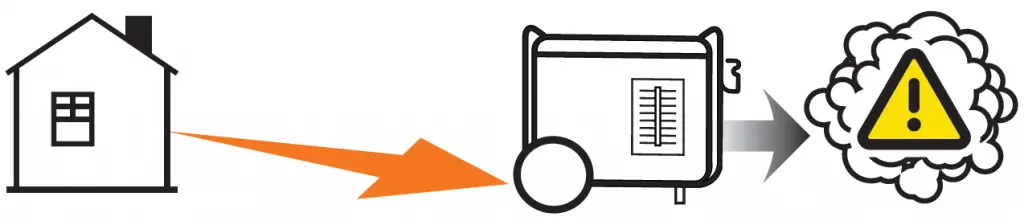

5. Move the generator outdoors
   Move generator to an open, outdoor area.
   Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).

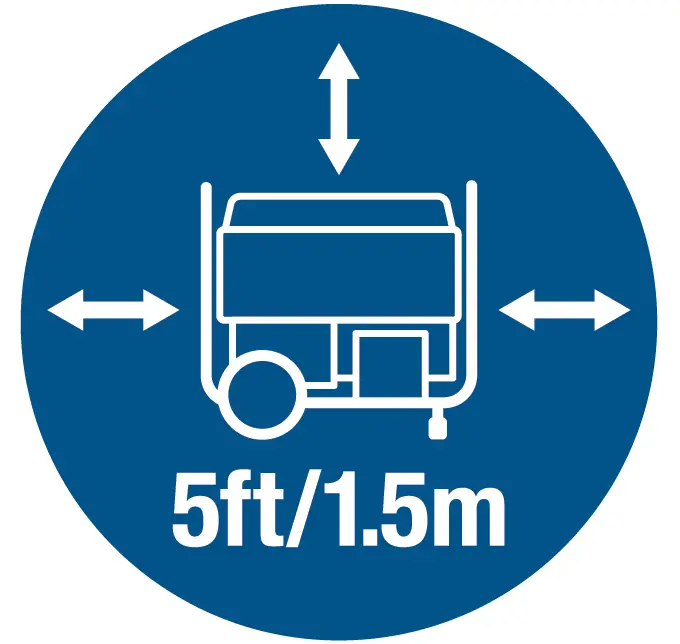

   Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.

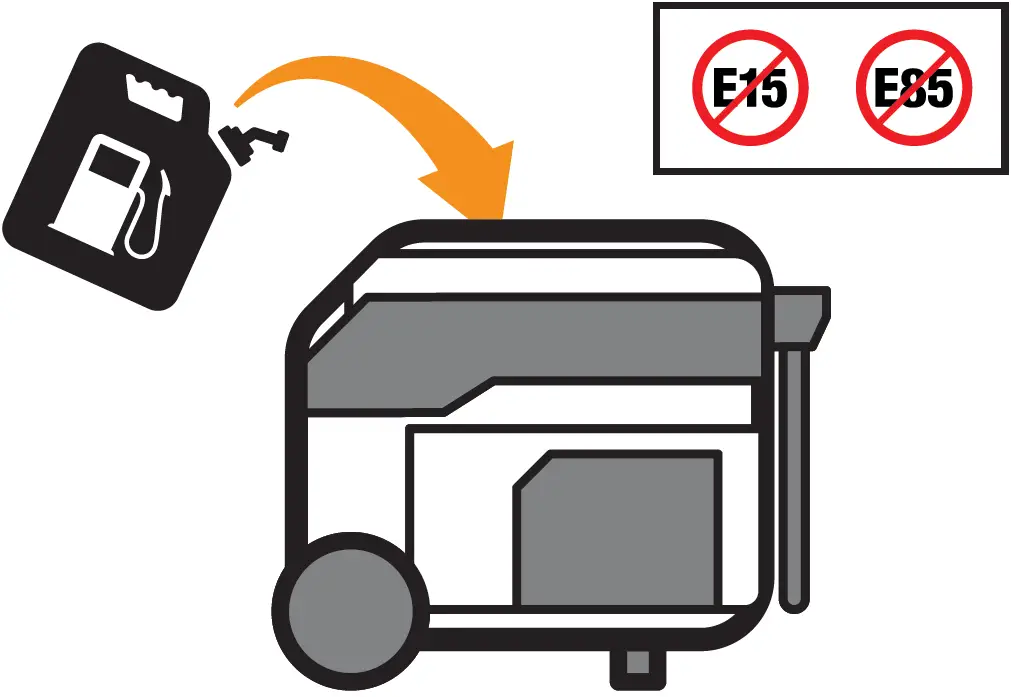

6. Add fuel. Assembly > Add Fuel
   DO NOT use E15 or E85

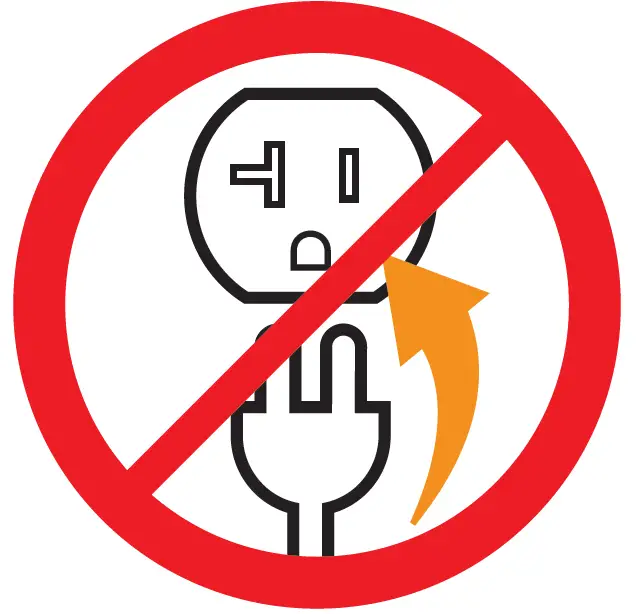

7. DO NOT plug in any electrical devices

8. Turn the fuel valve “ON”

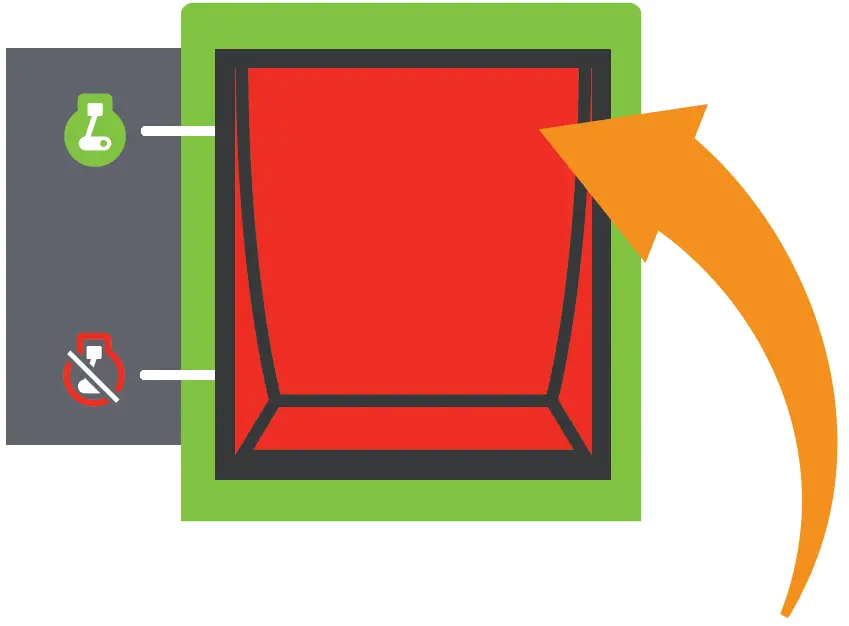

9. Press the engine switch to the “ON” position

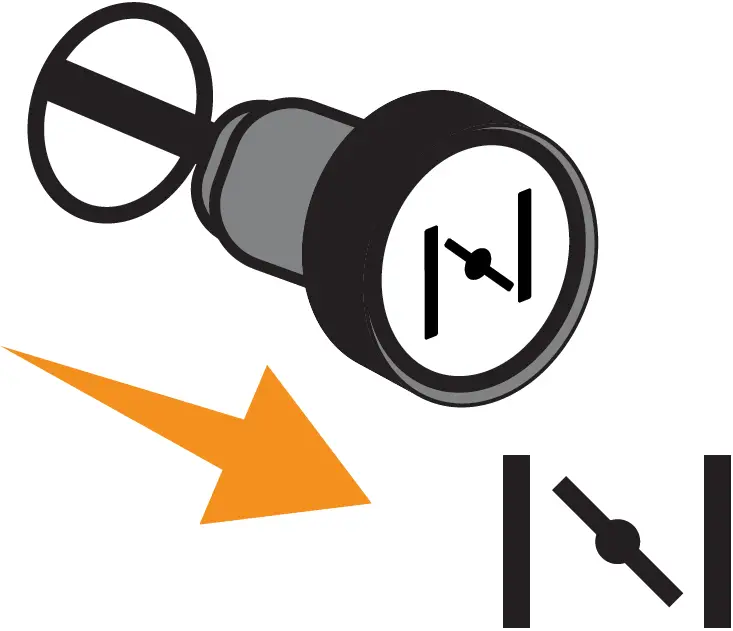

10. Pull the choke knob out to the “CHOKE” position

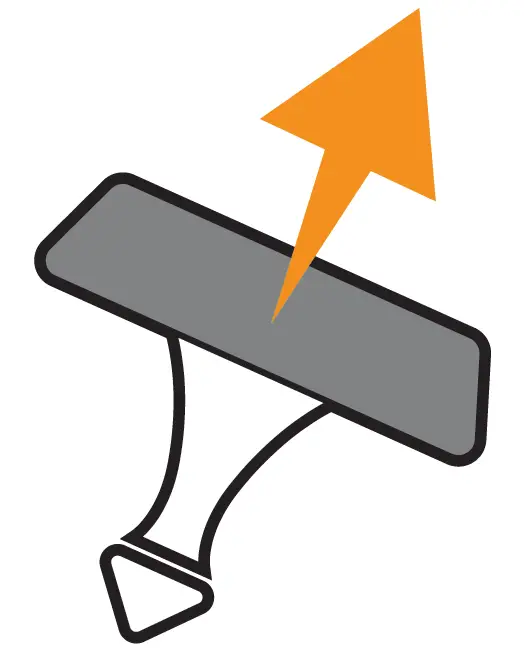

11. Pull the recoil to start the engine

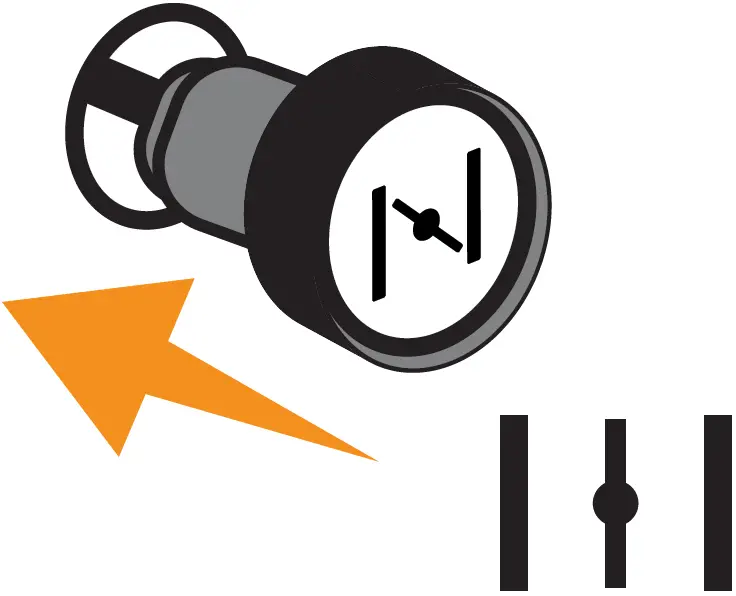

12. Push the choke knob in to the “RUN” position

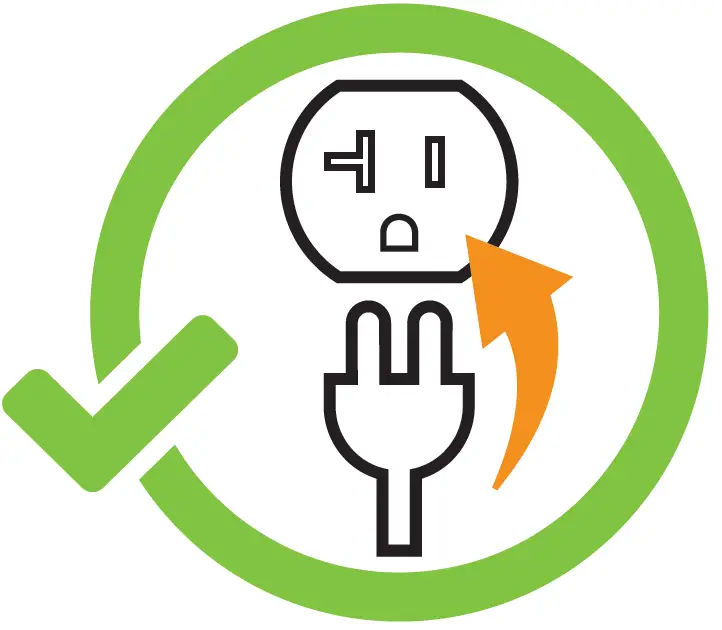

13. Plug in Operation > Connecting Electrical Loads.
