Champion 4500w Dual Fuel Open Frame Inverter User Guide

QUICK START GUIDE
200978

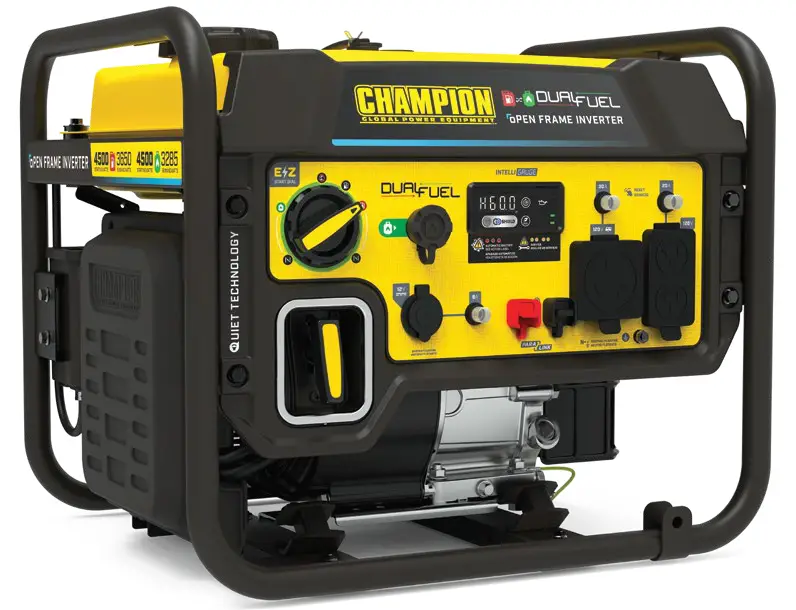

4500W Dual Fuel Open Frame Inverter

WARNING:
Read the ENTIRE operator’s manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property and cause serious injury or even death.

www.championpowerequipment.com
© Champion Power Equipment 2021.
All Rights Reserved. / Todos los derechos reservados.\

Set-Up

1. Open shipping carton. Assembly > Unpacking.

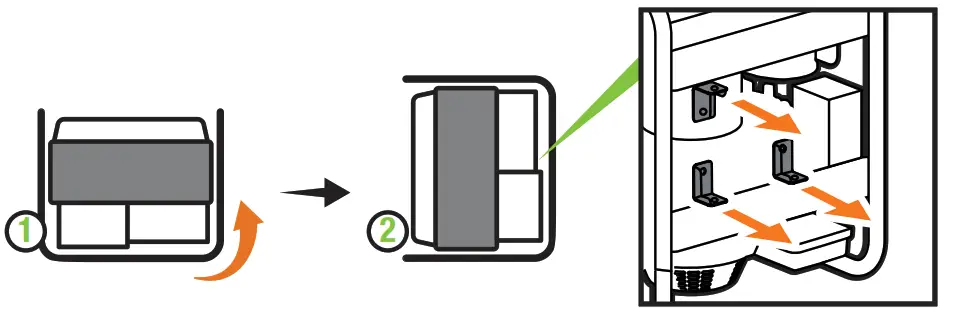

2. Remove brackets.   Assembly > Remove Shipping Support Brackets.

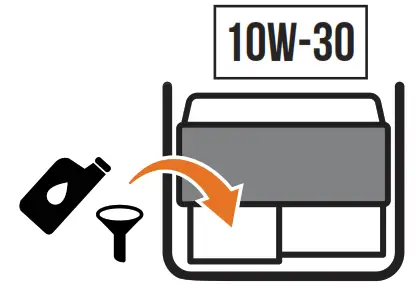

3. Add oil.Assembly > Add Engine Oil.
   Recommended: 10W-30, up to 18.6 fl. oz. (550 ml) DO NOT overfill.
4. Move the generator outdoors.
   Move generator to an open, outdoor area. Point exhaust away. Never run a generator in enclosed areas (e.g., not in house or garage). Keep all objects at least 5 feet (1.5 m) from the generator. The heat from the muffler and exhaust gas can ignite combustible materials. Start-Up

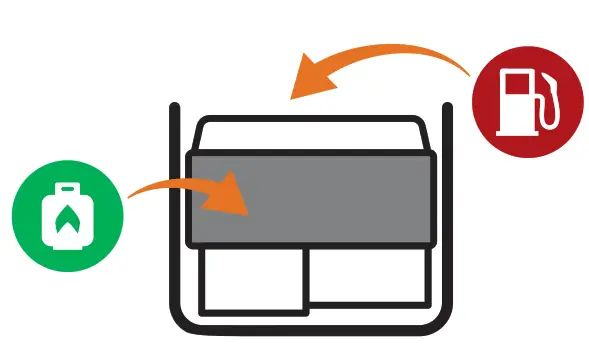

5. Add fuel – Gasoline or Propane (LPG)
   Assembly > Add FuelFOR GASOLINE OPERATION: DO NOT USE E15 OR E85
6. DO NOT plug in any electrical devices. NEVER START OR STOP THE GENERATOR WITH ELECTRICAL DEVICES CONNECTED OR TURNED ON!

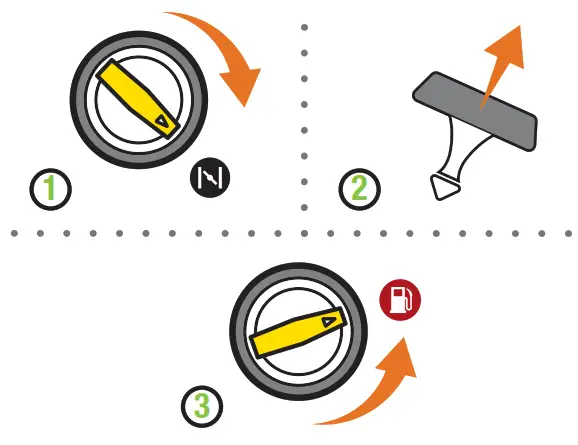

7. 7a. Starting the Engine: GasolineManual Start: Gasoline
   1. Turn the EZ Start Dial to the gasoline “CHOKE” position.
   2. Pull the recoil to start the engine.
   3. Turn the EZ Start Dial to the gasoline “RUN” position.

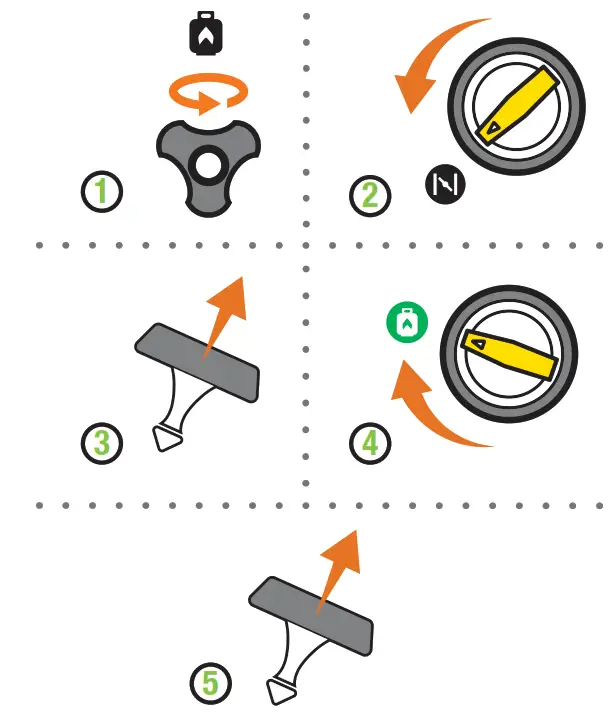

   7b.  Starting the Engine: Propane (LPG)Manual Start: Propane (LPG)
   1. Open the propane tank valve.
   2. Turn the EZ Start Dial to the LPG “CHOKE” position.
   3. Pull the recoil 3-5 times to prime the engine.
   4. Turn the EZ Start Dial to the LPG “RUN” position.
   5. Pull the recoil to start the engine.

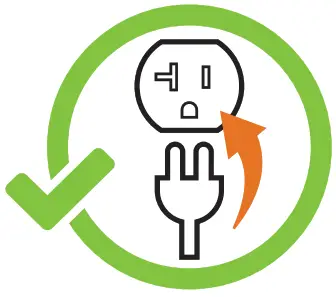

8. Operation > Connecting Electrical Loads.

Visit our YouTube channel to watch our how-to videos and subscribe to view our latest videos on our Champion Power Equipment products!

NEED ASSISTANCE OR HAVE A QUESTION?
GIVE US A CALL.

1•877•338•0999

CHAMPIONPOWEREQUIPMENT.COM
