CHAMPION 200955 4250-Watt Open Frame Inverter User Guide

www.championpowerequipment.com
© Champion Power Equipment 2021.
All Rights Reserved.

Set Up

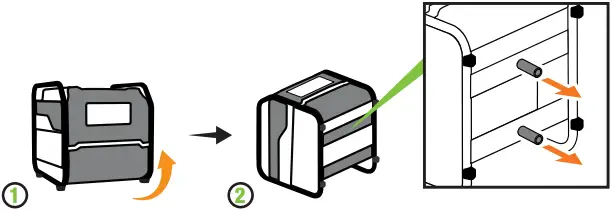

1. Open shipping carton. Assembly > Unboxing

2. Remove shipping spacers. Assembly > Remove Shipping Support Spacers.

3. Add oil. Assembly > Add Engine Oil.
   Recommended: 10W-30, up to 18.6 fl. oz. (550 ml) DO NOT overfill.

4. Move the generator outdoors.
   Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).

   Keep all objects at least 5 feet (1.5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.


Start Up

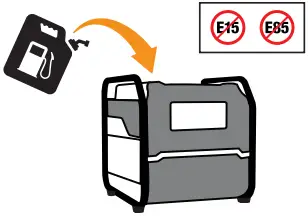

5. Add fuel. Assembly > Add Fuel
DO NOT use E15 or E85.

6. DO NOT plug in any electrical devices.

7. Turn the fuel valve “ON”.

8. Press the engine switch to the “ON” position.

9. Pull the choke knob out to the “CHOKE” position.

10. Pull the recoil to start the engine.

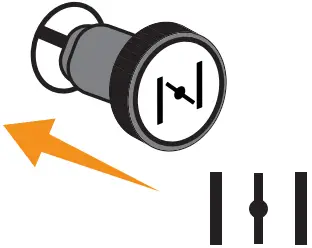

11. Push the choke knob in to the “RUN” position.

12. Plug in. Operation > Connecting Electrical Loads.
