CHAMPION 200914 4250W Fuel Open Frame
Inverter User Guide

www.championpowerequipment.com

Set Up

1. Open shipping carton. Assembly > Unpacking

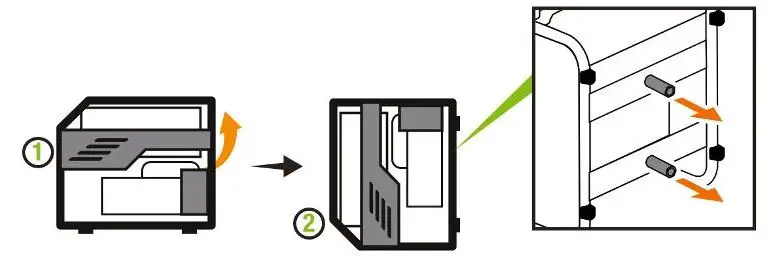

2. Remove shipping spacers. Assembly > Remove Shipping Support Spacers.

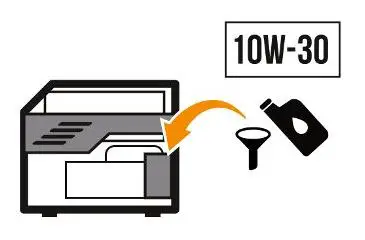

3. Add oil. Assembly > Add Engine Oil.
Recommended: 1 OW-30, up to 18.6 fl. oz. (550 ml) DO NOT overfill (included).

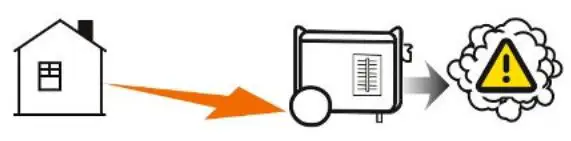

4. Move the generator outdoors.

Move generator to an open, outdoor area. Point exhaust away. Never run generator in enclosed areas (e.g., not in house or garage).

Keep all objects at least 5 feet (1 .5 m) from generator. Heat from the muffler and exhaust gas can ignite combustible materials.

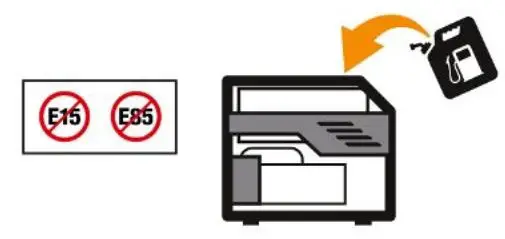

5. Add fuel. Assembly> Add Fuel: Gasoline DO NOT use E15 or E85.

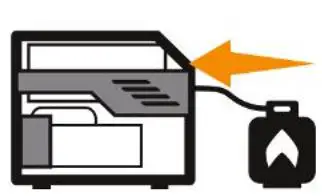

Connect propane cylinder.  Assembly> Add Fuel: Propane (LPG)

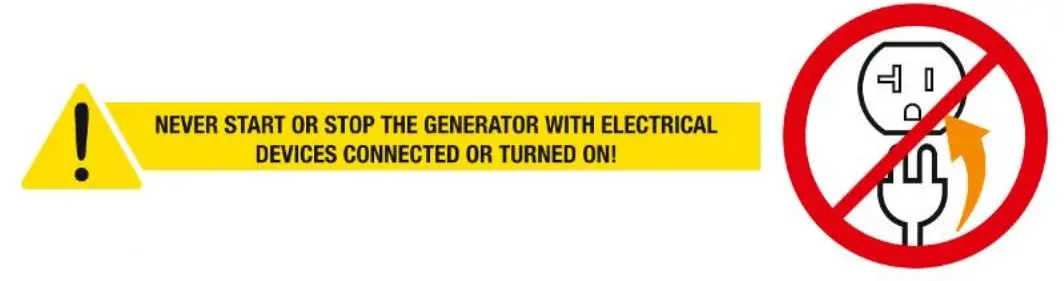

6. DO NOT plug in any electrical devices.

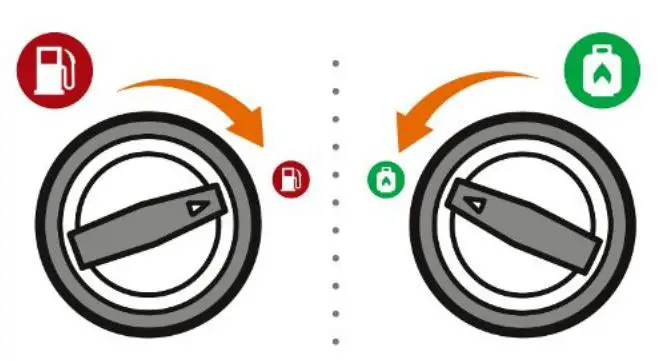

7. Select Fuel. Operation > Starting the Engine.
Gasoline: Turn fuel selector dial to “Gasoline Run” position.
Propane: Turn fuel selector dial to “Propane Run” position.

8. Move the choke lever to the “CHOKE” position.

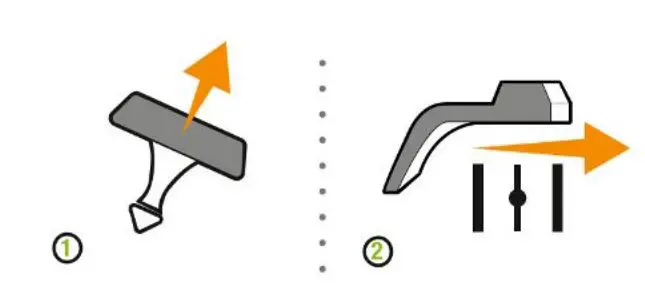

9a. Gasoline

Manual Start
1. Pull the starter cord.
2. Move the choke lever to the “RUN” position.

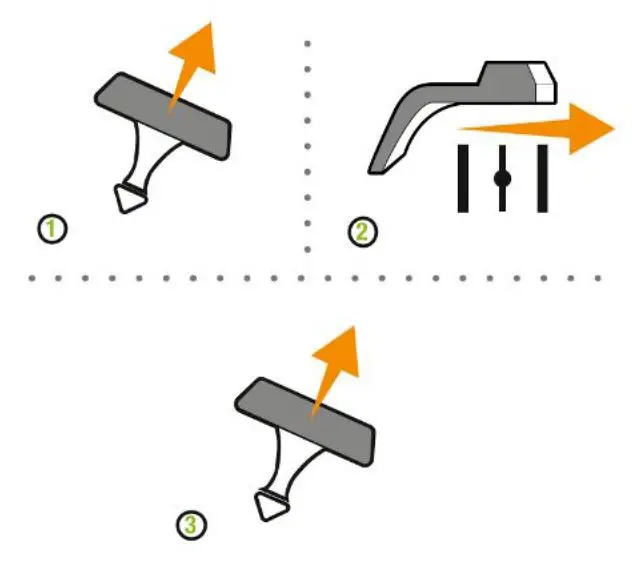

9b. Propane

Manual Start

1. Pull the starter cord 3-5 times until you feel some combustion pulses.
2. Move the choke lever to the “RUN” position.
3. Pull the starter cord.

10. Plug in. Operation > Connecting Electrical Loads.
