INSTRUCTIONS
SKIN
955A-L0102A-2W / 3000K / 160lm
955A-L0102A Reading Wall Bracket SKIN LED SMD
This product contains a light source with energy efficiency class G.
The safety of this luminaire is guaranteed only if you comply with these instructions; remember to conserve in a safe place.
Ensure adequate voltage and frequency is supplied to the equipment.
Disconnect from the main power before performing or any maintenance.
The installation should be carried out by qualified personnel.
For indoor use only.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
Don’t touch the LED
IMPORTANT INFORMATION
Technical data: see fixture label
SAFETY INSTRUCTIONS
- Electrical appliances must only be connected by competent persons.
- Important! Before commencing installation work disconnect the mains cable from the power supply – remove fuse or turn switch to “OFF”! The power supply connection must be done with the suitable connecting box, as seen on illustrations.
- This luminaire is only suitable for use in living areas (not for areas subject to moisture) and may be used only in accordance with its particular design. The maximum permissible ambient temperature is 25°C.
- Do not attach luminaires to surfaces which are damp, freshly painted, or otherwise electrically conductive.
- Connect the wires of the luminaire to the wires of the same colour that come from the wall or ceiling.
- Use support systems that are in accordance to the weight of the luminaire.
- Keep the wires and connections separated from any heat source.
- To avoid damage to concealed wiring during installation, establish the direction of the supply cable before drilling fixing holes.
- Keep these instructions in a safe place.
- Use sleeves to cover the mains supply wiring to the fitting.
- Cleaning is limited to the outer surfaces, shades or protective glass, reflectors and covers. Gold-finish and brass luminaires must be only be cleaned with a soft cloth (do not use cleaning agents of any kind). It is important to ensure that no moisture enters the terminal compartment or reaches any live parts! 12. As our products are subject to technical modifications, we cannot guarantee, that all information is always up to date. Please contact our technical department with any queries.
- (Type Y) If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
- Do not cover the luminaires with insulating material.
- Do not use luminaries with frayed or cracked glass, until it is replaced
- Not hang or supporting elements on the luminaires.
SYMBOLOGY
Protection class I: This luminaire has an earth terminal.
Protection class II: This luminaire is doubly insulated and must not be connected to and earth wire.
Protection class III: Luminaire for protective low voltage (SELV)
Minimum distance from lighted objects
Low pressure: For luminaries which are designed for use with self-shielded tungsten halogen lamps only.
Recessed luminaire not suitable for direct mounting on normally flammable surfaces
Surface luminaire not suitable for direct mounting on normally flammable surfaces.
Luminaires not suitable for covering with thermally insulating material
Replace any cracked protective Shield
Where affixed on the equipment or package, the barred waste bin sign indicates that the product must be separated from other waste at the end of its working life for disposal.
Replaceable control gear by a professional.
Replaceable control gear by an end-user.
Non-replaceable control gear.
Repleaceble light source by a professional.
Repleaceble light source by an end-user.
Non-repleaceable light source.

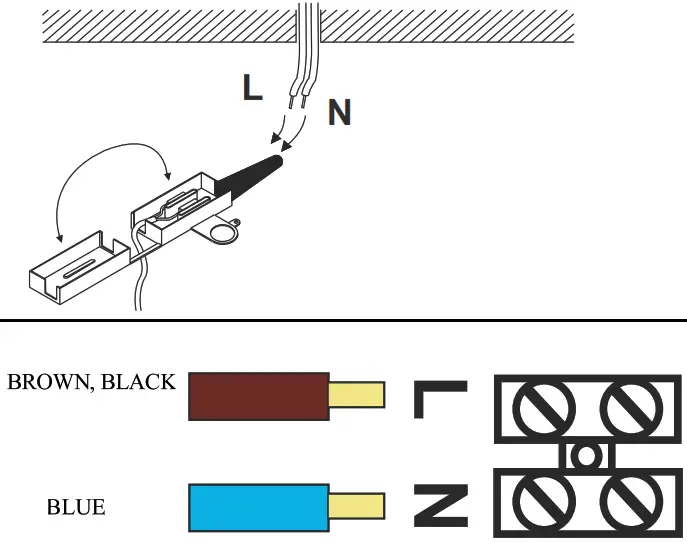

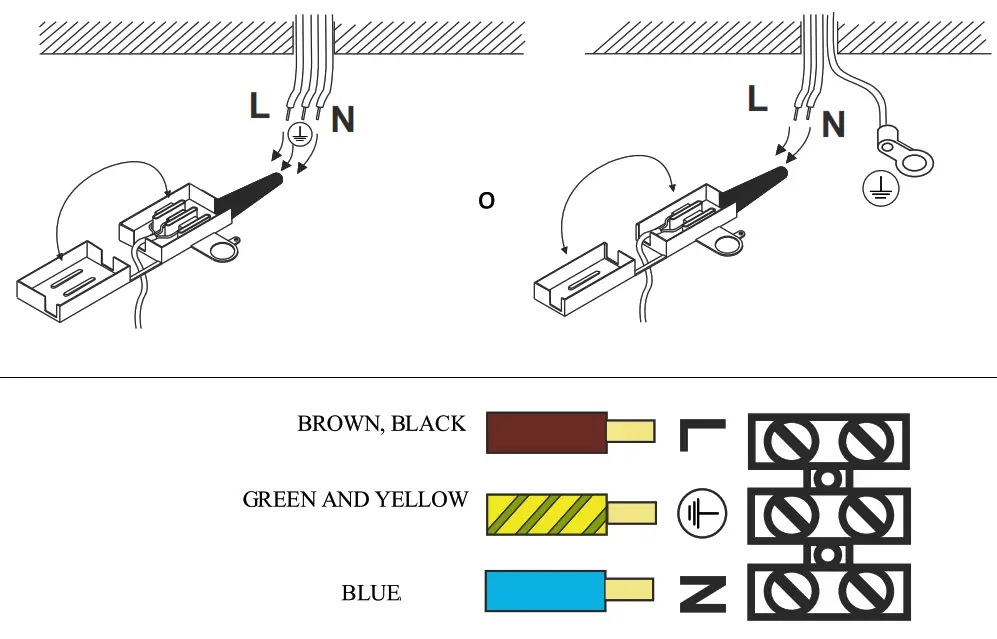

SUPPLY CONNECTION
IP20 Protected against solid objects greater than 12mm.
