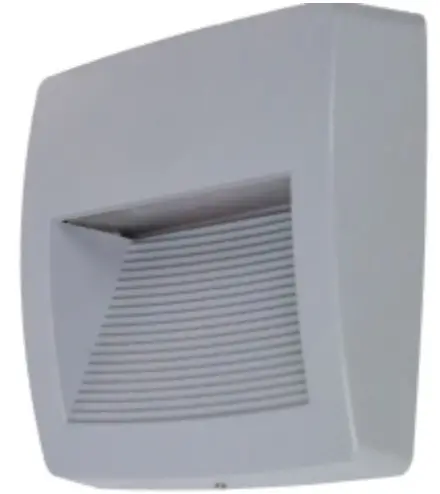

947A-L3104A Wall Bracket
Instructions

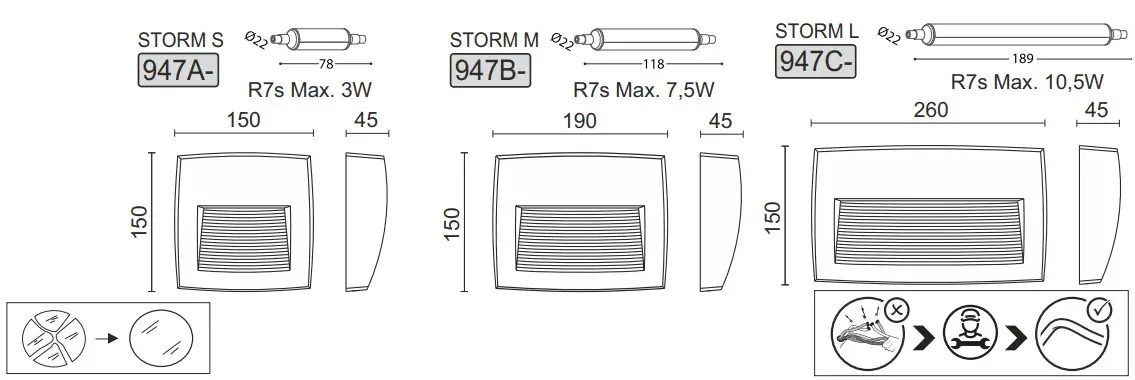

947A-L3104A 3W / 3000K / 400lm
947B-L3109A 8,5W / 3000K / 900lm
947C-L3111A 10,5W / 3000K / 1100lm

947A-L3104A Wall Bracket

Should the diffuser break, the product cannot be used and you should contact the manufacturer for its replacement.
The safety of this luminaire is guaranteed only if you comply with these instructions; remember to conserve in a safe place.
Ensure adequate voltage and frequency is supplied to the equipment.
Disconnect from the main power before performing or any maintenance.
The installation should be carried out by qualified personnel.
Suitable for indoor and outdoor use, taking the indicated IP rating into consideration.
Keep away from direct contact to the ground and chemical substances.
Do not use water high pressure cleaners.

Technical data: see fixture label
SAFETY INSTRUCTIONS

1. Electrical appliances must only be connected by competent persons.

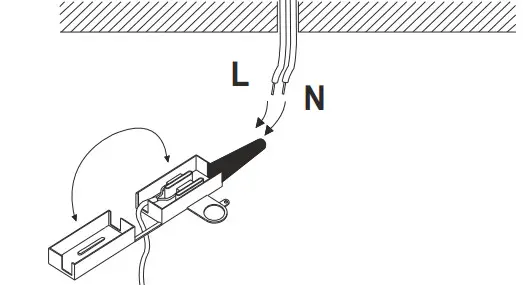

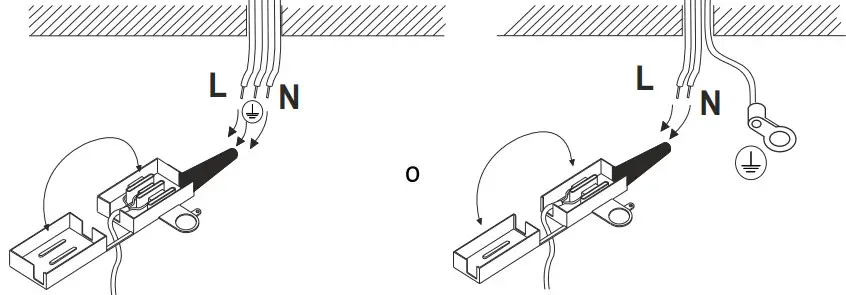

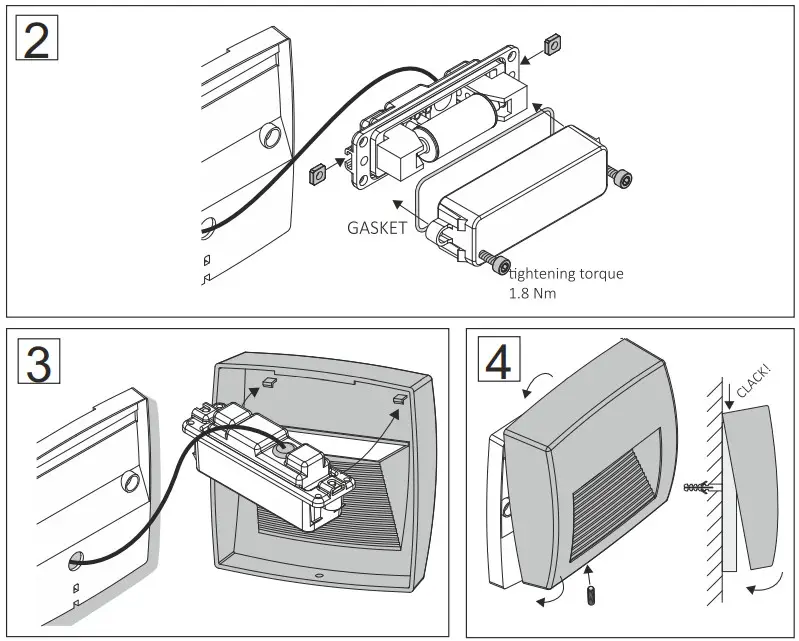

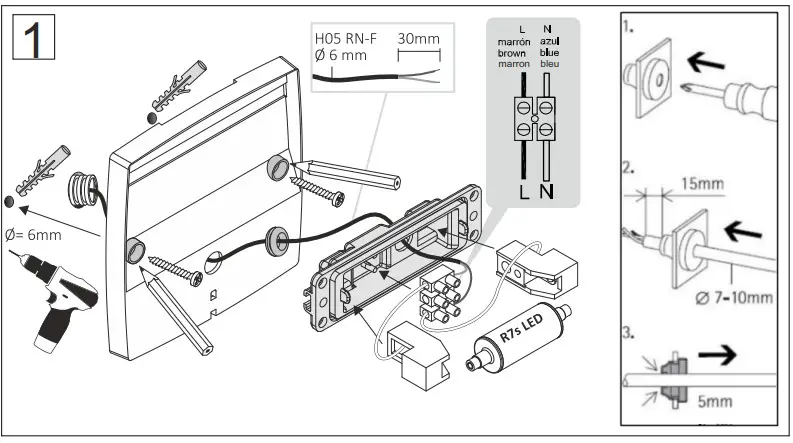

2. Important! Before commencing installation work disconnect the mains cable from the power supply – remove fuse or turn switch to “OFF”! The power supply connection must be done with the suitable connecting box, as seen on illustrations.
3. This luminaire is only suitable for use in living areas (not for areas subject to moisture) and may be used only in accordance with its particular design. The maximum permissible ambient temperature is 25°C.
4. Do not attach luminaires to surfaces which are damp, freshly painted, or otherwise electrically conductive.
5. Connect the wires of the luminaire to the wires of the same colour that come from the wall or ceiling.
6. Use support systems that are in accordance to the weight of the luminaire.
7. Keep the wires and connections separated from any heat source.
8. To avoid damage to concealed wiring during installation, establish the direction of the supply cable before drilling fixing holes.
9. Keep these instructions in a safe place.
10.  Use sleeves to cover the mains supply wiring to the fitting.
11.  Cleaning is limited to the outer surfaces, shades or protective glass, reflectors and covers. Gold-finish and brass luminaires must be only be cleaned with a soft cloth (do not use cleaning agents of any kind). It is important to ensure that no moisture enters the terminal compartment or reaches any live parts!
12. As our products are subject to technical modifications, we cannot guarantee, that all information is always up to date. Please contact our technical department with any queries.
13. (Type Y) If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard.
14. Do not cover the luminaires with insulating material.
15. Do not use luminaries with frayed or cracked glass, until it is replaced
16. Not hang or supporting elements on the luminaires.
17. If the flexible cable or cord of this luminaire is damaged, it should be be replaced only by the manufacturer or its service or equivalent qualified or a person of equivalent qualification in order to avoid any risk.

Stainless steel luminaire which requires periodical maintenance.
Resin luminaries or posts that require a pe-riodic maintenance with specific polishing to restore the brightness.
Resin luminaries or posts that require a periodic maintenance with synthetic oil to restore the brightness.
Post is finished in zinc-plated steel and therefore must be painted once installed.

SYMBOLOGY

	Protection class I: This luminaire has an earth terminal.		Replace any cracked protective Shield
	Protection class II: This luminaire is doubly insulated and must not be connected to and earth wire.		Where affixed on the equipment or package, the barred waste bin sign indicates that the product must be separated from other waste at the end of its working life for disposal.
	Protection class III: Luminaire for protective low voltage (SELV)		Replaceable control gear by a professional.
	Minimum distance from lighted objects		Replaceable control gear by an end-user.
	Low pressure: For luminaries which are designed for use with self-shielded tungsten halogen lamps only.		Non-replaceable control gear.
	Recessed luminaire not suitable for direct mounting on normally flammable surfaces		Repleaceble light source by a professional.
	Surface luminaire not suitable for direct mounting on normally flammable surfaces.		Repleaceble light source by an end-user
	Luminaires not suitable for covering with thermally insulating material		Non-repleaceable light source.

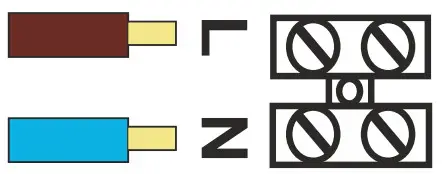

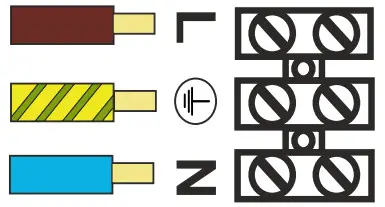

SUPPLY CONNECTION

BROWN, BLACK
GREEN AND YELLOW
BLUE

BROWN, BLACK
BLUEDust-tight and protected againts splashing of water.
