WETHER BURN
OUTDOOR HANGING PENDANT
BEFORE YOU BEGIN
We recommend consulting a professional if you are unfamiliar with installing electric fixtures. Signature Hardware accepts no liability for any damage to the property, the product or for personal injury during installation. Observe all local electrical building codes. Unpack and inspect the product for shipping damage.
If any damage is found, contact our Customer Relations team via live chat at www.signaturehardware.com or by emailing [email protected].
GETTING STARTED
Ensure that you have gathered all the required materials that are needed for the installation.
ADDITIONAL QUESTIONS?
Still need help? Check out our Help Center at www.signaturehardware.com for product and warranty information, or contact us through live chat or by emailing [email protected].
SKU: 944715
CARE AND MAINTENANCE:
To clean, wipe with damp cloth. Do not use abrasive cleaners or cleaners that contain alcohol.
CAUTION:
Shut off main power supply before cleaning product or changing light bulbs. All glass is fragile. Use care when handling glass shades and bulbs.
RECOMMENDED TOOLS AND ACCESSORIES
Mounting Bracket | Screws Collar Loop |

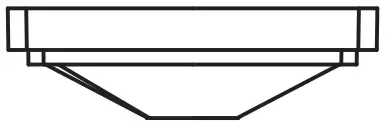

Canopy | Short Machine Screws (2pcs) |
Screw Collar Ring | Hex Nut (2pcs) |
Wire Connector (3pcs) | Chain |
Screw Collar Loop (1pc) | Quick Link (1pc) |

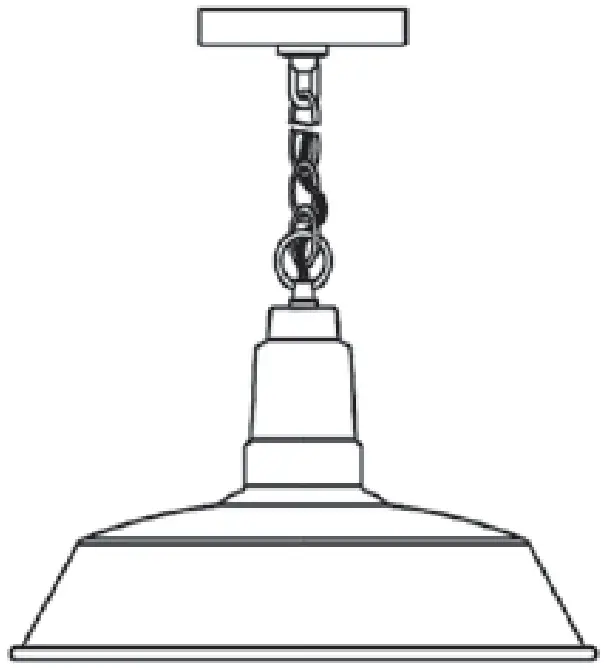

OUTDOOR HANGING PENDANT
| Connect Black or Red Supply Wire (Lead Wire) to: | Connect White Supply Wire (Neutral Wire) to: |
| Black wire | White wire |
| *Parallel wire (round or smooth) | *Parallel wire (square or ridged) |
| Clear brown, gold or black wire without tracer | Clear brown, gold or black wire with tracer |
| Insulated wire (other than green) with copper conductor | Insulated wire (other than green) with silver conductor |

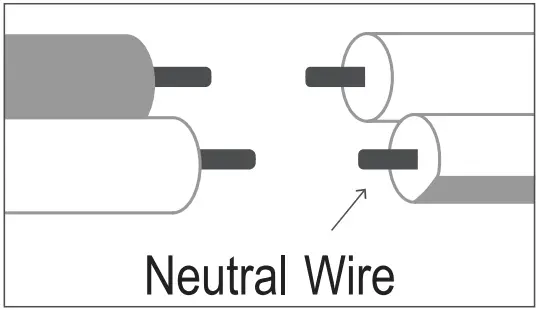

* When parallel wires are used, the neutral wire is ridged down its length and the other wire is round and smooth (see illus.). | |
INSTALLATION
- Shut off the power at the circuit breaker and remove old fixture, including the crossbar.
- Carefully unpack your new fixture and lay out all the parts on a clear area. Take care not to lose any small parts necessary for installation.

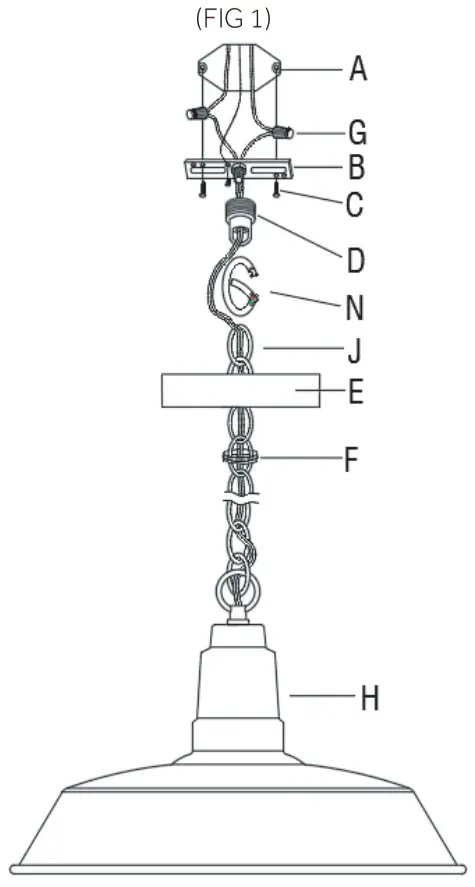

- Attach the cross bar (B) to the outlet box (A) (not supplied) using the 2 screws provided with the outlet box (A).
- CONNECTING THE WIRES Now connect the electrical wires as follows: Connect the smooth wire from the fixture to the black or red (lead) supply wire. Connect the ridged wire from the fixture to the white (neutral) supply wire. Make sure all wire nuts are secured. You may wrap the connections with electrical tape. If your outlet has a ground wire (green or bare copper), connect fixture’s ground wire to it. Otherwise, connect fixture’s ground wire directly to the crossbar using the green screw provided. Tuck the wire connections neatly into the ceiling junction box.
- Connect the screw collar L oop (D) with the chain (J ) by the quuick link (N) .
- Move up the canopy (E) to the ceiling and secured by the screw collar ring (F) to the screw sollar loop (D).
