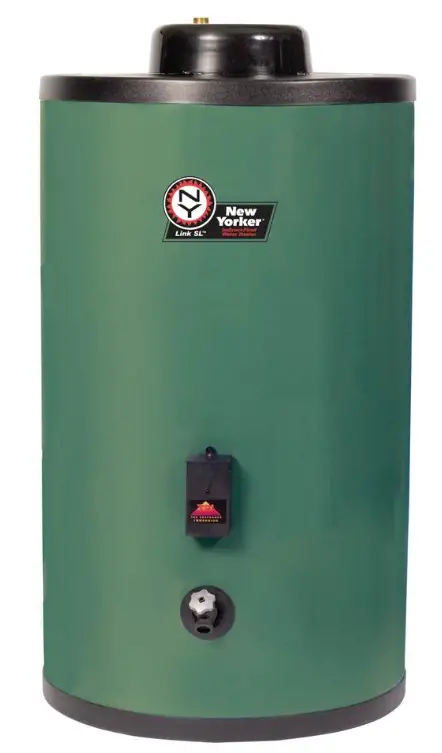

NEW YORKER LINK SL Hydrastone-Lined Indirect-Fired Water Heater
Hydrastone-Lined Indirect-Fired Water Heater

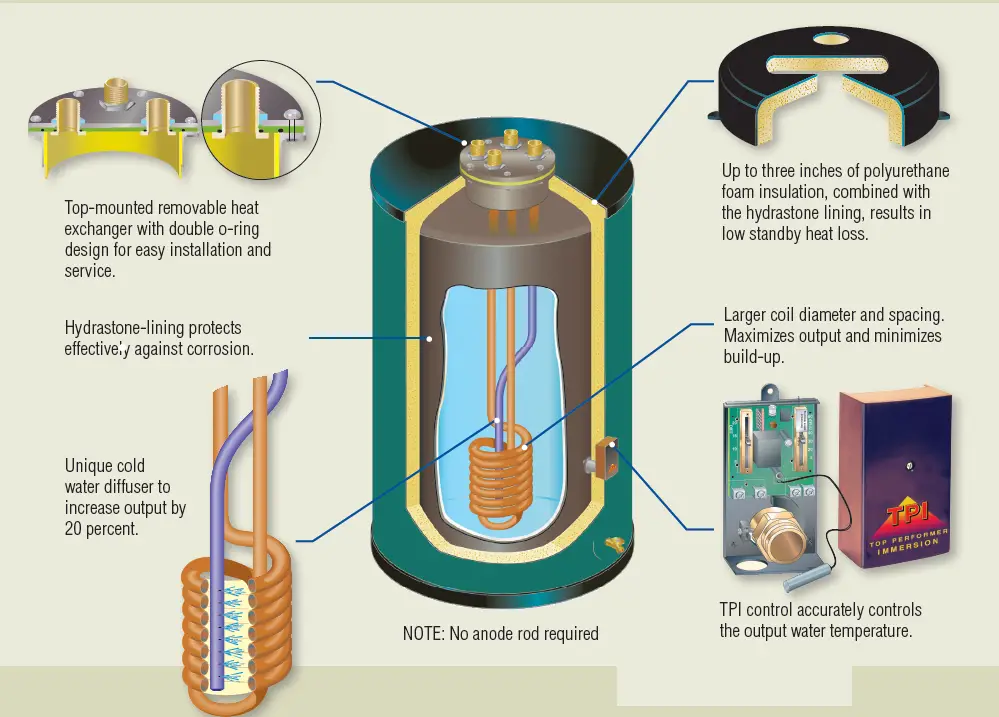

- Seamless hydrastone-lined Tank
- Low standby heat loss
- Easy installation & servicing
- Three sizes available – 35, 50, & 70 gallon
- Proprietary TPI thermostat control included
FEATURES
Link-SL Technical Information

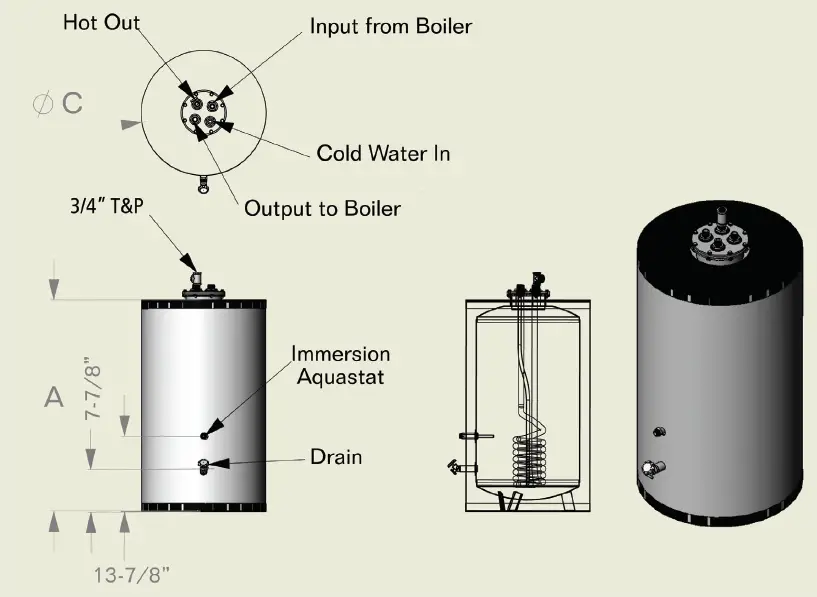

| Model | First Hour Rating (Gal/hr.) | Continuous Draw (Gal/hr.) | Standby Loss (°F/Hr.) | Minimum Boiler Output (Btu/Hr.) | Boiler Water Flow Rate (Gal./Min.) | Storage Capacity (Gallons) | “A” Height (Inches) | “C” Diameter (Inches) | Pressure Drop Thru Coil at Min. Flow (Ft./W.C.) | Approximate Ship Weight (Lbs.) |
| NY27SL | 190 | 170 | 0.97 | 99 | 6 | 27 | 39-1/4 | 20 | 9 | 180 |
| NY35SL | 200 | 170 | 0.72 | 99 | 6 | 35 | 39-1/4 | 22-3/4 | 9 | 185 |
| NY50SL | 220 | 180 | 0.56 | 110 | 6 | 50 | 40-3/4 | 26 | 9.5 | 238 |
| NY70SL | 290 | 230 | 0.45 | 120 | 6 | 70 | 45-3/4 | 28 | 10 | 290 |
- First flow ratings are based on 58°F inlet water, 135°F hot water and 180°F boiler supply water.
- The above ratings were obtained at the boiler outputs (in BTU/hr.) shown in column (4) at the boiler water flow rates (in GPM) shown in column (5). Other results will be obtained under different conditions.
©2022 New Yorker Boiler Company, LLC Lancaster, PA
www.newyorkerboiler.com PL81420103000-7/22 2m
