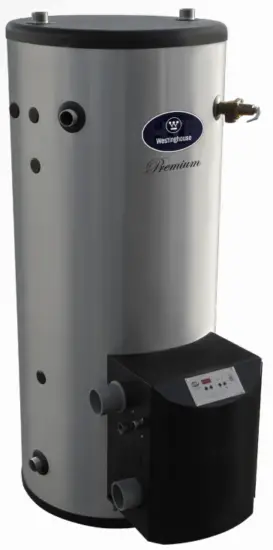

Stainless Steel, Gas fired Commercial Water Heater
Inlet / Outlet Connections On Both The Top & Side
This water heater will accommodate even the most difficult installations with lower clearance and multiple inlets and outlet connections making it easier to replace traditional center flue heaters.
Up to 5:1 Turndown Ratio
Industry-first for Condensing Water
Heaters: Top and Side Connection Choices for Inlet and Outlet
Ease of Installation
The extremely lightweight tank fits virtually anywhere; 100 gallons: 63” height & 80 gallons: 55“ height 316L Stainless Steel Tank Vents in Inexpensive PVC or CPVC pipe Combined vent lengths up to 200’ in 3” pipe or vent lengths up to 85’ in 2” pipe
Beautiful Stainless Steel Look 80/100 Gallon – 130k /199k Btuh

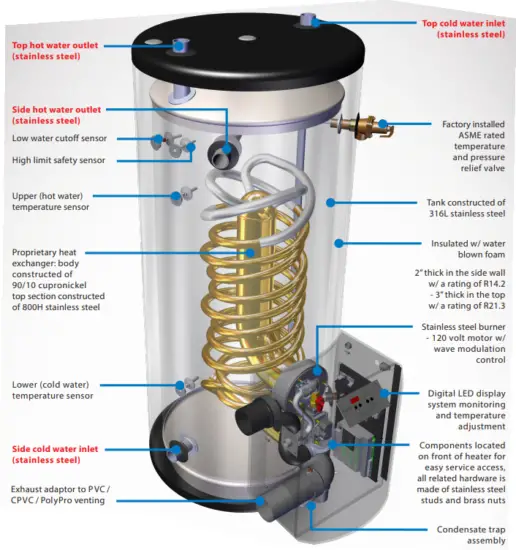

A Closer Look Inlet / Outlet Connections On Top & Side
Venting Options:
– Direct vent sidewall
– Direct vent vertical
– Unbalanced venting
– Room air
– Combined vent /air intake length up to 200ft
Laser Welded Tank
An advanced laser allows for more precise welding through a concentrated heat source, producing high-quality 316L stainless steel tank construction with stronger, long-lasting seams.
Why Choose A Stainless Steel Tank?
Because They Are Built To Last!
The Advantages

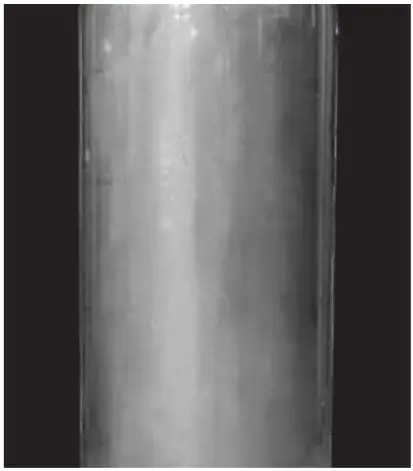

Stainless Steel vs. Glass-Lined
 |  |
| Westinghouse’s 100 GAL. Tank 405 Lbs. (Shipping Weight) | Top Competitor’s 100 GAL. Tank 550 Lbs. |
Eliminates Scale Build-up on HX Prolongs Tank Life Lightweight Construction
The average commercial water heater lasts about 6 years. The Westinghouse Gas fired Commercial Water Heater stainless steel tank will outlast any coated steel tank in the market.

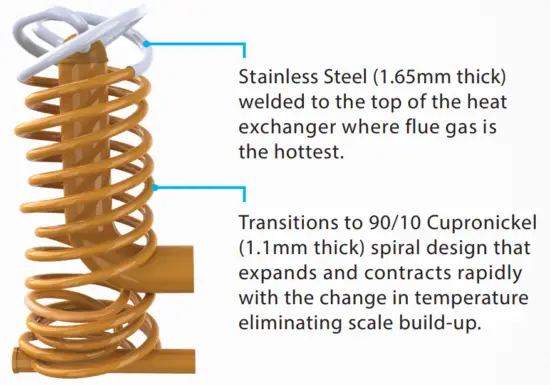

HTP’s Unique Heat Exchanger
-Durable Construction
-High Performance
-Excellent Heat
Transfer Capabilities
-Self Cleaning

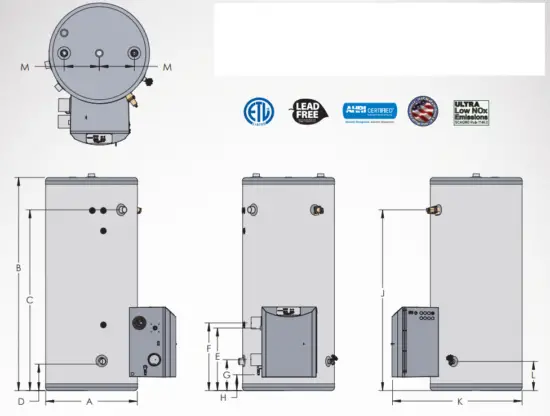

Specifications
| Stainless Steel, Gas fired, Commercial Water Heater | |||||||||||||
| Model | Gal. | A | B | C | D | E | F | G | H | J | K | L | M |
| WGCMO8ONG130/ WGCM080LP130 WGCMO8ONG199/ WGCM080LP199 | 80 | 27″ | 55″ | 46″ | 7 ¼” | 17″ | 18¼” | 8″ | 3″ | 46″ | 38 ¼” | 7 ¼” | 9 ½” |
| WGCM100NG130/ WGCM1OOLP130 WGCM1OONG199/ WGCM1OOLP199 | 100 | 27″ | 63″ | 54″ | 7¼” | 17″ | 18¼” | 8″ | 3″ | 54″ | 38¼” | 7 ¼” | 9 ½” |
| Stainless Steel, Gas fired, Commercial Water Heater | ||||||
| Model | Input Modulation | Vent Size | Inlet/Outlet | Gas Line | Relief System All; Pipe | Shipping Weight |
| WGCMO8ONG130/ WGCM080LP130 | 35,000-130,000 | 2″ | 1 1/2″ NPT | ¾” | ¾” | 285 Lbs. |
| WGCM080NG199/ WGCM080LP199 | 40,000-199,000 | 3″ | 1 1/2″ NPT | ¾” | ¾” | 285 Lbs. |
| WGCM100NG130/ WGCM1OOLP130 | 35,000-130,000 | 2″ | 1 1/2″ NPT | ¾” | ¾” | 315 Lbs. |
| WGCM100NG199/ WGCM1OOLP199 | 40,000-199,000 | 3″ | 1 1/2″ NPT | ¾” | ¾” | 315 Lbs. |
*All Dimensions are Approximate, LP denotes Propane Gas
, WESTINGHOUSE are trademarks of Westinghouse Electric Corporation. Used under license by HTP, Inc. All Rights Reserved.
WMKTLIT-68 – 3/24/ 21
