BRADFORD WHITE ECO 8228 Residential Gas Water Heaters
SYMBOLS REPRESENTATION

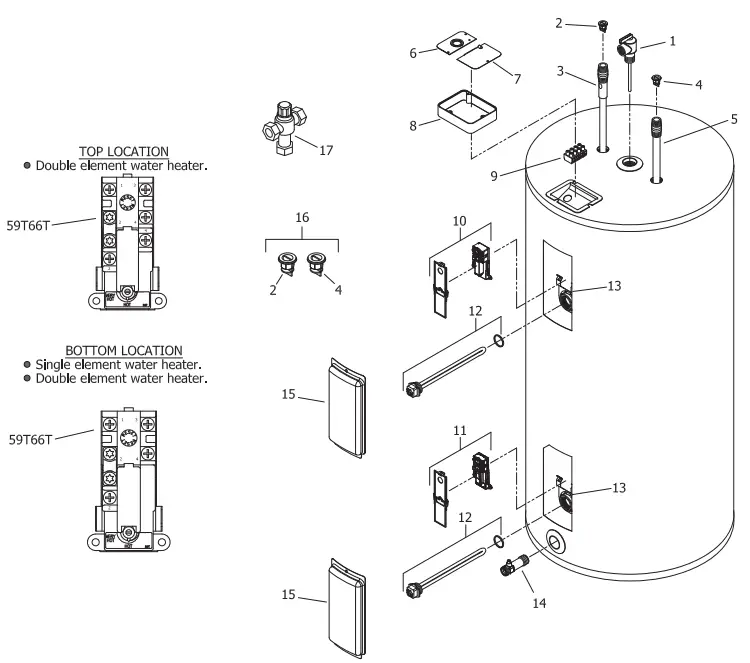

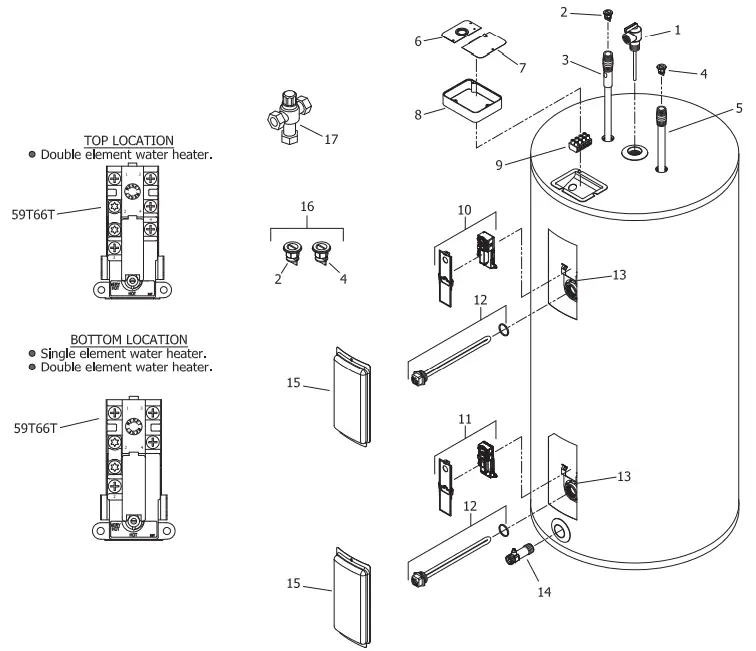

PART LIST
| Item Description | Model LE230S | Model LE240S | Model LE250S |
| T&P Relief Valve | 230-32920-01 | 230-32920-01 | 230-32920-01 |
| Heat Trap Insert (Outlet) | 239-45167-00 | 239-45167-00 | 239-45167-00 |
| Hot Water Outlet Anode Magnesium ♦# | 224-47776-19 | 224-47776-19 | 224-47776-19 |
| Aluminum ♦# | 224-32999-28 | 224-32999-28 | 224-32999-28 |
| A420 (Aluminum) ♦# | 224-49560-08 | 224-49560-08 | 224-49560-08 |
| Heat Trap Insert (Inlet) | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| Cold Water Inlet Tube Pex ♦♦ | 229-51230-21 | 229-51230-21 | 229-51230-21 |
| Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| Cover Junction box | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| Terminal Block (4 pole) | 239-47294-00 | 239-47294-00 | 239-47294-00 |
| Upper Thermostat with High Limit (59T66T) & Protector A | 415-53389-00 | 415-53389-00 | 415-53389-00 |
| Lower Thermostat with High Limit (59T66T) & Protector A | 415-53388-00 | 415-53388-00 | 415-53388-00 |
| Heating Element 240V 4500W with gasket* | 265-48642-00 | 265-48642-00 | 265-48642-00 |
| Thermostat Mounting Bracket | 239-50689-00 | 239-50689-00 | 239-50689-00 |
| Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| Kit-Heat Trap Insert | 265-51572-00 | 265-51572-00 | 265-51572-00 |
| ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 |
| Description | Model LE120L | Model LE130L | Model LE140L | Model LE150L |
| T&P Relief Valve | 230-32920-01 | 230-40594-02 | 230-40594-02 | 230-40594-02 |
| Heat Trap Insert (Outlet) | 239-45167-00 | 239-45167-00 | 239-45167-00 | 239-45167-00 |
| Hot Water Outlet Anode Magnesium ♦# | 224-47776-19 | 224-47776-19 | 224-47776-19 | 224-47776-19 |
| Aluminum ♦# | 224-32999-28 | 224-32999-28 | 224-32999-28 | 224-32999-28 |
| A420(Aluminum) ♦# | 224-49560-08 | 224-49560-08 | 224-49560-08 | 224-49560-08 |
| Heat Trap Insert (Inlet) | 239-51556-00 | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| Cold Water Inlet Tube PEX ♦♦ | 229-51230-01 | 229-51718-04 | 229-51230-27 | 229-51230-27 |
| Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| Cover Junction box | 243-39452-00 | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| Terminal Block (4 pole) | 239-47294-00 | 239-47294-00 | 239-47294-00 | 239-47294-00 |
| Upper Thermostat with High Limit (59T66T) & Protector .A. | 415-53389-00 | 415-53389-00 | 415-53389-00 | 415-53389-00 |
| Lower Thermostat with High Limit (59T66T) & Protector .A. | 415-53388-00 | 415-53388-00 | 415-53388-00 | 415-53388-00 |
| Heating Element 240V 4500W with gasket* | 265-48642-00 | 265-48642-00 | 265-48642-00 | 265-48642-00 |
| Thermostat Mounting Bracket | 239-50689-00 | 239-50689-00 | 239-50689-00 | 239-50689-00 |
| Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| Kit-Heat Trap Insert | 265-51572-00 | 265-51572-00 | 265-51572-00 | 265-51572-00 |
| ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 | 239-51778-00 |
| Description | Model LE265T | Model LE280T | Model LE2120T |
| T&P Relief Valve | 230-40594-02 | 230-40594-02 | 230-40594-02 |
| Heat Trap Insert (Outlet) | 239-45167-00 | 239-45167-00 | 239-45167-00 |
| Hot Water Outlet Anode Magnesium ♦ # | 224-47776-19 | 224-47776-19 | 224-47780-01 |
| Aluminum ♦ # | 224-32999-28 | 224-32999-28 | 224-45036-01 |
| A420 (Aluminum)# | 224-49560-08 | 224-49560-08 | 224-49561-01 |
| Heat Trap Insert (Inlet) | 239-51556-00 | 239-51556-00 | 239-51556-00 |
| Cold Water Inlet Tube PEX ♦♦ | 229-51230-22 | 229-51230-22 | — |
| Cold Water Inlet Tube Polysulfone ♦♦ | — | — | 229-45032-01 |
| Cover Conduit/Ground | 243-39451-00 | 243-39451-00 | 243-39451-00 |
| Cover Junction box | 243-39452-00 | 243-39452-00 | 243-39452-00 |
| Junction Box Extender | 239-40587-00 | 239-40587-00 | 239-40587-00 |
| Terminal Block (4 pole) | 239-47294-00 | 239-47294-00 | 239-47294-00 |
| Upper Thermostat with High Limit (59T66T) & Protector _. | 415-53389-00 | 415-53389-00 | 415-53389-00 |
| Lower Thermostat with High Limit (59T66T) & Protector _. | 415-53388-00 | 415-53388-00 | 415-53388-00 |
| Heating Element 240V 4500W with gasket* | 265-48642-00 | 265-48642-00 | 265-48642-00 |
| Thermostat Mounting Bracket | 239-50689-00 | 239-50689-00 | 239-50689-00 |
| Brass Drain Valve | 265-42351-02 | 265-42351-02 | 265-42351-02 |
| Access Cover | 243-36618-02 | 243-36618-02 | 243-36618-02 |
| Kit-Heat Trap Insert | 265-51572-00 | 265-51572-00 | 265-51572-00 |
| ASSE Approved Mixing Valve | 239-51778-00 | 239-51778-00 | 239-51778-00 |

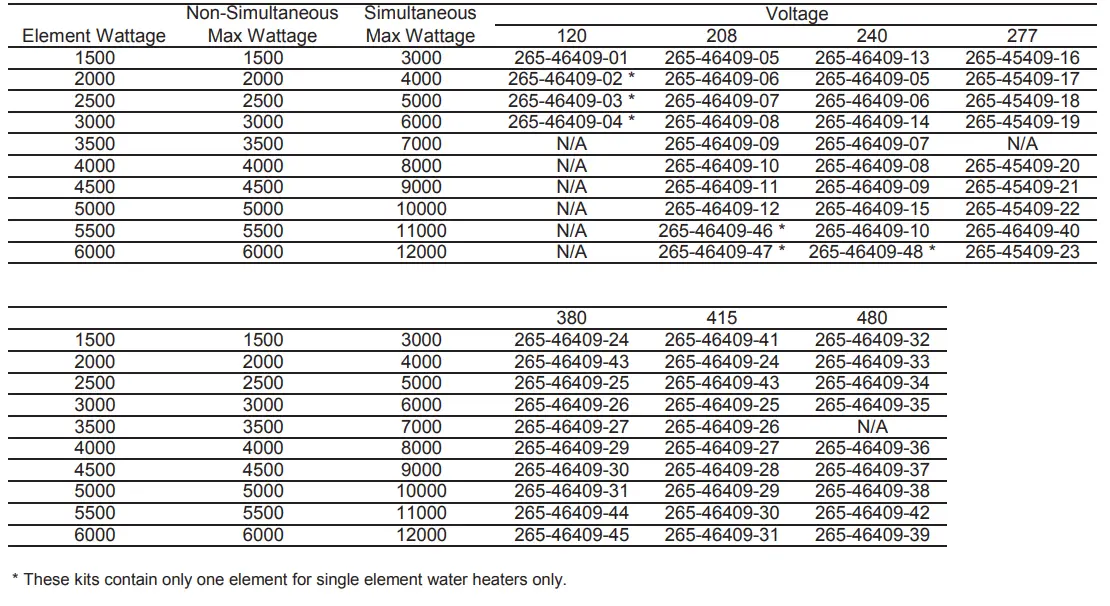

Voltage & Wattage Conversion Kits
Heating Elements (Copper) for:
- Residential Series (RE)
- Light Duty (LE) Commercial Series
- Medium Duty (E32) Commercial Series
- Commercial (MII) Series
- Wattage 120 V
Wattage 120 Volt 208 Volt 240 Volt 277 Volt 380 Volt 1000W .A 220-42540-01 220-42544-01 220-42546-01 N/A N/A 1250W .A N/A N/A 220-42544-13 N/A N/A 1500W .A 220-42540-02 220-42544-03 220-42544-01 N/A N/A 1500W (LWD).A 220-42540-03 N/A 220-42544-02 N/A N/A 2000W .A 220-42540-04 220-42544-04 220-42544-03 N/A N/A 2500W .A 220-42540-05 220-42544-06 220-42544-04 N/A N/A 3000W .A 220-42540-07 220-42544-14 220-42544-05 N/A N/A 3500W .A.A N/A 220-51333-08 220-42544-06 N/A N/A 3800W .A.A N/A N/A 220-42546-10 N/A N/A 4000W .A.A N/A 220-42544-16 220-42544-14 N/A N/A 4500W .A.A N/A 220-42544-12 220-51333-08 N/A N/A 4500W (LWD) .A.A N/A N/A 220-51333-09 N/A N/A 5000W .A.A N/A N/A 220-42544-10 N/A N/A 5500W .A.A N/A N/A 220-42544-16 N/A N/A 6000W .A.A N/A N/A 220-42544-12 N/A N/A Element gasket ^ 223-34019-00 223-34019-00 223-34019-00 223-34019-00 223-34019-00 Element plug 223-34020-00 223-34020-00 223-34020-00 223-34020-00 223-34020-00 (LWD) = Low Watt Density
Heating Elements (Incoloy) for:
- Residential Series (RE)
- Light Duty (LE) Commercial Series
- Medium Duty (E32) Commercial Series
- Commercial (MII) Series
Wattage 120 Volt 208 Volt 240 Volt 277 Volt 380 Volt 415 Volt 480 Volt 600 Volt 1000W .A N/A 220-42545-13 220-42547-10 N/A N/A N/A N/A N/A 1250W .A N/A N/A N/A N/A N/A N/A N/A N/A 1500W .A 220-42541-02 220-42545-02 220-42545-13 220-42547-10 220-42551-12 220-42551-11 220-42553-09 N/A 1500W (LWD).A N/A N/A N/A N/A N/A N/A N/A N/A 2000W .A N/A 220-42545-14 220-42545-02 220-42547-07 220-42549-04 220-42551-12 220-42553-01 N/A 2500W .A N/A 220-42545-11 220-42545-14 220-42547-11 220-42551-13 220-42549-04 220-42553-10 N/A 3000W .A N/A 220-42545-12 220-42545-15 220-42547-08 220-42551-10 220-42551-13 220-42553-08 N/A 3500W .A.A N/A 220-51328-07 220-42545-11 N/A 220-42551-14 220-42551-10 N/A N/A 3800W .A.A N/A N/A 220-42547-15 N/A N/A N/A N/A N/A 4000W .A.A N/A 220-42545-17 220-42545-12 220-42547-03 220-42551-16 220-42551-14 220-42553-03 N/A 4500W .A.A N/A 220-42545-19 220-51328-07 220-42547-12 220-42551-17 220-42551-15 220-42553-11 N/A 4500W (LWD) .A.A N/A N/A N/A N/A N/A N/A N/A N/A 5000W .A.A N/A 220-42543-04 220-42545-18 220-42547-15 220-42551-18 220-42551-16 220-42553-12 N/A 5500W .A.A N/A 220-42543-05 220-42545-17 220-42547-13 220-42549-06 220-42551-17 220-42553-13 N/A 6000W .A.A N/A 220-42543-06 220-42545-19 220-42547-14 220-42549-05 220-42551-18 220-42553-14 N/A Element gasket ^ 223-34019-00 223-34019-00 223-34019-00 223-34019-00 223-34019-00 223-34019-00 223-34019-00 223-34019-00 Element plug 223-34020-00 223-34020-00 223-34020-00 223-34020-00 223-34020-00 223-34020-00 223-34020-00 223-34020-00
