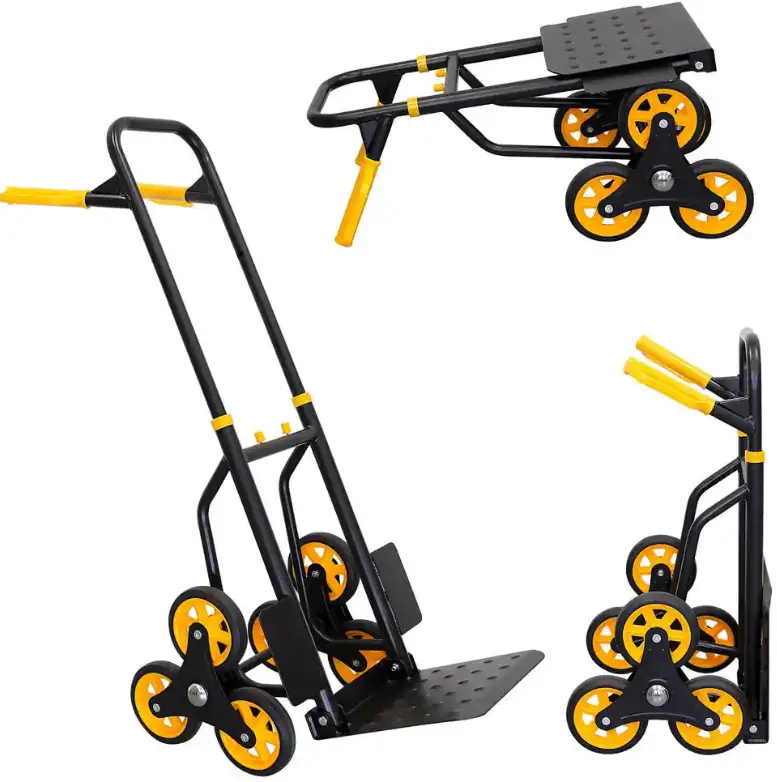

MOUNT-IT MI-913 Stair Climber Hand Truck and Dolly User Manual
PACKAGE CONTENTS

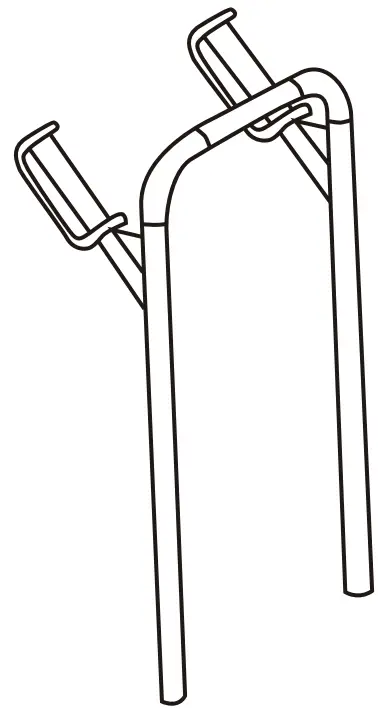

- Handle Assembly

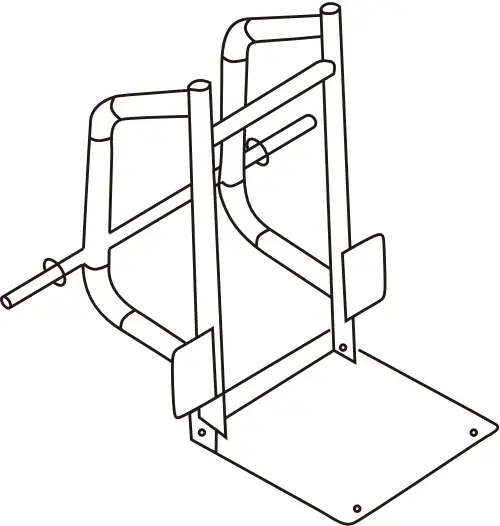

- Hand Truck Body
- Wheels (X2)
- Washers (X2)
- Snap-On Cover (X2)

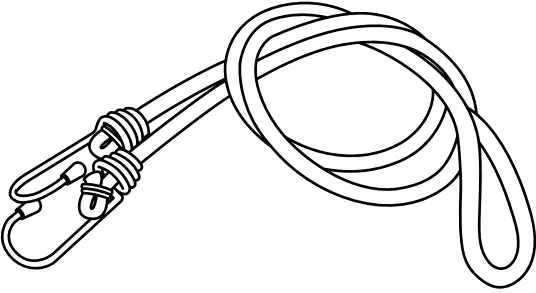

- Bungee Cord
Missing Parts? Call us at (855) 925-5668 and we will ship replacement parts free of charge.
ASSEMBLY

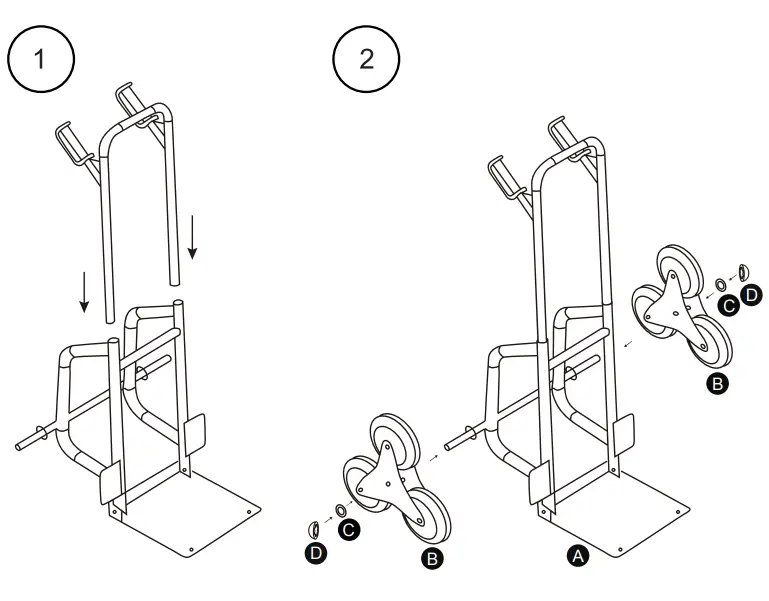

- Attach Handle Assembly to the Hand Truck Body. This dolly has 2 spring-loaded knobs that have to be pulled together in order for the metal rod to retract within the vertical tube where the handle will be attached
- Slide one set of Wheels (B) onto each side of the Hand Truck Body (A). Place a Washer (C) on after each wheel and secure in place with the Snap On Cover (D) until it clicks into place.
Note: Installing the Snap-On Cover (D) may require some force. It may be easier to place the Hand Truck on one side with one wheel up so that more body weight can be applied.
Weight capacity on flat ground: 330 lbs. Weight capacity on stairs: 264 lbs
WARNING
This product is not a toy. Do not allow children to play with or near this item. Do not exceed weight capacity. Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure. Use as intended only. Inspect before every use; do not use if parts are loose or damaged.
- Flat Ground
- Stairs
