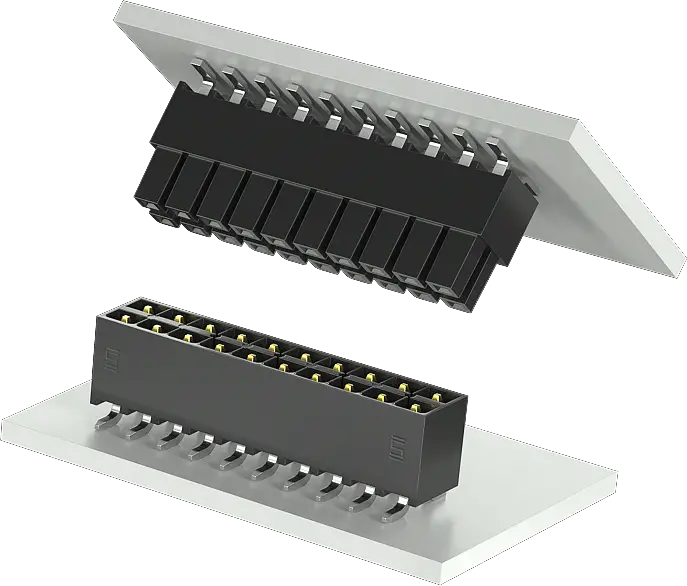

SAMTEC IPT1-IPS1 Flexible Power Systems Owner’s Manual

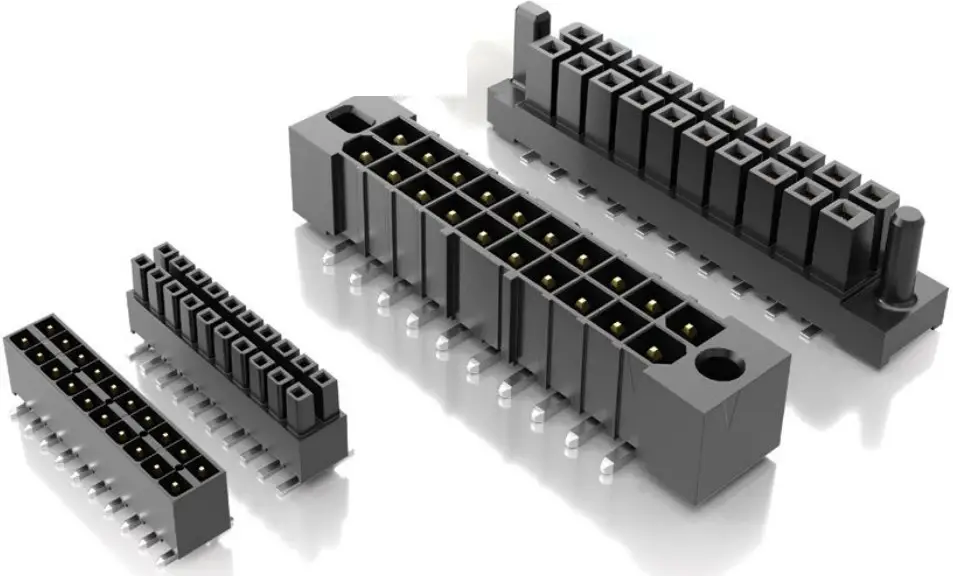

FEATURES & BENEFITS

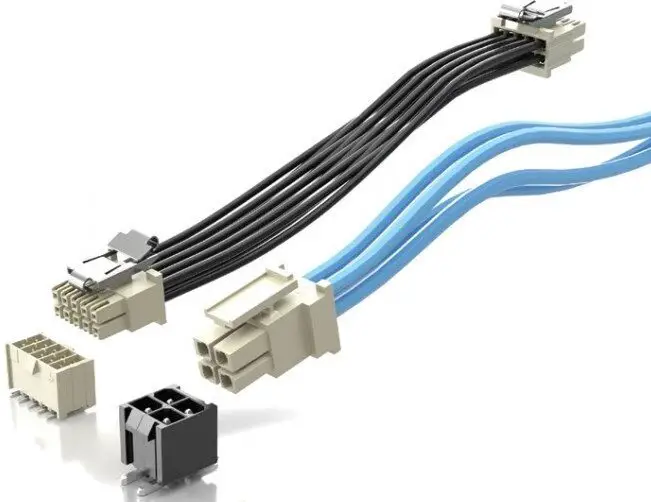

- Board-to-board and discrete wire cable systems
- Power Mate® system with polarized guide posts
- Mini Mate® system with reliable Tiger Buy™ contacts
- Individually shrouded contacts
- Elevated stack heights
- Optional polarization
- Vertical and right-angle for parallel, perpendicular and coplanar applications
- Rugged metal or plastic latching systems
- Cable components and tooling available

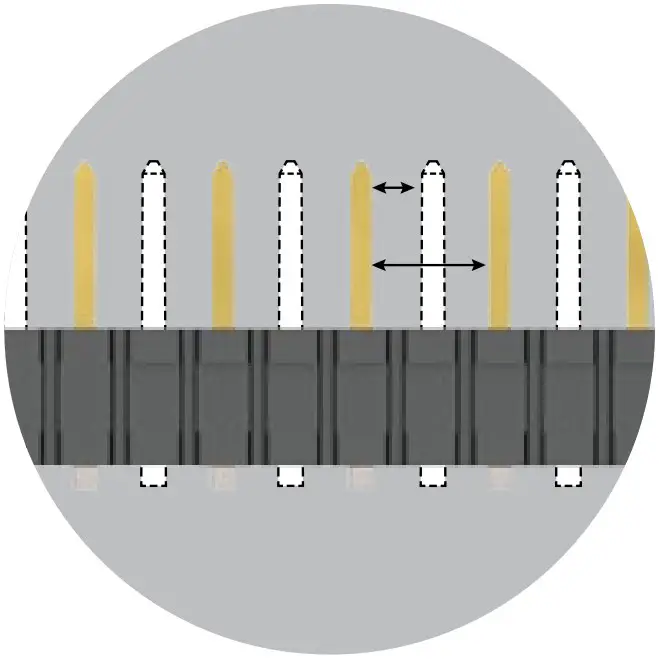

Selectively loading contacts achieves customer specific creepage and clearance requirements.
KEY SPECIFICATIONS
| SERIES | IPT1/IPS1 | IPBT/IPBS | HPM/HPW/HPF | FWJ/HFWJ/FHP |
| PITCH | (2.54 mm) .100″ | (4.19 mm) .165″ | (5.08 mm) .200″ | (3.96 mm) .156″ |
| CCC (1 PIN)* | 5.9 A | 10.3 A /pin (2 pins powered) | 16.6 A | 13.1 A |
| CCC (2 PINS)* | 4.8 A | 8.4 A/pin (4 pins powered) | 14.4 A | 11.2 A |
| CCC (3 PINS)* | 4.1 A | 7.6 A/pin (6 pins powered) | 13.2 A | 10.3 A |
| CREEPAGE | (2.54 mm) .100″ | (4.27 mm) .168″ | (3.94 mm) .155″ | (3.92 mm) .154″ |
| CLEARANCE | (1.91 mm) .075″ | (3.05 mm) .120″ | (3.94 mm) .155″ | (2.82 mm) .111″ |
| VAC | 775 | 400 | 850 | 600 |
| VDC | 1095 | 565 | 1200 | 845 |
| CYCLES | 1000 (MFG Tested) | 100 | 100 | 100 |
IPT1
NO. PINS PER ROW
- 05
- 10
- 15
- 20
- 25
- (Standard Sizes)
LEAD STYLE
Specify LEAD STYLE from chart
PLATING OPTION
–L = 10 µ” (0.25 µm) Gold on contact, Matte Tin on ta
Requires -01
Lead Style (Leave blank for Through-hole)
D
TAIL OPTION
- Requires -01 Lead Style (Leave blank for Through-hole)
- –RA = Right-angle
- –VS = Surface Mount
OTHER OPTIONS
- -A= Alignment Pin (–VS only) (N/A with –LC)
- –LC = Locking Clip (Manual placement required) (–VS only) (N/A with –A)
- –K = (6.00 mm) .236″ DIA Polyimide film Pick & Place Pad (–VS only)
- –TR = Tape & Reel (–VS only)
- –FR = Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) (-VS only)
IPT1 Board Mates: IPS1

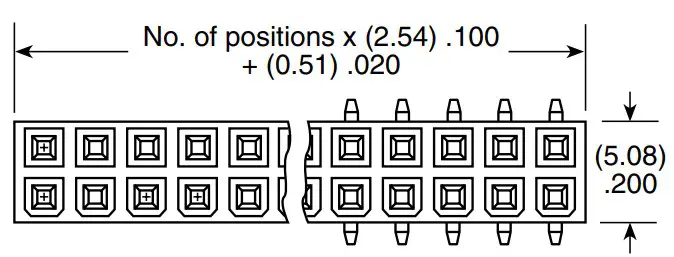

Through-hole Surface Mount
-VS

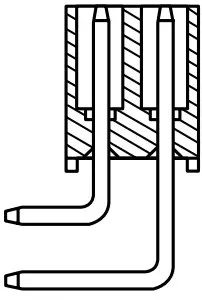

-RA

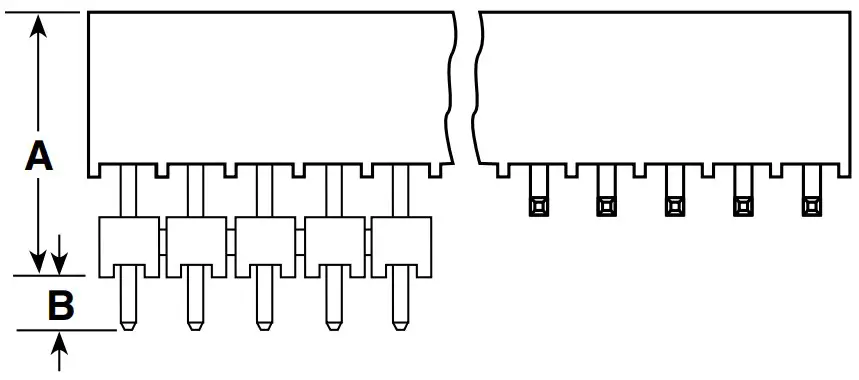

| LEA STYLE | MATED HEIGHT | A | B |
| –01 | (11.05) .435 | (6.35) .250 | (2.16) .085 |
| -01-VS | (13.59) .535 | (6.35) .250 | N/A |
| –02 | (14.00) .551 | (9.30) .366 | (2.64) .104 |
| –03 | (16.00) .630 | (11.30) .445 | (2.16) .085 |
| –04 | (17.00) .669 | (12.30) .484 | (2.69) .106 |
| –05 | (19.00) .748 | (14.30) .563 | (2.46) .097 |
| –06 | (20.00) .787 | (15.30) .602 | (2.35) .093 |
| –07 | (25.00) .984 | (20.30) .799 | (2.31) .091 |
| –08 | (30.00) 1.181 | (25.30) .996 | (2.39) .094 |
IPS1
1
NO. PINS PER ROW
- 05
- 10
- 15
- 20
- 25
- (Standard Sizes)
01
PLATING OPTION
- –L = 10 µ” (0.25 µm) Gold on contact, Matte Tin on tail
D
TAIL OPTION
- Leave blank for Through-hole
–RA = Right-angle - –VS = Surface Mount
OTHER OPTIONS
- –LC = Locking Clip (Manual placement required) (–VS only)
- –K = (5.50 mm) .217″ DIA Polyimide film Pick & Place Pad (–VS only)
- –TR = Tape & Reel (–VS only)
- –FR = Full Reel Tape & Reel (must order max. quantity per reel; contact Samtec for quantity breaks) (-VS only)

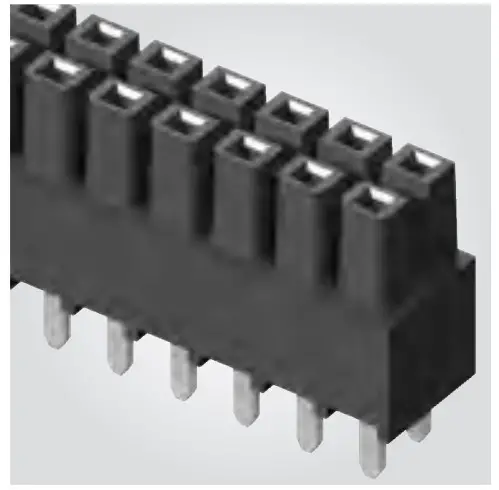

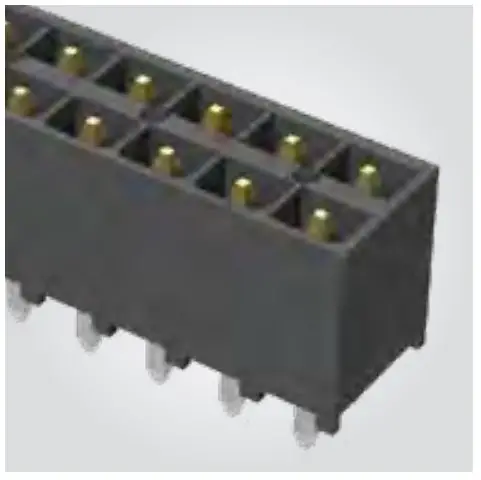

IPS1 Board Mates: IPT1

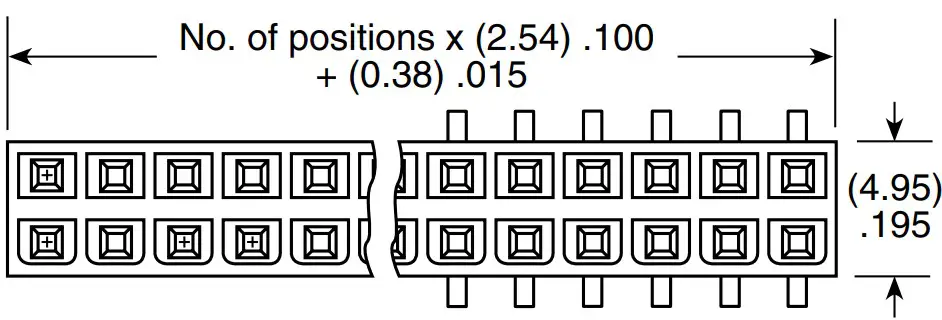

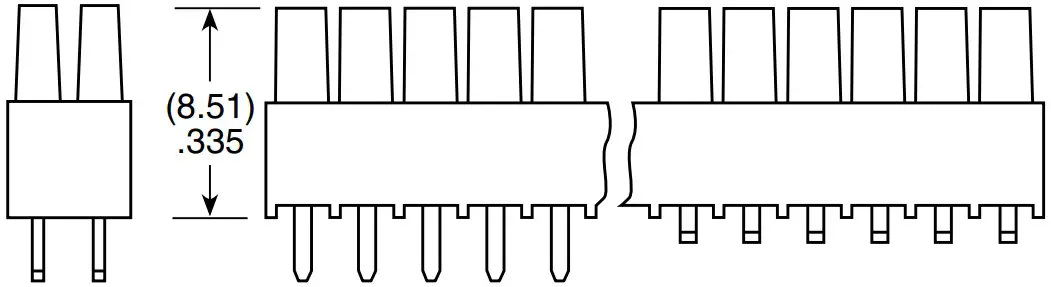

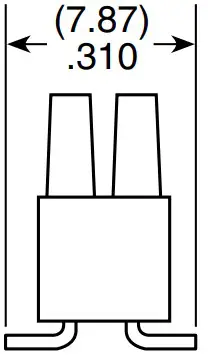

Through-hole Surface Mount
-VS
-RA
Note:
Some lengths, styles and options are non-standard, non-returnable
View complete specifications at: samtec.com?IPT1 & samtec.com?IPS1
Unless otherwise approved in writing by Samtec, all parts and components are designed and built according to Samtec’s specifications which are subject to change without notice.
