KLINGER TS-PS1N-S Coaxial Power Supply Instructions
The instructions of coaxial power supply
| 1 Way Coaxial cable Power Supply | |
| To Camera | VS1.0.Vp-p/75 ohm |
| To Monitor | VS1.0.Vp-p/75 ohm |
| Camera Power Supply System | DC Constant Current Over Coaxial cable |
| Maximum Cable Length RG-58U RG-59U RG-6U | 200M【Copper wire impedance 20Ω(ohm)】300M【Copper wire impedance 20Ω(ohm)】500M【Copper wire impedance 20Ω(ohm)】 |
| Operation Temperature | Temperature:-15℃ to +55℃ |
| Humidity | Less Than90% |
| Power Consumption (approx.) | 3.5 W |
| Power Requirements | 110V AC / 60 or 50Hz；230V AC / 50 or 60Hz |

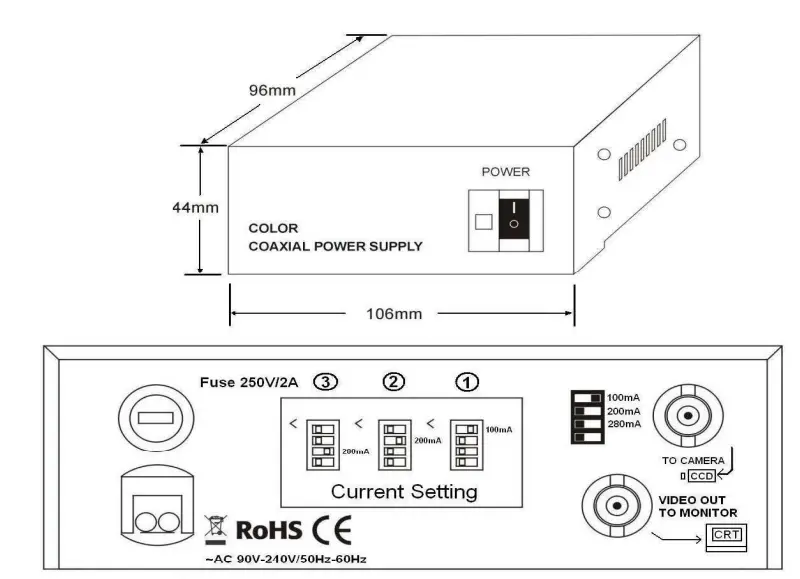

| Dimensions | 106mm(L) × 44mm(H) × 96mm(D) |
| Weight (approx.) | 620g |
