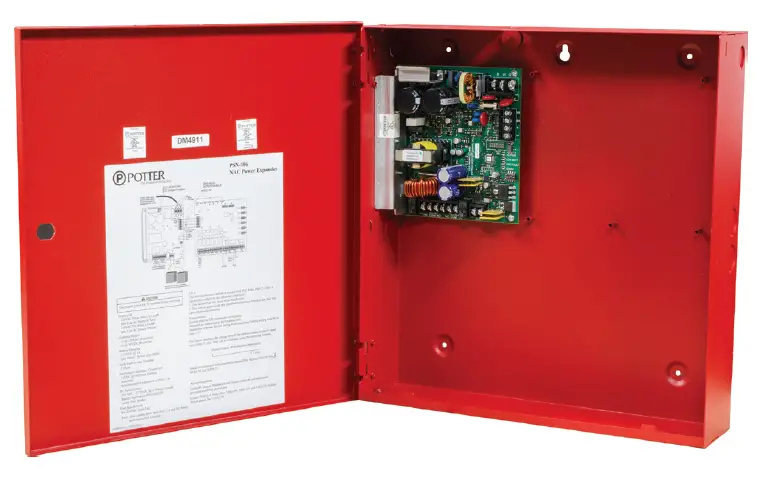

POTTER PSB-10 Bulk Power Supply
Features
- 10 Amp output
- Supervised battery charger: 27.3VDC @ 1Amp
- Supports 7 – 55 Amp hour Batteries
- Integrated battery cut-off circuitry to protect batteries from deep discharge
- Easy to install cabinet with leveling mounts & key lock
- Two Trouble relays (5A at 30VDC)
- General system trouble (programmable for AC delay)
- Low AC trouble with optional delay settings
- Diagnostic LED’s
- Earth Fault (Amber)
- AC (Green)
- Battery Fault (Amber)
- Product includes a 5 year warranty
Description
The Potter PSB-10 Bulk power supply provides continuous 24VDC power. The PSB supply features an efficient switch mode power supply design which is up to 50% more efficient than linear mode supplies. The PSB is used in applications where up to 10 Amps continuous power is required. Backup power is provided via batteries which can range in size from 7 – 55 Amp hour (18Ahr batteries can fit inside the cabinet; larger batteries require a battery cabinet.) Battery integrity is monitored via the built in charger which features a low battery cut-off circuit to protect against damage to the batteries during deep discharge.
Technical Specifications
| Input Voltage | 120/240 VAC (Jumper selected) 50-60HZ |
| Current Draw | 5.1 Amps @ 120VAC or 2.5 Amps @ 240 VAC |
| 24VDC Battery Power | .60A Standy, 200 mA Alarm* No external load |
| Output Voltage | 20.4VDC – 27.3 VDC |
| Total System Current | 10 Amps |
| BackBox Dimensions | 16 1/8” W x 16 3/4” H x 3 1/2” D |
| Enclosure Color | Red – Standard |

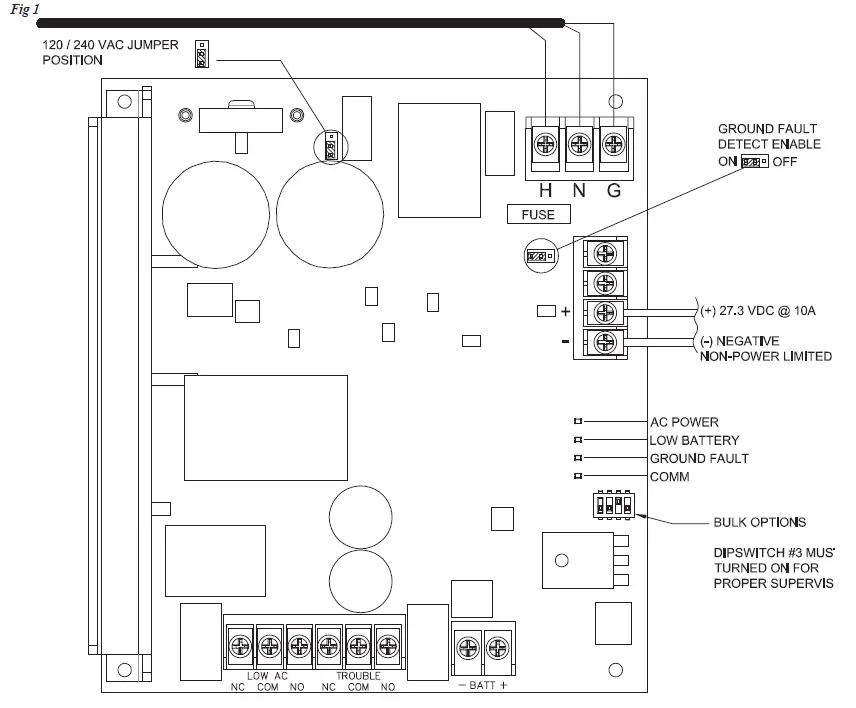

Installation
Ordering Information
| Model | Description | Stock Number |
| PSB-10 | Bulk Power Supply | 3006435 |
Potter Electric Signal Company, LLC • St. Louis, MO • Tech Support: 866-956-1211 / Customer Service: 866-572-3005 • www.pottersignal.com
