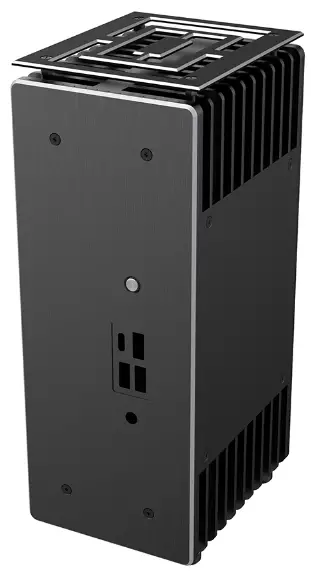

akasa A-NUC76-M1B Chassis Power Fanless Cases
CAUTION
Electrostatic discharge (ESD) can damage system components. If an ESD-controlled workstation is not available, wear an antistatic wrist strap or touch an earthed surface before handling any PC components.
WARNING
Please be careful when unpacking and setting up this product as metal edges can cause injury if not handled with care. Keep away from children.
Contents
Thermal compound
- Washer
- Screws for motherboard (M3)
- M.2 SSD heatsink
- Thermal gap filler (for M.2 SSD)
- Clips/Screws
- EMI gasket
- 2.5” HDD/SSD screws (M3)
- 2.5” HDD/SSD mounting bracket
- HDD protective film
- Screws ⑫ End cover ⑬ Standoffs

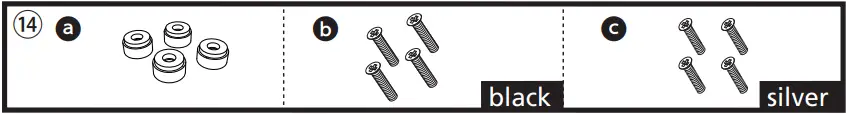

- a Case feet
- b Screws (6-32)
- c Screws (M3)
Layouts

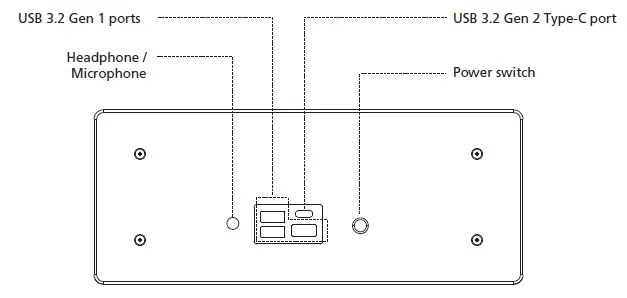

Front Panel Layout

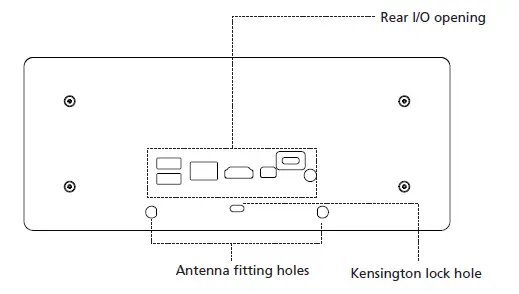

Rear Panel Layout

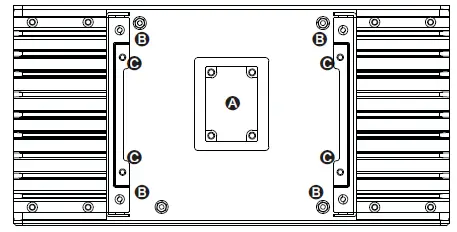

Internal Layout
- Aluminium heatsink for heat transfer B
- M/B mounting standoffs C
- 2.5” HDD / SSD mounting holes

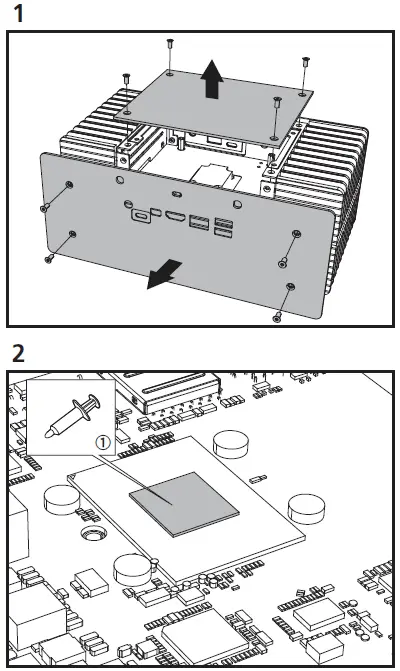

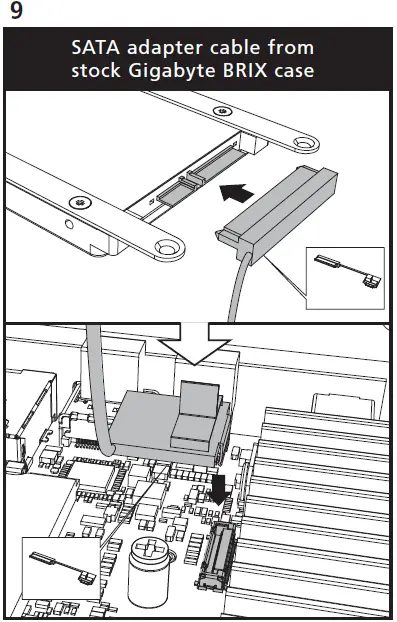

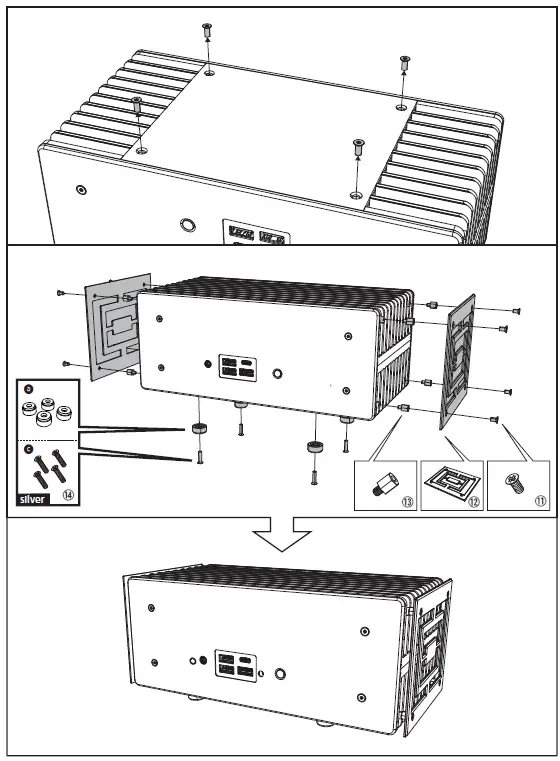

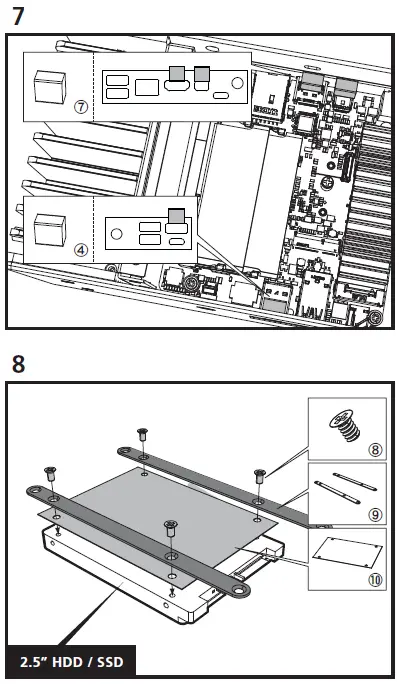

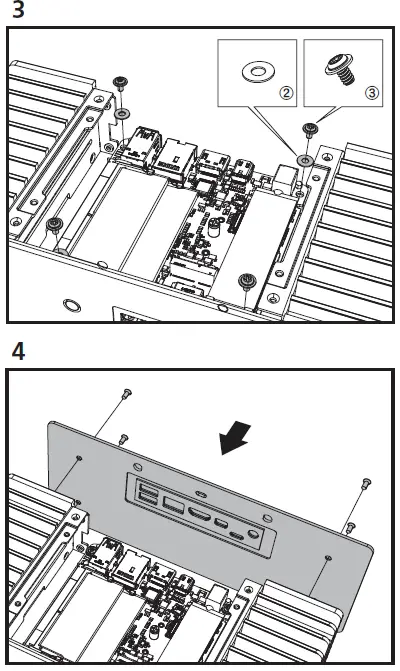

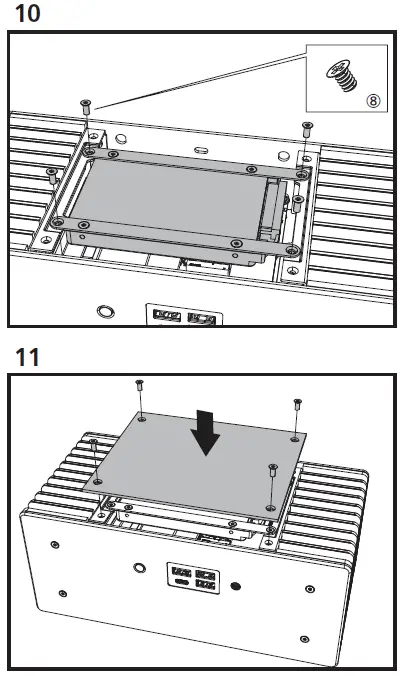

Installation
