AS Tile Roof Hook Kit
Solar Mounting System
AS Tile Roof Hook Kit Solar Mounting System is designed for solar installation on tile roof. The system delivers ñrm and stable ñxation between tile roof and solar panels.
Advantages
- Simple and strong design.
- Compatible to most framed and 衍ameless solar panels.
- Pre-assembled before shipment, saving on-site installation time and labor cost.
Specification
| Product | AS Tile Roof Hook Kit Solar Mounting System |
| Application | Pitched Roof |
| Roof Type | Tile, Flat Tile, Slate Tile, Asphalt Tile |
| Tilt Angle | 50 to 45′ |
| Wind Speed | 60 m/s |
| Snow Load | ‘1.6 KN/m 2 |
| Solar Panel | Framed and Frameless |
| Panel Layout | Portrait or Landscape |
| Design Standard | AS/NZS 1’170, DIN 1055, JIS 08955: 2017, International Building Code IBC 2009 |
| Material | Structure: A16005-T5(Anodized) Components: SUS304 & Zinc-Nickel Alloy Electroplated Steel |
| Warranty | ’10 year |

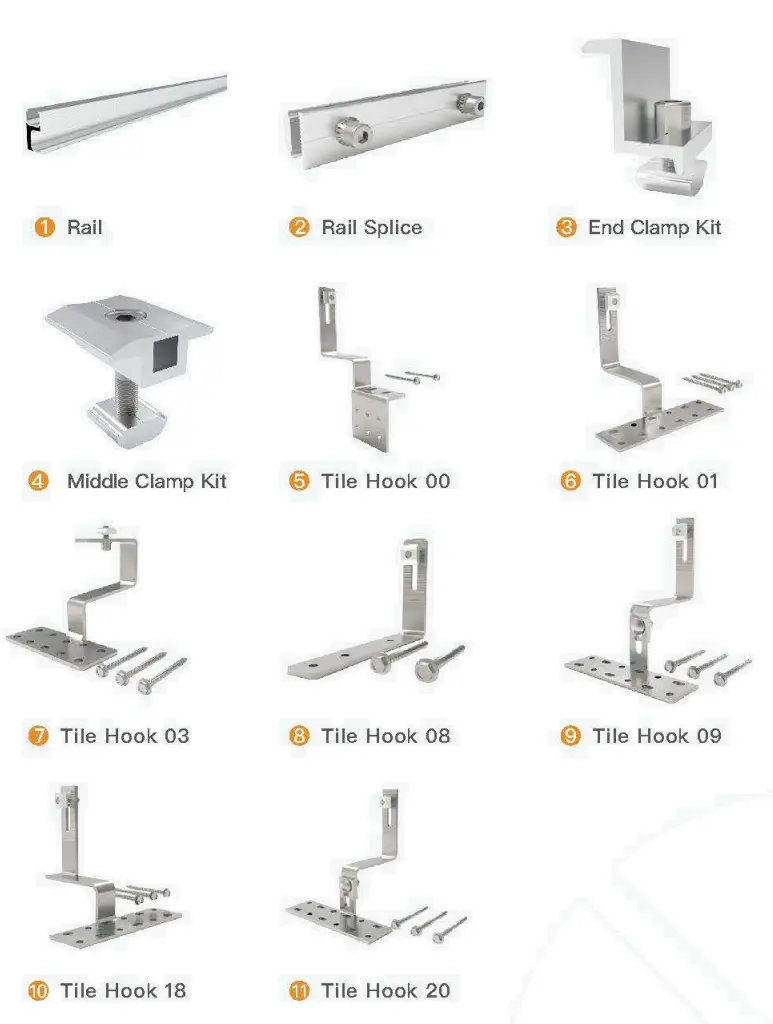

Components
A.MGELS
