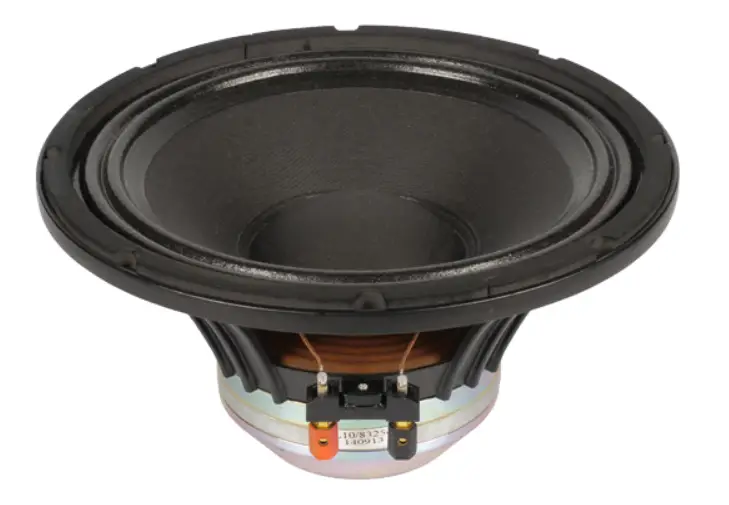

FOR-X XMB-10N 10 Inch NEO Mid-Bass Speaker
Specifictaion
General Data

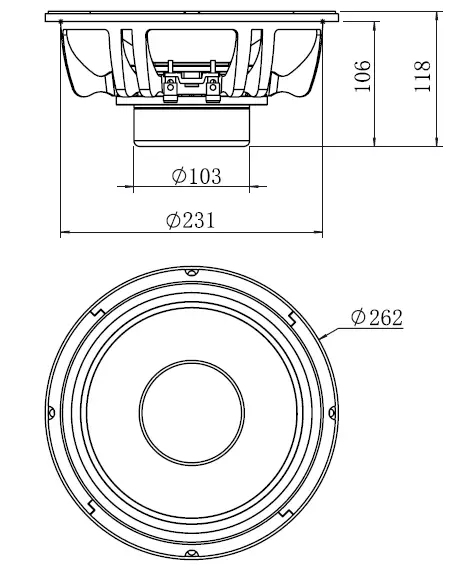

- Overall Dimensions DxH 262mmx 118mm
- Nominal Power Handling(DIN) p 400W
- Maximum Power 800W
- Sensitivity 2.83V / 1 M dB 96dB
- Frequency Response 62-5KHz
- Cone Material CCAW
- Net Weight Kg 3.45
Electrical Data
- Nominal Impedance z 4Ohm
- DC Resistance Re 3.2 Ohm
- Voice Coil Inductance @ 1 KHz LBM
Voice Coil and Magnet Parameters
- Voice Coil Diameter DIA 76.5 mm (3″)
- Voice Coil Height 17mm (0.7″)
- HE Magnetic Gap Height HE 10 mm (0.4″)
- Max. Linear Excursion X 3.5mm (0.13″)
- Voice Coil bobbin TBH
- Number Of Lavers 2L
- Monet System TYPe Neodymium
- BL Product BL 15.11
- Voice Coil Wire Ccaw Round
T-S Parameters
- Suspension Compliance Cms 0.15 mm/N
- Mechanical Q Factor Qms 4.69
- Electrical Q Factor Qes 0.22
- Total Q Factor Qts 0.22
- Moving Mass Mms 43.6Gr
- Eq.Cas Air Load( liters) VAS 25.5 L
- Resonant Frequency Fs 62 Hz
- Effective Piston Area SD 346.3c
Features
- Dia-Cast Aluminum Basket
- High Flux Neodymium Magnet System
- 3″ Voice Coil
