DS18 PRO-XLNEO10MB 10 Inch Mid Bass Loudspeaker with Neodymium Magnet and 4 Inch VC

PRO-XLNEO10MB

SPECIFICATIONS

• Nominal Diameter: 10” / 254mm
• Nominal Impedance: 8 OHMS
• RMS Power Handling: 1000W
• MAX Power Handling: 2000W
• Sensitivity (1w/1m): 96.5 dB

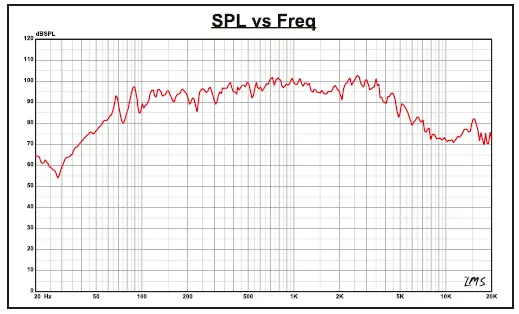

• Frequency Response: 50Hz – 7KHz
• Recommended HI Pass Crossover: 100Hz
• Pair or Single: .Single

MOTOR

• Voice Coil Diameter: 4” / 99.8mm
• VC Former Material: Glass Fiber
• Winding Material: CCAW
• Cone Material: Paper
• Dustcap Material: Paper
• Surround Material: Cloth
• Basket Material: Aluminum
• Basket Color: Sandblasted Black
• Magnet Material: Neodymium
• Magnet Weight: 18.5 Oz
• Displacement Volume: 1.83L / 0.064ft3

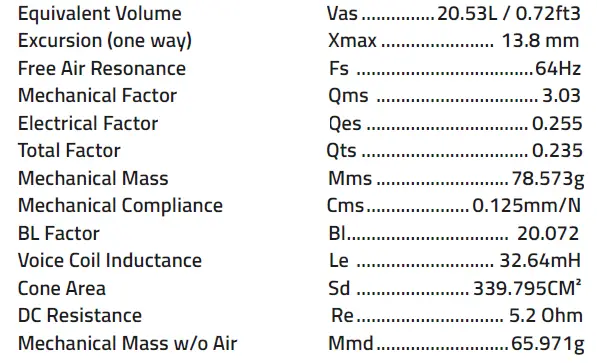

THIELE & SMALL PARAMETERS

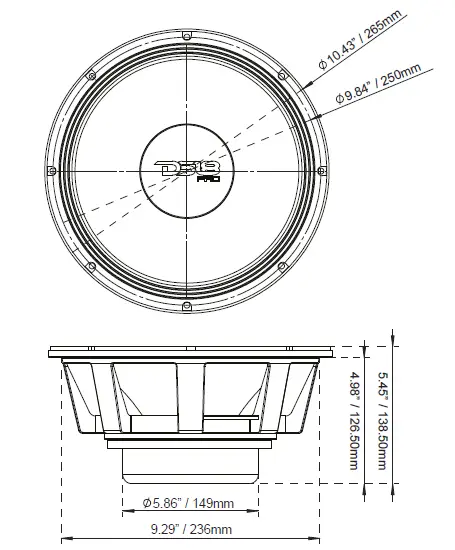

MEASUREMENTS

• Overall Diameter: 10.43”/265mm
• Overall Depth: 5.45” / 138.5mm
• Front Mount Baffle Cutout: 9.29”/236mm
• Mounting Depth: 4.98”/126.5mm
• Motor Diameter: 5.86”/149mm
