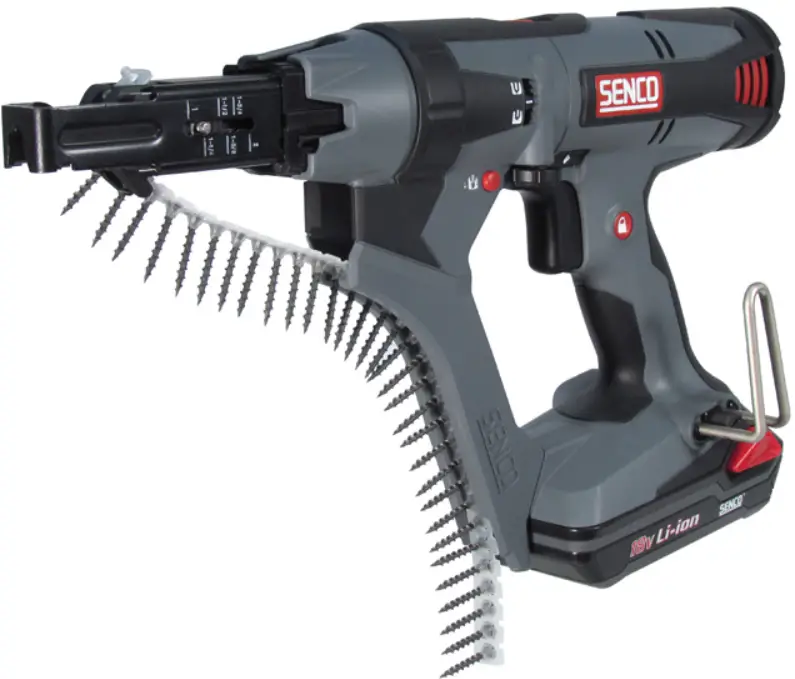

SENCO DURASPIN Auto-Feed Screwdriver
DS242-AC (2500 RPM)
MODEL | MOTOR ASSEMBLY | A |
| 10E0001N | US (120V – 60HZ) | VA0089 |
DS245-AC (5000 RPM)
MODEL | MOTOR ASSEMBLY | A |
| 10D0001N | US (120V- 60HZ) | VA0084 |
Auto-Feed Screwdriver

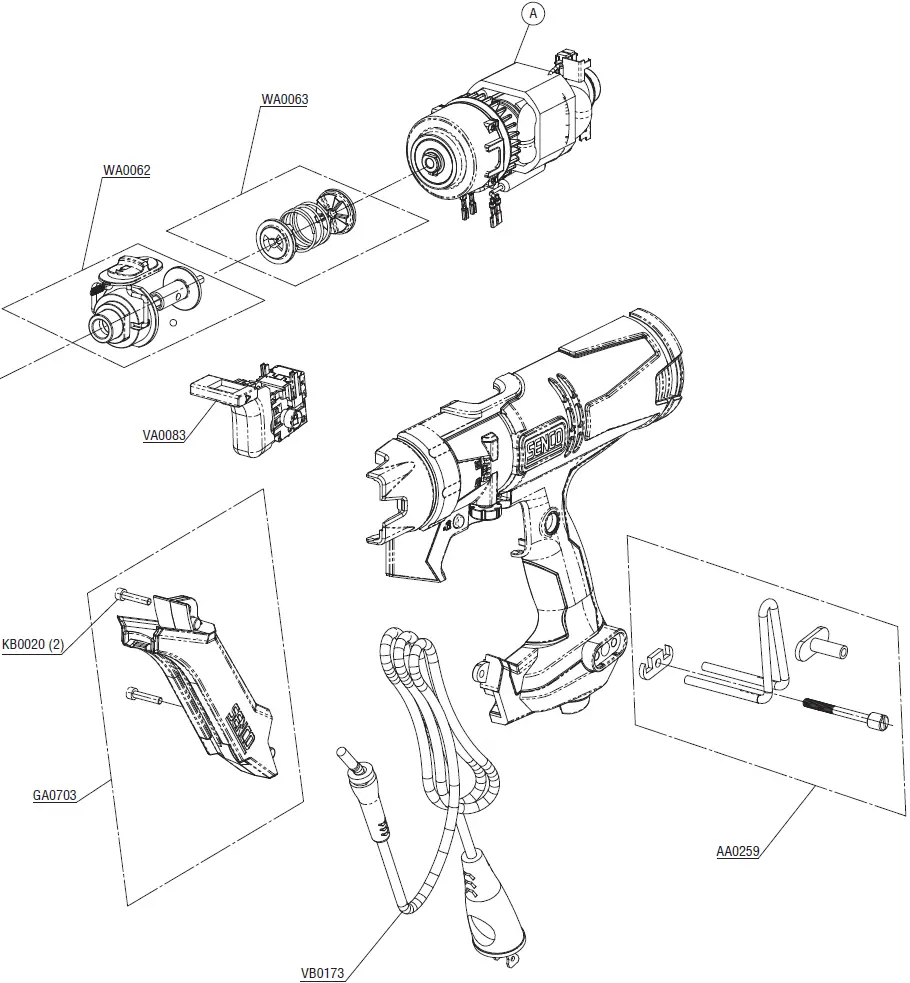

Replacement Parts List | |
| Part No. | Description |
AA0259 | Belt Hook Assembly |

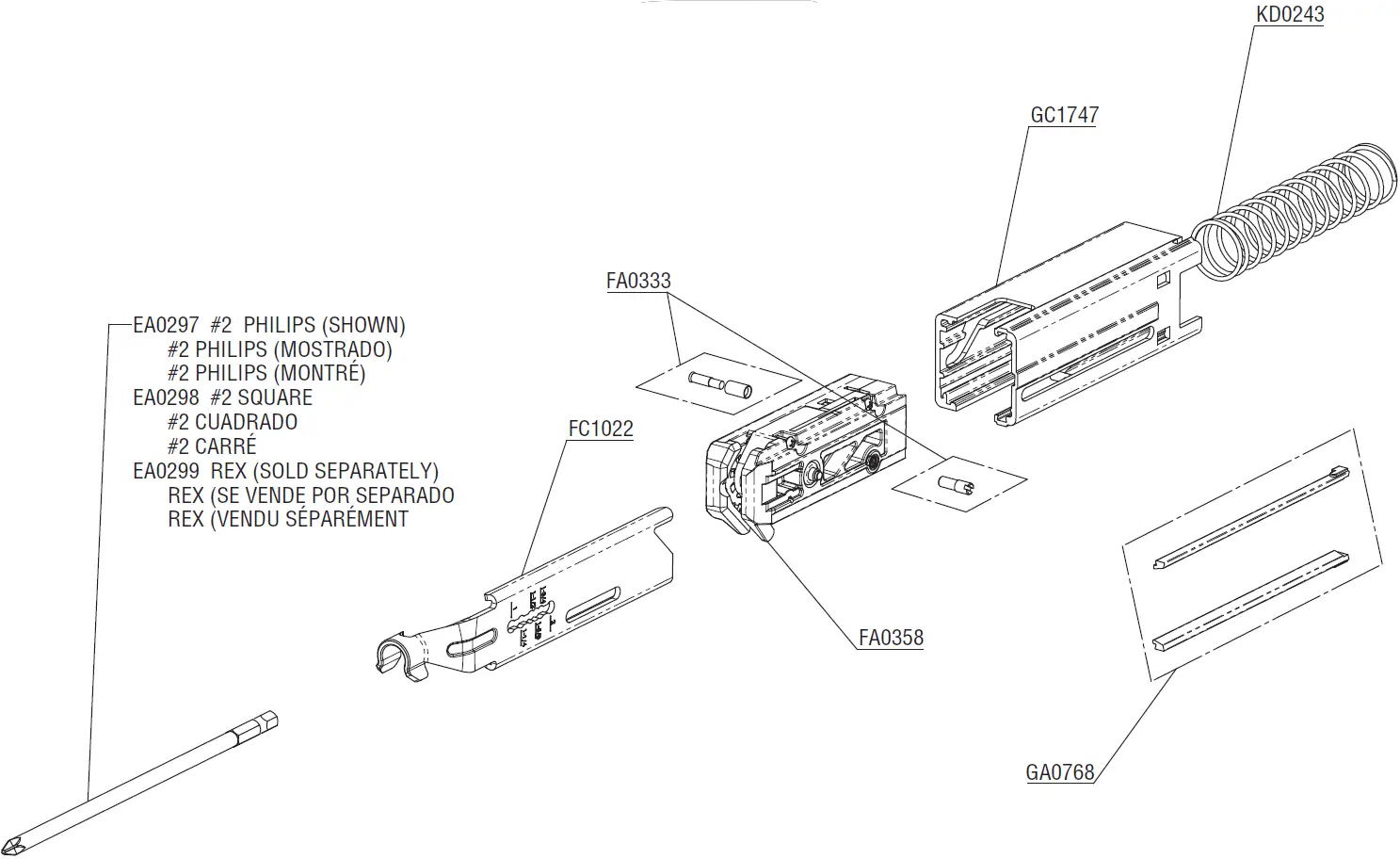

| EA0297 | #2 Phillips Bit |
EA0298 | #2 Square Bit |
| EA0299 | Rex Drive |
FA0333 | Slide Body Screws |
| FA0358 | Slide Body Assembly |
FC1022 | Nose Piece |
| GA0703 | Rail Assembly |
GA0768 | Liner Set |
| GC1747 | Feed Housing |
KB0020 | Rail Screws |

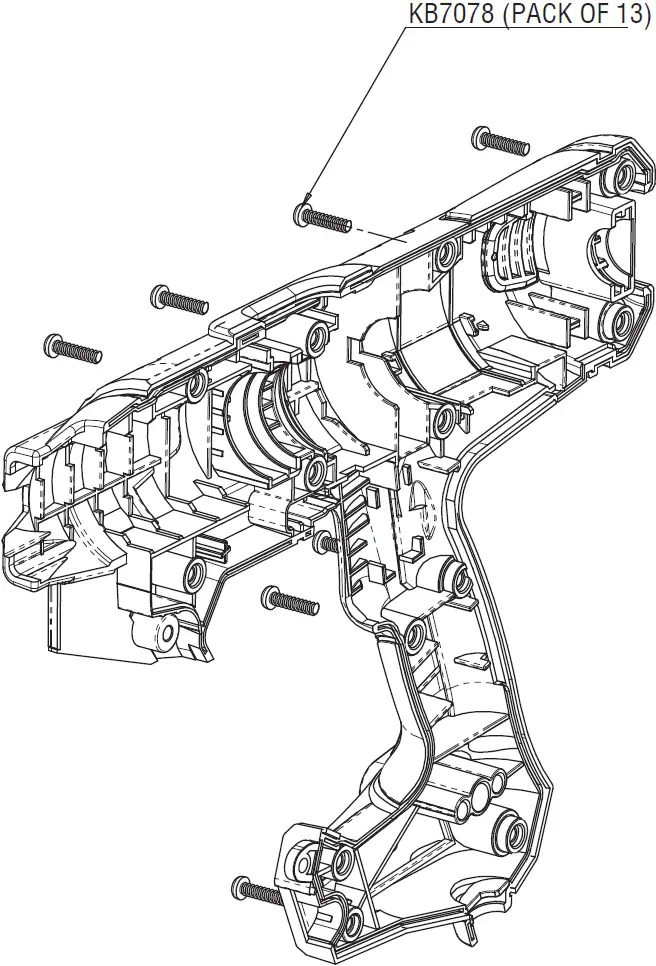

| KB7078 | Housing Screws |
KD0243 | Return Spring |
| VA0083 | Trigger Assembly |
VA0084 | Motor & Gear Assembly |
| VA0089 | Motor & Gear Assembly |
VB0173 | Power Cord |
| WA0062 | Drive Shaft Assembly |
WA0063 | Clutch Assembly |
