SENCO DS242-AC Auto-Feed Screwdriver

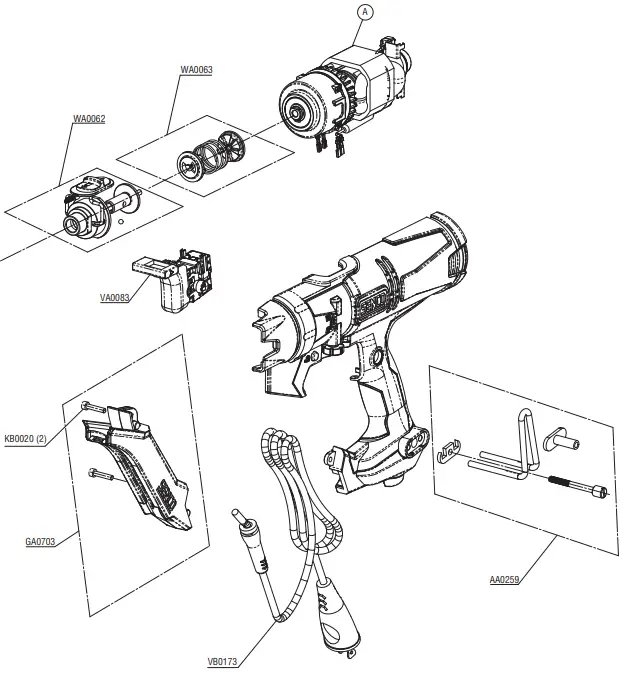

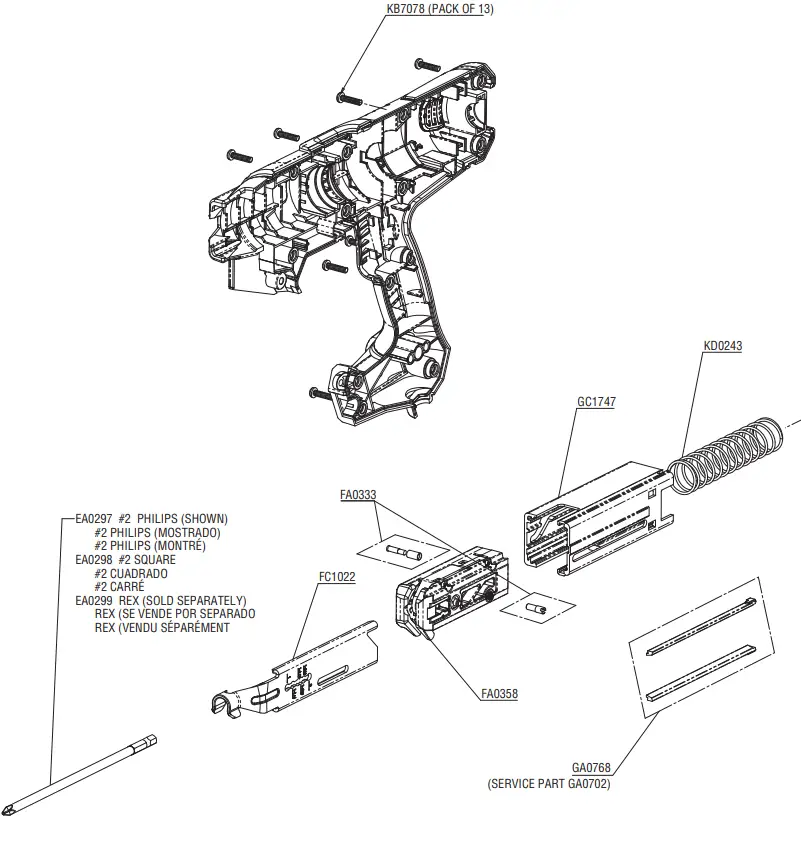

REPLACEMENT PARTS LIST
| Part No. | Description |
| AA0259 | Belt Hook Assembly |
| EA0297 | #2 Phillips Bit |
| EA0298 | #2 Square Bit |
| EA0299 | Rex Drive |
| FA0333 | Slide Body Screws |
| FA0358 | Slide Body Assembly |
| FC1022 | Nose Piece |
| GA0702 | Service Parts for GA0768 |
| GA0703 | Rail Assembly |
| GC1747 | Feed Housing |
| KB0020 | Rail Screws |
| KB7078 | Housing Screws |
| KD0243 | Return Spring |
| VA0083 | Trigger Assembly |
| VA0084 | Motor & Gear Assembly |
| VA0089 | Motor & Gear Assembly |
| VB0173 | Power Cord |
| WA0062 | Drive Shaft Assembly |
| WA0063 | Clutch Assembly |

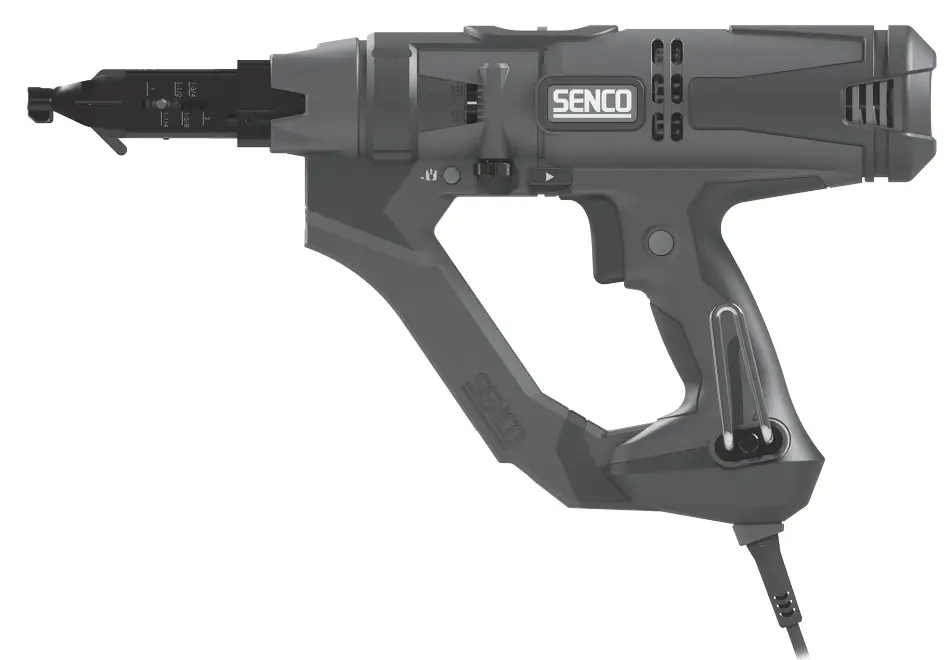

Auto-Feed Screwdriver
NFD10DE • Issued September 12, 2022 (Replaces 11/11/2020)
Auto-Feed
Screwdriver
DS242-AC
DS245-AC
Questions? Comments? call SENCO’s toll-free Action-Line: 1-800-543-4596
(North and South America Only) or email: [email protected]
Questions? Comments? call SENCO’s toll-free
Action-line: 1-800-543-4596 (North & South America only) or
e-mail: [email protected]
KYOCERA-SENCO Industrial Tools, Inc.
8450 Broadwell Road
Cincinnati, OH 45244
1-800-543-4596
www.senco.com
