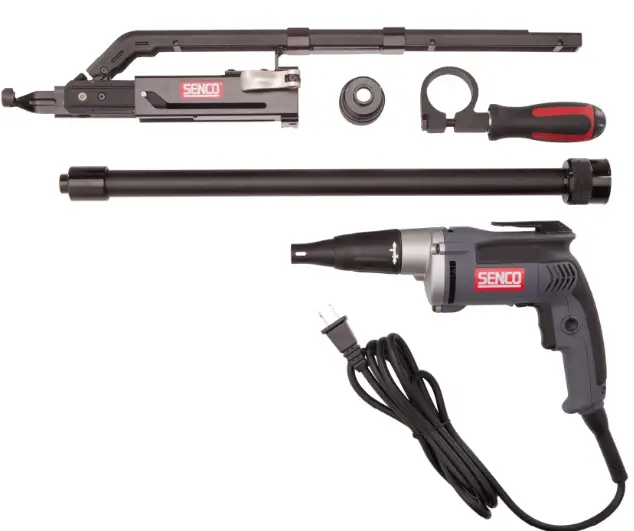

DURASPIN DS530 Series SencoAUTO-FEED SCREW SYSTEM ATTACHMENT
DS530 Series
Parts

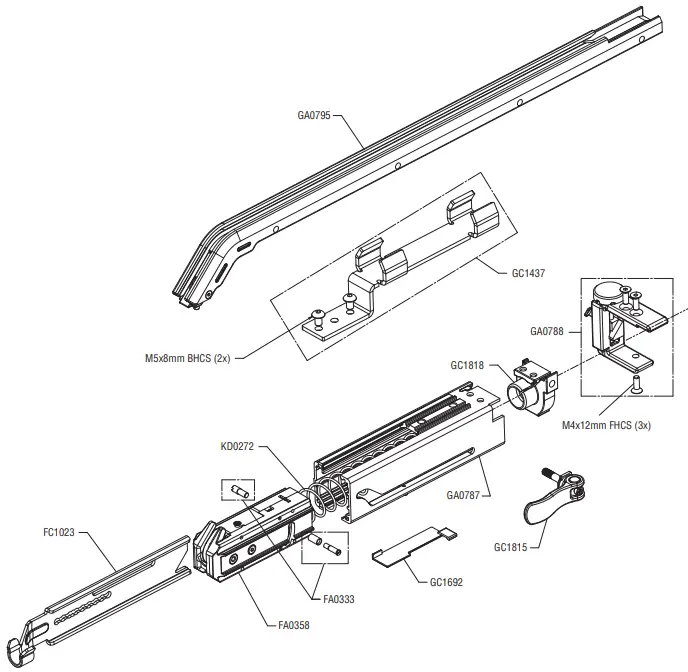

PARTS LIST
| Part No. | Description |
| EA0314 | #2 Phillips Bit |
| EA0315 | #2 Square Bit |
| EA0316 | Rex |
| FA0333 | Slide Body Screws |
| FA0358 | Slide Body Assembly |
| FC1023 | Nose Piece |
| GA0787 | 3″ Attachment Feed Housing |
| GA0788 | Depth of Drive Housing Assembly |
| GA0795 | Screw Strip Slide Rail |
| GC1437 | Slide Rail Bracket |
| GC1692 | Cover Plate |
| GC1815 | Pivot Clamp Assembly |
| GC1818 | Spring Post |
| KD0272 | 3″ Return Spring |
| MB0183 | DeWalt DC Attachment Adaptor |
| MB0184 | Senco Attachment Adaptor |
| MB0185 | DeWalt AC Attachment Adaptor |
| MB0186 | Makita Attachment Adaptor |
| WA0066 | Handle Assembly |
| WB0067 | Extension Pole Assembly |
Assembly

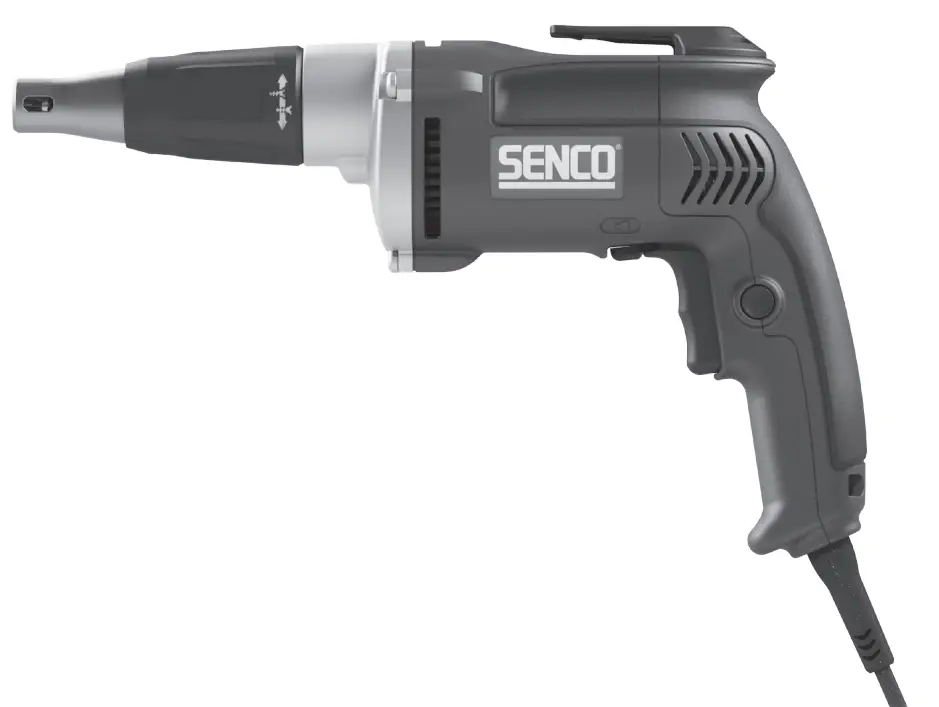

SG2510 SG4100

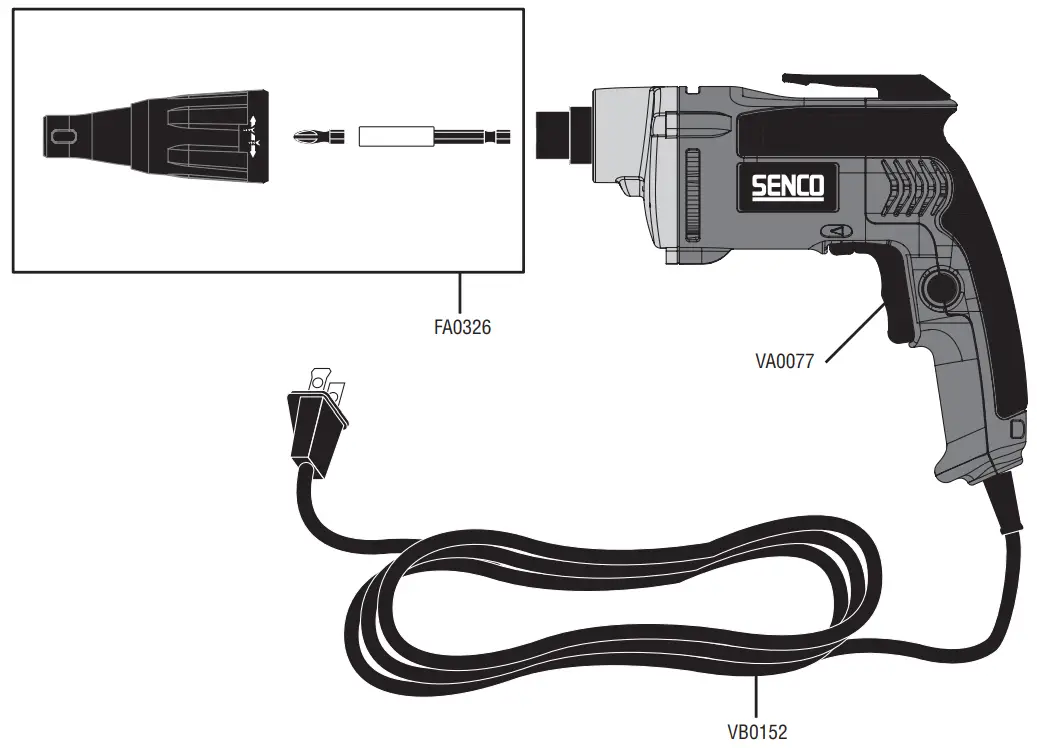

PARTS LIST
| Part No. | description |
| FA0326 | NOSEPIECE ASSY |
| VA0077 | TRIGGER ASSEMBLY |
| VB0152 | CORD |
