Blue Sea Systems M2 Oled Digital Monitor Installation Guide

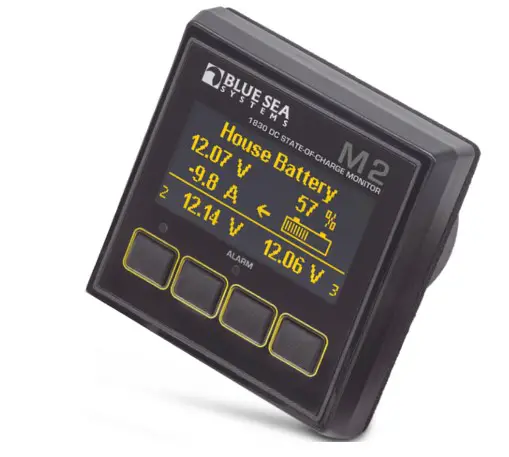

BLUE SEA M2 OLED Digital Monitor

Safety Instruction

WARNING
The WARNING symbol refers to possible injury to the user or significant damage to the monitor if the user does not follow the procedures.

CAUTION
The CAUTION symbol refers to restrictions and rules with regard to preventing damage.

WARNING

• If you are not knowledgeable about electrical systems, have an electrical professional install this unit. The diagrams in these instructions pertain to the installation of the unit and not to the overall wiring of the vessel.
• If an inverter is installed on the vessel, its power leads must be disconnected at the battery before the unit is installed. Many inverters have a “sleep mode” in which their voltage potential may not be detectable with measuring equipment.
• If an AC generator is installed on the vessel, it must be stopped and rendered inoperable before the unit is installed.
• Verify that no other DC or AC sources are connected to the vessel’s wiring before installing the unit.

CAUTION

The back of the unit is not waterproof. Do not install where the back of the monitor is exposed to water.

Components Included

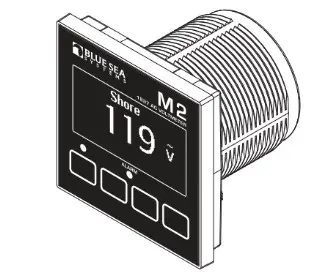

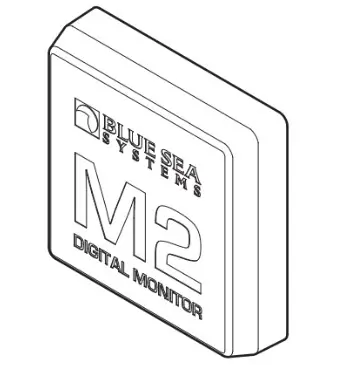

• M2 Head Unit

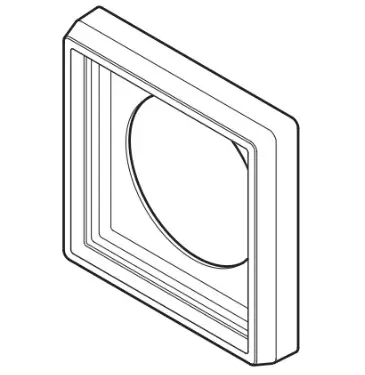

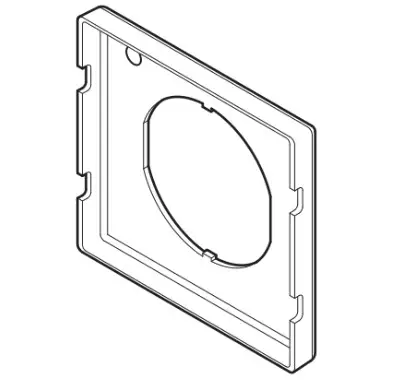

• Surface Mount Bezel and Seal

• Surface Mount Gasket

• Surface Mount Cover

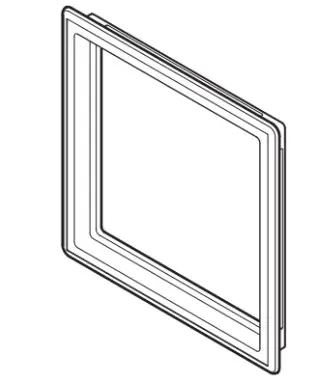

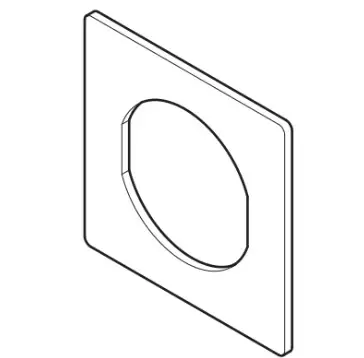

• Flat Mount Bezel

• Flat Mount Clamp

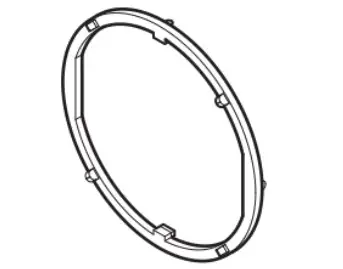

• Mounting Ring

• Mounting Nut

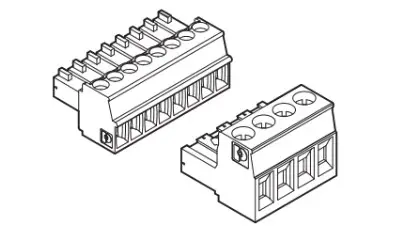

• Connectors

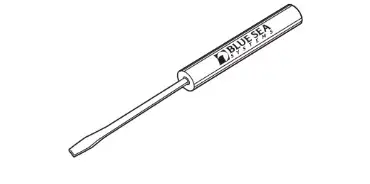

• Screwdriver (retail package only)


360 Panel Mounting Kit PN 1525 sold separately

#6-32 x 1/4″ Flat Head Machine Screws (4X)

#6-32 x 3/8″ Flat Head Machine Screws (4X)

System Overview

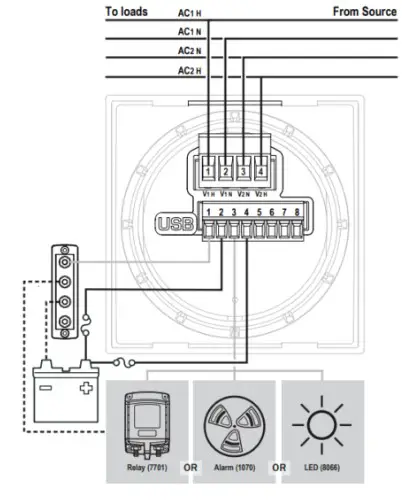

1837 AC Voltmeter Connections

For other configurations go to www.bluesea.com/M2

Connector Pin Assignment

Connector Pin Assignment Table

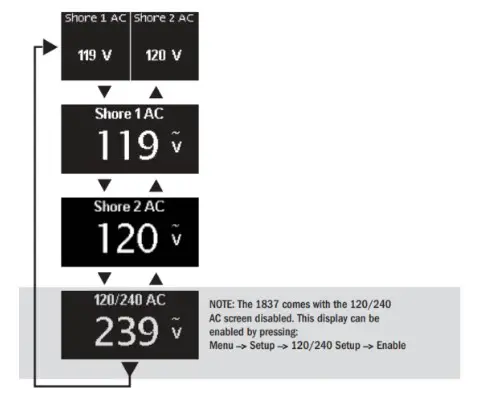

M2 Meter Navigation

Screen Menu Functions Press any button to bring up the menu.

1. After start-up, press any button to access the menu.
2. Press the UP or DOWN arrow buttons to scroll through menu windows.
3. To set alarms and for more detailed information, go to www.bluesea.com/M2

Mounting Options

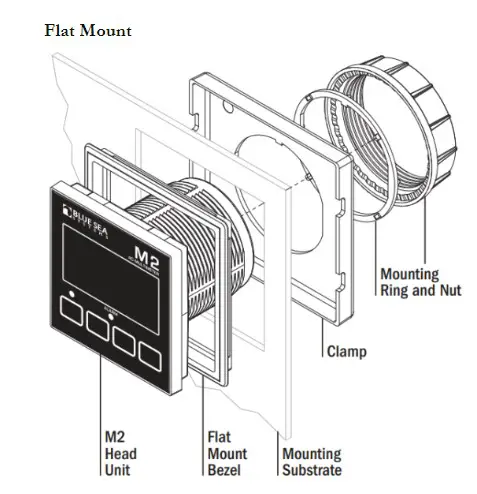

Flat Mount

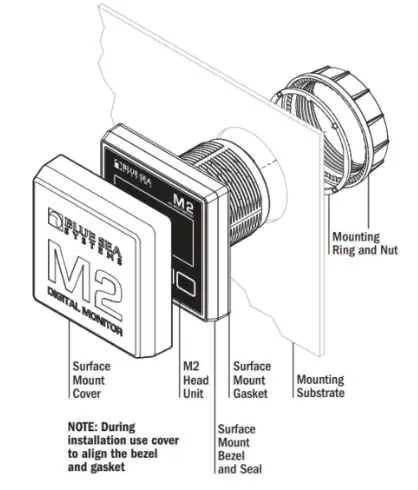

Surface Mount

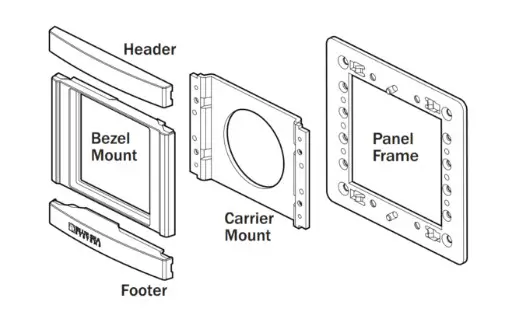

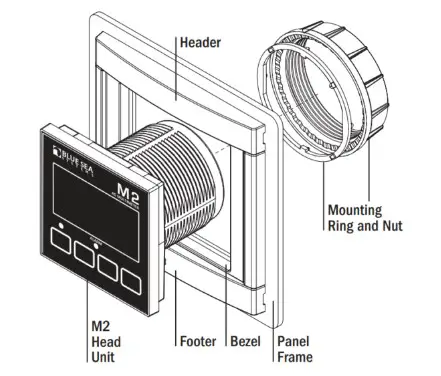

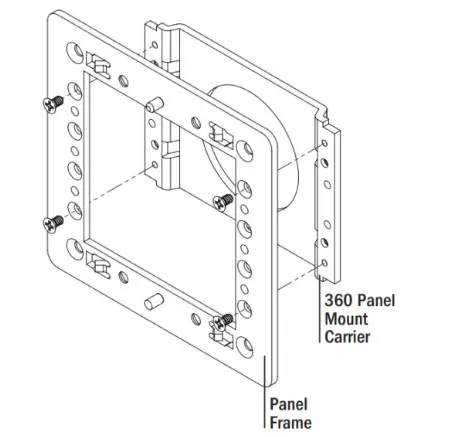

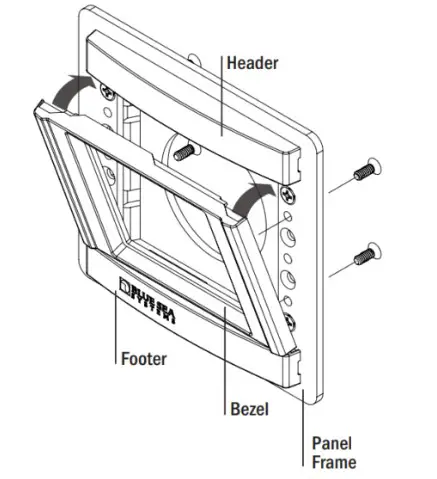

360 Panel Mount PN 1525 (If retrofit to existing panel)

1. STEP 1: Use 1/4″ Mounting Screw.

2. STEP 2: Snap header and footer into mounting clips and post. Snap the mounting bezel into place with the flat edge up.

3. STEP 3:

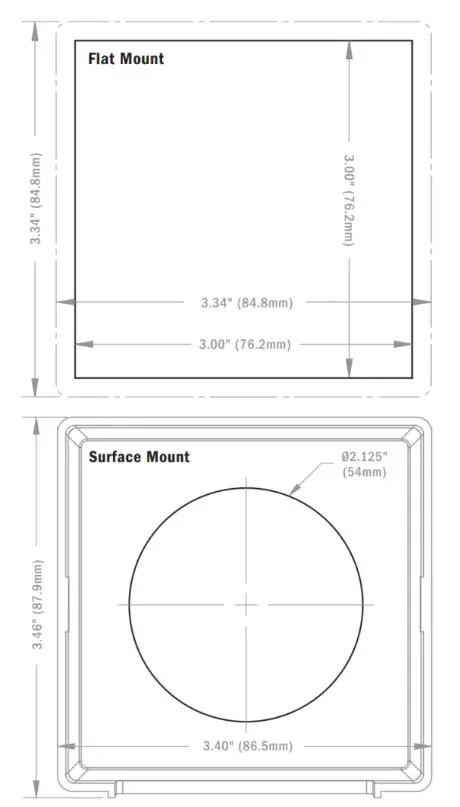

Mounting Templates

Warranty

The M2 OLED Digital Meters come with a 5 year manufacturer’s warranty. This means the meter is warranted to be free from defects in materials or workmanship for 5 years from the date of first purchase. The warranty is limited solely to the cost of repair or replacement of the M2 Meter product. Costs associated with labor or shipping of the defective parts are not covered.

Blue Sea Systems cannot accept liability for damage due to the misuse of the M2 Meter.

425 Sequoia Drive Bellingham, WA 98226 USA
www.bluesea.com
p 360.738.8230
[email protected]
Components Included 1837 AC Voltmeter 980020450 Rev.001
