AP-309524
(Installation Instructions for Colorado Lift Shackles)
OFF-ROAD AP-309524 Colorado Lift Shackle
 | NOTICE |
| Read instructions completely before installing this product. Refer back to the instructions frequently during installation. |
 | ACAUTION |
| Flying Object Hazard. Fluid Splash Hazard. Wear safety glasses at all times when working on vehicle. |
Ayn Cancer and Reproductive Harm – www.P65Warnings.ca.gov

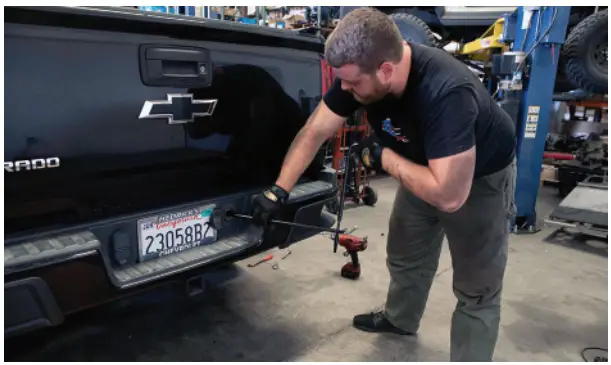

- Lower and remove spare tire.

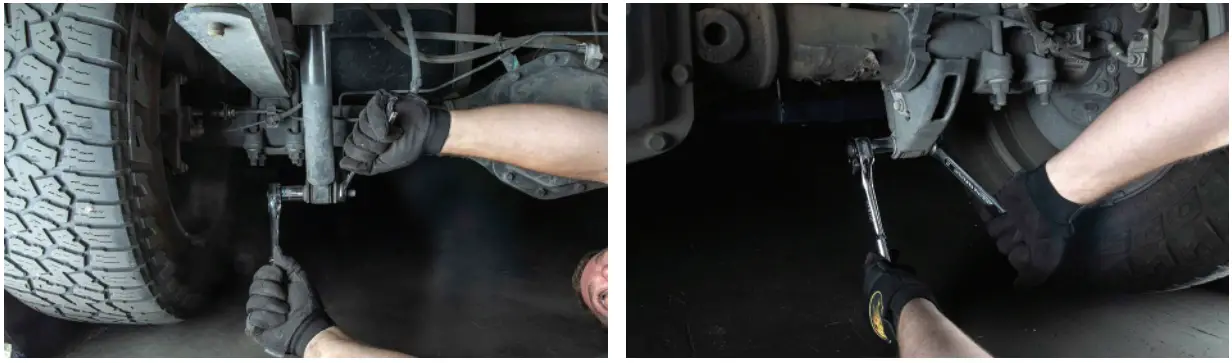

- Unfasten bottom bolts of shocks using a 21mm tools to allow free movement.

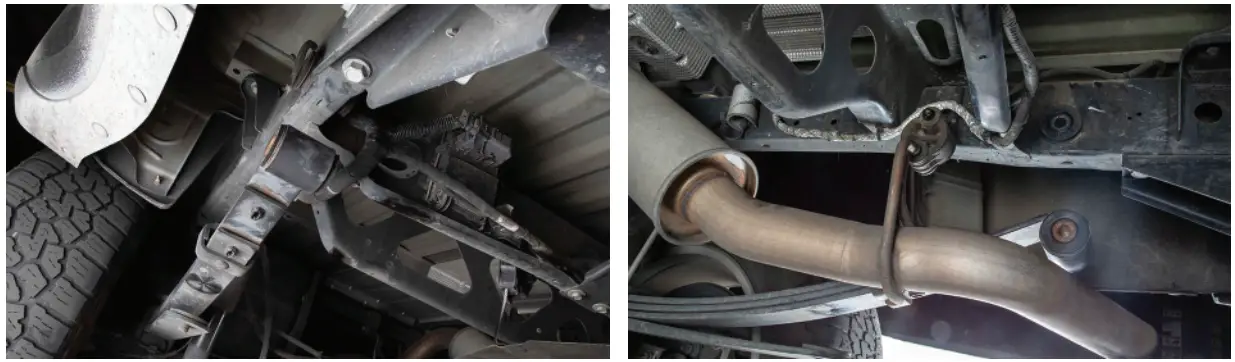

- Using jack stands or a lift, support the weight of the truck so the rear tires are just touching the ground. Using 21 mm tools, remove the rear shackles.

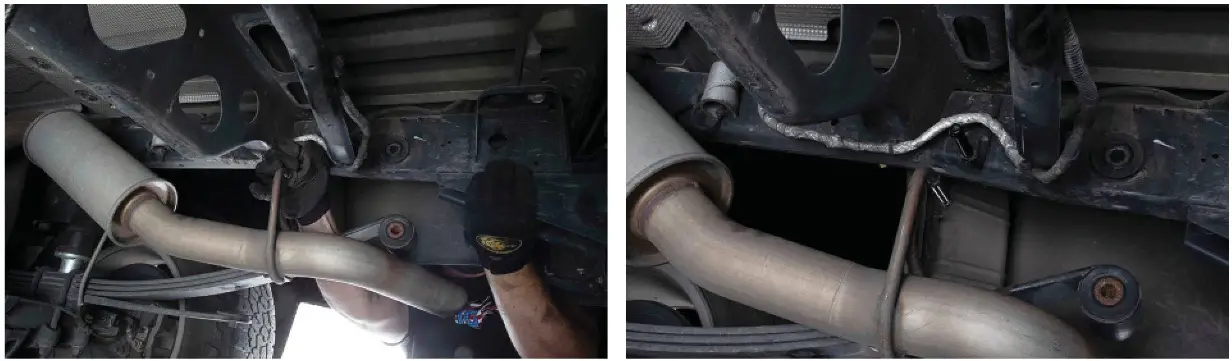

- Remove rear most exhaust hanger.

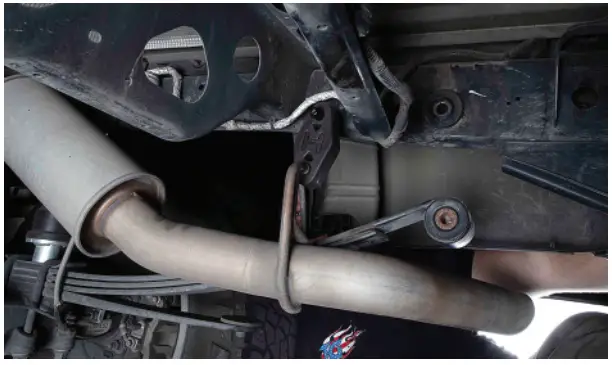

- Install longer exhaust hanger in the same location.

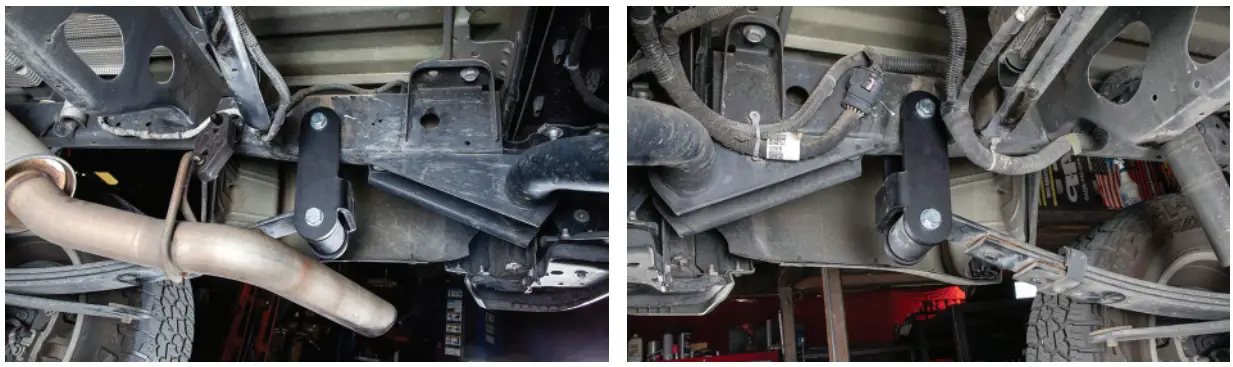

- Install rear shackles with 22mm tools, torque all bolts to 118 lb-ft.
- Lower truck back down so the shackles are supporting the trucks weight. That will allow you to re-attach the shocks at the lower mounting points, torque to 118 lb-ft.
- Reinstall the spare tire.
