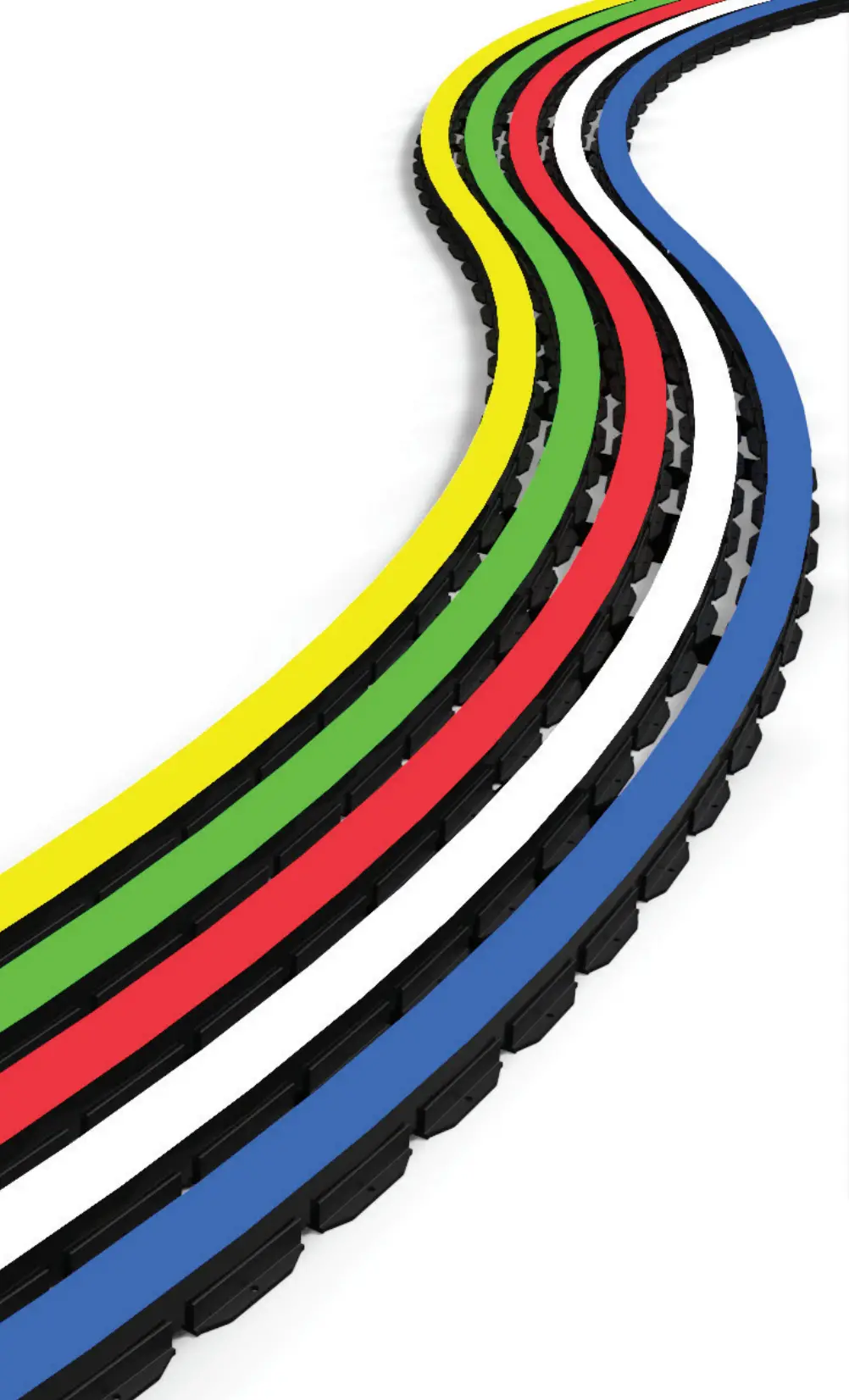

GUIDE Flexlum
SPEC Flexlum
Straight Runs
Product | LED Color | Channel Type | Lens | Voltage | Length |
FXLM | – | – | D | 24 | – |
| Flexlum | 28 2800K | F Flexible | D Diffuse | 24 24 Volt | 4 4’ |
32 3200K | S Straight | 8 8’ | |||
| 41 4100K | |||||
56 5600K | |||||
| BL Blue | |||||
GR Green | |||||
| RD Red | |||||
YL Yellow |
Pattern Connectors
Product | LED Color | Connector |
| FXLM | – | – |
Flexlum | 28 2800K | LCON L Shape |
| 32 3200K | TCON T Shape | |
41 4100K | XCON X Shap | |
| 56 5600K | ||
| BL Blue | ||
| GR Green | ||
| RD Red | ||
| YL Yellow |
- L Shape pre-mitered Connector Assembly with LED modules installed, 6” Arms

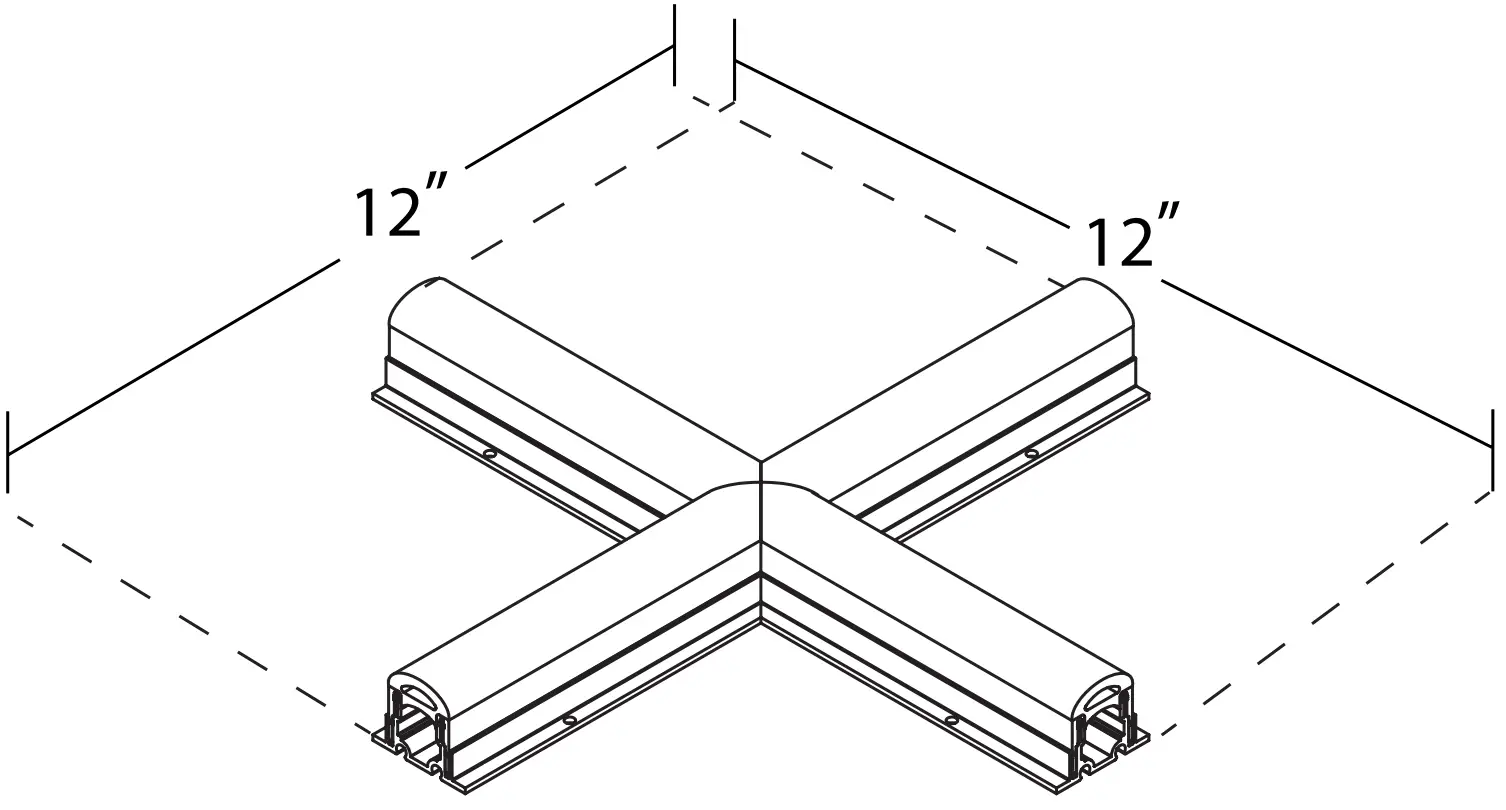

- X Shape pre-mitered Connector Assembly with LED modules installed, 6” Arms

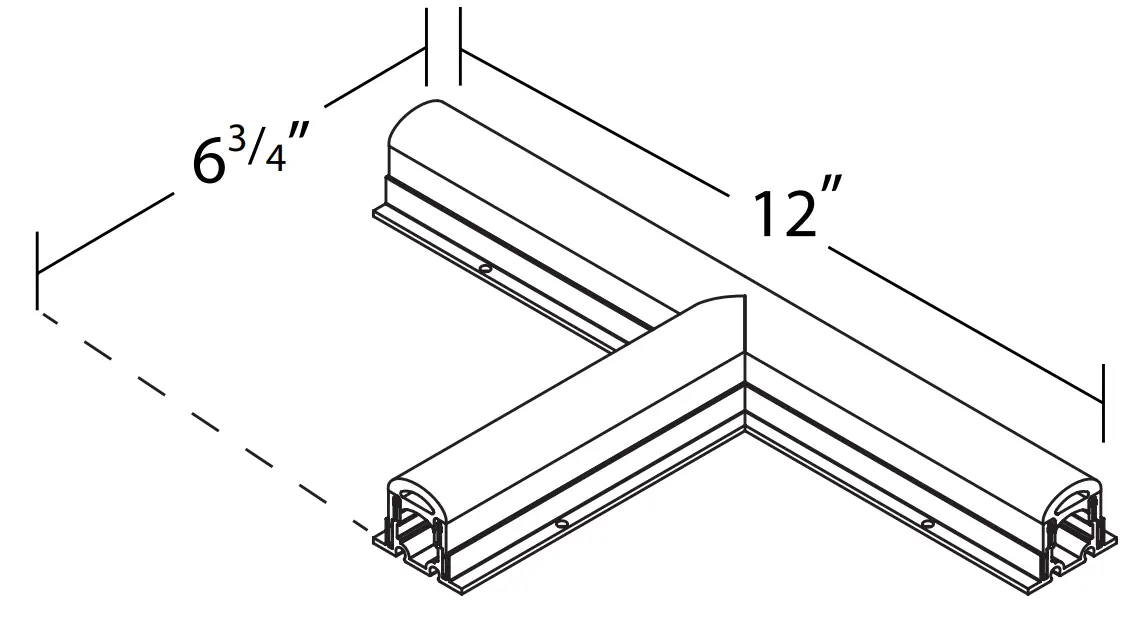

- T Shape pre-mitered Connector Assembly with LED modules installed, 6” Arms
Connectors
- FXLM-EC
Flexlum End Cap

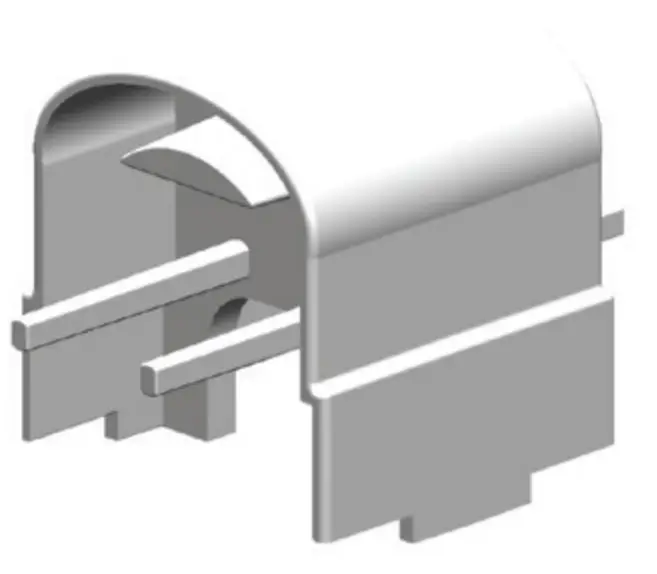

- FXLM-IC
Flexlum Interconnect unit for seamless runs
Lead End Prep
- FXLM-LEAD-16
16 ft., 2 conductor, 18 AWG lead wire with female connector

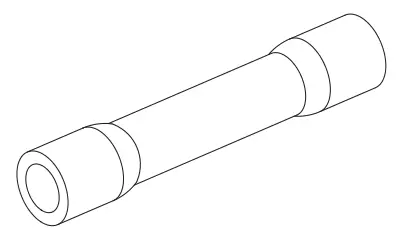

- FXLM-SPLICE-CONN
UL Waterproof Butt Splice
Replacement Parts

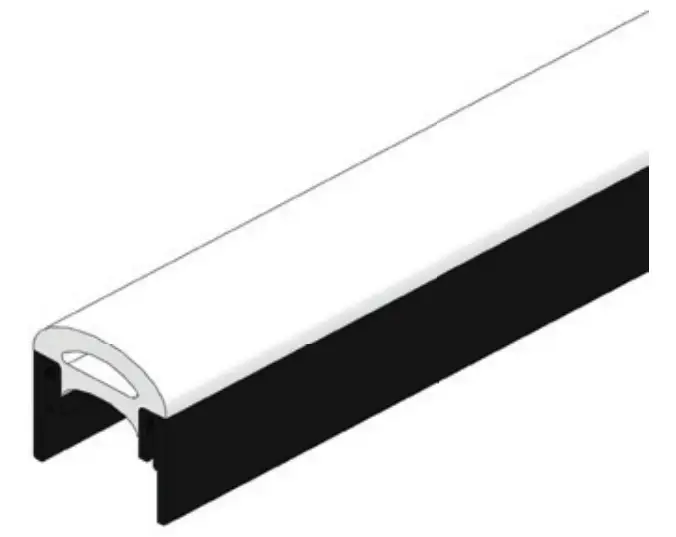

- FXLM-DIFF-WH-4
Flexlum Diffuser 4’
FXLM-DIFF-WH-8
Flexlum Diffuser 8’

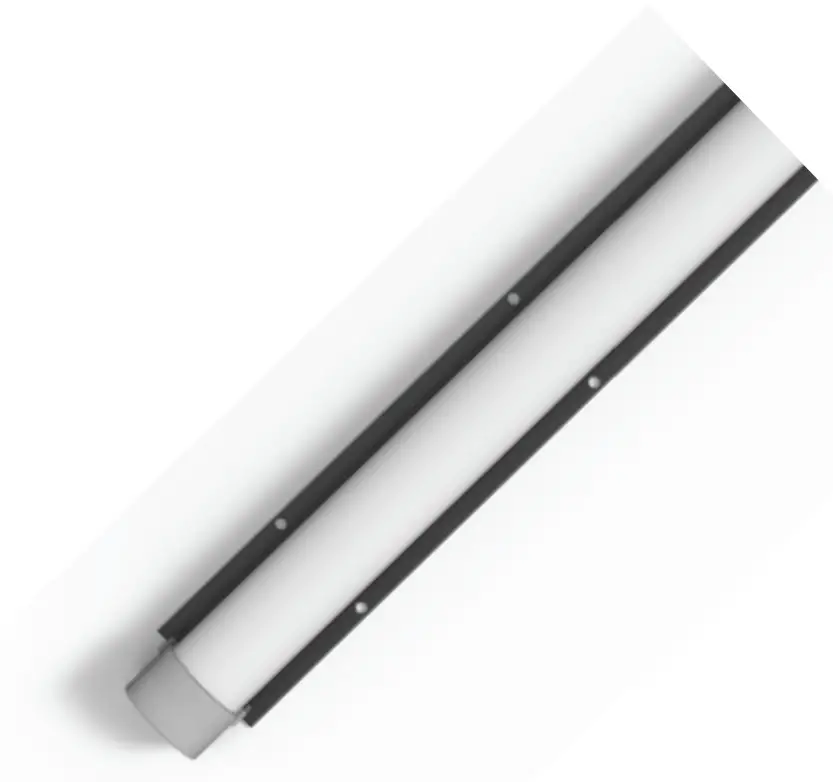

- FXLM-S-CHAN-4
Straight Channel, 4’ length
NO LENSE
FXLM-S-CHAN-8
Straight Channel, 8’ length
NO LENSE
- FXLM-F-CHAN-4
Flex Channel, 4’ length
NO LENSE
FXLM-F-CHAN-8
Flex Channel, 8’ length
NO LENSE

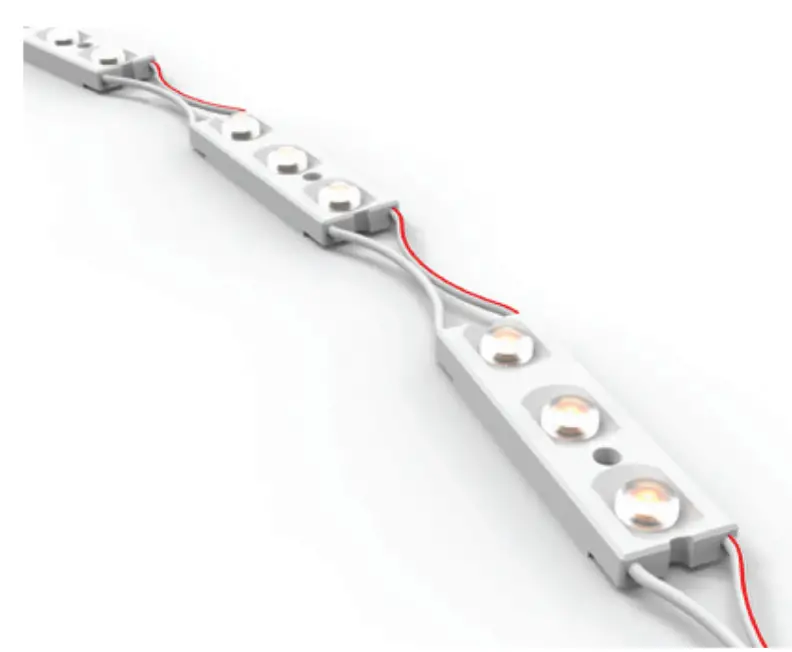

- FXLM-XX-M-24-X
Flexlum Tri-Flex module
XX = 28 (28K), 32 (32K), 41 (41K) 56 (56K), BL (Blue), GR (Green), RD (Red), YL (Yellow)
X = Number of modules.
Price is per module.
(Specify the number of modules at time of order.)
TECH Flexlum
Electrical & Photometric data
Input Voltage | 24VDC | |
Dimming Option | 0-10V/DMX | |
| Power System | Class 2 | |
Driver | Remote Driver | |
| Wire Size | 18 AWG, 2 wire | |
Color Temperature (CCT) | 2800K / 3200K / 4100K / 5600K / Blue / Green / Red / Yellow | |
Power Consumption | Whites, Blue, Green | Red, Yellow |
4 W/ft | 2 W/ft | |
Lumen Output* | 30 lm/ft | – |
| Efficacy* | 7.5 lm/w | – |
Maximum Run Length | 24′ | 48′ |
| Color Rendering Index (CRI)* | 85 | |
*Based on 3200K photometric data
Physical
| LED Chip | San’an |
| LED Package | 5050 SMD |
| Field Cuttable | Every 3″ |
| Order Increment | 4’ and 8’ Sections |
| Operating Temperature | -4°F(-20°C)~140°F(60°C) |

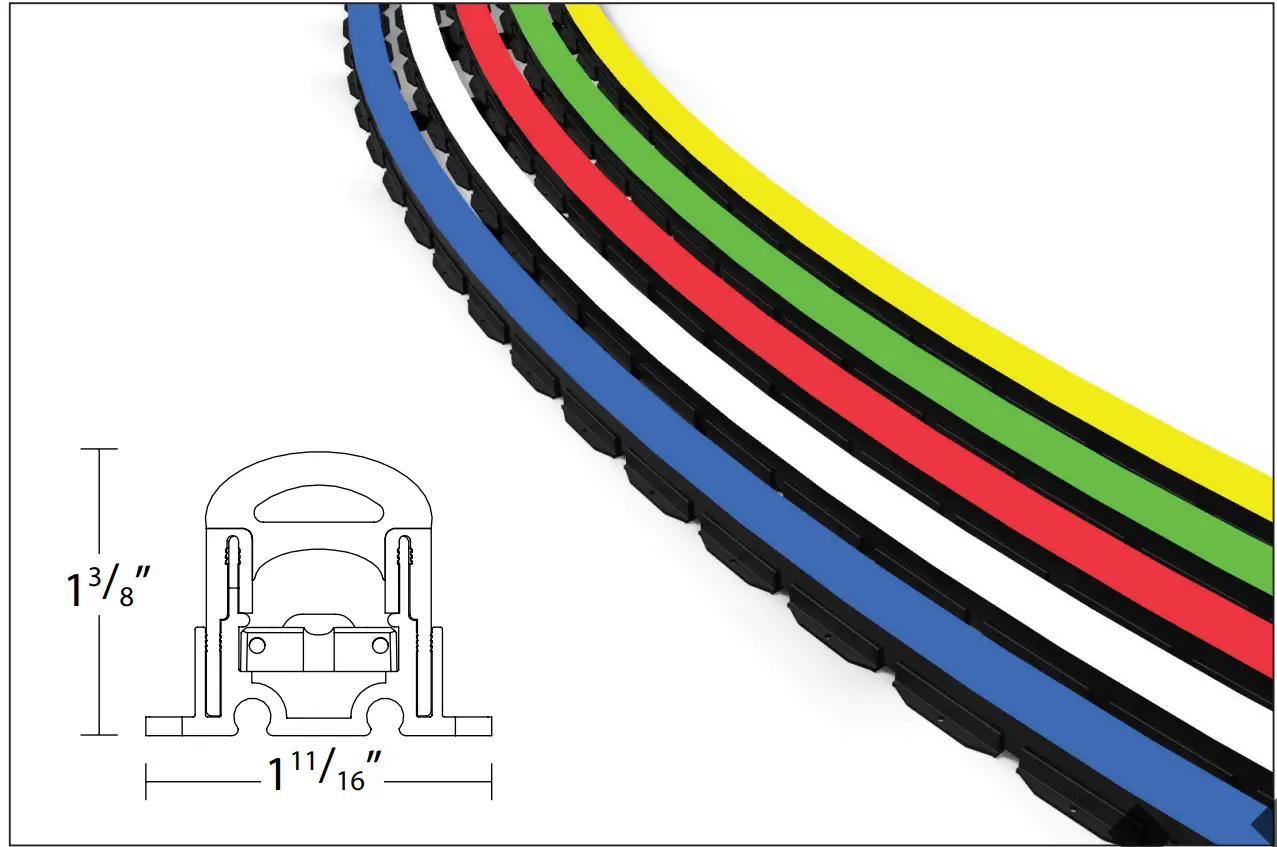

| Dimension (W x H) | 1.688″(42.86mm) x1.375″(34.93mm) |
| Weight | 0.55lbs/ft |
Mechanical
| Mounting | Surface Mount with #4 Screws (by others) | |
| Material | Lens Cover | Flexible Acrylic- Kurarity™ LA4285 |
| LED Module | Polycarbonate | |
| Base | Geon™ Flexible PVC | |
Performance
| Certification | UL listed for Wet Location |
| Lumen Maintenance | 50,000 hours |
| Binning Tolerance | ± 100K |
Power Supplies

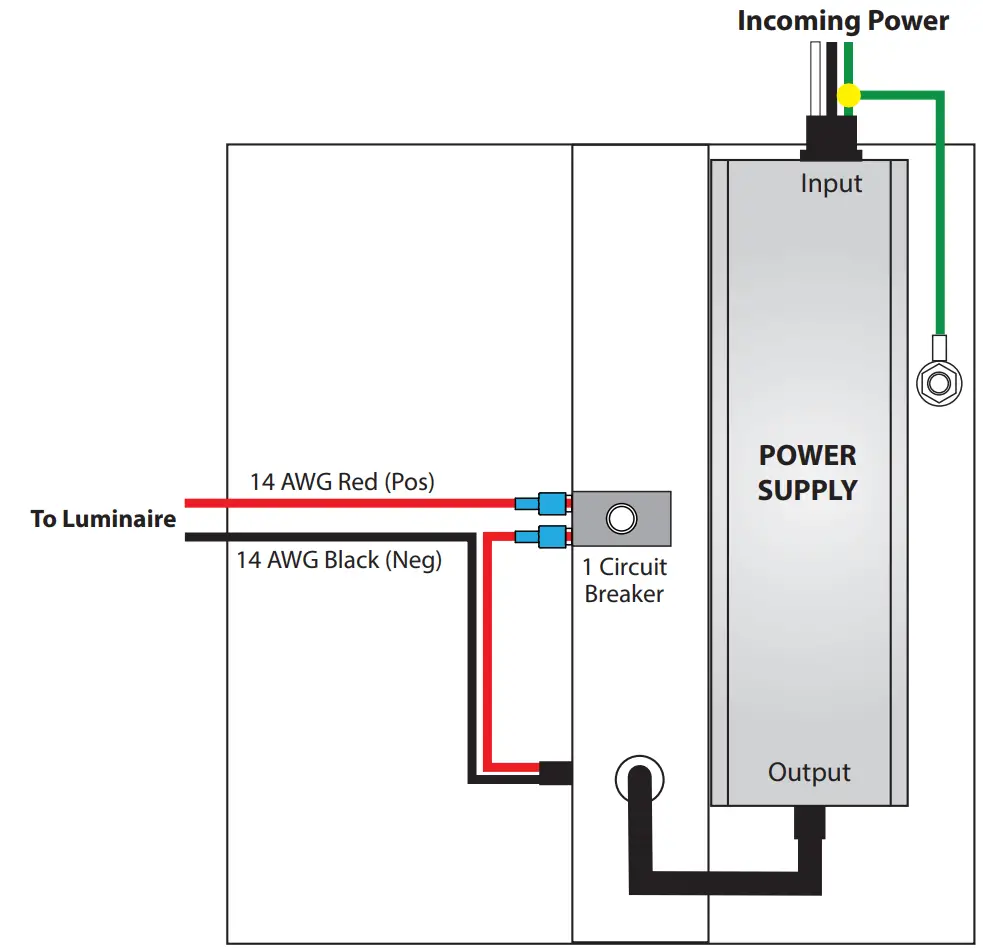

NON DIMMING
CAT NO | PRIMARY AND SECONDARY | TOTAL WATTAGE / AMPS PER BREAKER | *MAX RUN LENGTHS | DIMENSIONS | LISTING | |
| Whites Blue Green | Red Yellow | |||||
ADNM-120-1-4-24-D | 120-277V AC 24V DC | 96W / 1X4A | 24’ | 48’ | 12”W X 12”L X 4.25”D | UL |
| ADNM-240-2-4- 24-D | 120-277V AC 24V DC | 192W / 2X4A | 48’ (2X24’) | 96’ (2X48’) | 12”W X 12”L X 4.25”D | UL |
ADNM-320-3-4- 24-D | 120-277V AC 24V DC | 288W / 3X4A | 72’ (3X24’) | 144’ (3X48’) | 12”W X 12”L X 4.25”D | UL |
*max run lengths based on reccomended max wattage load

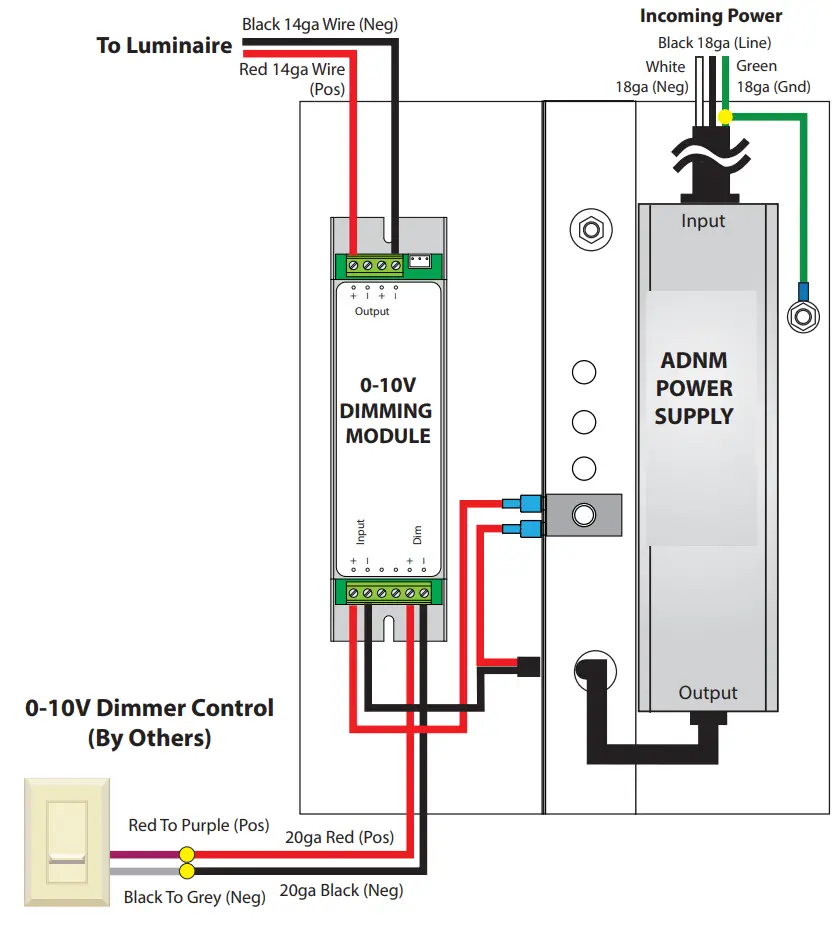

0-10V DIMMING
CAT NO | PRIMARY AND SECONDARY | TOTAL WATTAGE / AMPS PER BREAKER | *MAX RUN LENGTHS | DIMENSIONS | LISTING | |
Whites Blue Green | Red Yellow | |||||
ADNM-120-1- 4-24-DOT | 120-277V AC 24V DC | 96W / 1X4A | 24’ | 48’ | 12”W X 12”L X 4.25”D | UL |
ADNM-240-2- 4-24-DOT | 120-277V AC 24V DC | 192W / 2X4A | 48’ (2X24’) | 96’ (2X48’) | 12”W X 12”L X 4.25”D | UL |
ADNM-320-3- 4-24-DOT | 120-277V AC 24V DC | 288W / 3X4A | 72’ (3X24’) | 144’ (3X48’) | 12”W X 12”L X 4.25”D | UL |

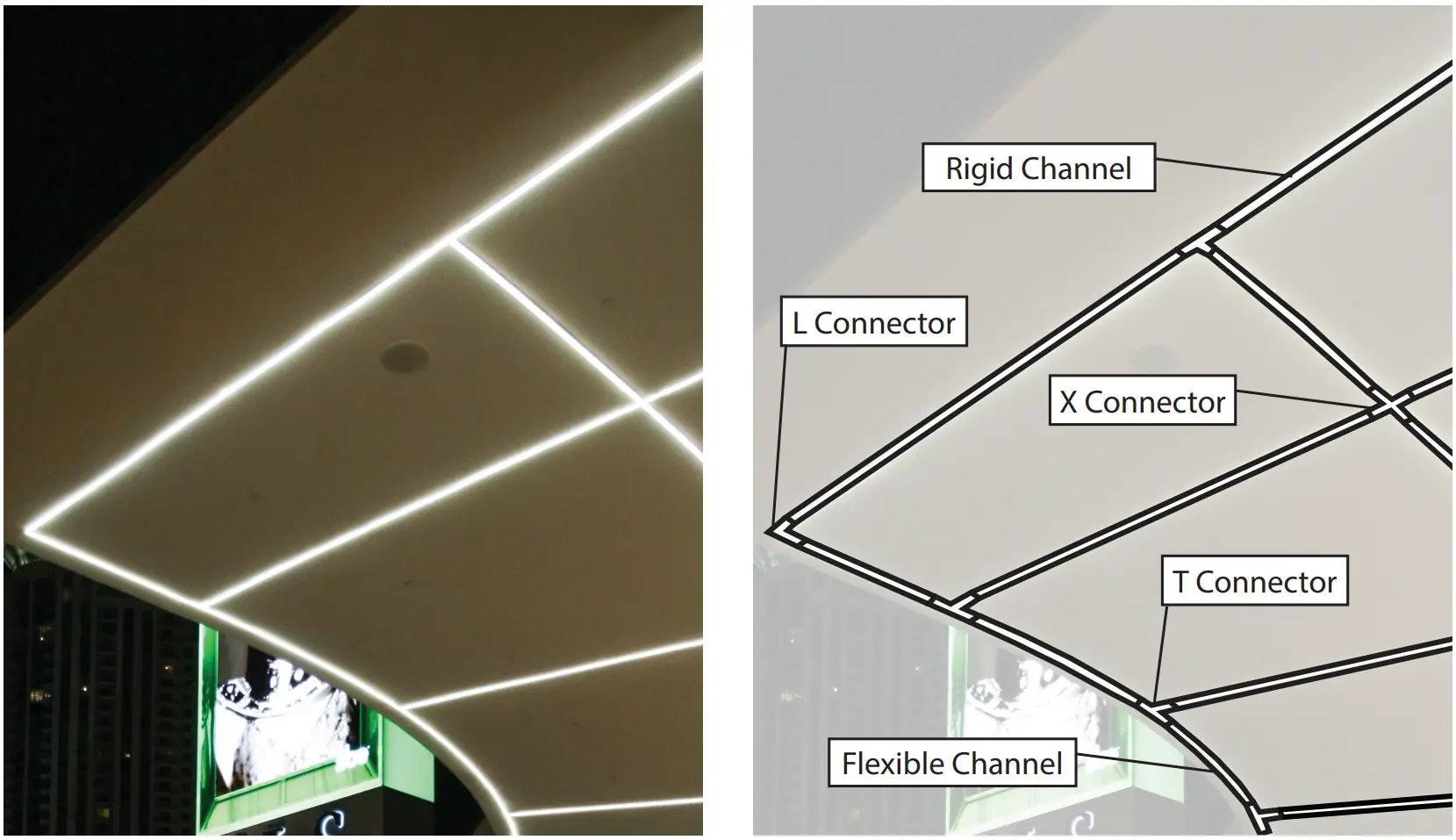

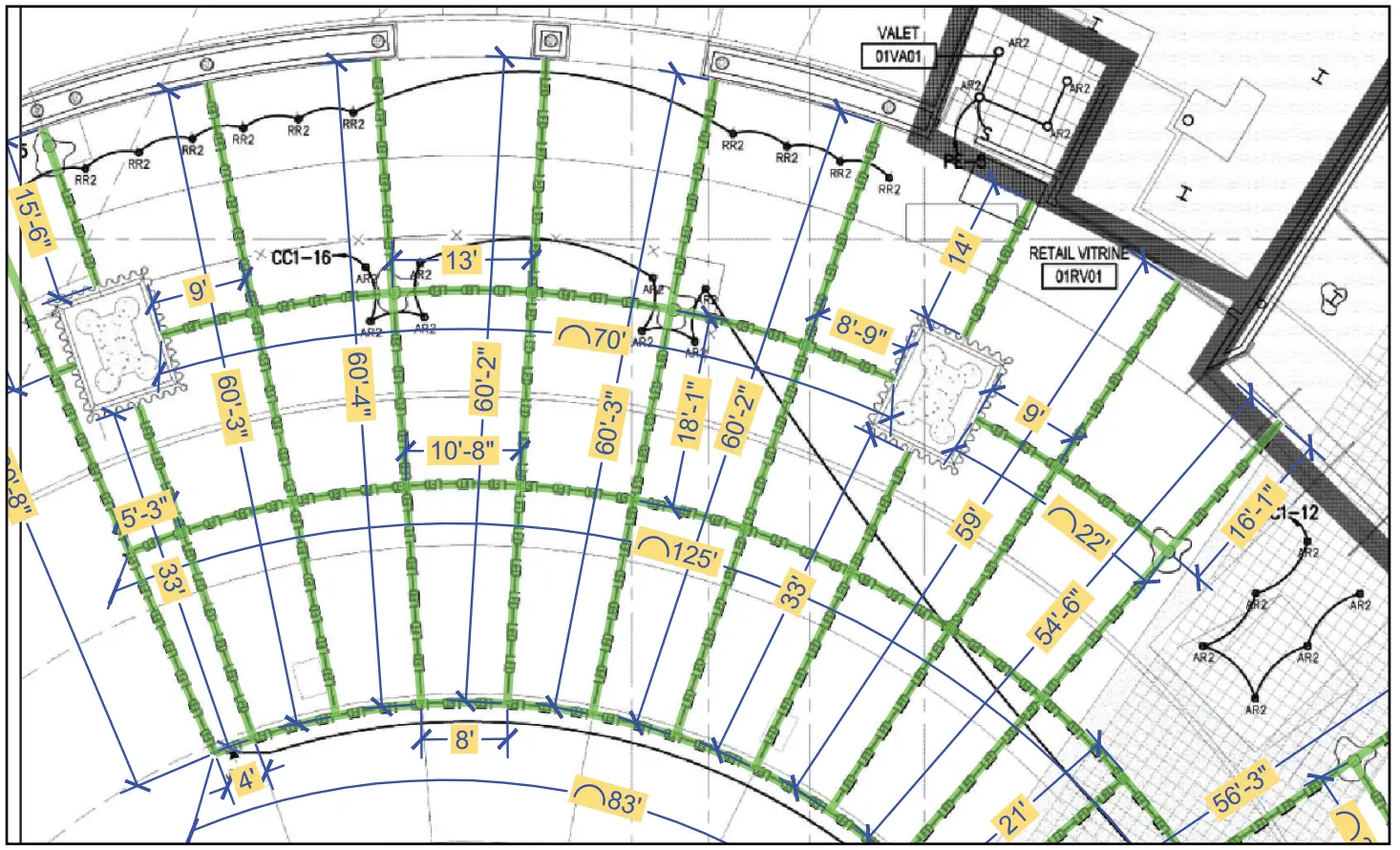

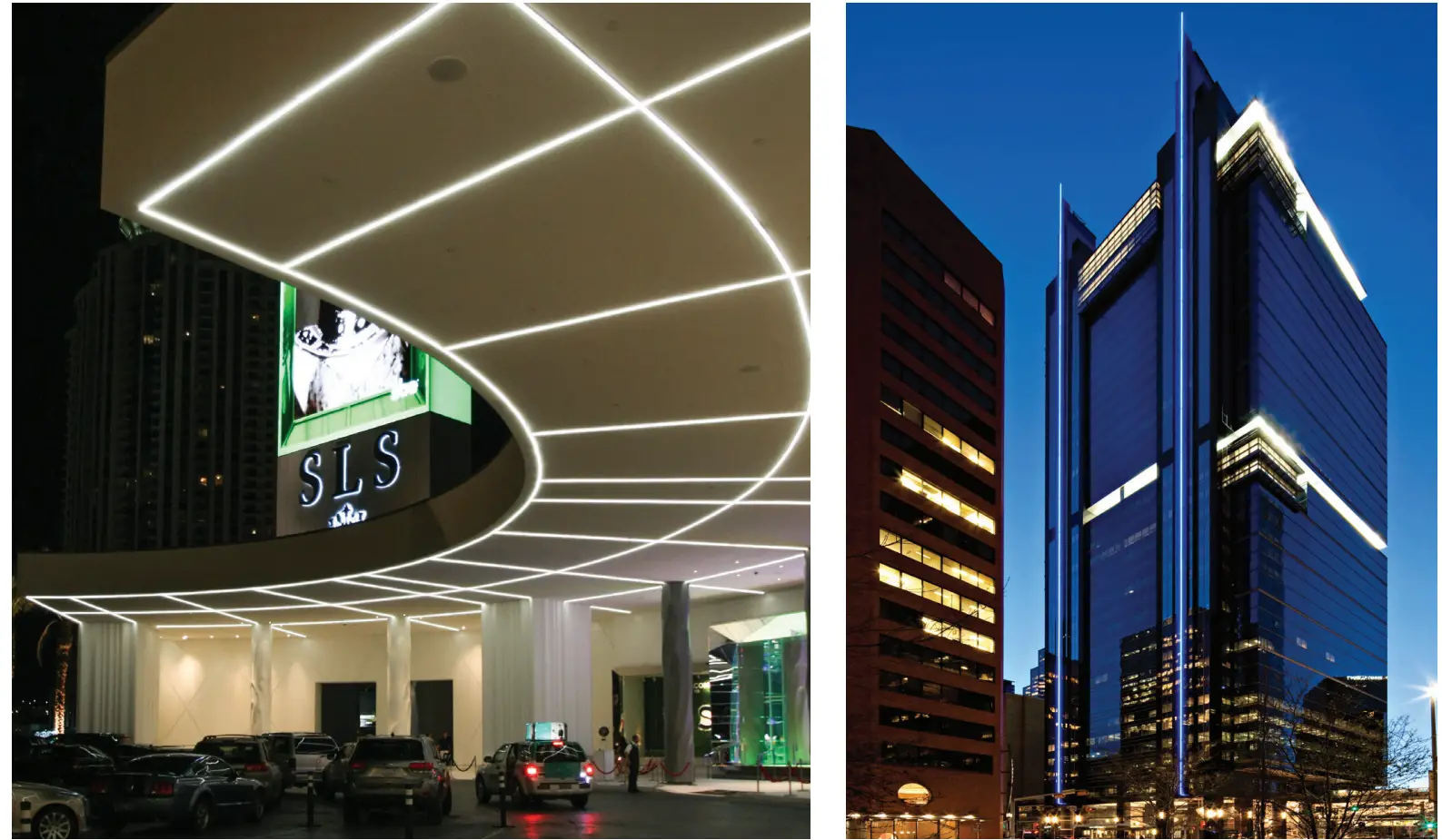

APPLICATION Flexlum
CUSTOMER SUOOPRT
Tivoli, LLC. reserves the right to modify this specifi cation without prior notice.
www.tivolilighting.com
tel: 714-957-6101
fax: 714-427-3458
Tivoli – Over 50 Years of Innovation and Linear Lighting Leadership.
