Isaac series
Power Points (Zigbee)

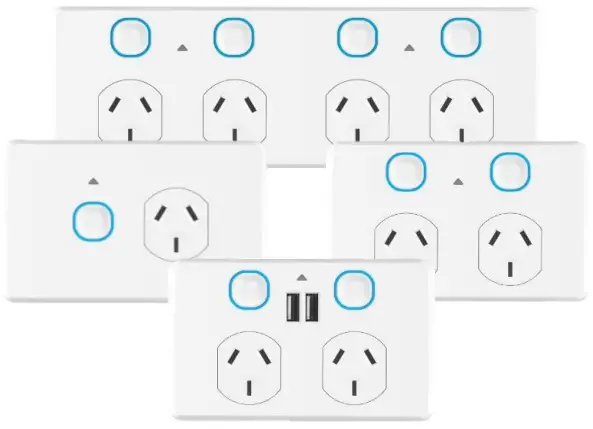

SPP01G / SPP02G/ SPPUSB02G/ SPP04G SPP02GMBK/ SPPUSB02GMBK
This product must be installed by a licensed electrician
Features
- Zigbee 3.0 compliant
- Touch capacitive switches
- Blue backlight to indicate switch status
- Retrofit to standard mounting brackets
- White, UV resistant material
- Matt black finish available on selected products
- Combination head screws
- On/off control via the app (both individual & master)
- Current and historical power monitoring
- Customizable timers & schedules via the app
- Works with both Amazon Alexa and Google Assistant
- 3 year in-home warranty
Network/Device Requirements
| Connectivity | Zigbee |
| Requirements | Mercator Ikuü zigbee hub |
| Protocol | IEEE 802.15.4 |
| Wireless Frequency | 2.4GHz |
| App Requirements | Mobile device running iOS or Android. (Refer to ikuu.com.au for minimum specs) |
Included Accessories
Faceplate, Cut-out template, Mounting screws.
SPP04G only: Mounting bracket, Strapping cables
Technical Specifications
| SPP01G | SPP02G SPP02GMBK | SPPUSB02G SPPUSB02GMBK | SPP04G | |
| Sockets | 1 | 2 | 2 | 4 |
| Colour | White | White or Matt black | White or Matt black | White |
| Supply Voltage | 230 – 250V a.c. 50Hz | |||
| Standby Wattage | <0.05W | |||
| Operating Load | 2500W total (max) – all channels combined | |||
| Switched Poles | Active | |||
| IP Rating | IP20 (indoor use only) | |||
| Terminal Size | 6mm² (can fit up to 3 x 2.5mm² wires per terminal) | |||
| Rear Colour | Yellow | |||
| Housing Material | Polycarbonate | |||
| Contact Material | Brass | |||
| Weight | 145g | 150g | 160g | 300g |
| Dimensions | 115mm x 74mm x 54mm | 215mm x 74mm x 54mm | ||
| Cut-out Dimensions | 80mm x 50mm | 180mm x 55mm | ||
| Mounting Centres | 84mm | |||
| USB Port | N/A | N/A | 2x USB 2.0 Type A | N/A |
| USB output | N/A | N/A | 2A (total) | N/A |
| Compliance / Standards | AS/NZS 3100, AS/NZS 3112, AS/NZS 4268, AS/NZS 60669.1, AS/NZS 60669.2.1, CISPR 14, CISPR 32 AS/NZS 61558 (SPPUSB02G/SPPUSB02GMBK only) | |||

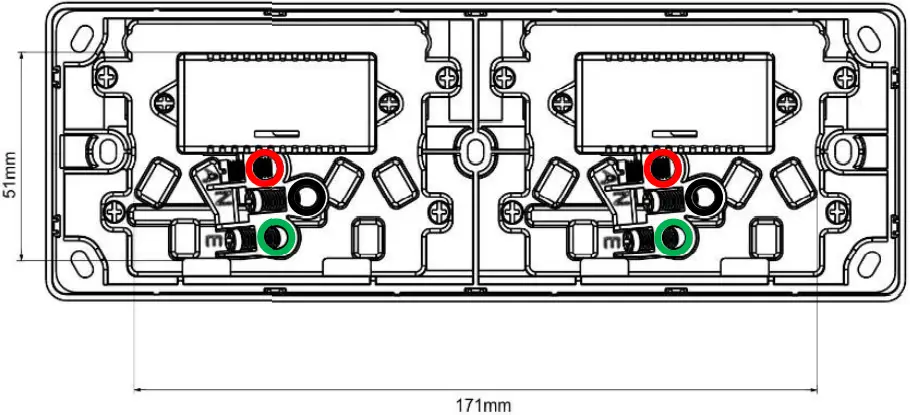

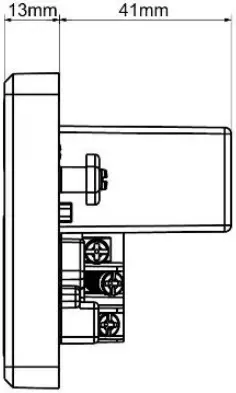

Dimensions

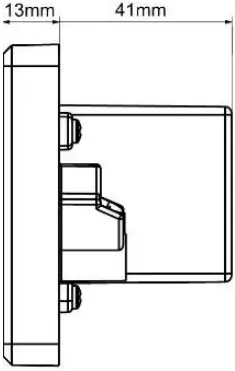

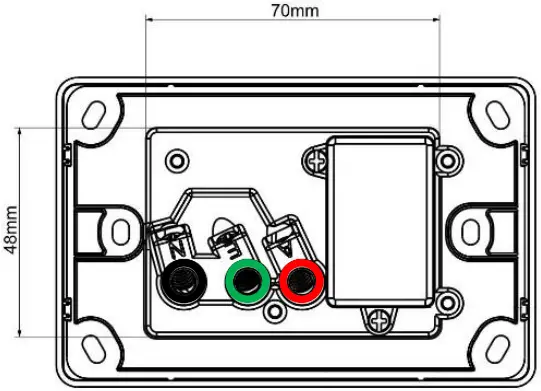

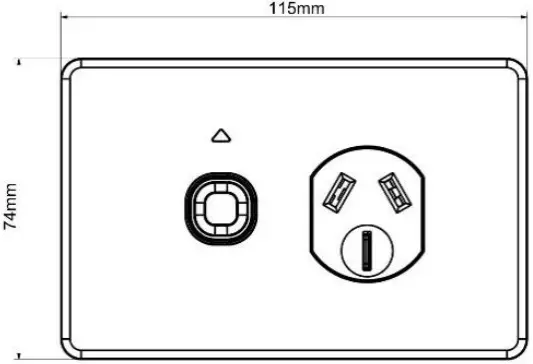

SPP01G

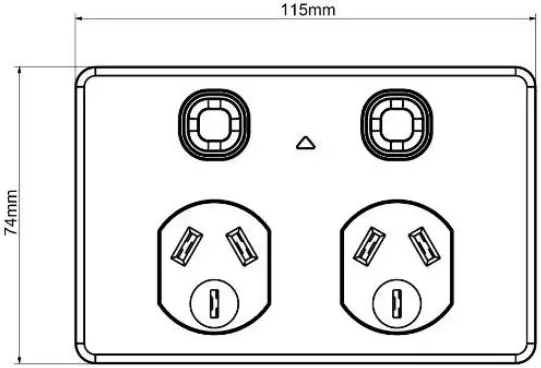

SPP02G, SPP02GMBK, SPPUSB02G & SPPUSB02GMBK

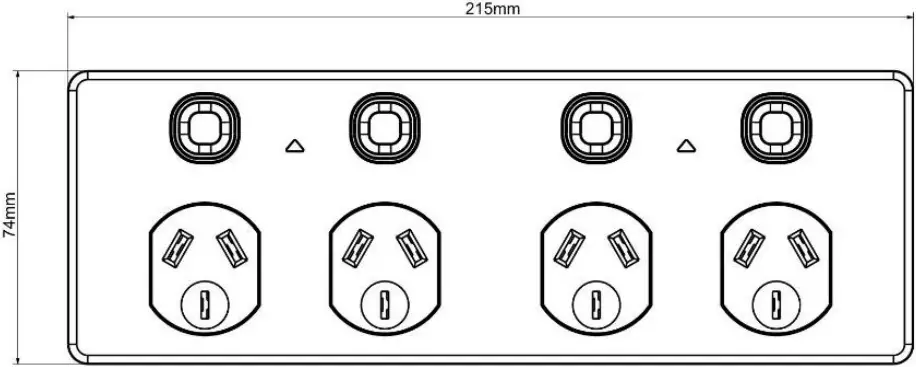

SPP04G
† Strapping cables supplied
This product is valid for 3 years in-home warranty from the date of purchase. Please retain proof of purchase and certificate of compliance from the installation to make a claim. Please visit https://www.mercator.com.au/productsupport/warranty for more information. For Mercator Ikuü contractor or end consumer support please visit www.ikuu.com.au or contact our customer service team on 1300 552 255 or via email at [email protected]
*Download the app using the QR code or visit the iOS or Google Play store.
