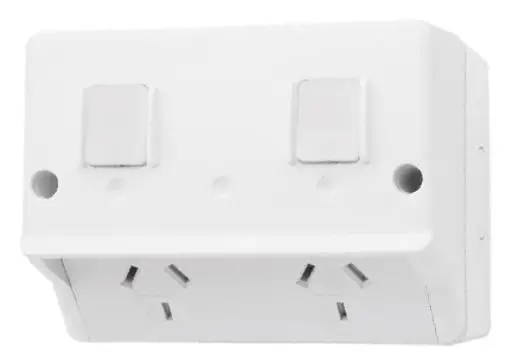

MERCATOR SPP02GIP Outdoor Double Power Point Switch
Features
- Zigbee 3.0 compliant
- IP54
- Blue LEDs to indicate switch status
- Retrofit to standard mounting brackets (1)
- Grey, UV resistant material
- Combination head screws
- On/off control via the app
- Power monitoring with historical record via the app
- Customizable timers & schedules via the app
- Works with both Amazon Alexa and Google Assistant
- 3 year in-home warranty
Network/Device Requirements
| Connectivity | Zigbee |
| Requirements | Mercator Ikuü zigbee hub |
| Protocol | IEEE 802.15.4 |
| Wireless Frequency | 2.4GHz |
| App Requirements | Mobile device running iOS or Android. (Refer to ikuu.com.au for minimum specs) |
Technical Specifications
| Outlets | 2 |
| Supply Voltage | 230 – 250V a.c. 50Hz |
| Standby Wattage | <0.05W |
| Operating Load (all channels combined) | 2500W total (max) |
| Switched Poles | Active |
| IP Rating | IP54 |
| Terminal Size | 6mm² (can fit up to 3 x 2.5mm² wires per terminal) |
| Colour | Grey |
| Housing Material | Polycarbonate |
| Contact Material | Brass |
| Weight | 190g (2) |

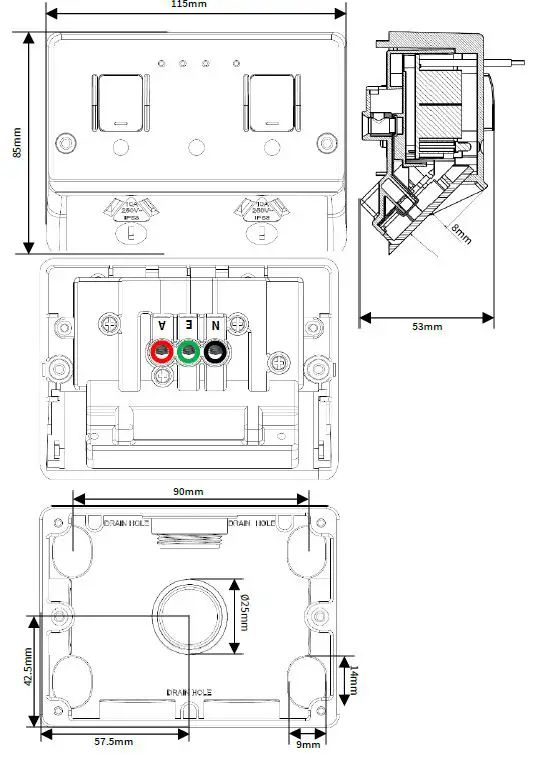

| Dimensions | 85mm x 115mm x 53mm (2) |
| Mounting Centres | 100mm |
| Compliance / Standards | AS/NZS 3100, AS/NZS 3112, AS/NZS 4268, AS/NZS 60669.1, AS/NZS 60669.2.1, CISPR 14, CISPR 32 |
- Does not fit shallow mounting boxes due to product depth
- Excluding supplied mounting box
Included Accessories
Standard mounting box, Screws to fix to box, Screw caps
This product is valid for 3 years in-home warranty from the date of purchase. Please retain proof of purchase and certificate of compliance from the installation to make a claim. Please visit https://www.mercator.com.au/product-support/warranty for more information. For Mercator Ikuü contractor or end consumer support please visit www.ikuu.com.au or contact our customer service team on 1300 552 255 or via email at [email protected]
