45 Amp Double Pole Switches
Owner’s Manual
Brief product description
The subtle design will blend with any décor – suitable for domestic or commercial installations.
Features
- White moulded round edge, sleek and slim with softly rounded edges
- Easy to install, supplied with fixing screws and installation instructions
- Colour coded terminals with backed out captive screws for fast installation
- Double pole for peace of mind and safer installation
- Twin earth for high integrity circuits
- Flush LED power indicator on 872 & 874
- Screw cover caps for a sleek appearance
- Anti-microbial certified – manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria

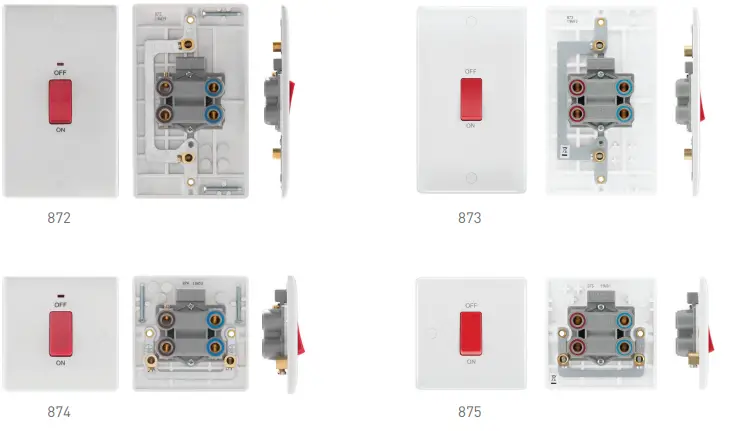

Product Images
Technical Specifications
| Standard(s) | BS EN 60669-1 |
| Rating | 45 Amp 250V AC |
| Switch Type | Double pole |
| Terminal Capacity | 4 x 4.0mm² 3 x 6.0mm² 1 x 16.0mm² |
| RoHS Directive | Yes |
| WEEE Directive | Yes |
| Mounting Box Depth (Min) | 47mm |
| Fixing Centres | 60.3mm (874, 875 products) |
120.6mm vetical (872, 873 products)

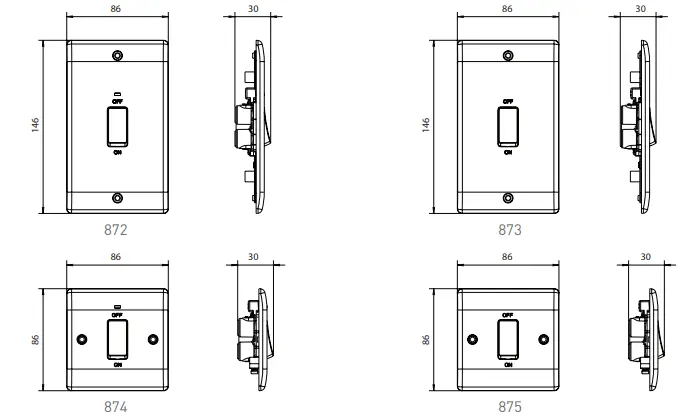

Line Diagrams
| Cat No. | Description | Packaging Type | Pack Quantity | Barcode | ||||||
| Product | Inner Box | Outer Box | Each | Inner Box | Outer Box | Individual | Inner Box | Outer Box | ||
| 872 | DP RECT SW + LED | Printed Bag | Printed Carton | Printed Carton | 1 | 5 | 50 | 5050765001816 | 5050765001823 | 5050765001830 |
| 873 | DP RECT SW | Printed Bag | Printed Carton | Printed Carton | 1 | 5 | 50 | 5050765001847 | 5050765001854 | 5050765001861 |
| 874 | DP SQUARE SW + LED | Printed Bag | Printed Carton | Printed Carton | 1 | 10 | 100 | 5050765001878 | 5050765001885 | 5050765001892 |
| 875 | DP SQUARE SW | Printed Bag | Printed Carton | Printed Carton | 1 | 10 | 100 | 5050765001908 | 5050765001915 | 5050765001922 |
Weights & Dimensions
| Cat No. | Description | Dimensions (H x W x D) cm | Weight (kg) | CBM (m3) | ||||||
| Unpacked Product | Packed Product | Inner Box | Outer Box | Unpacked Product | Packed Product | Inner Box | Outer Box | Outer Box | ||
| 872 | DP RECT SW + LED | 14.6 X 8.6 X 3.0 | 23 X 11 X 3.2 | 9.5 X 15.2 X 14.7 | 16.6 X 48.8 X 31 | 0.078 | 0.083 | 0.91 | 9.41 | 0.02511 |
| 873 | DP RECT SW | 14.6 X 8.6 X 3.0 | 23 X 11 X 3.2 | 9.5 X 15.2 X 14.7 | 16.6 X 48.8 X 31 | 0.078 | 0.083 | 0.91 | 9.41 | 0.02511 |
| 874 | DP SQUARE SW + LED | 8.6 X 8.6 X 3.0 | 16.5 X 11 X 3.2 | 9.5 X 15.2 X 14.7 | 19.6 X 48.8 X 30.8 | 0.078 | 0.082 | 1.34 | 13.73 | 0.02946 |
| 875 | DP SQUARE SW | 8.6 X 8.6 X 3.0 | 16.5 X 11 X 3.2 | 9.5 X 15.2 X 14.7 | 19.6 X 48.8 X 30.8 | 0.078 | 0.082 | 1.34 | 13.73 | 0.02946 |
