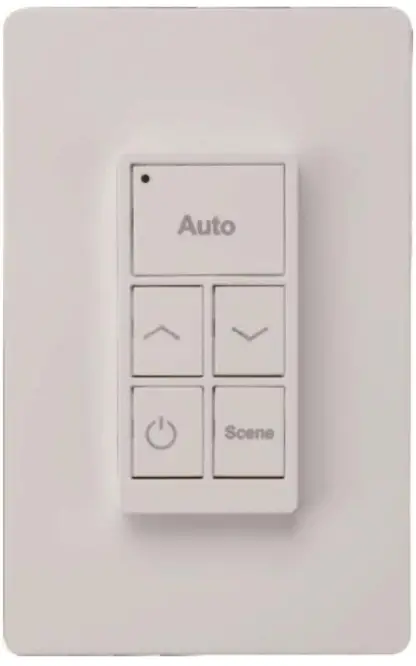

5 Key Battery Powered Wall Switch
Dimmer Switch / Keypad & 5 Button Bluetooth: Wall Switch
ORDER CODE: 11808
MODEL NUMBER: ECWSBP
PRODUCT DESCRIPTION
Bluetooth® Mesh Wireless Battery Powered Wall Switch for EarthConnect system.
PRODUCT FEATURES
+ Commissioned via EarthConnect mobile app for iPhone and Android
+ Designed for installation in standard wall boxes
+ Operates on 2x CR2032 coin cell batteries

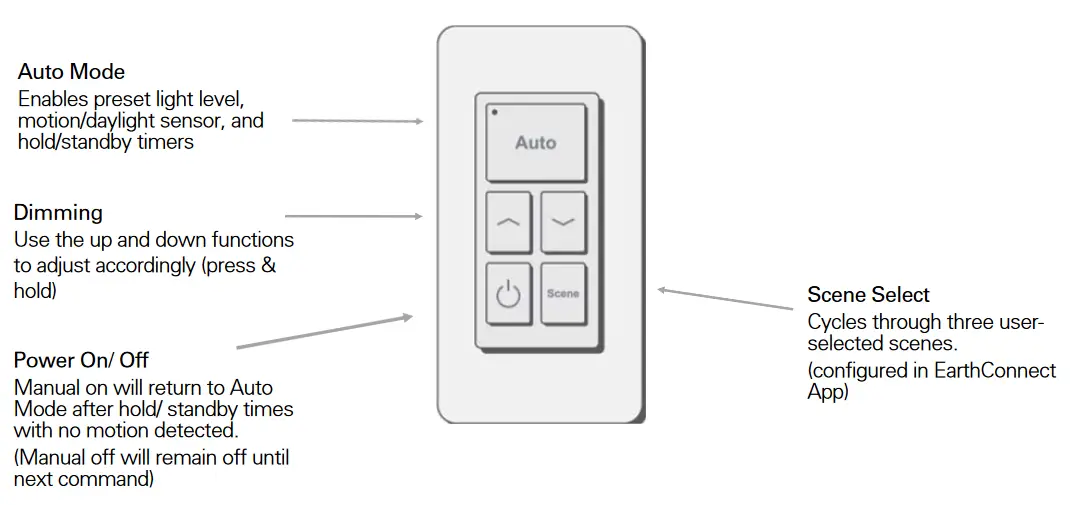

+ 5 buttons allow for dimming, toggling power, automatic sensor/preset level operation, and scene activation
+ Utilizes Bluetooth® mesh technology for reliable and secure wireless communication
+ Indicator LED communicates device status
+ Easily commissioned to control groups or individual luminaires
QUICK USER GUIDE
Specifications
ELECTRICAL
Input Power: 2 x CR2032 coin cell batteries
Battery Lifetime: 5 years
RF Transmit Power: 8dBm
Wireless Frequency: 2 4GHz
Wireless Range (Open Air): 90m
Wireless Protocol: Bluetooth® 4.2
ENVIRONMENTAL Operating Temp. Range: -40°F (-40°C) to 131°F (55°C)
Storage Temp. Range: 0°C / 32°F to 30°C / 86°F
Humidity: 5-90%
Moisture & Dust Rating: IP20
FCC: Part 15.247
* Please consult installation instructions for proper application and use of this product.
PRODUCT DIMENSIONS
Mounting: standard wallbox
Height: 4.11″ inches
Width: 1.77″ inches
Depth: 1.29″ inches
Weight: 1.5 oz. / 0.094 lbs
Case Material: Plastic
UPC: 840791118085
Norton Shores, Michigan 49441
T: 231.332.1188 | F: 231.726.5029
TOLL FREE: 866.632.7840
www.earthtronics.com
LEARN MORE: EarthConnect
www.earthtronics.com/earthconnect
EarthTronics, Inc. I Norton Shores, MI 49441 | www.earthtronics.com | Email: [email protected]
Toll Free: 866.632.7840
Rev. 4.27.23 I EC11808
